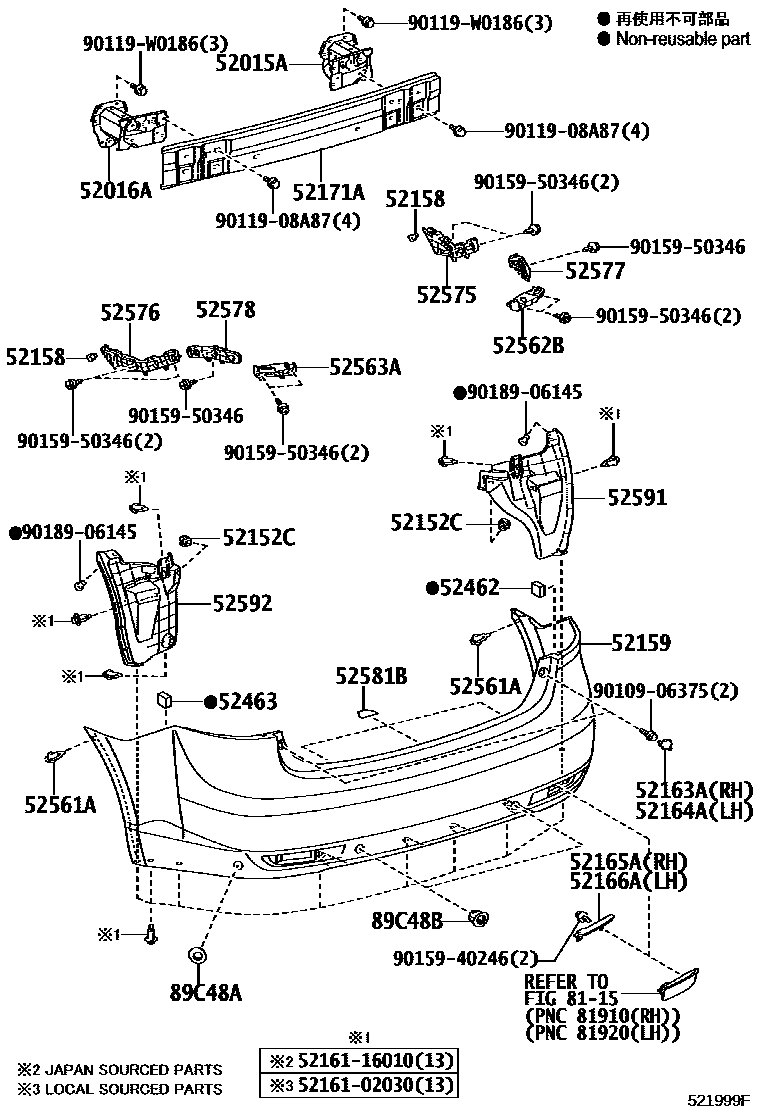

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-05030iADT27#,ZRT27#..SED201111-201505

main52015-05040iWWT27#,ZRT27#..WG201505

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-05030iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111

main52016-05040iWWT27#,ZRT27#..WG201505

52152CCLIP, REAR BUMPER SIDE

main90467-06121×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201105

main90467-06206-C0×2iADT27#,ZRT27#201105-201111

BLACK

52158BRACKET, REAR BUMPER

main52197-05020×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

52159COVER, REAR BUMPER

main52159-05905iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

PAINT REQ.

main52159-05907iADT27#,ZRT27#..WG201111-201505

PAINT REQ.

main52159-05910iADT27#,ZRT27#..SED201111-201505

PAINT REQ.

main52159-05911iWWT27#,ZRT27#..WG201505

PAINT REQ.

main52159-05912iWWT27#,ZRT27#..SED201505

PAINT REQ.

main52159-05906iADT270..LHD..F200811-201104

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52159-05908iADT27#,ZRT27#..WG..(E,G,V)200811-201111

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52159-05909iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

52163APLATE, REAR BUMPER, RH

main52163-05902iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main52163-05903iADT27#,ZRT27#..WG; ADT27#,ZRT27#..WG..(E,G,V)200811-201111

CLEARANCE & BACK SONAR-WITH

52164APLATE, REAR BUMPER, LH

main52164-05901iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main52164-05902iADT27#,ZRT27#..WG; ADT27#,ZRT27#..WG..(E,G,V)200811-201111

CLEARANCE & BACK SONAR-WITH

52165ACOVER, REAR BUMPER, UPR RH

main52165-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

NO PAINT REQ.

main52165-05020iADT27#,ZRT27#..SED201111-201505

NO PAINT REQ.

52166ACOVER, REAR BUMPER, UPR LH

main52166-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

NO PAINT REQ.

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-02080iADT27#,ZRT27#201111-201312

52462PAD, REAR BUMPER, RH

main52462-05010iADT27#,ZRT27#..WG201111-201505

main52462-05020iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111

main52462-05030iADT27#,ZRT27#..SED201111-201505

main52462-05040iWWT27#,ZRT27#..SED201505

52463PAD, REAR BUMPER, LH

main52462-05010iWWT27#,ZRT27#..WG201505

main52462-05020iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111

main52462-05030iADT27#,ZRT27#..SED201111-201505

main52462-05040iWWT27#,ZRT27#..SED201505

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1×2iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

DK.GRAY

main90467-05170×2iWWT27#,ZRT27#201505

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main52562-05040iADT27#,ZRT27#..WG200811-201111

main52562-05050iADT27#,ZRT27#..SED201111-201505

main52562-05060iWWT27#,ZRT27#..SED201505-201510

main52562-05061iWWT27#,ZRT27#..SED201511

main52562-05070iWWT27#,ZRT27#..WG201505-201510

main52562-05071iWWT27#,ZRT27#..WG201511

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-05030iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111

main52563-05040iADT27#,ZRT27#..WG201111-201505

main52563-05050iADT27#,ZRT27#..SED201111-201505

main52563-05060iWWT27#,ZRT27#..SED201505-201510

main52563-05061iWWT27#,ZRT27#..SED201511

main52563-05070iWWT27#,ZRT27#..WG201505-201510

main52563-05071iWWT27#,ZRT27#..WG201511

52575RETAINER, REAR BUMPER SIDE, RH

main52575-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main52575-05041iADT27#,ZRT27#..SED201410-201505

main52575-05060iADT27#,ZRT27#..WG200811-201111

main52575-05061iADT27#,ZRT27#..WG201410-201505

52576RETAINER, REAR BUMPER SIDE, LH

main52576-05040iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111

main52576-05041iWWT27#,ZRT27#..SED201505

main52576-05060iADT27#,ZRT27#..WG201111-201409

main52576-05061iADT27#,ZRT27#..WG201410-201505

52577RETAINER, REAR BUMPER SIDE, NO.2 RH

main52577-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main52577-05020iADT27#,ZRT27#..WG201111-201505

main52577-05030iADT27#,ZRT27#..SED201111-201505

main52577-05040iWWT27#,ZRT27#..SED201505

main52577-05050iWWT27#,ZRT27#..WG201505

52578RETAINER, REAR BUMPER SIDE, NO.2 LH

main52578-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main52578-05020iADT27#,ZRT27#..WG200811-201111

main52578-05030iADT27#,ZRT27#..SED201111-201505

main52578-05040iWWT27#,ZRT27#..SED201505

main52578-05050iWWT27#,ZRT27#..WG201505

52581BPROTECTOR, REAR BUMPER

main52581-02020×3iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

52591SEAL, REAR BUMPER SIDE, RH

main52591-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

52592SEAL, REAR BUMPER SIDE, LH

main52592-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

8115REFLEX REFLECTOR

→ Go to FIG 81-15

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-02010-A0×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040

main89348-02010-A1×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201302-201505

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070

main89348-02010-B0×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7

main89348-02010-B1×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3

main89348-02010-B2×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6

main89348-02010-B3×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2

main89348-02010-C0×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,BLACK MC.,209

main89348-02010-D1×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,DK RED MC,3Q7

main89348-02010-E0×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201402-201505

CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8

main89348-02010-G0×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201302

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7

main89348-02010-J1×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201402

CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6

main89348-02010-J4×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5

main89348-05031-A0iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,RH

main89348-05031-A1iADT27#,ZRT27#..WG..(E,G)201302-201505

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,RH

main89348-05031-B0iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,RH

main89348-05031-B2iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,RH

main89348-05031-B3iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6,RH

main89348-05031-B4iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)201006-201111

CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2,RH

main89348-05031-C0iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,BLACK MC.,1G3 ,209,RH

main89348-05031-D0iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3,RH

main89348-05031-D1iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,DK RED MC,3Q7,RH

main89348-05031-E0iADT27#,ZRT27#..WG..(E,G)201402-201505

CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8,RH

main89348-05031-G1iADT27#,ZRT27#..WG..(E,G)201111-201302

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7,RH

main89348-05031-J0iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6,RH

main89348-05031-J1iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5,RH

main89348-05031-K0iZRT271..WG..6F..E;ZRT270,271..SED..E;ZRT271..LHD..WG..CVT..E;ADT27#,ZRT272..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.PURPLE,9AK,RH

main89348-05051-A0iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,LH

main89348-05051-A1iADT27#,ZRT27#..WG..(E,G)201302-201505

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,LH

main89348-05051-B0iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,LH

main89348-05051-B2iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,LH

main89348-05051-B3iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6,LH

main89348-05051-B4iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)201006-201111

CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2,LH

main89348-05051-C0iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,BLACK MC.,1G3 ,209,LH

main89348-05051-D0iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3,LH

main89348-05051-D1iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,DK RED MC,3Q7,LH

main89348-05051-E0iADT27#,ZRT27#..WG..(E,G)201402-201505

CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8,LH

main89348-05051-G1iADT27#,ZRT27#..WG..(E,G)201111-201302

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7,LH

main89348-05051-J0iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6,LH

main89348-05051-J1iADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5,LH

main89348-05051-K0iZRT271..WG..6F..E;ZRT270,271..SED..E;ZRT271..LHD..WG..CVT..E;ADT27#,ZRT272..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.PURPLE,9AK,LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-02010-A0×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040

main89348-02010-A1×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201302-201505

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070

main89348-02010-B0×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7

main89348-02010-B1×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3

main89348-02010-B2×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6

main89348-02010-B3×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2

main89348-02010-C0×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,BLACK MC.,209

main89348-02010-D1×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,DK RED MC,3Q7

main89348-02010-E0×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201402-201505

CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8

main89348-02010-G0×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201302

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7

main89348-02010-J1×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201402

CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6

main89348-02010-J4×2iADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM)201111-201505

CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5

main89348-05011-A0×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040

main89348-05011-B2×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7

main89348-05011-B3×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6

main89348-05011-B4×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)201006-201111

CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2

main89348-05011-C0×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,BLACK MC.,1G3 ,209

main89348-05011-D0×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3

main89348-05011-G1×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7

main89348-05011-J0×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6

main89348-05011-J1×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5

main89348-05011-K0×2iADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.PURPLE,9AK

main89348-05071-A0×2iADT27#,ZRT27#..WG..(E,G,V)200811-201111

CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040

main89348-05071-A1×2iADT27#,ZRT27#..WG..(E,G)201302-201505

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070

main89348-05071-B0×2iADT27#,ZRT27#..WG..(E,G,V)200811-201111

CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7

main89348-05071-B1×2iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3

main89348-05071-B2×2iADT27#,ZRT27#..WG..(E,G,V)200811-201111

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6

main89348-05071-B3×2iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2

main89348-05071-C0×2iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,BLACK MC.,209

main89348-05071-D0×2iADT27#,ZRT27#..WG..(E,G,V)200811-201111

CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3

main89348-05071-D1×2iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,DK RED MC,3Q7

main89348-05071-E0×2iADT27#,ZRT27#..WG..(E,G)201402-201505

CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8

main89348-05071-G0×2iADT27#,ZRT27#..WG..(E,G,V)200811-201111

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7

main89348-05071-J0×2iADT27#,ZRT27#..WG..(E,G,V)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6

main89348-05071-J1×2iADT27#,ZRT27#..WG..(E,G)201111-201505

CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5

main89348-05071-K0×2iZRT271..WG..6F..E;ZRT271..LHD..WG..CVT..E;ADT27#,ZRT272..WG..(E,G,V)200811-201111

CLEARANCE & BACK SONAR-WITH,DK.PURPLE,9AK

5216102030CUSHION, REAR BUMPER GUARD, NO.1

main52161-02030

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010906375

main90109-06375

9011908A87

main90119-08A87

90119W0186

main90119-W0186

9015940246

main90159-40246

9015950346

main90159-50346

9018906145

main90189-06145

33 parts on this diagram · 5 diagrams in section
