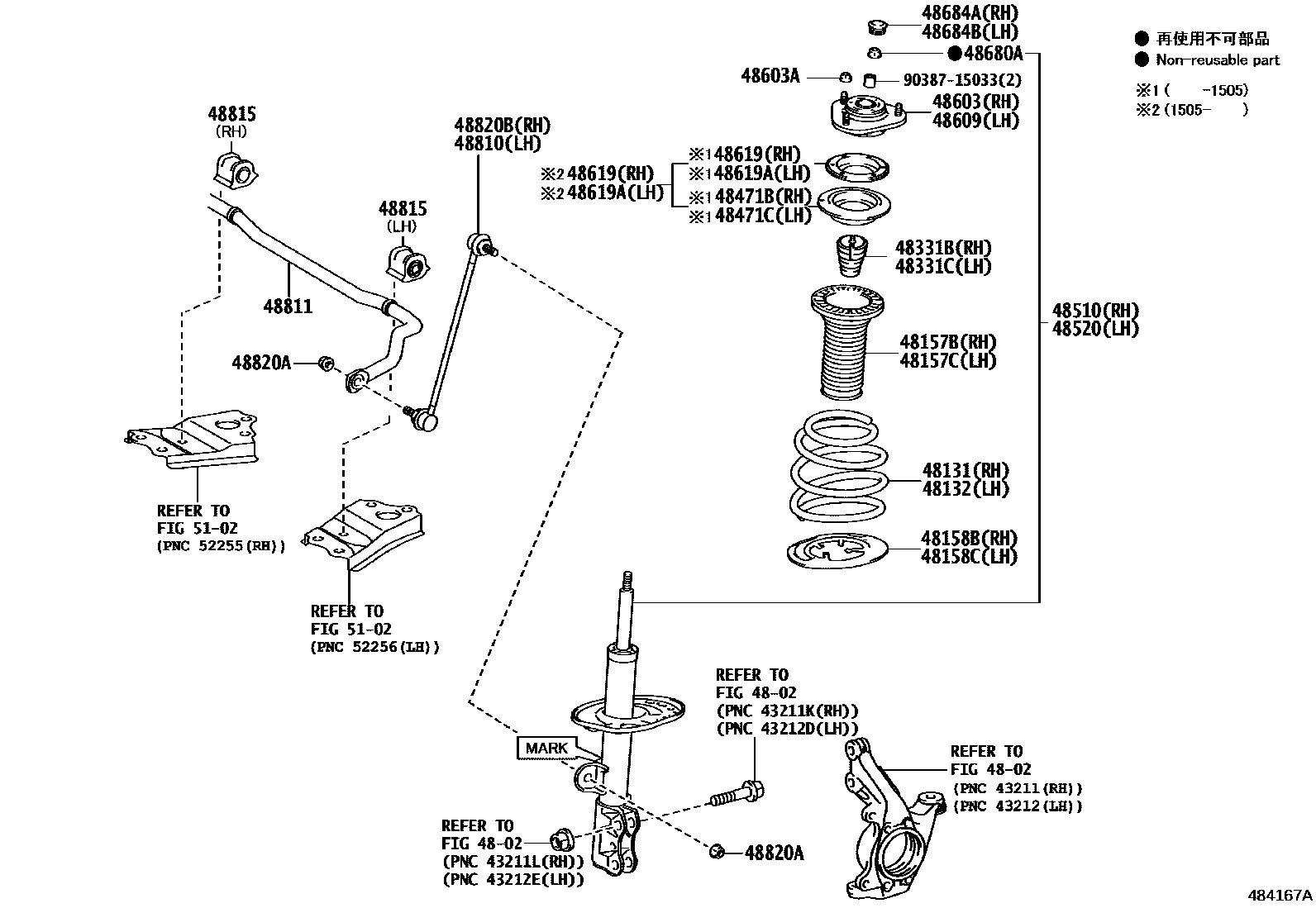

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-05860iZRT270,271..LHD..6F200903-201111

(L)

main48131-05860iZRT270,271..6F200811-201505

main48131-05A00iZRT272..6F;ZRT271..CVT200811-201505

main48131-05A00iZRT272..LHD..6F;ZRT271..LHD..CVT200903-201111

(L)

main48131-05A10iZRT272..ATM,CVT200811-201505

main48131-05A10iZRT272..LHD..(ATM,CVT)200903-201111

(L)

main48131-05A20iADT270..LHD200903-200908

(L)

sub48131-05B80

main48131-05A20iADT270..LHD200811-200903

sub48131-05B80

main48131-05A30iADT271..LHD200903-200908

(L)

sub48131-05B90

main48131-05A30iADT271..LHD200811-200903

sub48131-05B90

main48131-05A50iZRT270,271..RHD..6F200811-200903

main48131-05A50iZRT270,271..RHD..6F200903-201111

(L)

main48131-05A90iZRT272..RHD..6F;ZRT271..RHD..CVT200811-200903

main48131-05A90iZRT271..RHD..CVT;ZRT272..RHD..6F..HTWVM200903-201111

(L)

main48131-05B00iZRT272..RHD..CVT200903-201111

(L)

main48131-05B00iZRT272..RHD..(ATM,CVT)200811-200903

main48131-05B10iADT270..RHD200811-200903

main48131-05B10iADT270..RHD200903-201111

(L)

main48131-05B20iADT271..RHD200811-200903

main48131-05B20iADT271..RHD200903-201111

(L)

main48131-05B80iADT270..LHD..F200909-201505

main48131-05B90iADT271200909-201505

main48131-05C00iZRT270,271..6F201505-201702

sub48131-05C01

main48131-05C01iZRT270,271..6F201703

main48131-05C10iZRT271,272..ATM,CVT201505-201702

sub48131-05C11

main48131-05C11iZRT271,272..ATM,CVT201703

main48131-05C30iWWT27#201505-201702

sub48131-05C31

main48131-05C31iWWT27#201703

main48131-20A10iZRT270,271..LHD..6F200903-200906

(J)

sub48131-05860

main48131-20A20iZRT272..LHD..6F;ZRT271..LHD..CVT200903-200906

(J)

sub48131-05A00

main48131-20A30iZRT272..LHD..(ATM,CVT)200903-200906

(J)

sub48131-05A10

main48131-20A40iADT270..LHD200903-200909

(J)

sub48131-05B80

main48131-20A50iADT271..LHD200903-200909

(J)

sub48131-05B90

main48131-20A60iZRT270,271..RHD..6F200903-200906

(J)

sub48131-05A50

main48131-20A70iZRT272..RHD..6F;ZRT271..RHD..CVT200903-200906

(J)

sub48131-05A90

main48131-20A80iZRT272..RHD..(ATM,CVT)200903-200906

(J)

sub48131-05B00

main48131-20A90iADT270..RHD200903-200906

(J)

sub48131-05B10

main48131-20B00iADT271..RHD200903-200906

(J)

48132SPRING, FRONT COIL, LH

main48131-05860iZRT270,271..LHD..6F200811-201505

main48131-05860iZRT270,271..LHD..6F200903-201111

(L)

main48131-05A00iZRT272..LHD..6F;ZRT271..LHD..CVT200903-201111

(L)

main48131-05A00iZRT272..LHD..6F;ZRT271..LHD..CVT200811-201505

main48131-05A10iZRT272..ATM,CVT200811-201505

main48131-05A10iZRT272..LHD..(ATM,CVT)200903-201111

(L)

main48131-05A20iADT270..LHD200903-200908

(L)

sub48131-05B80

main48131-05A20iADT270..LHD200811-200903

sub48131-05B80

main48131-05A30iADT271..LHD200903-200908

(L)

sub48131-05B90

main48131-05A30iADT271..LHD200811-200903

sub48131-05B90

main48131-05A50iZRT270,271..RHD..6F200811-200903

main48131-05A50iZRT270,271..RHD..6F200903-201111

(L)

main48131-05A90iZRT272..RHD..6F;ZRT271..RHD..CVT200811-200903

main48131-05A90iZRT271..RHD..CVT;ZRT272..RHD..6F..HTWVM200903-201111

(L)

main48131-05B00iZRT272..RHD..(ATM,CVT)200811-200903

main48131-05B00iZRT272..RHD..CVT200903-201111

(L)

main48131-05B10iADT270..RHD200811-200903

main48131-05B10iADT270..RHD200903-201111

(L)

main48131-05B20iADT271..RHD200903-201111

(L)

main48131-05B20iADT271..RHD200811-200903

main48131-05B80iADT270200909-201505

main48131-05B90iADT271200909-201505

main48131-05C00iZRT270,271..6F201505-201702

sub48131-05C01

main48131-05C01iZRT270,271..6F201703

main48131-05C10iZRT271,272..ATM,CVT201505-201702

sub48131-05C11

main48131-05C11iZRT271,272..ATM,CVT201703

main48131-05C30iWWT27#201505-201702

sub48131-05C31

main48131-05C31iWWT27#201703

main48131-20A10iZRT270,271..LHD..6F200903-200906

(J)

sub48131-05860

main48131-20A20iZRT272..LHD..6F;ZRT271..LHD..CVT200903-200906

(J)

sub48131-05A00

main48131-20A30iZRT272..LHD..(ATM,CVT)200903-200906

(J)

sub48131-05A10

main48131-20A40iADT270..LHD200903-200909

(J)

sub48131-05B80

main48131-20A50iADT271..LHD200903-200909

(J)

sub48131-05B90

main48131-20A60iZRT270,271..RHD..6F200903-200906

(J)

sub48131-05A50

main48131-20A70iZRT272..RHD..6F;ZRT271..RHD..CVT200903-200906

(J)

sub48131-05A90

main48131-20A80iZRT272..RHD..(ATM,CVT)200903-200906

(J)

sub48131-05B00

main48131-20A90iADT270..RHD200903-200906

(J)

sub48131-05B10

main48131-20B00iADT271..RHD200903-200906

(J)

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-05020iWWT27#,ZRT27#200811-201505

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48331BBUMPER, FRONT SPRING, RH

main48331-05060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48331CBUMPER, FRONT SPRING, LH

main48331-05060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-05020iADT27#,ZRT27#200811-201505

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-05020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09V20iADT270200811-201007

MARK 48510-05330

sub48510-09V21

main48510-09V21iADT270201007-201102

MARK 48510-05331

sub48510-8Z228

main48510-09V40iADT271200811-201007

MARK 48510-05370

sub48510-09V41

main48510-09V41iADT271201007-201102

MARK 48510-05371

sub48510-8Z228

main48510-09V50iZRT272..ATM,CVT200811-201007

MARK 48510-05320

sub48510-09V51

main48510-09V51iZRT272..ATM,CVT201007-201102

MARK 48510-05321

sub48510-8Z227

main48510-09V80iZRT270,271;ZRT272..6F200811-201007

MARK 48510-05310

sub48510-09V81

main48510-09V81iZRT270,271;ZRT272..6F201007-201102

MARK 48510-05311

sub48510-8Z226

main48510-8Z031iZRT270,271;ZRT272..6F..HTWVM;ZRT272..LHD..6F..HTWC201102-201111

MARK 48510-05312

sub48510-8Z226

main48510-8Z032iZRT272..RHD..4FC201102-201111

MARK 48510-05322

sub48510-8Z227

main48510-8Z033iADT270..LHD..F201102-201111

MARK 48510-05332

main48510-8Z034iADT271201102-201111

MARK 48510-05372

main48510-8Z041iZRT270,271;ZRT272..6F201111-201505

MARK 48510-05313

sub48510-8Z226

main48510-8Z042iZRT272..ATM,CVT201111-201505

MARK 48510-05323

sub48510-8Z227

main48510-8Z043iADT270201111-201505

MARK 48510-05333

sub48510-8Z228

main48510-8Z044iADT271201111-201505

MARK 48510-05373

sub48510-8Z228

main48510-8Z226iZRT270,271201505

MARK 48510-05380

main48510-8Z227iZRT272201505

MARK 48510-05390

main48510-8Z228iWWT27#201505

MARK 48510-05400

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09N20iADT270200811-201007

MARK 48520-05330

sub48520-09N21

main48520-09N21iADT270201007-201102

MARK 48520-05331

sub48520-8Z093

main48520-09N40iADT271200811-201007

MARK 48520-05370

sub48520-09N41

main48520-09N41iADT271201007-201102

MARK 48520-05371

main48520-09N50iZRT272..ATM,CVT200811-201007

MARK 48520-05320

sub48520-09N51

main48520-09N51iZRT272..ATM,CVT201007-201102

MARK 48520-05321

sub48520-8Z092

main48520-09N80iZRT270,271;ZRT272..6F200811-201007

MARK 48520-05310

sub48520-09N81

main48520-09N81iZRT270,271;ZRT272..6F201007-201102

MARK 48520-05311

sub48520-8Z091

main48520-09V40iZRT270,271;ZRT272..6F..HTWVM;ZRT272..LHD..6F..HTWC201102-201111

MARK 48520-05312

sub48520-8Z091

main48520-09V50iZRT272..CVT;ZRT272..LHD..4FC201102-201111

MARK 48520-05322

sub48520-8Z092

main48520-09V60iADT270..LHD..F201102-201111

MARK 48520-05332

main48520-09V70iADT271201102-201111

MARK 48520-05372

main48520-09W50iZRT270,271;ZRT272..6F201111-201505

MARK 48520-05313

sub48520-8Z091

main48520-09W60iZRT272..ATM,CVT201111-201505

MARK 48520-05323

sub48520-8Z092

main48520-09W70iADT270201111-201505

MARK 48520-05333

sub48520-8Z093

main48520-09W80iADT271201111-201505

MARK 48520-05373

sub48520-8Z093

main48520-8Z091iZRT270,271201505

MARK 48520-05380

main48520-8Z092iZRT272201505

MARK 48520-05390

main48520-8Z093iWWT27#201505

MARK 48520-05400

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-05050iADT27#,ZRT27#200811-200812

sub48609-0F020

main48609-05060iWWT27#,ZRT27#201505

main48609-0F020iADT27#,ZRT27#200812-201012

sub48609-0F021

main48609-0F021iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)201101-201505

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-05050iADT27#,ZRT27#200811-200812

sub48609-0F020

main48609-05060iWWT27#,ZRT27#201505

main48609-0F020iADT27#,ZRT27#200812-201012

sub48609-0F021

main48609-0F021iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)201101-201505

48619BEARING, STRUT MOUNTING, RH

main48619-28010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main48619-42010iWWT27#,ZRT27#201505

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main48619-42010iWWT27#,ZRT27#201505

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02070iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48811BAR, STABILIZER, FRONT

main48811-02200iADT270..LHD..F200811-201505

main48811-05140iZRT272..RHD..HTWC200811-201505

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-05120iADT271;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

RH

main48815-05130iADT271;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

LH

main48815-05160iZRT27#..HTWVM;ZRT272..LHD..HTWC200811-201505

RH

main48815-05170iZRT27#200811-201505

LH

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-W0051iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main90178-W0051iWWT27#,ZRT27#201505

(L)

main94151-21241iWWT27#,ZRT27#201505

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02070iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

5102

9038715033

main90387-15033

28 parts on this diagram · 1 diagram in section
