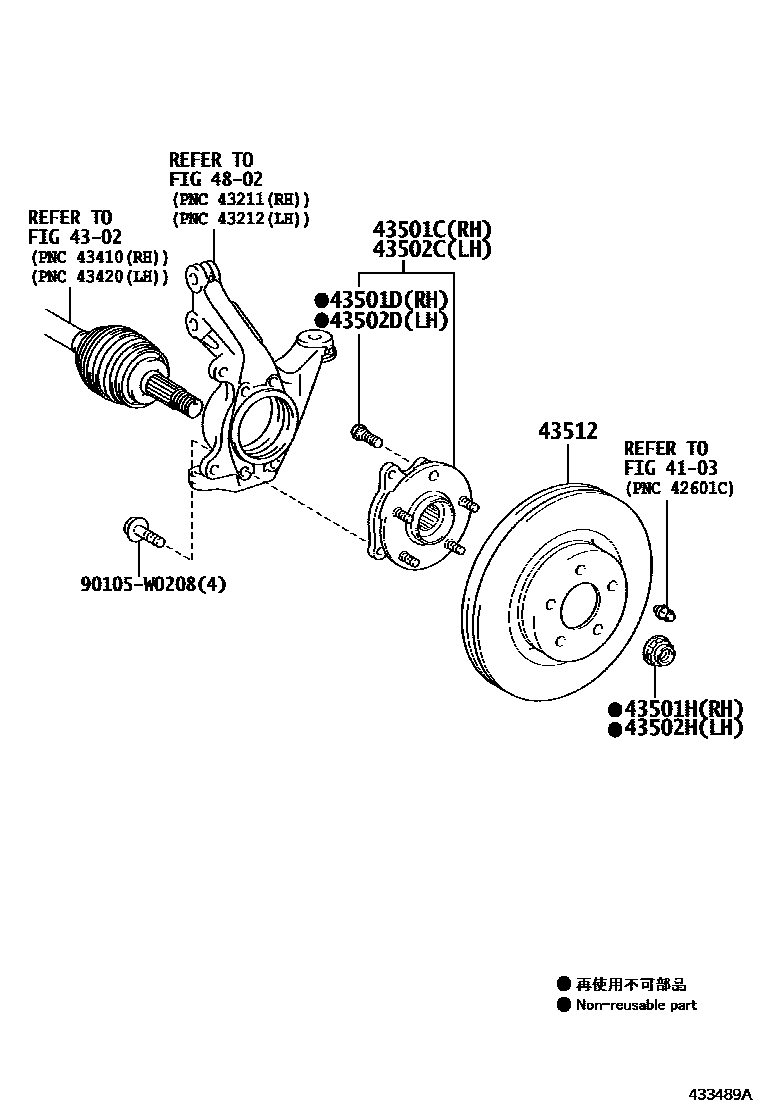

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-02010iZRT27#..HTWVM;ZRT272..LHD..HTWC200811-201111

main43550-02020iADT270..LHD..F200811-201104

main43550-02070iZRT27#201209-201411

main43550-02080iADT27#201209-201411

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-02010iZRT27#201411-201505

main43550-02020iADT27#201111-201209

main43550-02070iZRT27#201209-201411

main43550-02080iADT27#201209-201411

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iADT27#,ZRT27#201111-201505

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

43512DISC, FRONT

main43512-05090×2iADT271201111-201505

main43512-0F030×2iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

90105W0208

main90105-W0208

11 parts on this diagram · 1 diagram in section
