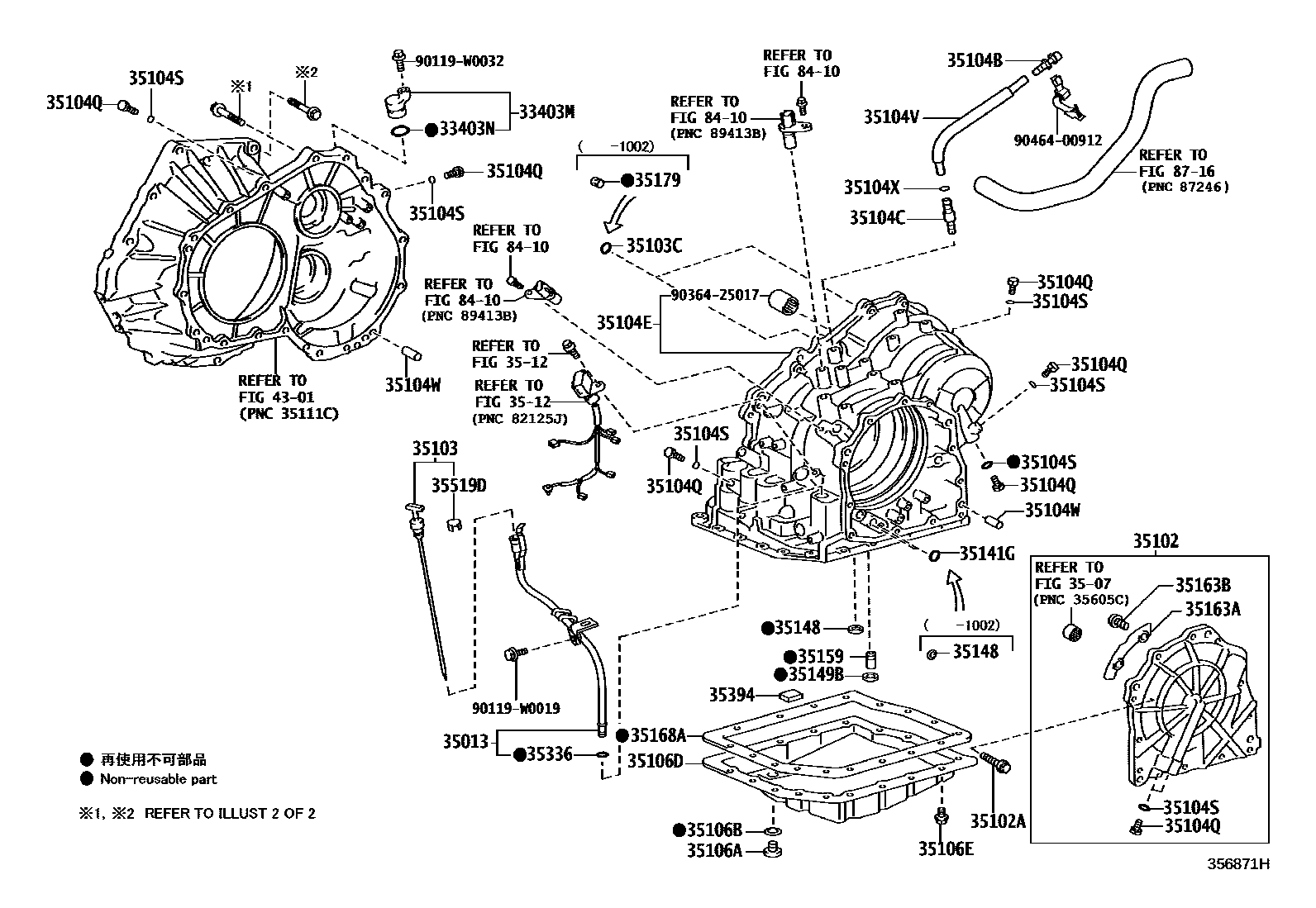

TRANSMISSION CASE & OIL PAN (ATM)
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
3507
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX30-25
*8-1.25PX28-22,NO.1
*8-1.25PX28-22,NO.2
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103CRING, O
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
*345
sub35104-28093
sub35104-33081
sub35422-33040
sub82123-28431
sub82715-44520
sub90105-08066
sub90119-08868
sub90301-19016
sub90301-30007
*344
sub35104-28093
sub35104-33081
sub35422-33040
sub82123-28431
sub82715-44520
sub90105-08066
sub90119-08868
sub90301-19016
sub90301-30007
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104VHOSE (FOR BREATHER PLUG)
35104XRING, O (FOR BREATHER PLUG)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106EBOLT (FOR TRANSAXLE OIL PAN)
3512
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35148GASKET, GOVERNOR APPLY, NO.1
35149BGASKET, TRANSAXLE CASE 2ND BRAKE
35159GASKET, BRAKE DRUM
35163APLATE, TRANSAXLE REAR COVER
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
*345
*344
35179GASKET, OVERDRIVE BRAKE
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
*344
*345
35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION
4301
8410
8716
90119W0019
main90119-W0019
90119W0032
main90119-W0032
9036425017
main90364-25017
9046400912
main90464-00912
39 parts on this diagram · 3 diagrams in section
