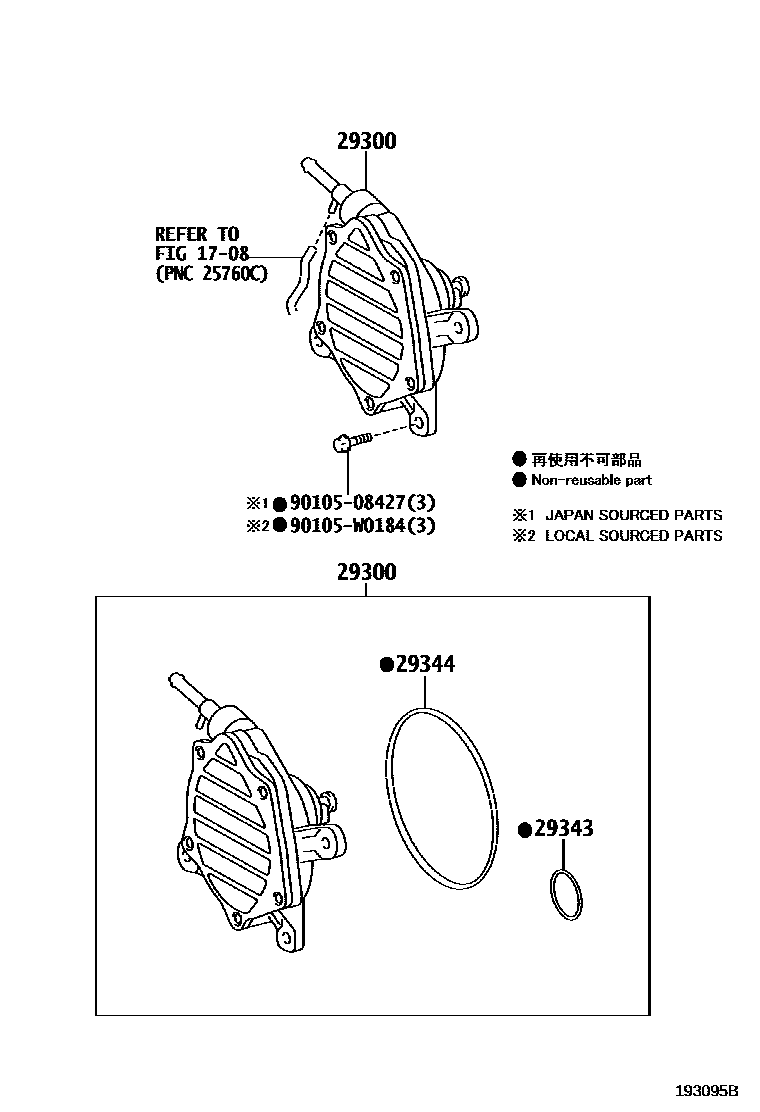

VACUUM PUMP

0001 1 0002 1 0004 1

1708VACUUM PIPING

→ Go to FIG 17-08

29300PUMP ASSY, VACUUM

main29300-0T020i1ZRFAE,2ZRFAE..ZRT270,271201505

main29300-0W022i1ZRFAE,2ZRFAE..ZRT270,271201111-201211

main29300-0W030i1ADFTV,2AD#..ADT27#200811-201111

main29300-0W090i1ADFTV,2AD#..ADT27#201111-201505

main29300-22011i3ZRFAE..ZRT272201111-201203

NO MARK

main29300-37010i3ZRFAE..ZRT272201508-201609

MARK ID:A

main29300-37011i3ZRFAE..ZRT272201610

MARK ID:B

29343RING, O VACUUM PUMP, NO.1

main29343-0N010i3ZRFAE..ZRT272200811-201109

main29343-0W050i1ZRFAE,2ZRFAE..ZRT270,271201707

main29343-22011i3ZRFAE..ZRT272201505

29344RING, O VACUUM PUMP, NO.2

main29344-0W022i3ZRFAE..ZRT272200811-201109

main29344-0W050i1ZRFAE,2ZRFAE..ZRT270,271201707

main29344-22011i3ZRFAE..ZRT272201505

9010508427

main90105-08427

90105W0184

main90105-W0184

6 parts on this diagram · 3 diagrams in section
