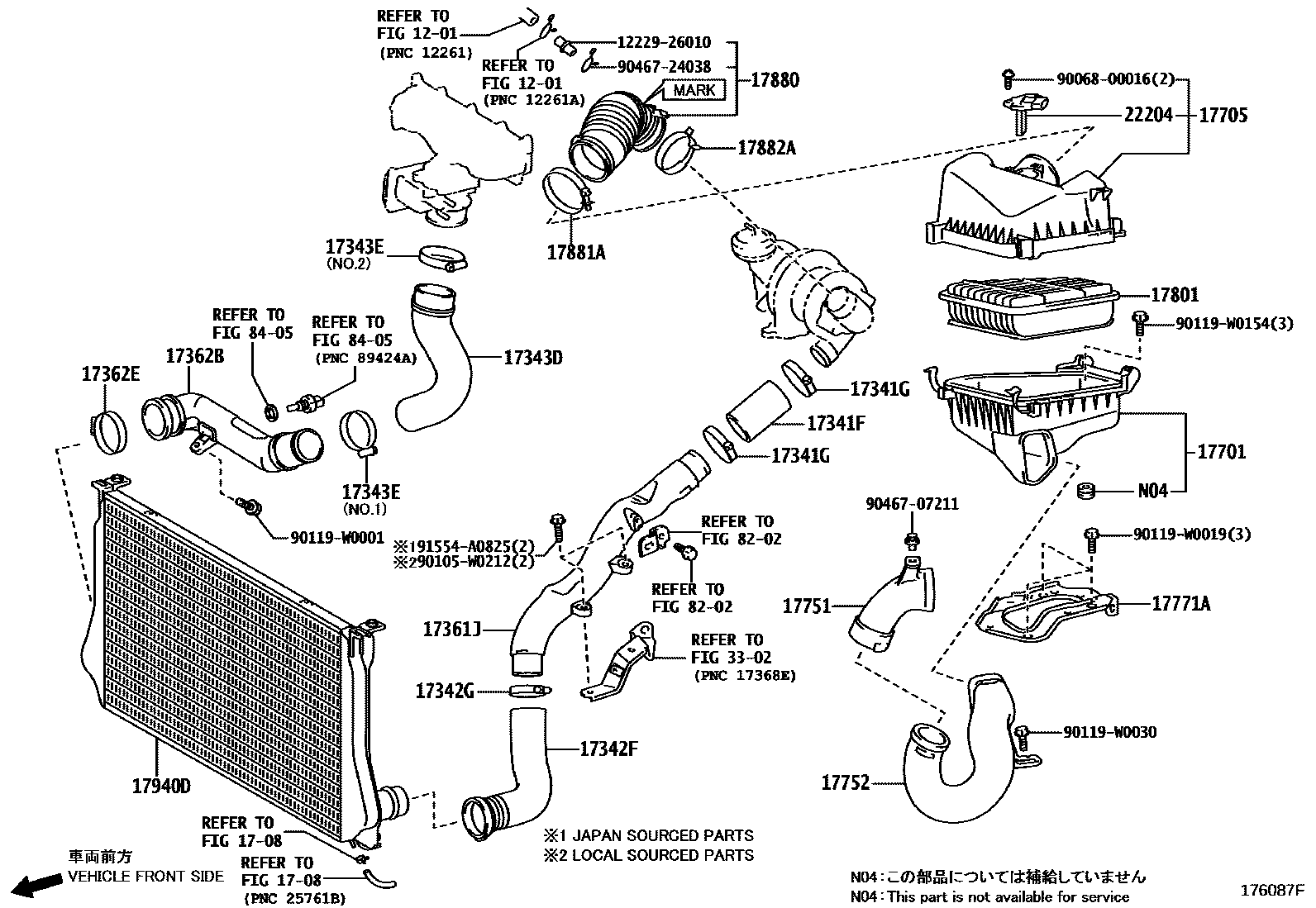

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

1201

1708

17341FHOSE, AIR, NO.1

main17341-0X020i1WW,2WW..WWT27#201505

main17341-26101i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111

17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)

main90460-65012i1ADFTV..ADT270..LHD..F200811-201111

17342FHOSE, AIR, NO.2(FOR INTERCOOLER)

main17342-26110i2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111

main17342-26140i2ADFHV..ADT271..6FC..G200902-201111

17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)

main90460-66001i2ADFHV..ADT271..6FC..V200902-201111

NO.2

main90460-67008i2ADFHV..ADT271..6FC..V200902-201211

NO.1

main90460-70003i2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111

main90460-70003i2ADFHV..ADT271..6FC201211

NO.1

17343DHOSE, AIR, NO.3

main17343-0X010i1WW,2WW..WWT27#201505

main17343-26060i1ADFTV,2AD#..ADT27#..6F200811-201002

sub17343-26090

main17343-26070i2ADFHV..ADT271..6FC200902-201004

sub17343-26100

main17343-26090i1ADFTV,2AD#..ADT27#..6F201002-201111

main17343-26100i2ADFHV..ADT271..6FC201004-201111

17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)

main90460-66001i1WW,2WW..WWT27#201505

NO.1

main90460-73011i1ADFTV,2AD#..ADT27#200811-201111

NO.1

main90460-73012i1WW,2WW..WWT27#201505

NO.2

main90460-77002i1ADFTV,2AD#..ADT27#200811-201111

NO.2

17361JTUBE, AIR, NO.1

main17361-26050i1ADFTV..ADT270..LHD..F200811-201111

main17361-26060i2ADFHV..ADT271..6FC..G200902-201111

17362BTUBE, AIR, NO.2

main17362-0R030i1ADFTV,2AD#..ADT27#200811-201111

17362ECLAMP, NO.2(FOR AIR TUBE, NO.2)

main90460-73012i1ADFTV,2AD#..ADT27#200811-201111

17701CASE SUB-ASSY, AIR CLEANER

main17701-0R020i1ADFTV,2AD#..ADT27#200811-201111

main17701-0T080i3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27#200811-201505

17705CAP SUB-ASSY, AIR CLEANER

main17705-0R040i1ADFTV..ADT270..LHD..F200811-201111

main17705-0T050i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201112

sub17705-0T051

main17705-0T051i1ZRFAE,2ZRFAE,3ZR#..ZRT27#201201-201505

17751INLET, AIR CLEANER, NO.1

main17751-0R040i1ADFTV,2AD#..ADT27#200811-201111

main17751-0X010i1WW..WWT270201505

main17751-37020i3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27#200811-201505

17752INLET, AIR CLEANER, NO.2

main17752-0R010i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111

main17752-37030i3ZRFE..ZRT272..RHD200811-201505

17771ABRACKET, AIR CLEANER

main17771-0R020i2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G200811-201111

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0D060i3ZRFE..ZRT272..RHD200811-201505

main17801-0R030i1ADFTV..ADT270..LHD..F200811-201111

main17801-YV020i1WW,2WW..WWT27#201505

17880HOSE ASSY, AIR CLEANER

main17880-0R030i2ADFHV..ADT271..6FC200902-201111

main17880-0R040i1ADFTV,2AD#..ADT27#..6F200811-201110

MARK 17881-0R020

sub17880-0R050

sub12261-0R030

main17880-0R050i1ADFTV,2AD#..ADT27#..6F201110-201111

MARK 17881-0R040

main17880-0R050i1ADFTV,2AD#..ADT27#..6F201111

main17880-0T060i3ZRFE..ZRT272..RHD200811-201505

main17880-0T070i1ZRFAE,2ZRFAE,3ZRFAE..ZRT27#200811-201505

main17880-YV010i1WW,2WW..WWT27#201505

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i3ZRFE..ZRT272..RHD200811-201505

main96111-10850i2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G200811-201111

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i1ADFTV,2AD#..ADT27#200811-201111

main96111-10780i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

17940DINTERCOOLER ASSY

main17940-0R030i2ADFHV..ADT271..6FC..G200902-201111

main17940-0R040i1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F;2ADFHV..ADT271..LHD..6F..V200811-201111

main17940-0X020i1WW,2WW..WWT27#201505

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i1ZRFAE,2ZRFAE,3ZR#..ZRT27#201201-201505

MARK 22204-0V010

sub22204-0V020

main22204-0V020i1ZRFAE,2ZRFAE,3ZR#..ZRT27#201201-201505

MARK 22204-0V020

main22204-26010i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111

main22204-28010i1ZRFAE,2ZRFAE,3ZR#..ZRT27#201201-201505

MARK 22204-28010

main22204-37010i3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27#200811-201112

sub22204-28010

main22204-YV010i1WW,2WW..WWT27#201505

MARK 22204-0V010

3302

8202

8405

1222926010PIPE, VENTILATION

main12229-26010

9006800016

main90068-00016

90105W0212

main90105-W0212

90119W0001

main90119-W0001

90119W0019

main90119-W0019

90119W0030

main90119-W0030

90119W0154

main90119-W0154

9046707211

main90467-07211

9046724038

main90467-24038

91554A0825

main91554-A0825

35 parts on this diagram · 5 diagrams in section
