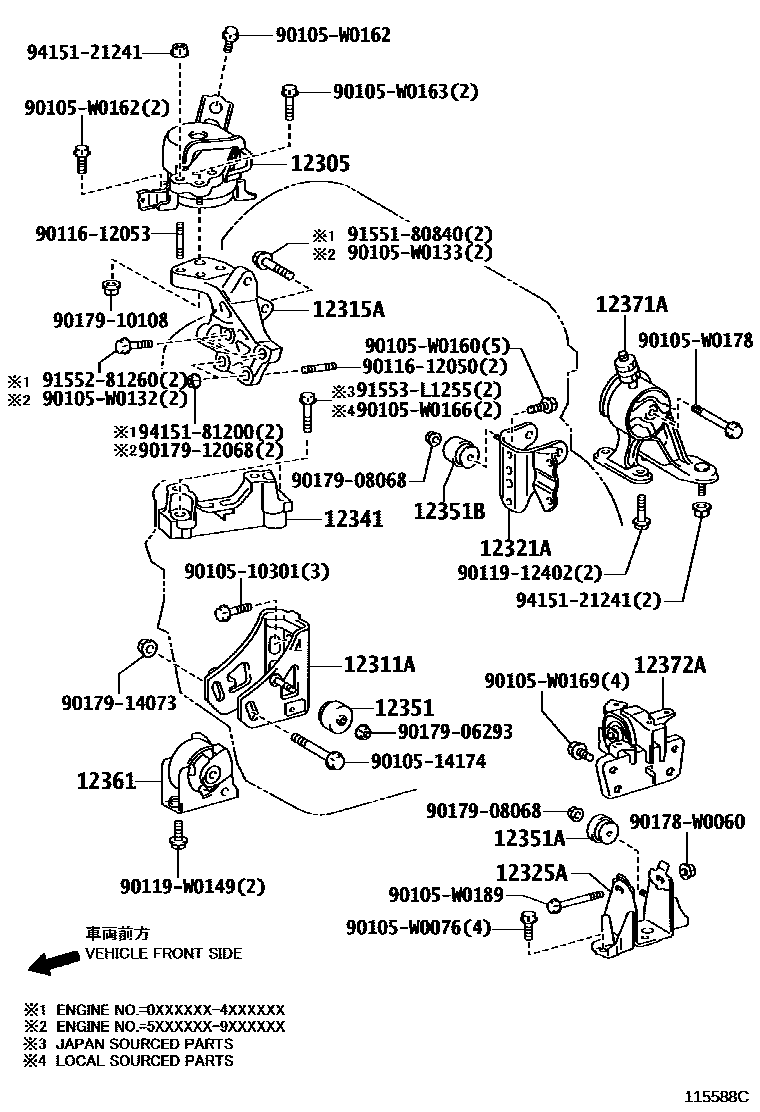

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0R020i1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F;2ADFHV..ADT271..LHD..6F..V200811-201111

main12305-0R030i2ADFHV..ADT271..6FC..G200902-201111

main12305-0T070i1ZRFAE,2ZRFAE..ZRT270,271200811-201505

main12305-0T150i1ZRFAE,2ZRFAE..ZRT270,271201505

main12305-0T290i3ZR#..ZRT272201505

main12305-0X010i1WW,2WW..WWT27#201505

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0R010i1ADFTV..ADT270..LHD..F200811-201111

main12311-0R040i2ADFHV..ADT271..6FC..G200902-201111

main12311-0T090i1ZRFAE,2ZRFAE..ZRT270,271200811-201505

sub12311-37120

main12311-0T100i3ZRFAE..ZRT272..6F200811-201505

main12311-0T110i3ZRFE..ZRT272200811-201505

main12311-0T330i3ZRFAE..ZRT272201505

main12311-0X050i1WW,2WW..WWT27#201505

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0R020i1ADFTV..ADT270..LHD..F200811-201111

*145

main12315-0R020i1ADFTV,2AD#..ADT27#201111

main12315-0X030i1WW,2WW..WWT27#201505-201708

sub12315-53010

main12315-26020i1ADFTV..ADT270..LHD..F200811-201111

*119

main12315-37030i1ZRFAE,2ZRFAE,3ZR#..ZRT27#200811-201505

main12315-53010i1WW,2WW..WWT27#201709

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0R010i1ADFTV..ADT270..LHD..F200811-201512

main12321-0R040i2ADFHV..ADT271..6FC200902-201111

main12321-0T080i1ZRFAE,2ZRFAE..ZRT270,271..6F200811-201505

main12321-0T090i2ZRFAE..ZRT271..CVT200811-201405

sub12321-0T140

main12321-0T100i3ZRFAE..ZRT272..6F200811-201505

main12321-0T110i3ZRFAE..ZRT272..CVT200811-201505

main12321-0T120i3ZRFE..ZRT272200811-201505

main12321-0T140i2ZRFAE..ZRT271..CVT201405-201505

main12321-0T570i3ZRFAE..ZRT272201505

main12321-0X010i1WW,2WW..WWT27#201512

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0R010i1ADFTV,2AD#..ADT27#200811-200902

sub12325-0R050

main12325-0R040i2ADFHV..ADT271..6FC..G200902-201111

main12325-0R050i2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200902-201405

main12325-0T090i1ZRFAE,2ZRFAE..ZRT270,271..6F200811-200902

sub12325-0T140

main12325-0T100i2ZRFAE..ZRT271..CVT200811-201405

sub12325-0T150

main12325-0T110i3ZRFE..ZRT272..RHD..6F200811-201505

main12325-0T120i3ZRFAE..ZRT272..CVT200811-201505

main12325-0T130i3ZRFE..ZRT272200811-201505

main12325-0T140i1ZRFAE,2ZRFAE..ZRT270,271..6F200902-201505

main12325-0T150i2ZRFAE..ZRT271..CVT201405-201505

main12325-0T330i3ZRFAE..ZRT272201505

main12325-0X010i1WW,2WW..WWT27#201505

12341SPACER, ENGINE MOUNTING

main12341-26011i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111

12351DAMPER, ENGINE MOUNTING

main12351-0T090i3ZRFAE..ZRT272..CVT;1ZRFAE,2ZRFAE,3ZRFE..ZRT27#200811-201505

main12351-0T100i2ADFHV..ADT271..6FC..G200902-201111

main12351-0T110i3ZRFAE..ZRT272..6F;3ZRFE..ZRT272..LHD..6F200811-201505

main12351-63010i1ADFTV,2AD#..ADT27#..6F200811-201111

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-0D080i1ZRFAE,2ZRFAE..ZRT270,271200811-201505

main12351-0R010i1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F;2ADFHV..ADT271..LHD..6F..V200811-201405

main12351-0R030i2ADFHV..ADT271..6FC200902-201111

main12351-0T070i3ZRFE..ZRT272200811-201505

12351BDAMPER, ENGINE MOUNTING

main12351-0R010i1ADFTV..ADT270..LHD..F200811-201512

main12351-0T060i3ZRFE..ZRT272200811-201505

main12351-0T070i3ZRFAE..ZRT272..6F200811-201505

main12351-0X010i1WW,2WW..WWT27#201512

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0R040i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0D180i1ZRFAE,2ZRFAE..ZRT270,271..6F200811-201505

main12371-0R050i2ADFHV..ADT271..6FC..V200902-201111

main12371-0R060i1ADFTV..ADT270..LHD..F200811-201111

main12371-0T050i2ZRFAE,3ZRFAE..ZRT271,272..CVT200811-201505

main12371-0T060i3ZRFE..ZRT272200811-201505

main12371-0T070i3ZRFAE..ZRT272..6F;3ZRFE..ZRT272..LHD..6F200811-201505

main12371-0T200i1ZRFAE,2ZRFAE..ZRT270,271..6F201505

main12371-0T210i2ZRFAE..ZRT271..CVT201505

main12371-0X020i1WW,2WW..WWT27#201505

main12371-37400i3ZRFAE..ZRT272201505

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0R030i2ADFHV..ADT271..6FC..G200902-201111

main12372-0R040i1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F;2ADFHV..ADT271..LHD..6F..V200811-201111

main12372-0T080i2ZRFAE..ZRT271..CVT200811-201505

main12372-0T090i3ZRFAE..ZRT272..CVT200811-201505

main12372-0T100i3ZRFE..ZRT272200811-201505

main12372-0T130i3ZRFE..ZRT272..RHD..6F200811-201505

main12372-0T270i1ZRFAE,2ZRFAE..ZRT270,271..6F201505

main12372-0T280i2ZRFAE..ZRT271..CVT201505

main12372-0T540i3ZRFAE..ZRT272201505

main12372-0X010i1WW,2WW..WWT27#201505

9010510301

main90105-10301

9010514174

main90105-14174

90105W0076

main90105-W0076

90105W0132

main90105-W0132

90105W0133

main90105-W0133

90105W0160

main90105-W0160

90105W0162

main90105-W0162

90105W0163

main90105-W0163

90105W0166

main90105-W0166

90105W0169

main90105-W0169

90105W0178

main90105-W0178

90105W0189

main90105-W0189

9011612050

main90116-12050

9011612053

main90116-12053

9011912402

main90119-12402

90119W0149

main90119-W0149

90178W0060

main90178-W0060

9017906293

main90179-06293

9017908068

main90179-08068

9017910108

main90179-10108

9017912068

main90179-12068

9017914073

main90179-14073

9155180840

main91551-80840

9155281260

main91552-81260

91553L1255

main91553-L1255

9415121241

main94151-21241

9415181200

main94151-81200

39 parts on this diagram · 11 diagrams in section
