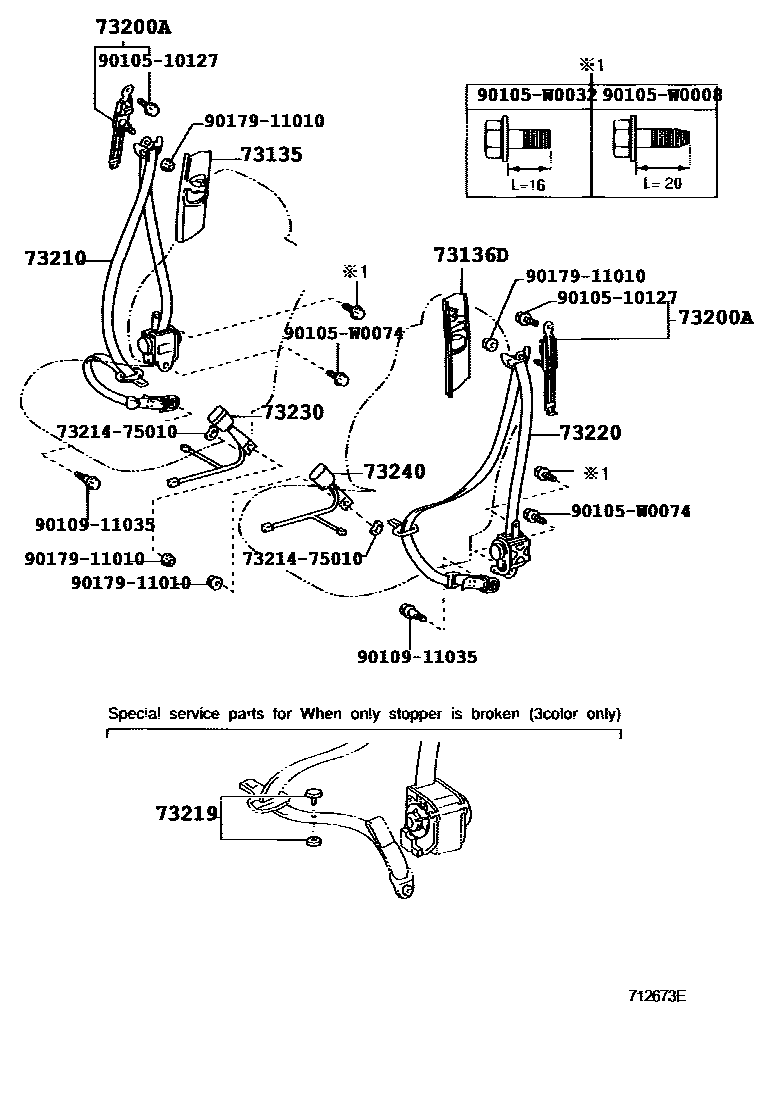

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR 0003 1REAR 0005 1REAR

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73023-05010-A0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT200301-200604

IVORY,TRIM0#

main73023-05010-B0iADT251,AZT25#,CDT250,ZZT25#200301-200604

LT.GRAY,TRIM1#

main73023-05010-E0iZZT251..LHD..TEC;ADT25#,AZT25#,ZZT250..PAG,TEC200604

GREGE,TRIM4#

73136DCOVER, SHOULDER BELT ANCHORAGE PLATE

main73024-05010-A0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT200301-200604

IVORY,TRIM0#

main73024-05010-B0iADT251,AZT25#,CDT250,ZZT25#200301-200604

LT.GRAY,TRIM1#

main73024-05010-E0iZZT251..LHD..TEC;ADT25#,AZT25#,ZZT250..PAG,TEC200604

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-05050-A1iAZT25#,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY200301-200407

IVORY,TRIM0#

sub73210-05051

main73210-05050-C0iAZT25#,CDT250,ZZT25#200301-200407

BLACK,TRIM1#

sub73210-05051

main73210-05051iAZT250..WG..HTWC;CDT250..TEC..DCRL;ZZT251..LHD..4FC..ENTRY;CDT250..LHD..ELEGT..DCRL;AZT250..RHD..(LB,WG)..ELEGT;ZZT251..RHD..LB..4FC..ELEGT;CDT250,ZZT251..RHD..5F..200408-200411

main73210-05051-A1iAZT250..SED..ELEGT;ADT251,AZT251,ZZT250..ELEGT;AZT250..LHD..(LB,WG)..ELEGT..D4;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200408-200604

IVORY,TRIM0#

main73210-05051-C0iADT25#,AZT25#,ZZT25#200408-200604

BLACK,TRIM1#

main73210-05051-E0iZZT251..LHD..TEC;ADT25#,AZT25#,ZZT250..PAG,TEC200604

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iADT251,AZT25#,CDT250,ZZT25#200301-200604

BLACK

main73219-33020iADT25#,AZT25#,ZZT25#200301-200604

GRAY

main73219-33030iADT251,AZT25#,CDT250,ZZT25#200301-200604

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-05050-A1iAZT25#,CDT250,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY200301-200407

IVORY,TRIM0#

sub73220-05051

main73220-05050-C0iAZT25#,CDT250,ZZT25#200301-200407

BLACK,TRIM1#

sub73220-05051

main73220-05051iAZT250..WG..HTWC;CDT250..TEC..DCRL;ZZT251..LHD..4FC..ENTRY;CDT250..LHD..ELEGT..DCRL;AZT250..RHD..(LB,WG)..ELEGT;ZZT251..RHD..LB..4FC..ELEGT;CDT250,ZZT251..RHD..5F..200408-200411

main73220-05051-A1iAZT250..SED..ELEGT;ADT251,AZT251,ZZT250..ELEGT;AZT250..LHD..(LB,WG)..ELEGT..D4;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200408-200604

IVORY,TRIM0#

main73220-05051-C0iAZT250..SED;ZZT251..TEC;ZZT251..5F..ENTRY;ADT251,AZT251,ZZT250;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..E200408-200604

BLACK,TRIM1#

main73220-05051-E0iZZT251..LHD..TEC;ADT25#,AZT25#,ZZT250..PAG,TEC200604

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-05040-A0iAZT25#,CDT250,ZZT251..RHD..ELEGT200301-200409

IVORY,TRIM0#

sub73230-05041

main73230-05040-B0iAZT25#,CDT250,ZZT25#..RHD200301-200409

DK.GRAY,TRIM1#

sub73230-05041

main73230-05041-A0iCDT250..RHD..SED;ADT251,ZZT25#..RHD..SED..ENTRY;CDT250..RHD..(LB,WG)..(ELEGT,TEC);ADT251,AZT25#,ZZT251..RHD..(ELEGT,TEC)200409-200604

IVORY,TRIM0#

main73230-05041-B0iADT25#,AZT25#,ZZT25#..RHD..(ENTRY,TEC)200409-200604

DK.GRAY,TRIM1#

main73230-05041-E0iAZT250..RHD..SED;ADT251,AZT251..RHD..TEC200604

GREGE,TRIM4#

main73230-05050-A0iAZT250..LHD..ELEGT..D4;ZZT251..LHD..SED..4FC..ENTRY;AZT251,CDT250,ZZT25#..LHD..ELEGT200301-200409

IVORY,TRIM0#

sub73230-05051

main73230-05050-B0iAZT250..LHD..D4;AZT251,CDT250,ZZT25#..LHD200301-200409

DK.GRAY,TRIM1#

sub73230-05051

main73230-05051-A0iCDT250,ZZT25#..LHD..SED..(ELEGT,TEC);ADT251,AZT25#..LHD..ELEGT..(D4,DCR,DCRL);CDT250,ZZT25#..LHD..(LB,WG)..(ELEGT,ENTRY);ADT251,AZT25#..LHD..SED..TEC..(D4,DCR,DCRL)200409-200604

IVORY,TRIM0#

main73230-05051-B0iAZT250..LHD..D4;ADT251,AZT251,CDT250,ZZT25#..LHD200409-200604

DK.GRAY,TRIM1#

main73230-05051-B0iAZT250..LHD..D4;ADT25#,AZT251,ZZT25#..LHD..(ENTRY,TEC)200604

FABRIC & MANUAL SEAT,TECHNICAL&WITH(SEAT HEATER)&E FABRIC,DK.GRAY,TRIM1#

main73230-05051-B0iAZT250..LHD..D4;ADT25#,AZT251,ZZT25#..LHD..(ENTRY,TEC)200604

FABRIC & MANUAL SEAT,TECHNICAL&E FABRIC,DK.GRAY,TRIM1#

main73230-05051-E0iAZT250..LHD..D4;ADT25#,AZT251,ZZT25#..LHD..TEC200604

GREGE,TRIM4#

main73230-05061-B0iADT25#,AZT250..RHD..TEC200604

DK.GRAY,TRIM1#

main73230-05061-B0iADT25#,AZT250..RHD..TEC200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main73230-05061-B0iAZT250..RHD..SED;ADT251,AZT251..RHD..TEC200604

LEATHER & POWER SEAT,TECHNICAL,DK.GRAY,TRIM1#

main73230-05061-E0iAZT250..RHD..SED;ADT251,AZT251..RHD..TEC200604

GREGE,TRIM4#

main73230-05061-E0iADT251..RHD..DCRL200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

main73230-05061-E0iADT251..RHD..DCRL200604

LEATHER & POWER SEAT,TECHNICAL,GREGE,TRIM4#

main73230-05071-B0iADT25#,AZT25#..LHD..TEC..(D4,DCR)200604

LEATHER & POWER SEAT,TECHNICAL&WITH(SEAT HEATER),DK.GRAY,TRIM1#

main73230-05071-B0iADT25#,AZT25#..LHD..TEC..(D4,DCR)200604

LEATHER & POWER SEAT,TECHNICAL,DK.GRAY,TRIM1#

main73230-05071-B0iADT25#,AZT25#..LHD..TEC..(D4,DCR)200604

LEATHER & POWER SEAT,ELEGANT&WITH(SEAT HEATER),DK.GRAY,TRIM1#

main73230-05071-B0iADT25#,AZT25#..LHD..TEC..(D4,DCR)200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main73230-05071-B0iADT25#,AZT25#..LHD..TEC..(D4,DCR)200604

DK.GRAY,TRIM1#

main73230-05071-E0iADT25#,AZT25#..LHD..TEC..(D4,DCR)200604

LEATHER & POWER SEAT,TECHNICAL&WITH(SEAT HEATER),GREGE,TRIM4#

main73230-05071-E0iADT251..LHD..DCRL200604

GREGE,TRIM4#

main73230-05071-E0iADT251..LHD..DCRL200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

main73230-05071-E0iADT251..LHD..DCRL200604

LEATHER & POWER SEAT,ELEGANT&WITH(SEAT HEATER),GREGE,TRIM4#

main73230-05071-E0iADT251..LHD..DCRL200604

LEATHER & POWER SEAT,TECHNICAL,GREGE,TRIM4#

main73230-05080-A0iAZT250..WG..ELEGT..HTWC200301-200411

IVORY,TRIM0#

sub73230-05081

main73230-05080-B0iAZT250..WG..HTWC200301-200411

DK.GRAY,TRIM1#

sub73230-05081

main73230-05081-A0iAZT250..SED..ELEGT..HTWC200409-200604

IVORY,TRIM0#

main73230-05081-B0iAZT250..SED..HTWC200409-200604

DK.GRAY,TRIM1#

main73230-05081-E0iAZT250..HTWC200604

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-05040-A0iAZT250..LHD..WG..ELEGT..D4;AZT251,CDT250,ZZT251..LHD..ELEGT;AZT250,ZZT250..LHD..(LB,SED)..ELEGT200301-200411

IVORY,TRIM0#

sub73230-05041

main73230-05040-B0iAZT250..WG..HTWC200301-200411

DK.GRAY,TRIM1#

sub73230-05041

main73230-05041-A0iADT251,AZT251..LHD..ELEGT;AZT250..LHD..WG..ELEGT..D4;AZT250..LHD..(LB,SED)..ELEGT;CDT250,ZZT25#..LHD..SED..(ELEGT,TEC);CDT250,ZZT25#..LHD..(LB,WG)..(ELEGT,ENTRY);AD200409-200604

IVORY,TRIM0#

main73230-05041-B0iADT251..LHD..DCRL200604

FABRIC & MANUAL SEAT,TECHNICAL&E FABRIC,DK.GRAY,TRIM1#

main73230-05041-B0iADT251..LHD..DCRL200409-200604

DK.GRAY,TRIM1#

main73230-05041-B0iADT251..LHD..DCRL200604

FABRIC & MANUAL SEAT,TECHNICAL&WITH(SEAT HEATER)&E FABRIC,DK.GRAY,TRIM1#

main73230-05041-E0iADT25#,AZT25#,ZZT25#..LHD..TEC200604

GREGE,TRIM4#

main73230-05050-A0iAZT25#,CDT250,ZZT251..RHD..ELEGT200301-200409

IVORY,TRIM0#

sub73230-05051

main73230-05050-B0iAZT25#,CDT250,ZZT25#..RHD200301-200409

DK.GRAY,TRIM1#

sub73230-05051

main73230-05051-A0iCDT250..RHD..SED;ADT251,ZZT25#..RHD..SED..ENTRY;CDT250..RHD..(LB,WG)..(ELEGT,TEC);ADT251,AZT25#,ZZT251..RHD..(ELEGT,TEC)200409-200604

IVORY,TRIM0#

main73230-05051-B0iADT25#,AZT25#,ZZT25#..RHD..(ENTRY,TEC)200409-200604

DK.GRAY,TRIM1#

main73230-05051-E0iAZT250..RHD..SED;ADT251,AZT251..RHD..TEC200604

GREGE,TRIM4#

main73230-05061-B0iADT25#,AZT25#..LHD..TEC200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main73230-05061-B0iADT251..LHD..DCRL200604

DK.GRAY,TRIM1#

main73230-05061-B0iADT251..LHD..DCRL200604

LEATHER & POWER SEAT,ELEGANT&WITH(SEAT HEATER),DK.GRAY,TRIM1#

main73230-05061-B0iADT251..LHD..DCRL200604

LEATHER & POWER SEAT,TECHNICAL,DK.GRAY,TRIM1#

main73230-05061-B0iADT251..LHD..DCRL200604

LEATHER & POWER SEAT,TECHNICAL&WITH(SEAT HEATER),DK.GRAY,TRIM1#

main73230-05061-E0iADT251..LHD..DCRL200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

main73230-05061-E0iADT251..LHD..DCRL200604

LEATHER & POWER SEAT,ELEGANT&WITH(SEAT HEATER),GREGE,TRIM4#

main73230-05061-E0iADT251..LHD..DCRL200604

LEATHER & POWER SEAT,TECHNICAL,GREGE,TRIM4#

main73230-05061-E0iADT251..LHD..DCRL200604

GREGE,TRIM4#

main73230-05061-E0iADT251..LHD..DCRL200604

LEATHER & POWER SEAT,TECHNICAL&WITH(SEAT HEATER),GREGE,TRIM4#

main73230-05071-B0iADT251..RHD..DCRL200604

DK.GRAY,TRIM1#

main73230-05071-B0iADT251..RHD..DCRL200604

LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#

main73230-05071-B0iADT251..RHD..DCRL200604

LEATHER & POWER SEAT,TECHNICAL,DK.GRAY,TRIM1#

main73230-05071-E0iAZT250..RHD..SED;ADT251,AZT251..RHD..TEC200604

GREGE,TRIM4#

main73230-05071-E0iADT251..RHD..DCRL200604

LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#

main73230-05071-E0iADT251..RHD..DCRL200604

LEATHER & POWER SEAT,TECHNICAL,GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510127

main90105-10127

90105W0008

main90105-W0008

90105W0032

main90105-W0032

90105W0074

main90105-W0074

9010911035

main90109-11035

9017911010

main90179-11010

15 parts on this diagram · 4 diagrams in section
