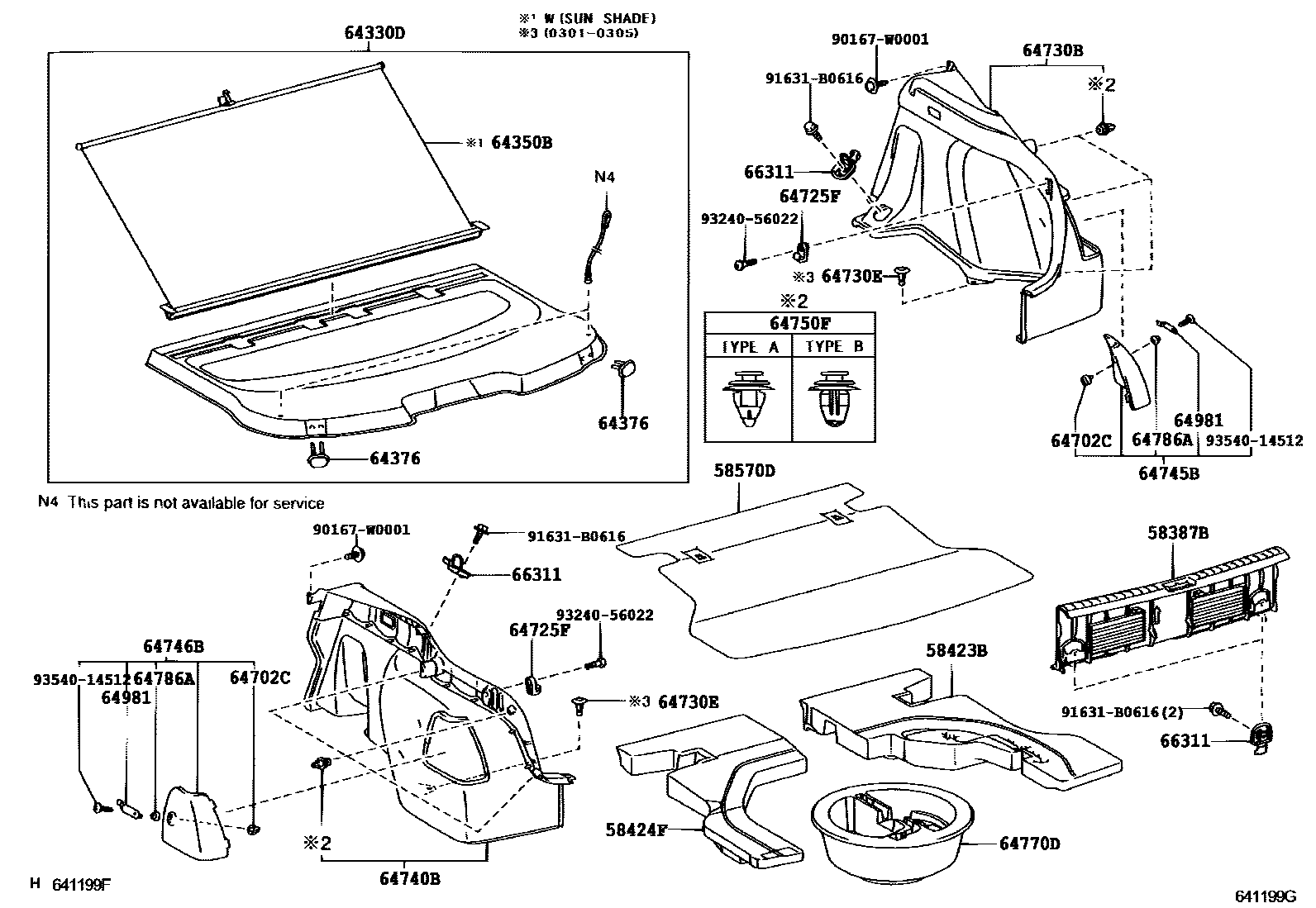

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-05080-A0iADT251,AZT25#,CDT250,ZZT251..LB..ELEGT200301-200604

IVORY,TRIM0#

main58387-05080-B0iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

DK.GRAY,TRIM1#

main58387-05080-E0iZZT251..LHD..LB..TEC;ADT25#,AZT25#..LB..(PAG,TEC)200604

GREGE,TRIM4#

main58387-05090-A0iADT251,AZT25#,CDT250,ZZT251..WG..ELEGT200301-200604

IVORY,TRIM0#

main58387-05090-B0iADT25#,AZT25#,ZZT25#..WG200301-200604

DK.GRAY,TRIM1#

main58387-05090-E0iZZT251..LHD..WG..TEC;ADT25#,AZT25#..WG..(PAG,TEC)200604

GREGE,TRIM4#

58423BSPACER, REAR FLOOR BOARD, NO.2

main58423-05010iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

58424FSPACER, REAR FLOOR BOARD, NO.3

main58424-05010iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

58570DCARPET ASSY, REAR FLOOR

main58571-05070-A1iAZT25#,CDT250,ZZT251..LB..ELEGT200301-200310

IVORY,TRIM0#

sub58571-05071

main58571-05070-B1iAZT25#,CDT250,ZZT25#..LB200301-200310

DK GRAY,TRIM1#

sub58571-05071

main58571-05071-A1iADT251,AZT25#,CDT250,ZZT251..LB..ELEGT200310-200604

IVORY,TRIM0#

main58571-05071-B1iADT251,AZT25#,CDT250,ZZT25#..LB200310-200604

DK GRAY,TRIM1#

main58571-05071-E0iZZT251..LHD..LB..TEC;ADT25#,AZT25#..LB..(PAG,TEC)200604

GREGE,TRIM4#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-05160-A0iADT251,AZT25#,CDT250,ZZT251..LB..ELEGT200301-200604

IVORY,TRIM0#

main64330-05160-B0iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

DK.GRAY,TRIM1#

main64330-05160-E0iZZT251..LHD..LB..TEC;ADT25#,AZT25#..LB..(PAG,TEC)200604

GREGE,TRIM4#

64350BSHADE, REAR WINDOW

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-0D010iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

64702CKNOB, WASHER TANK COVER

main64982-16020-A0iAZT25#,CDT250,ZZT251..(LB,WG)..ELEGT200301-200604

IVORY,TRIM01

sub64982-16020

main64982-16020-A0iADT251..(LB,WG)..ELEGT200504-200604

IVORY,TRIM0#

sub64982-16020

main64982-16020-B6iCDT250..LB..TEC;AZT25#,ZZT25#..LB,WG;CDT250..LHD..WG..TEC;CDT250..(LB,WG)..(ELEGT,ENTRY)200301-200604

DK.GRAY,TRIM16

sub64982-16020

main64982-16020-B6iADT251..LB,WG;CDT250..RHD..WG..TEC200503-200604

DK.GRAY,TRIM1#

sub64982-16020

main64982-16020-C0iCDT250..LB..TEC;CDT250..LHD..WG..TEC;CDT250..(LB,WG)..ENTRY;AZT25#,ZZT25#..(LB,WG)..(ENTRY,TEC)200301-200604

BLACK,TRIM16

sub64982-16020

main64982-16020-C0iAZT25#,CDT250,ZZT251..(LB,WG)..ELEGT200301-200604

BLACK,TRIM01,16

sub64982-16020

main64982-16020-E7iZZT251..LHD..(LB,WG)..TEC;ADT25#,AZT25#..(LB,WG)..(PAG,TEC)200604

GREGE,TRIM4#

sub64982-16020

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64726-05010-A0iAZT25#,CDT250,ZZT251..(LB,WG)..ELEGT200301-200604

IVORY,TRIM01

main64726-05010-A0iADT251..(LB,WG)..ELEGT200504-200604

IVORY,TRIM0#

main64726-05010-B0iADT251,ZZT250..LB,WG;AZT25#,CDT250,ZZT251..(LB,WG)..(ENTRY,TEC)200301-200604

DK.GRAY,TRIM1#

main64726-05010-B0iAZT25#,CDT250,ZZT251..(LB,WG)..ELEGT200301-200604

DK.GRAY,TRIM01,1#

main64726-05010-E0iZZT251..LHD..(LB,WG)..TEC;ADT25#,AZT25#..(LB,WG)..(PAG,TEC)200604

GREGE,TRIM4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-05050-A0iADT251,AZT25#,CDT250,ZZT251..LB..ELEGT200301-200604

IVORY,TRIM0#

main64730-05050-B0iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

DK GRAY,TRIM1#

main64730-05050-E0iZZT251..LHD..LB..TEC;ADT25#,AZT25#..LB..(PAG,TEC)200604

GREGE,TRIM4#

main64730-05060-A0iADT251,AZT25#,CDT250,ZZT251..WG..ELEGT200301-200604

IVORY,TRIM0#

main64730-05060-B0iADT251,AZT25#,CDT250,ZZT25#..WG200301-200604

DK GRAY,TRIM1#

main64730-05060-E0iZZT251..LHD..WG..TEC;ADT25#,AZT25#..WG..(PAG,TEC)200604

GREGE,TRIM4#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-07076-C0iCDT250..WG..ENTRY;CDT250..LHD..WG..TEC;AZT25#,ZZT25#..WG..(ENTRY,TEC)200301-200604

BLACK,TRIM0#,1#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iAZT25#,CDT250,ZZT251..WG..ELEGT200301-200604

BLACK,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iADT251..WG;CDT250..RHD..WG..TEC200503-200604

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-08222-C0iAZT250,CDT250,ZZT251..LB..ELEGT200301-200305

BLACK,TRIM1#

main90467-08222-C0iAZT250,CDT250,ZZT251..LB..ELEGT200301-200305

BLACK,TRIM0#,1#

64740BBOARD, DECK TRIM SIDE, LH

main64740-05050-A0iADT251,AZT25#,CDT250,ZZT251..LB..ELEGT200301-200604

IVORY,TRIM0#

main64740-05050-B0iADT25#,AZT25#,ZZT25#..LB200301-200604

DK GRAY,TRIM1#

main64740-05050-E0iZZT251..LHD..LB..TEC;ADT25#,AZT25#..LB..(PAG,TEC)200604

GREGE,TRIM4#

main64740-05060-A0iADT251,AZT25#,CDT250,ZZT251..WG..ELEGT200301-200604

IVORY,TRIM0#

main64740-05060-B0iADT251,AZT25#,CDT250,ZZT25#..WG200301-200604

DK GRAY,TRIM1#

main64740-05060-E0iZZT251..LHD..WG..TEC;ADT25#,AZT25#..WG..(PAG,TEC)200604

GREGE,TRIM4#

64745BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, RH

main64745-05050-A0iADT251,AZT25#,CDT250,ZZT251..LB..ELEGT200301-200604

IVORY,TRIM0#

main64745-05050-B0iADT25#,AZT25#,ZZT25#..LB200301-200604

DK GRAY,TRIM1#

main64745-05050-E0iZZT251..LHD..LB..TEC;ADT25#,AZT25#..LB..(PAG,TEC)200604

GREGE,TRIM4#

main64745-05060-A0iADT251,AZT25#,CDT250,ZZT251..WG..ELEGT200301-200604

IVORY,TRIM0#

main64745-05060-B0iADT251,AZT25#,CDT250,ZZT25#..WG200301-200604

DK GRAY,TRIM1#

main64745-05060-E0iZZT251..LHD..WG..TEC;ADT25#,AZT25#..WG..(PAG,TEC)200604

GREGE,TRIM4#

64746BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, LH

main64746-05050-A0iADT251,AZT25#,CDT250,ZZT251..LB..ELEGT200301-200604

IVORY,TRIM0#

main64746-05050-B0iADT25#,AZT25#,ZZT25#..LB200301-200604

DK GRAY,TRIM1#

main64746-05050-E0iZZT251..LHD..LB..TEC;ADT25#,AZT25#..LB..(PAG,TEC)200604

GREGE,TRIM4#

main64746-05060-A0iADT251,AZT25#,CDT250,ZZT251..WG..ELEGT200301-200604

IVORY,TRIM0#

main64746-05060-B0iADT25#,AZT25#,ZZT25#..WG200301-200604

DK GRAY,TRIM1#

main64746-05060-E0iZZT251..LHD..WG..TEC;ADT25#,AZT25#..WG..(PAG,TEC)200604

GREGE,TRIM4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main67771-33030iADT25#,AZT25#,ZZT25#..LB200301-200604

TYPE A

main90467-10161iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

TYPE B

64770DCOVER ASSY, SPARE WHEEL

main64771-05030iAZT25#..LB,WG200301-200604

SPARE TIRE-GROUND TIRE

main64771-05040iADT251..(LB,WG)..DCRL200604

TIRE & DISK WHEEL-205/55R16 ALUMI

main64771-05040iADT251,CDT250,ZZT25#..LB,WG200301-200604

SPARE TIRE-GROUND TIRE

main64771-05040iADT25#,ZZT25#..(LB,WG)..(DCR,HTWC)200604

TIRE & DISK WHEEL-205/55R16 STEEL

main64771-05040iADT25#,ZZT25#..(LB,WG)..(DCR,HTWC)200604

TIRE & DISK WHEEL-205/55R16 LIGHT ALUMI

main64771-05050iAZT251..LHD..(LB,WG);ADT25#,AZT250..(LB,WG)..TEC200604

TIRE & DISK WHEEL-215/50R17 ALUMI

64786APLATE, JACK COVER

main64786-20010iADT251,AZT25#,CDT250,ZZT25#..LB,WG200301-200604

64981STOPPER, WASHER TANK COVER

main64981-16021iADT251,AZT25#,CDT250,ZZT25#..LB,WG200301-200604

66311HOOK, ROPE

main66310-05020-A0iADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT200301-200604

IVORY,TRIM0#

main66310-05020-B0iADT25#,AZT25#,ZZT25#..LB,WG200301-200604

DK.GRAY,TRIM1#

main66310-05020-E0iZZT251..LHD..(LB,WG)..TEC;ADT25#,AZT25#..(LB,WG)..(PAG,TEC)200604

GREGE,TRIM4#

90167W0001

main90167-W0001

91631B0616

main91631-B0616

9324056022

main93240-56022

9354014512

main93540-14512

23 parts on this diagram · 2 diagrams in section
