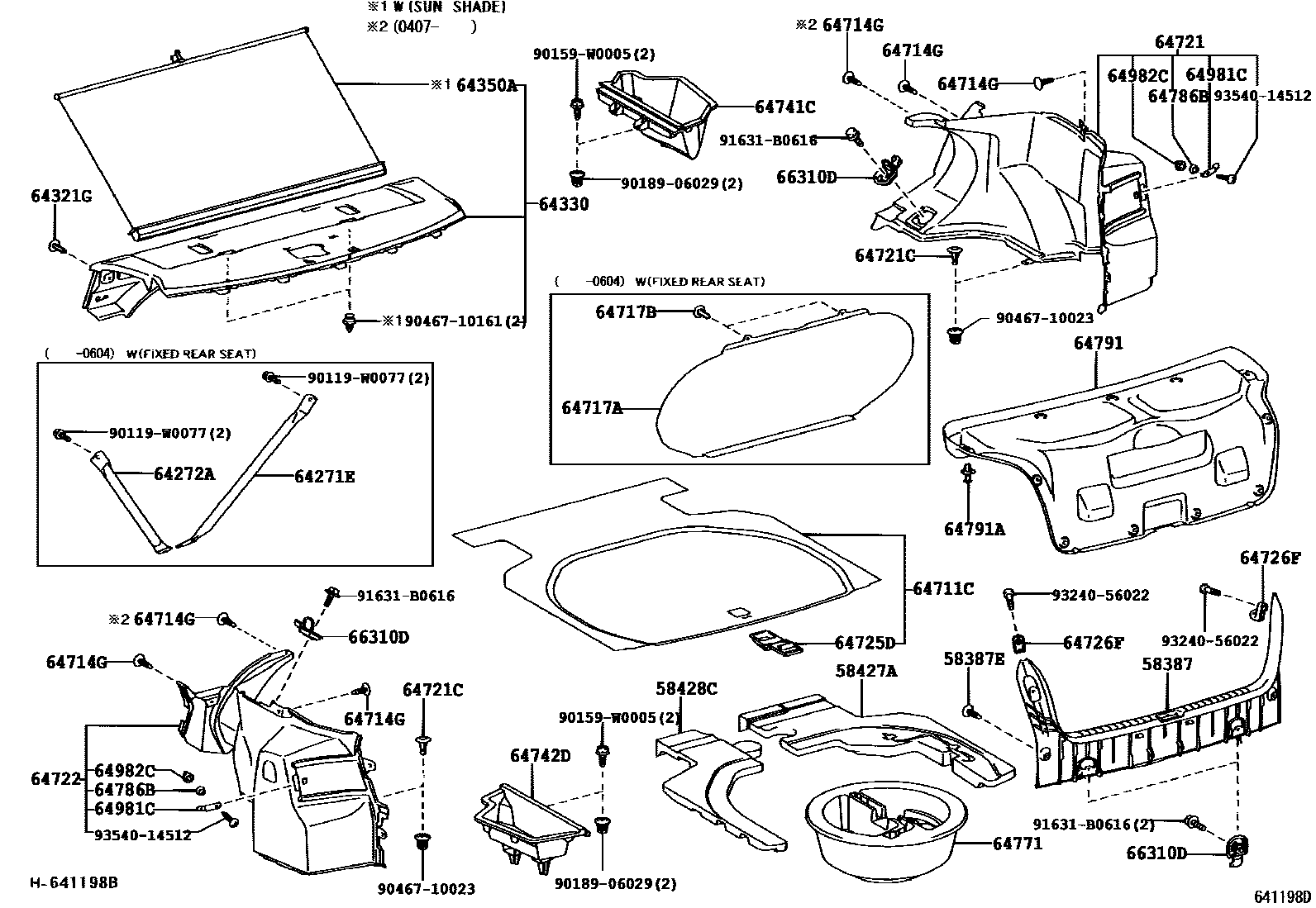

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-05070-C0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM0#,1#

main58387-05070-C0iZZT251..LHD..SED..TEC;ZZT251..LHD..SED..5F..ENTRY;ZZT251..RHD..SED..(ENTRY,TEC);ADT251,AZT25#,CDT250,ZZT250..SED..(ENTRY,TEC)200301-200604

BLACK,TRIM1#

main58387-05070-C0iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

BLACK,TRIM1#,4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-06020-C0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM0#,1#

sub90467-06020

main90467-06020-C0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM1#

sub90467-06020

main90467-06020-C0iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

BLACK,TRIM1#,4#

sub90467-06020

58427ASPACER, REAR FLOOR BOARD

main58427-05010iADT25#,AZT25#,ZZT25#..SED200301-200604

58428CSPACER, REAR FLOOR BOARD, NO.6

main58428-05010iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64271EPANEL, ROOM PARTITION

main64241-20050iADT251,CDT250,ZZT25#..SED..ENTRY200301-200604

64272APANEL, ROOM PARTITION, LH

main64242-20010iADT251,CDT250,ZZT25#..SED..ENTRY200301-200604

64321GCLIP(FOR PACKAGE TRIM SIDE)

main90467-05161-A0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

IVORY,TRIM0#

sub90467-05161

main90467-05161-B0iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

DK.GRAY,TRIM1#

sub90467-05161

main90467-05161-E7iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

GREGE,TRIM4#

sub90467-05161

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-05120iCDT250,ZZT25#..SED..ENTRY200301-200409

sub64330-05122

main64330-05122iADT251,CDT250,ZZT25#..SED..ENTRY200410-200604

main64330-05130iAZT25#,CDT250,ZZT25#..SED..TEC200301-200409

DARK GRAY

sub64330-05132

main64330-05132iCDT250..TEC..DCRL200410-200411

sub64330-05182

main64330-05132iADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200410-200604

DARK GRAY

sub64330-05182

main64330-05132-B0iADT251,AZT25#,ZZT250..SED..ELEGT;CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200410-200604

DK.GRAY,TRIM1#

sub64330-05182

main64330-05132-B0iCDT250..SED..TEC..DCR;ADT251,AZT25#,ZZT25#..SED..TEC200410-200604

DK.GRAY,TRIM1#,IVORY

sub64330-05182

main64330-05180iAZT25#,CDT250,ZZT25#..SED..ELEGT200305-200409

IVORY

sub64330-05182

main64330-05180-A0iAZT250,CDT250,ZZT25#..SED..ELEGT200301-200305

IVORY,TRIM0#,IVORY

sub64330-05182

main64330-05180-B0iAZT250,CDT250,ZZT25#..SED..ELEGT200301-200305

DK.GRAY,TRIM1#,IVORY

sub64330-05182

main64330-05182iCDT250..LHD..ELEGT..DCRL;CDT250,ZZT251..RHD..SED..ELEGT200410-200411

IVORY

sub64330-05132

main64330-05182-A0iADT251,AZT25#,ZZT250..SED..ELEGT;CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200410-200604

IVORY,TRIM0#,IVORY

sub64330-05132

main64330-05182-E0iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

GREGE,TRIM4#

sub64330-05132

64350ASHADE ASSY, REAR WINDOW

64711CCARPET, LUGGAGE COMPARTMENT FLOOR

main64711-05060-C1iCDT250,ZZT25#..SED..ENTRY200301-200308

BLACK,TRIM1#

sub64711-05061

main64711-05061-C1iADT251,CDT250,ZZT25#..SED..ENTRY200308-200604

BLACK,TRIM1#

main64711-05070-C1iAZT250,CDT250,ZZT25#..SED..ELEGT200301-200308

BLACK,TRIM1#

sub64711-05071

main64711-05070-C1iAZT250,CDT250,ZZT25#..SED..TEC200301-200308

BLACK,TRIM0#,1#

sub64711-05071

main64711-05071-C1iADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200308-200604

BLACK,TRIM0#,1#

main64711-05071-C1iADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200308-200604

BLACK,TRIM1#

main64711-05071-C1iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

BLACK,TRIM1#,4#

64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)

main90467-06020-C0iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM0#,1#

sub90467-06020

main90467-06020-C0iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM1#

sub90467-06020

main90467-06020-C0iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

BLACK,TRIM1#,4#

sub90467-06020

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-05020-C1iADT251,CDT250,ZZT25#..SED..ENTRY200301-200604

BLACK,TRIM1#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-05161-A0iZZT251..LHD..SED..4FC..ENTRY200301-200411

IVORY,TRIM0#

sub90467-05161

main90467-05161-B0iCDT250,ZZT25#..SED..ENTRY200301-200604

DK.GRAY,TRIM16

sub90467-05161

main90467-05161-C0iCDT250,ZZT25#..SED..ENTRY200301-200604

BLACK,TRIM16

sub90467-05161

main90467-05161-C0iADT251..SED..ENTRY200504-200604

BLACK,TRIM1#

sub90467-05161

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-05050-C1iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200407

BLACK,TRIM0#,1#

sub64721-05051

main64721-05050-C1iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200407

BLACK,TRIM1#

sub64721-05051

main64721-05051iCDT250..TEC..DCRL;CDT250..LHD..ELEGT..DCRL;ZZT251..LHD..SED..4FC..ENTRY;CDT250,ZZT251..RHD..SED..5F..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200407-200411

main64721-05051-C1iADT251,AZT25#,ZZT250..SED..ELEGT;CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200407-200604

BLACK,TRIM0#,1#

main64721-05051-C1iADT251,AZT25#,ZZT250..SED..ELEGT;CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200407-200604

BLACK,TRIM1#

main64721-05051-C1iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

BLACK,TRIM1#,4#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08222-C0iZZT251..LHD..SED..TEC;ZZT251..LHD..SED..5F..ENTRY;ZZT251..RHD..SED..(ENTRY,TEC);AZT25#,CDT250,ZZT250..SED..(ENTRY,TEC)200301-200604

BLACK,TRIM0#,1#

main90467-08222-C0iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM1#

main90467-08222-C0iADT251..SED200504-200604

BLACK

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-05040-C1iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200407

BLACK,TRIM1#

sub64722-05041

main64722-05040-C1iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200407

BLACK,TRIM0#,1#

sub64722-05041

main64722-05041iCDT250..TEC..DCRL;CDT250..LHD..ELEGT..DCRL;ZZT251..LHD..SED..4FC..ENTRY;CDT250,ZZT251..RHD..SED..5F..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200407-200411

main64722-05041-C1iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200407-200604

BLACK,TRIM1#

main64722-05041-C1iZZT251..RHD..SED;ZZT251..LHD..SED..ENTRY;ADT25#,ZZT250..SED..ENTRY200604

BLACK,TRIM1#,4#

main64722-05041-C1iZZT251..SED..TEC;ZZT251..SED..5F..ENTRY;CDT250..SED..(ENTRY,TEC)..DCR;ADT251,AZT25#,ZZT250..SED..(ENTRY,TEC)200407-200604

BLACK,TRIM0#,1#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-20090iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2

main64726-05010-A0iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

IVORY,TRIM01

main64726-05010-B0iZZT251..RHD..SED;ZZT251..LHD..SED..ENTRY;ADT25#,ZZT250..SED..ENTRY200604

DK.GRAY,TRIM1#,4#

main64726-05010-B0iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

DK.GRAY,TRIM01,1#

main64726-05010-B0iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

DK.GRAY,TRIM1#

main64726-05010-B0iADT251..SED..ELEGT200504-200604

DK.GRAY,TRIM0#,1#

64741CBOX, DECK SIDE TRIM, RH

main64741-05010iADT25#,AZT25#,ZZT25#..SED200301-200604

64742DBOX, DECK SIDE TRIM, LH

main64742-05010iADT25#,AZT25#,ZZT25#..SED200301-200604

64771COVER, SPARE WHEEL

main64771-05030iAZT250..SED;AZT251..LHD..SED200301-200604

SPARE TIRE-GROUND TIRE

main64771-05040iADT251..SED..DCRL200604

TIRE & DISK WHEEL-205/55R16 STEEL

main64771-05040iADT251..SED..DCRL200604

TIRE & DISK WHEEL-205/55R16 ALUMI

main64771-05040iADT251..SED..DCRL200604

TIRE & DISK WHEEL-205/55R16 LIGHT ALUMI

main64771-05040iADT251,CDT250,ZZT25#..SED200301-200604

SPARE TIRE-GROUND TIRE

main64771-05050iAZT251..RHD..SED;ADT251..SED..DCRL200604

TIRE & DISK WHEEL-215/50R17 ALUMI

64786BPLATE, JACK COVER

main64786-20010iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64791COVER, BACK DOOR TRIM

main64791-05050-C1iZZT251..LHD..SED..TEC;ZZT251..LHD..SED..5F..ENTRY;ZZT251..RHD..SED..(ENTRY,TEC);ADT251,AZT25#,CDT250,ZZT250..SED..(ENTRY,TEC)200301-200604

BLACK,TRIM0#,1#

main64791-05050-C1iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM1#

main64791-05050-C1iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

BLACK,TRIM1#,4#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-06150-C0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM0#,1#

main90467-06150-C0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM1#

main90467-06150-C0iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

BLACK,TRIM1#,4#

64981CSTOPPER, WASHER TANK COVER

main64981-16021iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

64982CKNOB, WASHER TANK COVER

main64982-16020-A0iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

IVORY,TRIM01

sub64982-16020

main64982-16020-B6iAZT25#,CDT250,ZZT25#..SED200301-200604

DK.GRAY,TRIM16

sub64982-16020

main64982-16020-C0iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM01,16

sub64982-16020

main64982-16020-C0iZZT251..LHD..SED..4FC..ENTRY;AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

BLACK,TRIM16

sub64982-16020

main64982-16020-C0iADT251..SED..ELEGT200504-200604

BLACK,TRIM0#,1#

sub64982-16020

main64982-16020-C0iADT251..SED..ELEGT200504-200604

BLACK,TRIM1#

sub64982-16020

main64982-16020-C0iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

BLACK,TRIM1#,4#

sub64982-16020

66310DHOOK ASSY, ROPE

main66310-05010-B0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

DK.GRAY,TRIM0#,1#

main66310-05010-B0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

DK.GRAY,TRIM1#

main66310-05010-B0iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

DK.GRAY,TRIM1#,4#

90119W0077

main90119-W0077

90159W0005

main90159-W0005

9018906029

main90189-06029

9046710023

main90467-10023

9046710161

main90467-10161

91631B0616

main91631-B0616

9324056022

main93240-56022

9354014512

main93540-14512

35 parts on this diagram · 1 diagram in section
