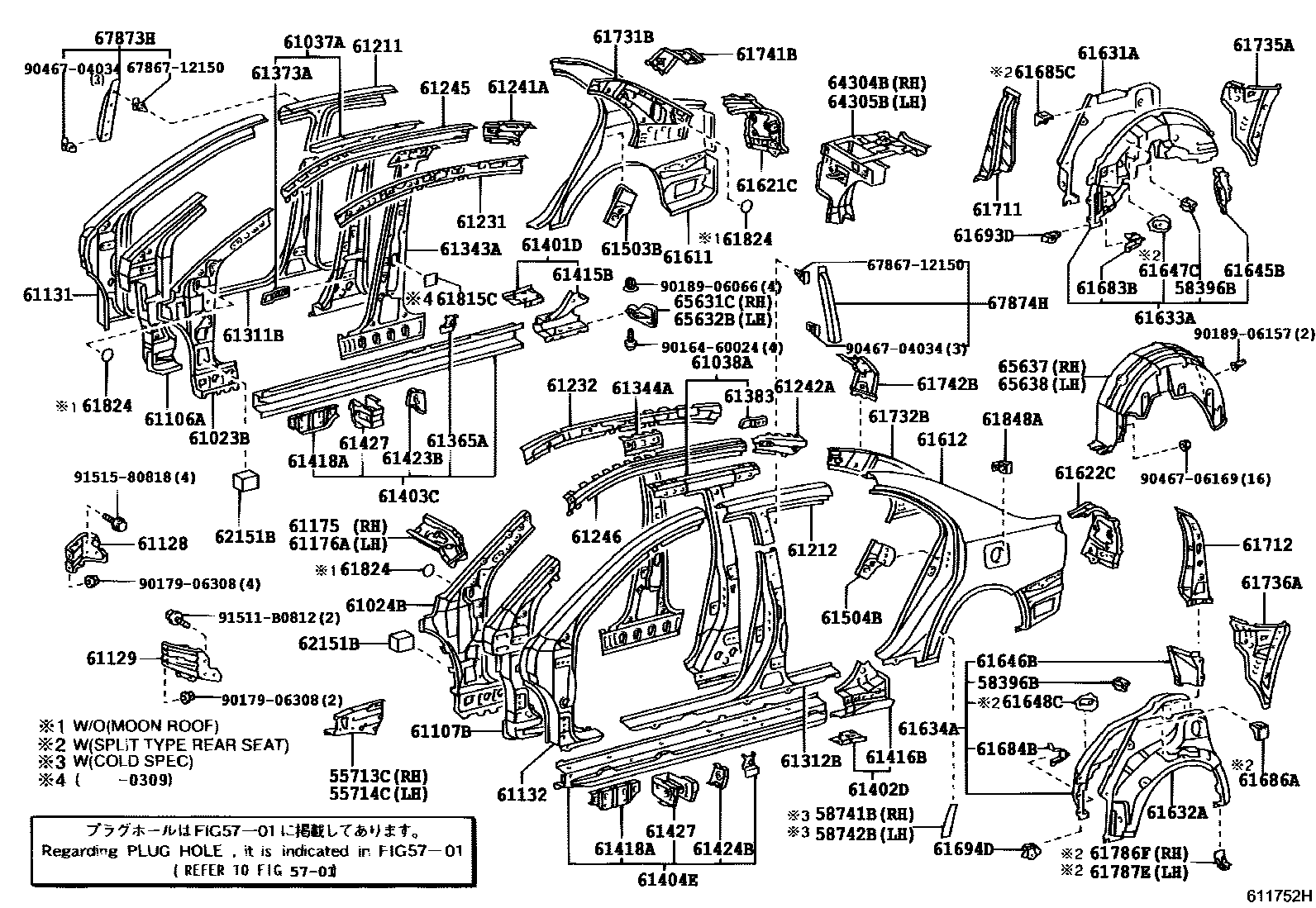

SIDE MEMBER

0001 1 0002 1 0003 1

55713CPANEL, COWL TOP SIDE, RH

main55713-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

55714CPANEL, COWL TOP SIDE, LH

main55714-05040iADT25#,AZT25#,ZZT25#200604

5701

58396BBRACKET, WIRE HARNESS CLAMP

main58396-32030iADT251,AZT25#,CDT250,ZZT25#200301-200604

58741BPROTECTOR, QUARTER PANEL, RH

main58741-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

EUROPE-COLD SPEC

58742BPROTECTOR, QUARTER PANEL, LH

main58742-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

EUROPE-COLD SPEC

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-05011iADT251,AZT25#,CDT250,ZZT25#200301-200604

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-05011iADT251,AZT25#,CDT250,ZZT25#200301-200604

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-05050iADT251,AZT25#,CDT250,ZZT25#200301-200604

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-05040iADT251,AZT25#,CDT250,ZZT25#200301-200604

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-05020iADT25#,AZT25#,ZZT25#200604

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-05010iADT25#,AZT25#,ZZT25#200604

main61103-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

61129REINFORCEMENT, COWL SIDE PANEL, LH

main61104-05010iADT25#,AZT25#,ZZT25#200604

main61104-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-05040iADT25#,AZT25#,ZZT25#200604

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-05040iADT251,AZT25#,CDT250,ZZT25#200301-200604

61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH

main61175-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH

main61176-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

61211RAIL, ROOF SIDE, OUTER RH

main61211-05040iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

main61211-05050iADT25#,AZT25#,ZZT25#..LB200604

main61211-05060iADT25#,AZT25#,ZZT25#..WG200604

61212RAIL, ROOF SIDE, OUTER LH

main61212-05040iADT25#,AZT25#,ZZT25#..SED200604

main61212-05050iADT25#,AZT25#,ZZT25#..LB200604

main61212-05060iADT251,AZT25#,CDT250,ZZT25#..WG200301-200604

61231RAIL, ROOF SIDE, INNER RH

main61231-05070iADT25#,AZT25#,ZZT25#..SED200604

main61231-05090iADT251,AZT25#,CDT250,ZZT25#..LB,WG200301-200604

61232RAIL, ROOF SIDE, INNER LH

main61232-05070iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

main61232-05090iADT25#,AZT25#,ZZT25#..LB,WG200604

61241AGUSSET, ROOF SIDE RAIL, REAR RH

main61241-05010iADT25#,AZT25#,ZZT25#..SED200604

main61241-05020iADT25#,AZT25#,ZZT25#..LB200604

main61241-05030iADT251,AZT25#,CDT250,ZZT25#..WG200301-200604

61242AGUSSET, ROOF SIDE RAIL, REAR LH

main61242-05010iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

main61242-05020iADT25#,AZT25#,ZZT25#..LB200604

main61242-05030iADT25#,AZT25#,ZZT25#..WG200604

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-05010iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

main61245-05020iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

main61245-05030iADT251,AZT25#,CDT250,ZZT25#..WG200301-200604

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-05010iADT25#,AZT25#,ZZT25#..SED200604

main61246-05020iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

main61246-05030iADT25#,AZT25#,ZZT25#..WG200604

61311BPILLAR, CENTER BODY, OUTER RH

main61311-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

61312BPILLAR, CENTER BODY, OUTER LH

main61312-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

61343APILLAR, CENTER BODY, INNER RH

main61343-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

61344APILLAR, CENTER BODY, INNER LH

main61344-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

61365AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, NO.3

main61365-05020iAZT250..SED;ZZT251..TEC;ZZT251..5F..ENTRY;ADT251,AZT251,ZZT250;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..E200301-200507

61373AREINFORCE, CENTER PILLAR LOWER HINGE, NO.1 RH

main61373-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

61383EXTENSION, CENTER BODY PILLAR, OUTER RH

main61383-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

61401DRAIL SUB-ASSY, NO.1 LOWER OUTER, RH

main61401-05010iCDT250,ZZT251..SED..TEC..(DCR,HTWC);ADT251,AZT25#,ZZT250..SED..(ELEGT,TEC);CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200301-200509

61402DRAIL SUB-ASSY, NO.1 LOWER OUTER, LH

main61402-05010iADT25#,AZT25#,ZZT25#200604

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-05010iADT251,AZT25#,CDT250,ZZT25#200301-200507

main61403-05030iADT251,AZT25#,CDT250,ZZT25#200508-200604

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-05010iADT251,AZT25#,CDT250,ZZT25#200301-200507

main61404-05030iADT251,AZT25#,CDT250,ZZT25#200508-200604

61415BEXTENSION, ROCKER, OUTER RH

main61415-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

61416BEXTENSION, ROCKER, OUTER LH

main61416-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-05040iAZT250..SED;ZZT251..TEC;ZZT251..5F..ENTRY;ADT251,AZT251,ZZT250;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..E200301-200507

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61423-05010×2iAZT250..SED;ZZT251..TEC;ZZT251..5F..ENTRY;ADT251,AZT251,ZZT250;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..E200301-200507

61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH

main61424-05010×2iAZT250..SED;ZZT251..TEC;ZZT251..5F..ENTRY;ADT251,AZT251,ZZT250;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..E200301-200507

61427REINFORCEMENT, ROCKER PANEL, NO.5 RH

main61427-05020iAZT250..SED;ZZT251..TEC;ZZT251..5F..ENTRY;ADT251,AZT251,ZZT250;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..E200301-200507

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

61611PANEL, QUARTER, RH

main61611-05100iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

main61611-05110iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

main61611-05120iADT251,AZT25#,CDT250,ZZT25#..WG200301-200604

61612PANEL, QUARTER, LH

main61612-05130iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

main61612-05140iADT25#,AZT25#,ZZT25#..LB200604

main61612-05150iADT25#,AZT25#,ZZT25#..WG200604

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-05900iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-05900iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61605-05020iADT251,CDT250,ZZT25#..SED..ENTRY200509-200604

main61605-05030iADT251,AZT25#,CDT250,ZZT25#..SED..(ELEGT,TEC)200508-200604

main61607-05900iADT251,CDT250,ZZT25#..SED..ENTRY200301-200509

main61607-05901iAZT25#,CDT250,ZZT25#..LB200311-200508

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61606-05020iADT251,CDT250,ZZT25#..SED..ENTRY200509-200604

main61606-05030iADT251,AZT25#,CDT250,ZZT25#..LB200508-200604

main61608-05900iADT251,CDT250,ZZT25#..SED..ENTRY200301-200509

main61608-05901iAZT251,ZZT250..LB;ZZT251..LHD..LB..5F..ENTRY;ZZT251..LHD..LB..(ELEGT,TEC);ZZT251..RHD..LB..(ENTRY,TEC);AZT250,CDT250..LHD..LB..ELEGT;AZT250,CDT250..LB..(ENTRY,TEC)200311-200508

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-02040iADT251,AZT251,ZZT250..LB,WG;ZZT251..LHD..(LB,WG)..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ELEGT,TEC);ZZT251..RHD..(LB,WG)..(ENTRY,TEC);AZT250,CDT250..LHD..(LB,WG)..ELEGT..200301-200509

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-02040iADT251,AZT25#,CDT250,ZZT25#200301-200604

61647CREINFORCEMENT, WHEEL HOUSE, RH

main61647-05030iADT25#,AZT25#,ZZT25#200604

61648CREINFORCEMENT, WHEEL HOUSE, LH

main61648-05030iCDT250,ZZT25#..SED..ENTRY200307-200311

61683BBRACKET, REAR WHEEL OPENING, NO.1 RH

main61683-20010iAZT250,CDT250,ZZT25#..SED..(ELEGT,TEC)..(D4,DCR,HTWC)200301-200604

61684BBRACKET, REAR WHEEL OPENING, NO.1 LH

main61684-20010iAZT250,CDT250,ZZT25#..SED..(ELEGT,TEC)..(D4,DCR,HTWC)200301-200604

61685CBRACKET, REAR SEATBACK STOPPER, RH

main61685-05020iCDT250,ZZT251..SED..TEC..(DCR,HTWC);ADT251,AZT25#,ZZT250..SED..(ELEGT,TEC);CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200301-200509

61686ABRACKET, REAR SEATBACK STOPPER, LH

main61685-05020iADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC200301-200604

61693DBRACKET, REAR WHEEL OPENING, NO.1

main61693-20010iCDT250,ZZT251..SED..TEC..(DCR,HTWC);ADT251,AZT25#,ZZT250..SED..(ELEGT,TEC);CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200301-200509

61694DBRACKET, REAR WHEEL OPENING, NO.2

main61693-20010iADT251,AZT25#,CDT250,ZZT25#200301-200604

61711PANEL, ROOF SIDE, OUTER RH

main61711-05020iCDT250..TEC..DCRL;CDT250..LHD..ELEGT..DCRL;ZZT251..LHD..SED..4FC..ENTRY;CDT250,ZZT251..RHD..SED..5F..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200301-200604

main61711-05050iZZT251..LHD..LB..4FC..ENTRY;AZT250,CDT250,ZZT251..RHD..LB..ELEGT200301-200604

main61711-05060iADT251,AZT25#,CDT250,ZZT25#..WG200509-200604

61712PANEL, ROOF SIDE, OUTER LH

main61712-05020iZZT251..SED..TEC;ZZT251..SED..5F..ENTRY;ADT251,AZT25#,ZZT250..SED;CDT250..SED..(ENTRY,TEC)..DCR;CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200301-200508

main61712-05050iADT25#,AZT25#,ZZT25#..WG200604

main61712-05060iADT251,AZT25#,CDT250,ZZT25#..LB200509-200604

61731BPANEL, ROOF SIDE, INNER RH

main61731-05050iADT25#,AZT25#,ZZT25#..SED200604

main61731-05060iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

main61731-05070iADT25#,AZT25#,ZZT25#..WG200604

61732BPANEL, ROOF SIDE, INNER LH

main61732-05050iZZT251..SED..TEC;ZZT251..SED..5F..ENTRY;ADT251,AZT25#,ZZT250..SED;CDT250..SED..(ENTRY,TEC)..DCR;CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200301-200508

main61732-05060iZZT251..LHD..LB..4FC..ENTRY;AZT250,CDT250,ZZT251..RHD..LB..ELEGT200301-200604

main61732-05070iADT25#,AZT25#,ZZT25#..WG200604

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-05050iCDT250..TEC..DCRL;CDT250..LHD..ELEGT..DCRL;ZZT251..LHD..SED..4FC..ENTRY;CDT250,ZZT251..RHD..SED..5F..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200301-200604

main61735-05060iZZT251..LHD..LB..4FC..ENTRY;AZT250,CDT250,ZZT251..RHD..LB..ELEGT200301-200604

main61735-05070iAZT250..WG..HTWC;ZZT251..WG..4FC..ENTRY;AZT250,ZZT251..RHD..WG..ELEGT200301-200604

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-05050iADT25#,AZT25#,ZZT25#..SED200604

main61736-05060iADT25#,AZT25#,ZZT25#..LB200604

main61736-05070iAZT250..WG..TEC..D4;ZZT251..WG..4FC..TEC;ZZT251..LHD..WG..ELEGT;AZT250..LHD..WG..ELEGT..D4;ZZT251..WG..5F..(ENTRY,TEC);ADT251,AZT251,CDT250,ZZT250..WG200301-200508

61741BREINFORCEMENT, BACK WINDOW OPENING, RH

main61741-05010iCDT250..TEC..DCRL;CDT250..LHD..ELEGT..DCRL;ZZT251..LHD..SED..4FC..ENTRY;CDT250,ZZT251..RHD..SED..5F..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200301-200604

61742BREINFORCEMENT, BACK WINDOW OPENING, LH

main61742-05010iADT25#,AZT25#,ZZT25#..SED200604

61786FBRACKET, REAR BUMPER SIDE, RH

main61786-05010iCDT250,ZZT251..SED..TEC..(DCR,HTWC);ADT251,AZT25#,ZZT250..SED..(ELEGT,TEC);CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200301-200509

61787EBRACKET, REAR BUMPER SIDE, LH

main61786-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

61815CCOVER, ROOF SIDE, INNER UPPER

main61815-33030×2iAZT250,CDT250,ZZT25#200301-200309

61824PLATE, NOISE CONTROL, NO.1

main61824-02040×4iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

61848ARETAINER, QUARTER PANEL, LH

main61848-52010iADT251,AZT251;CDT250..RHD..WG..TEC;AZT250,CDT250,ZZT25#..SED200301-200604

62151BPAD, COWL SIDE SILENCER

main62151-05020×2iADT251,AZT25#,CDT250,ZZT25#200301-200604

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-05030iZZT251..SED..4FC..ENTRY200301-200604

main64304-05040iCDT250,ZZT251..SED..TEC..(DCR,HTWC);ADT251,AZT25#,ZZT250..SED..(ELEGT,TEC);CDT250,ZZT251..LHD..SED..ELEGT..(DCR,HTWC)200301-200507

64305BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH

main64305-05030iADT251,CDT250,ZZT25#..SED..ENTRY200509-200604

main64305-05040iCDT250..TEC..DCRL;CDT250..LHD..ELEGT..DCRL;CDT250,ZZT251..RHD..SED..ELEGT200301-200604

65631CPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

65632BPLATE, REAR WHELL HOUSE, FRONT LH

main65632-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

65637LINER, REAR WHEEL HOUSE, RH

main65637-05010supersedes 65637-05020iAZT250..SED;ZZT251..TEC;ZZT251..5F..ENTRY;ADT251,AZT251,ZZT250;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..E200301-200506

main65637-05011iADT251,AZT25#,CDT250,ZZT25#200507-200511

65638LINER, REAR WHEEL HOUSE, LH

main65638-05010supersedes 65638-05020iAZT250..WG..HTWC;CDT250..TEC..DCRL;ZZT251..LHD..4FC..ENTRY;CDT250..LHD..ELEGT..DCRL;AZT250..RHD..(LB,WG)..ELEGT;ZZT251..RHD..LB..4FC..ELEGT;CDT250,ZZT251..RHD..5F..200301-200604

main65638-05011iADT251,AZT25#,CDT250,ZZT25#200507-200511

67873HWEATHERSTRIP, CENTER DOOR, UPPER NO.1

main67873-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

67874HWEATHERSTRIP, CENTER DOOR, UPPER NO.2

main67874-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9016460024

main90164-60024

9017906308

main90179-06308

9018906066

main90189-06066

9018906157

main90189-06157

9046704034

main90467-04034

9046706169

main90467-06169

91511B0812

main91511-B0812

9151580818

main91515-80818

94 parts on this diagram · 3 diagrams in section
