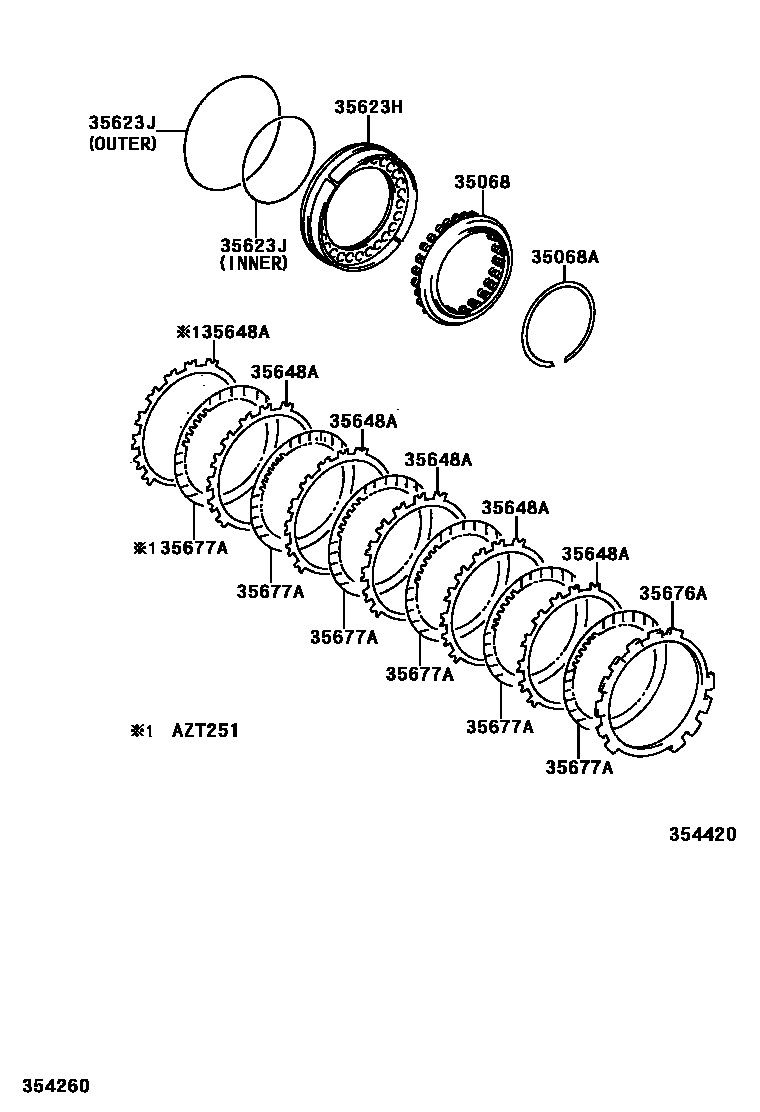

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U151E,U241E 0002 1U341E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iAZT250..4FC200301-200604

main35068-33020iAZT251200309-200403

main35068-33021iAZT251200403-200604

main35068-52030iZZT251..4FC200301-200604

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iAZT25#..ATM200301-200604

35623HPISTON, 1ST & REVERSE BRAKE

main35623-33030iAZT251200309-200604

main35623-48010iAZT250..4FC200301-200604

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iAZT25#..ATM200301-200604

INNER

main90301-99098iAZT25#..ATM200301-200604

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21010iAZT250..4FC200301-200509

main35692-21011iAZT250..4FC200509-200811

main35692-28010iAZT251200309-200509

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iAZT25#..ATM200301-200604

T=1.8,MARK 1

main35678-21020iAZT25#..ATM200301-200604

T=1.9,MARK 2

main35678-21030iAZT25#..ATM200301-200604

T=2.0,MARK 3

main35678-21040iAZT25#..ATM200301-200604

T=2.1,MARK 4

main35678-21050iAZT25#..ATM200301-200604

T=2.2,MARK 5

main35678-21060iAZT25#..ATM200301-200604

T=2.3,MARK 6

main35678-21070iAZT25#..ATM200301-200604

T=2.4,MARK 7

main35678-21080iAZT25#..ATM200301-200604

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-21010iAZT250..4FC200301-200604

main35682-28010iAZT251200309-200604

7 parts on this diagram · 2 diagrams in section
