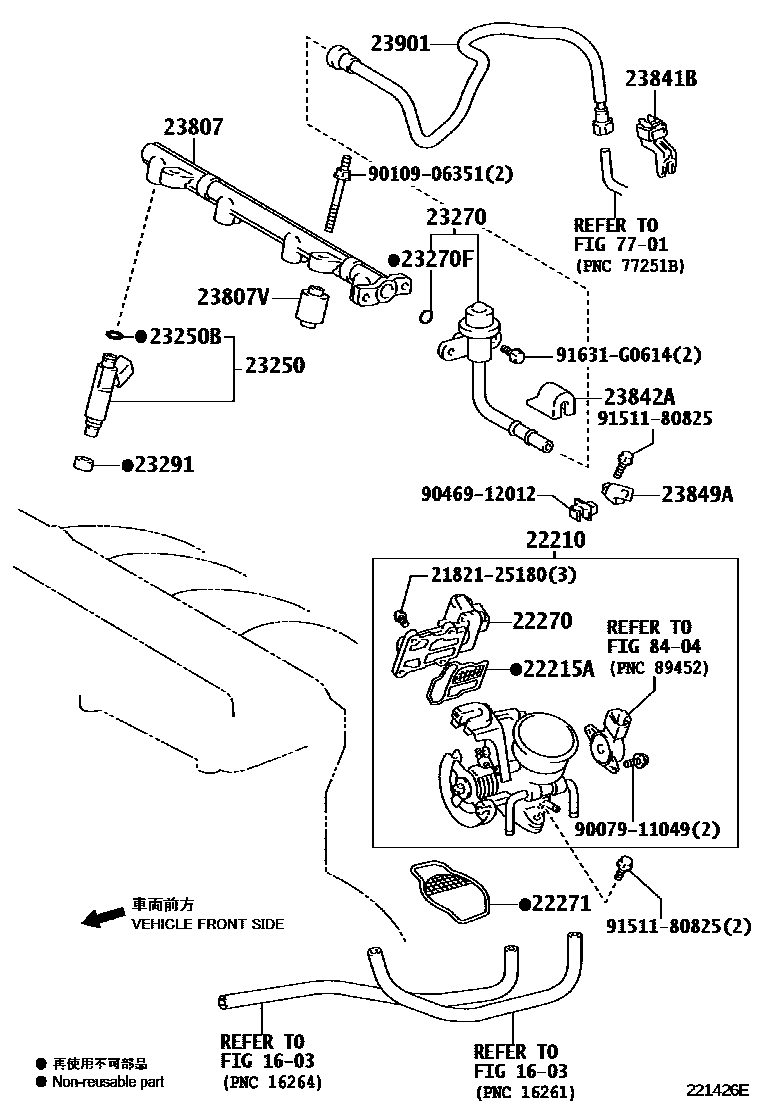

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22210BODY ASSY, THROTTLE
(L)
(L)
(L)
(L)
(J)
(J)
(J)
(J)
(L)
(J)
22215GASKET, THROTTLE BODY COVER
22215AGASKET, IDLE SPEED CONTROL VALVE
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
(L)
(L)
(J)
(J)
23250INJECTOR ASSY, FUEL
BOSCH
DENSO
MARK 23250-28030
MARK 23250-28090
MARK BLACK
MARK BROWN
MARK BLACK
BLACK
MARK BROWN
BROWN
MARK BLACK
MARK BROWN
MARK BROWN
BROWN
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
(L)
(L)
(J)
(J)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
(L)
(J)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911049
main90079-11049
9010906351
main90109-06351
9046912012
main90469-12012
9151180825
main91511-80825
91631G0614
main91631-G0614
25 parts on this diagram · 9 diagrams in section
