ENGINE OVERHAUL GASKET KIT

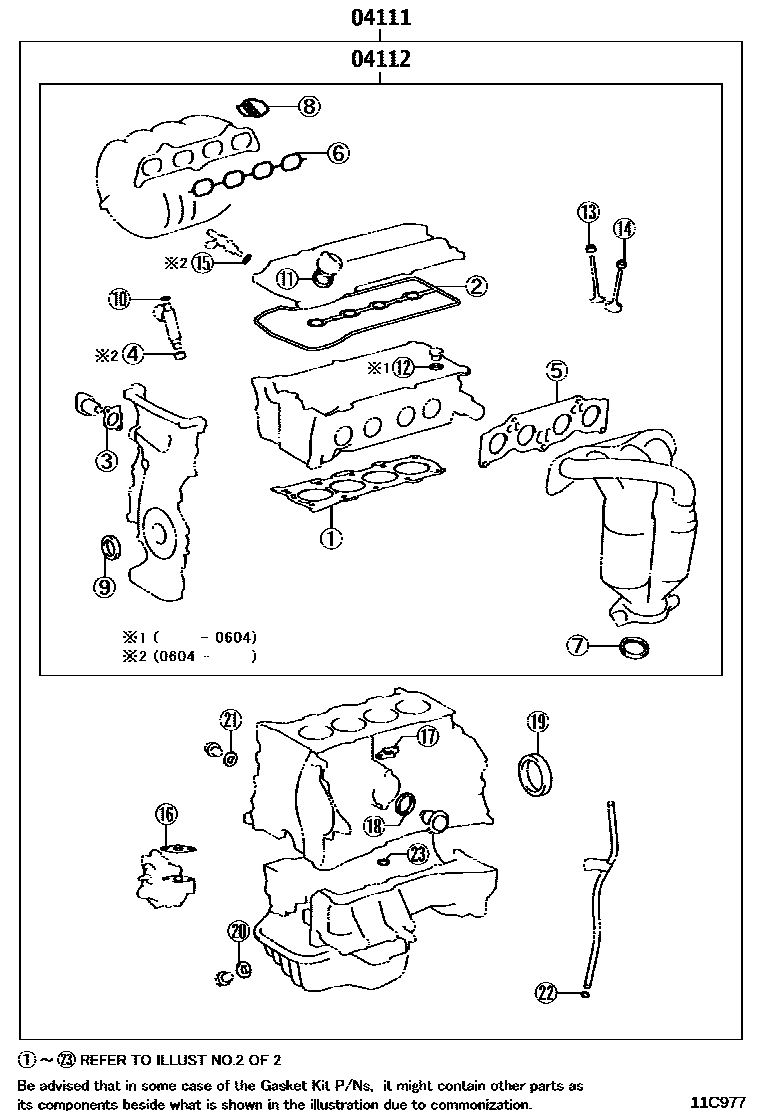

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-0D101i200301-200302
sub04111-0D102
main04111-0D102i200302-200402
sub04111-0D103
main04111-0D180i200301-200302
sub04111-0D181
main04111-0D181i200302-200402
sub04111-0D182
main04111-0D210i200402-200411
sub04111-0D211
main04111-0D220i200402-200411
main04111-0D370i200411-200604
sub04111-0D371
main04111-0D380i200411-200604
sub04111-0D381
main04111-0G020i200303-200311
sub04111-0G100
main04111-0G100i200311-200604
sub04111-27190
main04111-0H012i200301-200306
sub04111-0H013
main04111-0H013i200306-200311
sub04111-0H160
main04111-0H060i200301-200304
sub04111-0H061
main04111-0H061i200304-200311
sub04111-0H170
main04111-0H090i200309-200311
sub04111-0H180
main04111-0H160i200311-200508
sub04111-0H161
main04111-0H161i200508-200604
main04111-0H170i200311-200508
sub04111-0H171
main04111-0H171i200508-200604
sub04111-0H172
main04111-0H180i200311-200508
sub04111-0H181
main04111-0H181i200508-200511
sub04111-0H182
main04111-0H182i200511-200604
sub04111-0H380
main04111-0H380i200710-200811
main04111-0H400i200604-200811
main04111-0R030i200504-200601
sub04111-0R031
main04111-0R031i200601-200607
sub04111-0R032
main04111-0R032i200607-200811
main04111-0R040i200504-200601
sub04111-0R041
main04111-0R041i200601-200607
sub04111-0R042
main04111-0R042i200607-200811
main04111-27110i200309-200311
sub04111-27111
main04111-27111i200311-200411
main04111-28790i200604-200710
sub04111-28791
main04111-28791i200710-200811
main04111-28810i200604-200710
sub04111-0H380
04112GASKET KIT, ENGINE VALVE GRIND
main04112-0D101i200301-200302
sub04112-0D102
main04112-0D102i200302-200402
sub04112-0D103
main04112-0D180i200301-200302
sub04112-0D181
main04112-0D181i200302-200402
sub04112-0D182
main04112-0D210i200402-200411
sub04112-0D211
main04112-0D220i200402-200411
main04112-0D360i200411-200604
sub04112-0D361
main04112-0D370i200411-200604
sub04112-0D371
main04112-0G020i200303-200311
sub04112-0G100
main04112-0G100i200311-200604
sub04112-27180
main04112-0H012i200301-200306
sub04112-0H013
main04112-0H013i200306-200311
sub04112-0H160
main04112-0H060i200301-200304
sub04112-0H061
main04112-0H061i200304-200311
sub04112-0H170
main04112-0H090i200309-200311
sub04112-0H180
main04112-0H160i200311-200508
sub04112-0H161
main04112-0H161i200508-200604
main04112-0H170i200311-200508
sub04112-0H171
main04112-0H171i200508-200604
sub04112-0H172
main04112-0H180i200311-200508
sub04112-0H181
main04112-0H181i200508-200511
sub04112-0H182
main04112-0H182i200511-200604
sub04112-0H350
main04112-0H350i200710-200811
main04112-0H360i200604-200811
main04112-0R030i200504-200601
sub04112-0R031
main04112-0R031i200601-200811
main04112-0R040i200504-200601
sub04112-0R041
main04112-0R041i200601-200811
main04112-27100i200309-200311
sub04112-27101
main04112-27101i200311-200411
main04112-28650i200604-200710
sub04112-28651
main04112-28651i200710-200811
main04112-28670i200604-200710
sub04112-0H350

2 parts on this diagram · 26 diagrams in section
