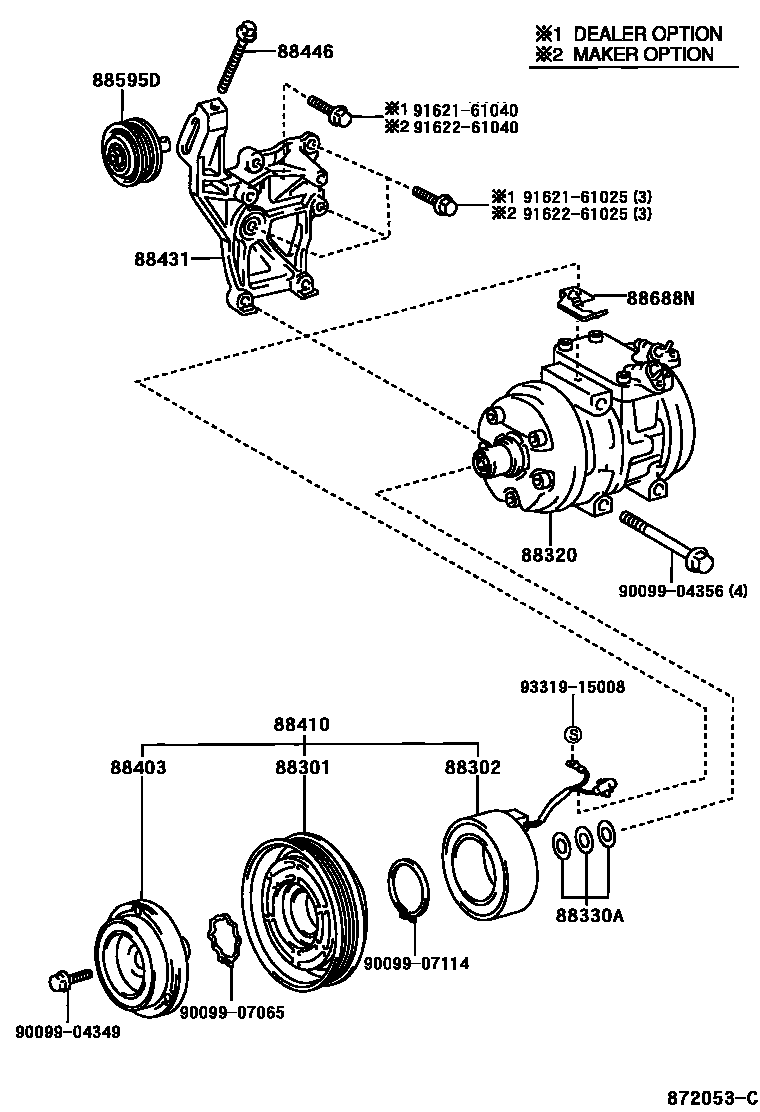

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-05010iAZT220200007

main88412-12150iAT220..LHD199710-200007

DEALER OPTION

main88412-12190iAT22#199710-200007

main88412-20200iST220199710-199907

main88412-2B090iST220199907

main88412-32120iZZT22#200007

main88412-33050iCT220199710-200007

main88412-44050iCDT220199908

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iAT22#,CDT220,CT220,ST220199710

main88411-44010iAZT220,ZZT22#200007

88320COMPRESSOR ASSY, COOLER

main88320-2B350iST220199710

main88320-2B360iCT220199710-200007

sub88320-2BH90

main88320-2B400iAT22#199710-200007

sub88320-35H92

main88320-2B410iCDT220199908

main88320-63010iZZT22#200007

main88320-63020iAZT220200007

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iCDT220199908

main88403-30290iAT22#,CT220,ST220199710

main88403-32010iAZT220,ZZT22#200007

88410CLUTCH ASSY, MAGNET

main88410-05010iAZT220200007

main88410-21020iAT22#199710-200007

main88410-2B060iCT220199710-200007

main88410-2B180iST220199710-199907

sub88410-2B240

main88410-2B240iST220199907

main88410-32200iZZT22#200007

main88410-34040iAT220..LHD199710-200007

DEALER OPTION

main88410-44050iCDT220199908

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-20390iAT22#199710-200007

88446BOLT, IDLE PULLEY

main88446-12030iAT22#199710-200007

88595DPULLEY ASSY, IDLE

main88440-20160iAT22#199710-200007

DEALER OPTION

main88440-20170iAT22#199710-200007

MAKER OPTION

88688NBRACKET, COOLER

main88688-2D760iAT22#199710-200007

main88688-2D770iCT220199710-200007

main88688-32670iCDT220199908

main88688-33260iST220199710

9009904349

main90099-04349

9009904356

main90099-04356

9009907065

main90099-07065

9009907114

main90099-07114

9162161025

main91621-61025

9162161040

main91621-61040

9162261025

main91622-61025

9162261040

main91622-61040

9331915008

main93319-15008

19 parts on this diagram · 9 diagrams in section
