FRONT SEAT & SEAT TRACK

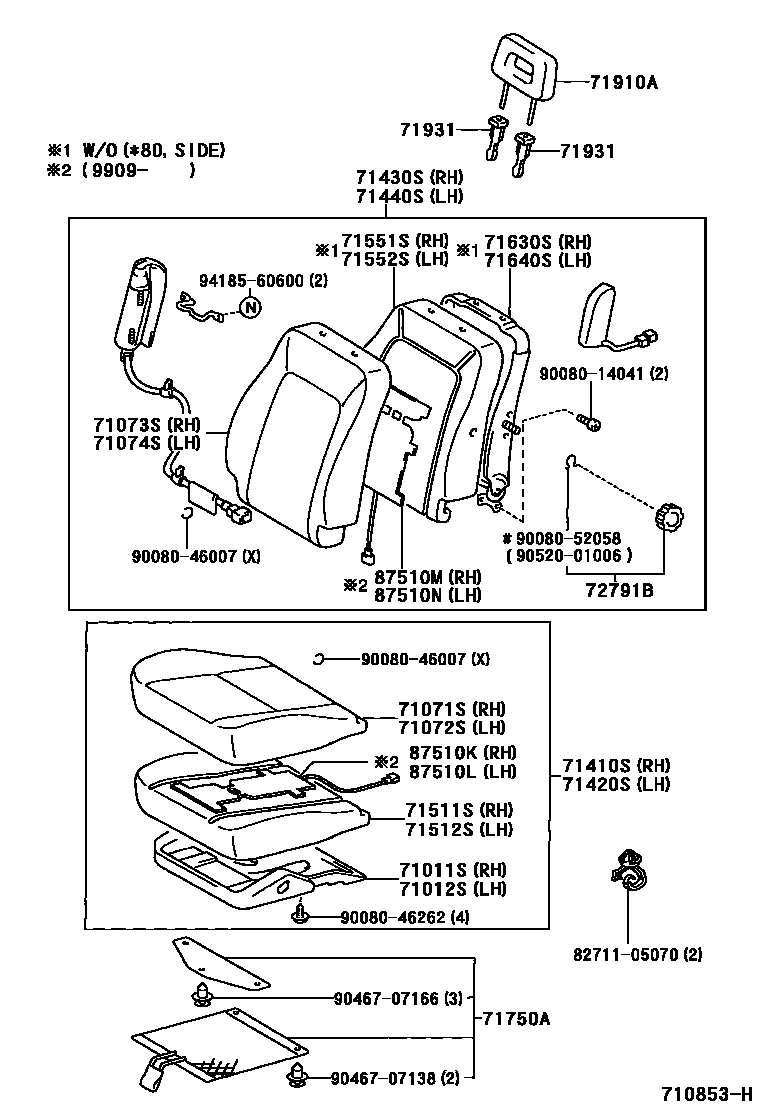

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-05030i199710
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71012-05030i199710
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-05340-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71071-05340-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71071-05341-B2i199810-199904
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71071-05341-G1i199904-200007
SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71071-05350-B0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71071-05350-G0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71071-05351-B2i199810-199904
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71071-05351-G1i199904-199908
W(SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71071-05352-B2i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71071-05352-G1i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71071-05360-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71071-05360-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71071-05361-B2i199810-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71071-05361-G1i199810-200007
SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71071-05370-B0i199710-200007
SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71071-05370-G0i199710-200007
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71071-05380-B0i199710-200007
SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71071-05380-G0i199710-200007
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71071-05390-B0i199710-199912
W(SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71071-05390-G0i199710-199912
W(SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71071-05391-B0i199912-200007
W(SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71071-05391-G0i199912-200007
W(SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71071-05400-B0i199710-200007
SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71071-05410-B0i199710-200007
SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71071-05410-B1i200007-200301
W(VERTICAL SEAT AJDUSTER) & SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71071-05420-B0i199710-199912
W(SEAT HEATER) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71071-05421-B0i199912-200007
W(SEAT HEATER) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71071-05421-B1i200007-200301
W(SEAT HEATER) & SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71071-05460-B1i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71071-05470-B1i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71071-05480-B1i199901-199912
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71071-05481-B1i199912-200007
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71071-05490-B0i200007-200203
SEAT = TYPE B-*104,GRAY,TRIM1#
main71071-05490-G0i200007-200203
SEAT = TYPE B-*104,GREEN,TRIM6#
main71071-05491-B0i200203-200301
SEAT = TYPE B-*104,GRAY,TRIM1#
main71071-05491-G0i200203-200301
SEAT = TYPE B-*104,GREEN,TRIM6#
main71071-05500-B0i200007-200203
W(SEAT HEATER) & SEAT = TYPE B-*104,GRAY,TRIM1#
main71071-05500-G0i200007-200203
W(SEAT HEATER) & SEAT = TYPE B-*104,GREEN,TRIM6#
main71071-05501-B0i200203-200301
SEAT = TYPE B-*104 & W(SEAT HEATER),GRAY,TRIM1#
main71071-05501-G0i200203-200301
SEAT = TYPE B-*104 & W(SEAT HEATER),GREEN,TRIM6#
main71071-05510-B0i200007-200203
W(VERTICAL SEAT AJDUSTER) & SEAT = TYPE B-*104,GRAY,TRIM1#
main71071-05510-G0i200007-200203
W(VERTICAL SEAT AJDUSTER) & SEAT = TYPE B-*104,GREEN,TRIM6#
main71071-05511-B0i200203-200301
SEAT = TYPE B-*104 & W(VERTICAL SEAT ADJUSTER),GRAY,TRIM1#
main71071-05511-G0i200203-200301
SEAT = TYPE B-*104 & W(VERTICAL SEAT ADJUSTER),GREEN,TRIM6#
main71071-05520-B0i200007-200203
SEAT = TYPE A-*104,GRAY,TRIM1#
main71071-05520-G0i200007-200203
SEAT = TYPE A-*104,GREEN,TRIM6#
main71071-05521-B0i200203-200301
SEAT = TYPE A-*104,GRAY,TRIM1#
main71071-05521-G0i200203-200301
SEAT = TYPE A-*104,GREEN,TRIM6#
main71071-05530-B0i200007-200203
W(VERTICAL SEAT AJDUSTER) & SEAT = TYPE A-*104,GRAY,TRIM1#
main71071-05530-G0i200007-200203
W(VERTICAL SEAT AJDUSTER) & SEAT = TYPE A-*104,GREEN,TRIM6#
main71071-05531-B0i200203-200301
SEAT = TYPE A-*104 & W(VERTICAL SEAT ADJUSTER),GRAY,TRIM1#
main71071-05531-G0i200203-200301
SEAT = TYPE A-*104 & W(VERTICAL SEAT ADJUSTER),GREEN,TRIM6#
main71071-05540-B0i200007-200203
W(SEAT HEATER) & SEAT = TYPE A-*104,GRAY,TRIM1#
main71071-05540-G0i200007-200203
W(SEAT HEATER) & SEAT = TYPE A-*104,GREEN,TRIM6#
main71071-05541-B0i200203-200301
SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#
main71071-05541-G0i200203-200301
SEAT = TYPE A-*104 & W(SEAT HEATER),GREEN,TRIM6#
main71071-05550-B1i200007-200107
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71071-05640-B0i200107-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71071-05650-B0i200107-200301
W(SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71071-05660-B0i200107-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-05340-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71071-05340-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71071-05341-B2i199810-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71071-05341-G1i199810-200007
SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71071-05370-B0i199710-200007
SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71071-05370-G0i199710-200007
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71071-05400-B0i199710-200007
SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71071-05400-B1i200007-200301
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71071-05470-B1i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71071-05490-B0i200007-200203
SEAT = TYPE B-*104,GRAY,TRIM1#
main71071-05490-G0i200007-200203
SEAT = TYPE B-*104,GREEN,TRIM6#
main71071-05491-B0i200203-200301
SEAT = TYPE B-*104,GRAY,TRIM1#
main71071-05491-G0i200203-200301
SEAT = TYPE B-*104,GREEN,TRIM6#
main71071-05520-B0i200007-200203
SEAT = TYPE A-*104,GRAY,TRIM1#
main71071-05520-G0i200007-200203
SEAT = TYPE A-*104,GREEN,TRIM6#
main71071-05521-B0i200203-200301
SEAT = TYPE A-*104,GRAY,TRIM1#
main71071-05521-G0i200203-200301
SEAT = TYPE A-*104,GREEN,TRIM6#
main71071-05560-B1i200007-200107
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71071-05640-B0i200107-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71072-05360-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71072-05360-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71072-05361-B2i199810-199904
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71072-05361-G1i199904-200007
SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71072-05370-B0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71072-05370-G0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71072-05371-B2i199908-199912
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71072-05371-G1i199908-199912
W(SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71072-05372-B2i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71072-05372-G1i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71072-05380-B0i199710-200007
SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71072-05380-G0i199710-200007
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71072-05390-B0i199710-199912
W(SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71072-05390-G0i199710-199912
W(SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71072-05391-B0i199912-200007
W(SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71072-05391-G0i199912-200007
W(SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71072-05400-B0i199710-200007
SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71072-05400-B1i200007-200301
W(VERTICAL SEAT AJDUSTER) & SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71072-05410-B0i199710-199912
W(SEAT HEATER) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71072-05411-B0i199912-200007
W(SEAT HEATER) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71072-05411-B1i200007-200301
W(VERTICAL SEAT AJDUSTER & SEAT HEATER) & SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71072-05450-B1i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71072-05460-B1i199901-199912
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71072-05461-B1i199912-200007
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71072-05470-B0i200007-200203
W(VERTICAL SEAT AJDUSTER) & SEAT = TYPE B-*104,GRAY,TRIM1#
main71072-05470-G0i200007-200203
W(VERTICAL SEAT AJDUSTER) & SEAT = TYPE B-*104,GREEN,TRIM6#
main71072-05471-B0i200203-200301
SEAT = TYPE B-*104 & W(VERTICAL SEAT ADJUSTER),GRAY,TRIM1#
main71072-05471-G0i200203-200301
SEAT = TYPE B-*104 & W(VERTICAL SEAT ADJUSTER),GREEN,TRIM6#
main71072-05480-B0i200007-200203
W(VERTICAL SEAT AJDUSTER & SEAT HEATER) & SEAT = TYPE B-*104,GRAY,TRIM1#
main71072-05480-G0i200007-200203
W(VERTICAL SEAT AJDUSTER & SEAT HEATER) & SEAT = TYPE B-*104,GREEN,TRIM6#
main71072-05481-B0i200203-200301
SEAT = TYPE B-*104 & W(SEAT HEATER & VERTICAL SEAT ADJUSTER),GRAY,TRIM1#
main71072-05481-G0i200203-200301
SEAT = TYPE B-*104 & W(SEAT HEATER & VERTICAL SEAT ADJUSTER),GREEN,TRIM6#
main71072-05490-B0i200007-200203
W(VERTICAL SEAT AJDUSTER) & SEAT = TYPE A-*104,GRAY,TRIM1#
main71072-05490-G0i200007-200203
W(VERTICAL SEAT AJDUSTER) & SEAT = TYPE A-*104,GREEN,TRIM6#
main71072-05491-B0i200203-200301
SEAT = TYPE A-*104 & W(VERTICAL SEAT ADJUSTER),GRAY,TRIM1#
main71072-05491-G0i200203-200301
SEAT = TYPE A-*104 & W(VERTICAL SEAT ADJUSTER),GREEN,TRIM6#
main71072-05500-B0i200007-200203
W(VERTICAL SEAT AJDUSTER & SEAT HEATER) & SEAT = TYPE A-*104,GRAY,TRIM1#
main71072-05500-G0i200007-200203
W(VERTICAL SEAT AJDUSTER & SEAT HEATER) & SEAT = TYPE A-*104,GREEN,TRIM6#
main71072-05501-B0i200203-200301
SEAT = TYPE A-*104 & W(SEAT HEATER & VERTICAL SEAT ADJUSTER),GRAY,TRIM1#
main71072-05501-G0i200203-200301
SEAT = TYPE A-*104 & W(SEAT HEATER & VERTICAL SEAT ADJUSTER),GREEN,TRIM6#
main71072-05520-B0i200107-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71072-05530-B0i200107-200301
W(SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-05340-B0i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71073-05350-B0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71073-05350-G0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71073-05351-B2i199810-199908
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71073-05351-G1i199908-200007
W(*80,SIDE) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71073-05360-B0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71073-05360-G0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71073-05361-B2i199810-200007
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71073-05361-G1i199810-200007
W(*80,SIDE) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71073-05370-B0i199710-199810
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71073-05370-G0i199710-199810
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71073-05371-B2i199908-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71073-05371-G1i199810-199908
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71073-05372-B2i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71073-05372-G1i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71073-05380-B0i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71073-05390-B0i199710-200007
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71073-05390-G0i199710-200007
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71073-05400-B0i199710-200007
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71073-05400-G0i199710-200007
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71073-05410-B0i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71073-05410-G0i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71073-05411-B0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71073-05411-G0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71073-05420-B1i199710-200007
W(*80,SIDE) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71073-05420-B2i200007-200301
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71073-05430-B1i199710-200007
SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71073-05430-B2i200007-200301
SEAT = TYPE D-*104 & W(LUMBER SUPPORT),DARK GRAY,TRIM1#
main71073-05440-B1i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71073-05441-B1i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71073-05441-B2i200007-200301
W(SEAT HEATER) & SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71073-05480-B0i200007-200203
SEAT = TYPE B-*104,GRAY,TRIM1#
main71073-05480-G0i200007-200203
SEAT = TYPE B-*104,GREEN,TRIM6#
main71073-05481-B0i200203-200301
SEAT = TYPE B-*104,GRAY,TRIM1#
main71073-05481-G0i200203-200301
SEAT = TYPE B-*104,GREEN,TRIM6#
main71073-05490-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71073-05490-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71073-05491-B2i199810-199904
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71073-05491-G1i199904-200007
SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71073-05500-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71073-05500-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71073-05501-B2i199810-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71073-05501-G1i199810-200007
SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71073-05510-B0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71073-05510-G0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71073-05511-B2i199810-199904
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71073-05511-G1i199904-199912
W(SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71073-05512-B2i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71073-05512-G1i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71073-05520-B0i199901-199912
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71073-05521-B0i199912-200007
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71073-05530-B0i199901-200007
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71073-05540-B0i199901-200007
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71073-05550-B0i199901-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71073-05551-B0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71073-05560-B0i200007-200203
SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GRAY,TRIM1#
main71073-05560-G0i200007-200203
SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GREEN,TRIM6#
main71073-05561-B0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GRAY,TRIM1#
main71073-05561-G0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GREEN,TRIM6#
main71073-05570-B0i200007-200203
W(SEAT HEATER) & SEAT = TYPE B-*104,GRAY,TRIM1#
main71073-05570-G0i200007-200203
W(SEAT HEATER) & SEAT = TYPE B-*104,GREEN,TRIM6#
main71073-05571-B0i200203-200301
SEAT = TYPE B-*104 & W(SEAT HEATER),GRAY,TRIM1#
main71073-05571-G0i200203-200301
SEAT = TYPE B-*104 & W(SEAT HEATER),GREEN,TRIM6#
main71073-05580-B0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),GRAY,TRIM1#
main71073-05580-G0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),GREEN,TRIM6#
main71073-05581-B0i200203-200301
SEAT = TYPE B-*104 & W/O(SIDE AIR BAG),GRAY,TRIM1#
main71073-05581-G0i200203-200301
SEAT = TYPE B-*104 & W/O(SIDE AIR BAG),GREEN,TRIM6#
main71073-05590-B0i200007-200203
SEAT = TYPE A-*104,GRAY,TRIM1#
main71073-05590-G0i200007-200203
SEAT = TYPE A-*104,GREEN,TRIM6#
main71073-05591-B0i200203-200301
SEAT = TYPE A-*104,GRAY,TRIM1#
main71073-05591-G0i200203-200301
SEAT = TYPE A-*104,GREEN,TRIM6#
main71073-05600-B0i200007-200203
SEAT = TYPE A-*104 & W(LUMBER SUPPORT),GRAY,TRIM1#
main71073-05600-G0i200007-200203
SEAT = TYPE A-*104 & W(LUMBER SUPPORT),GREEN,TRIM6#
main71073-05601-B0i200203-200301
SEAT = TYPE A-*104 & W(LUMBER SUPPORT),GRAY,TRIM1#
main71073-05601-G0i200203-200301
SEAT = TYPE A-*104 & W(LUMBER SUPPORT),GREEN,TRIM6#
main71073-05610-B0i200007-200203
W(SEAT HEATER) & SEAT = TYPE A-*104,GRAY,TRIM1#
main71073-05610-G0i200007-200203
W(SEAT HEATER) & SEAT = TYPE A-*104,GREEN,TRIM6#
main71073-05611-B0i200203-200301
SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#
main71073-05611-G0i200203-200301
SEAT = TYPE A-*104 & W(SEAT HEATER),GREEN,TRIM6#
main71073-05620-B0i200007-200203
W/O(AIR BAG);SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GRAY,TRIM1#
main71073-05620-G0i200007-200203
W/O(AIR BAG);SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GREEN,TRIM6#
main71073-05621-B0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT) & W/O(SIDE AIR BAG),GRAY,TRIM1#
main71073-05621-G0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT) & W/O(SIDE AIR BAG),GREEN,TRIM6#
main71073-05630-B0i200007-200203
SEAT = TYPE B-*104 & W(SEAT HEATER) & W/O(AIR BAG),GRAY,TRIM1#
main71073-05630-G0i200007-200203
SEAT = TYPE B-*104 & W(SEAT HEATER) & W/O(AIR BAG),GREEN,TRIM6#
main71073-05631-B0i200203-200301
SEAT = TYPE B-*104 & W(SEAT HEATER) & W/O(AIR BAG),GRAY,TRIM1#
main71073-05631-G0i200203-200301
SEAT = TYPE B-*104 & W(SEAT HEATER) & W/O(AIR BAG),GREEN,TRIM6#
main71073-05640-B1i200007-200107
SEAT = TYPE C-*104 & W(LUMBER SUPPORT) & W/O(AIR BAG),MEDIUM GRAY,TRIM1#
main71073-05660-B1i200007-200107
SEAT = TYPE C-*104 & W(LUMBER SUPPORT),MEDIUM GRAY,TRIM1#
main71073-05810-B0i200107-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71073-05820-B0i200107-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71073-05830-B0i200107-200301
W(SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71073-05840-B0i200107-200301
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71073-05850-B0i200107-200301
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71073-05860-B0i200107-200301
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-05380-B0i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71073-05490-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71073-05490-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71073-05491-B2i199810-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71073-05491-G1i199810-200007
SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71073-05580-B0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),GRAY,TRIM1#
main71073-05580-G0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),GREEN,TRIM6#
main71073-05581-B0i200203-200301
SEAT = TYPE B-*104 & W/O(SIDE AIR BAG),GRAY,TRIM1#
main71073-05581-G0i200203-200301
SEAT = TYPE B-*104 & W/O(SIDE AIR BAG),GREEN,TRIM6#
main71073-05650-B1i200007-200107
W/O(AIR BAG);SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71073-05820-B0i200107-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71074-05240-B0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71074-05240-G0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71074-05241-B2i199810-199908
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71074-05241-G1i199908-200007
W(*80,SIDE) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71074-05250-B0i199710-199810
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71074-05250-G0i199710-199810
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71074-05251-B2i199810-199908
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71074-05251-G1i199810-199908
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71074-05252-B2i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71074-05252-G1i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71074-05260-B0i199710-200007
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71074-05260-G0i199710-200007
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71074-05270-B0i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71074-05270-G0i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71074-05271-B0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71074-05271-G0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71074-05280-B1i199710-200007
W(*80,SIDE) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71074-05280-B2i200007-200301
SEAT = TYPE D-*104 & W(LUMBER SUPPORT),DARK GRAY,TRIM1#
main71074-05290-B1i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71074-05291-B1i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71074-05291-B2i200007-200301
SEAT = TYPE D-*104 & W(LUMBER SUPPORT) & W(SEAT HEATER),DARK GRAY,TRIM1#
main71074-05320-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71074-05320-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71074-05321-B2i199904-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71074-05321-G1i199904-200007
SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71074-05330-B0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71074-05330-G0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71074-05331-B2i199904-199912
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71074-05331-G1i199904-199912
W(SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71074-05332-B2i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71074-05332-G1i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71074-05340-B0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71074-05340-G0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71074-05341-B2i199810-200007
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71074-05341-G1i199810-200007
W(*80,SIDE) & SEAT = TYPE C-*104,LT. GREEN,TRIM6#
main71074-05350-B0i199710-200007
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71074-05350-G0i199710-200007
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71074-05360-B0i199710-200007
W(*80,SIDE) & SEAT = TYPE B-*104,ME. GRAY,TRIM1#
main71074-05360-B1i200007-200301
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71074-05370-B0i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71074-05380-B0i199901-199912
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71074-05381-B0i199912-200007
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71074-05390-B0i199901-200007
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71074-05400-B0i199901-200007
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71074-05410-B0i199901-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71074-05411-B0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71074-05420-B0i200007-200203
SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GRAY,TRIM1#
main71074-05420-G0i200007-200203
SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GREEN,TRIM6#
main71074-05421-B0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GRAY,TRIM1#
main71074-05421-G0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GREEN,TRIM6#
main71074-05430-B0i200007-200203
W/O(AIR BAG);SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GRAY,TRIM1#
main71074-05430-G0i200007-200203
W/O(AIR BAG);SEAT = TYPE B-*104 & W(LUMBER SUPPORT),GREEN,TRIM6#
main71074-05431-B0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT) & W/O(SIDE AIR BAG),GRAY,TRIM1#
main71074-05431-G0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT) & W/O(SIDE AIR BAG),GREEN,TRIM6#
main71074-05440-B0i200007-200203
SEAT = TYPE B-*104 & W(LUMBER SUPPORT) & W(SEAT HEATER),GRAY,TRIM1#
main71074-05440-G0i200007-200203
SEAT = TYPE B-*104 & W(LUMBER SUPPORT) & W(SEAT HEATER),GREEN,TRIM6#
main71074-05441-B0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT & SEAT HEATER),GRAY,TRIM1#
main71074-05441-G0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT & SEAT HEATER),GREEN,TRIM6#
main71074-05450-B0i200007-200203
W/O(AIR BAG);SEAT = TYPE B-*104 & W(LUMBER SUPPORT) & W(SEAT HEATER),GRAY,TRIM1#
main71074-05450-G0i200007-200203
W/O(AIR BAG);SEAT = TYPE B-*104 & W(LUMBER SUPPORT) & W(SEAT HEATER),GREEN,TRIM6#
main71074-05451-B0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT & SEAT HEATER) & W/O(SIDE AIR BAG),GRAY,TRIM1#
main71074-05451-G0i200203-200301
SEAT = TYPE B-*104 & W(LUMBER SUPPORT & SEAT HEATER) & W/O(SIDE AIR BAG),GREEN,TRIM6#
main71074-05460-B0i200007-200203
SEAT = TYPE A-*104 & W(LUMBER SUPPORT),GRAY,TRIM1#
main71074-05460-G0i200007-200203
SEAT = TYPE A-*104 & W(LUMBER SUPPORT),GREEN,TRIM6#
main71074-05461-B0i200203-200301
SEAT = TYPE A-*104 & W(LUMBER SUPPORT),GRAY,TRIM1#
main71074-05461-G0i200203-200301
SEAT = TYPE A-*104 & W(LUMBER SUPPORT),GREEN,TRIM6#
main71074-05470-B0i200007-200203
SEAT = TYPE A-*104 & W(LUMBER SUPPORT) & W(SEAT HEATER),GRAY,TRIM1#
main71074-05470-G0i200007-200203
SEAT = TYPE A-*104 & W(LUMBER SUPPORT) & W(SEAT HEATER),GREEN,TRIM6#
main71074-05471-B0i200203-200301
SEAT = TYPE A-*104 & W(LUMBER SUPPORT & SEAT HEATER),GRAY,TRIM1#
main71074-05471-G0i200203-200301
SEAT = TYPE A-*104 & W(LUMBER SUPPORT & SEAT HEATER),GREEN,TRIM6#
main71074-05480-B0i200007-200203
SEAT = TYPE B-*104,GRAY,TRIM1#
main71074-05480-G0i200007-200203
SEAT = TYPE B-*104,GREEN,TRIM6#
main71074-05481-B0i200203-200301
SEAT = TYPE B-*104,GRAY,TRIM1#
main71074-05481-G0i200203-200301
SEAT = TYPE B-*104,GREEN,TRIM6#
main71074-05490-B0i200007-200203
SEAT = TYPE A-*104,GRAY,TRIM1#
main71074-05490-G0i200007-200203
SEAT = TYPE A-*104,GREEN,TRIM6#
main71074-05491-B0i200203-200301
SEAT = TYPE A-*104,GRAY,TRIM1#
main71074-05491-G0i200203-200301
SEAT = TYPE A-*104,GREEN,TRIM6#
main71074-05500-B1i200007-200107
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71074-05630-B0i200107-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71074-05640-B0i200107-200301
W(SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71074-05650-B0i200107-200301
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71074-05660-B0i200107-200301
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71074-05670-B0i200107-200301
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-05310-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71410-05310-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71410-05311-B2i199810-199904
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71410-05311-G1i199810-199904
SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71410-05320-B0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71410-05320-G0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71410-05321-B2i199810-199904
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71410-05321-G1i199908-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71410-05330-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71410-05330-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71410-05331-B2i199810-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71410-05331-G1i199810-200007
SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71410-05340-B0i199710-200007
SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71410-05340-G0i199710-200007
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71410-05350-B0i199710-200007
SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71410-05350-G0i199710-200007
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71410-05360-B0i199710-200007
W(SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71410-05360-G0i199710-200007
W(SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71410-05370-B0i199710-200007
SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71410-05370-B1i200007
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71410-05380-B0i199710-200007
SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71410-05380-B1i200007
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71410-05390-B0i199710-200007
W(SEAT HEATER) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71410-05390-B1i200007
W(SEAT HEATER) & SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71410-05400-B0i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71410-05410-B0i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71410-05420-B0i199901-200007
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71410-05430-B0i200007-200203
SEAT = TYPE B-*104,DARK GRAY,TRIM1#
main71410-05430-G0i200007-200203
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71410-05431-B2i200203
SEAT = TYPE B-*104,XXXX,TRIM1#
main71410-05431-G1i200203
SEAT = TYPE B-*104,XXXX,TRIM6#
main71410-05470-B0i200007-200203
SEAT = TYPE B-*104,DARK GRAY,TRIM1#
main71410-05470-G0i200007-200203
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71410-05471-B2i200203
SEAT = TYPE B-*104,XXXX,TRIM1#
main71410-05471-G1i200203
SEAT = TYPE B-*104,XXXX,TRIM6#
main71410-05480-B0i200007-200203
SEAT = TYPE B-*104 & W(SEAT HEATER),DARK GRAY,TRIM1#
main71410-05480-G0i200007-200203
SEAT = TYPE B-*104 & W(SEAT HEATER),SLATE GREEN,TRIM6#
main71410-05481-B2i200203
SEAT = TYPE B-*104 & W(SEAT HEATER),XXXX,TRIM1#
main71410-05481-G1i200203
SEAT = TYPE B-*104 & W(SEAT HEATER),XXXX,TRIM6#
main71410-05490-B0i200007-200203
SEAT = TYPE A-*104,DARK GRAY,TRIM1#
main71410-05490-G0i200007-200203
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71410-05491-B1i200203
SEAT = TYPE A-*104,XXXX,TRIM1#
main71410-05491-G1i200203
SEAT = TYPE A-*104,XXXX,TRIM6#
main71410-05500-B0i200007-200203
SEAT = TYPE A-*104,DARK GRAY,TRIM1#
main71410-05500-G0i200007-200203
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71410-05501-B1i200203
SEAT = TYPE A-*104,XXXX,TRIM1#
main71410-05501-G1i200203
SEAT = TYPE A-*104,XXXX,TRIM6#
main71410-05510-B0i200007-200203
SEAT = TYPE A-*104 & W(SEAT HEATER),DARK GRAY,TRIM1#
main71410-05510-G0i200007-200203
SEAT = TYPE A-*104 & W(SEAT HEATER),SLATE GREEN,TRIM6#
main71410-05511-B1i200203
SEAT = TYPE A-*104 & W(SEAT HEATER),XXXX,TRIM1#
main71410-05511-G1i200203
SEAT = TYPE A-*104 & W(SEAT HEATER),XXXX,TRIM6#
main71410-05530-B1i200007-200107
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71410-05540-B0i200107
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71410-05550-B0i200107
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71410-05560-B0i200107
W(SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-05330-B0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71420-05330-G0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71420-05331-B2i199904-199908
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71420-05331-G1i199904-199908
W(SEAT HEATER) & SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71420-05340-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71420-05340-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71420-05341-B2i199810-199904
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71420-05341-G1i199904-200007
SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71420-05350-B0i199710-200007
SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71420-05350-G0i199710-200007
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71420-05360-B0i199710-200007
W(SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71420-05360-G0i199710-200007
W(SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71420-05370-B0i199710-200007
SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71420-05370-B1i200007
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71420-05380-B0i199710-200007
W(SEAT HEATER) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71420-05380-B1i200007
W(SEAT HEATER) & SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71420-05400-B0i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71420-05410-B0i199901-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71420-05420-B0i199901-200007
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71420-05430-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71420-05430-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71420-05431-B2i199810-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71420-05431-G1i199810-200007
SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71420-05440-B0i199710-200007
SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71420-05440-G0i199710-200007
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71420-05450-B0i199710-200007
SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71420-05450-B1i200007
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71420-05490-B0i200007-200203
SEAT = TYPE B-*104,DARK GRAY,TRIM1#
main71420-05490-G0i200007-200203
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71420-05491-B2i200203
SEAT = TYPE B-*104,XXXX,TRIM1#
main71420-05491-G1i200203
SEAT = TYPE B-*104,XXXX,TRIM6#
main71420-05500-B0i200007-200203
SEAT = TYPE B-*104,DARK GRAY,TRIM1#
main71420-05500-G0i200007-200203
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71420-05501-B2i200203
SEAT = TYPE B-*104,XXXX,TRIM1#
main71420-05501-G1i200203
SEAT = TYPE B-*104,XXXX,TRIM6#
main71420-05510-B0i200007-200203
SEAT = TYPE B-*104 & W(SEAT HEATER),DARK GRAY,TRIM1#
main71420-05510-G0i200007-200203
SEAT = TYPE B-*104 & W(SEAT HEATER),SLATE GREEN,TRIM6#
main71420-05511-B2i200203
SEAT = TYPE B-*104 & W(SEAT HEATER),XXXX,TRIM1#
main71420-05511-G1i200203
SEAT = TYPE B-*104 & W(SEAT HEATER),XXXX,TRIM6#
main71420-05520-B0i200007-200203
SEAT = TYPE A-*104,DARK GRAY,TRIM1#
main71420-05520-G0i200007-200203
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71420-05521-B1i200203
SEAT = TYPE A-*104,XXXX,TRIM1#
main71420-05521-G1i200203
SEAT = TYPE A-*104,XXXX,TRIM6#
main71420-05530-B0i200007-200203
SEAT = TYPE A-*104,DARK GRAY,TRIM1#
main71420-05530-G0i200007-200203
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71420-05531-B1i200203
SEAT = TYPE A-*104,XXXX,TRIM1#
main71420-05531-G1i200203
SEAT = TYPE A-*104,XXXX,TRIM6#
main71420-05540-B0i200007-200203
SEAT = TYPE A-*104 & W(SEAT HEATER),DARK GRAY,TRIM1#
main71420-05540-G0i200007-200203
SEAT = TYPE A-*104 & W(SEAT HEATER),SLATE GREEN,TRIM6#
main71420-05541-B1i200203
SEAT = TYPE A-*104 & W(SEAT HEATER),XXXX,TRIM1#
main71420-05541-G1i200203
SEAT = TYPE A-*104 & W(SEAT HEATER),XXXX,TRIM6#
main71420-05560-B1i200007-200107
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71420-05570-B0i200107
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71420-05580-B0i200107
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71420-05590-B0i200107
W(SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-05320-B0i199901-199912
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05321-B0i199912-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05330-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71430-05330-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71430-05331-B2i199904-199912
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05331-G1i199810-199904
SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71430-05332-B2i199912-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05332-G1i199912-200007
SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71430-05340-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71430-05340-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71430-05341-B2i199810-199912
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05341-G1i199810-199912
SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71430-05342-B2i199912-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05342-G1i199912-200007
SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71430-05350-B0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71430-05350-G0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71430-05351-B2i199810-199912
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05351-G1i199810-199912
W(*80,SIDE) & SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71430-05352-B2i199912-200007
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05352-G1i199912-200007
W(*80,SIDE) & SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71430-05360-B0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71430-05360-G0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71430-05361-B2i199908-199912
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05361-G1i199908-199912
W(*80,SIDE) & SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71430-05362-B2i199912-200007
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05362-G1i199912-200007
W(*80,SIDE) & SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71430-05370-B0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71430-05370-G0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71430-05371-B2i199904-199912
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05371-G1i199904-199912
W(SEAT HEATER) & SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71430-05372-B2i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05372-G1i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71430-05380-B0i199710-199810
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71430-05380-G0i199710-199810
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71430-05381-B2i199810-199908
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05381-G1i199810-199908
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71430-05382-B2i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71430-05382-G1i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71430-05390-B0i199901-199912
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05391-B0i199912-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05400-B0i199901-199912
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05401-B0i199912-200007
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05410-B0i199710-199912
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71430-05410-G0i199710-199912
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05411-B0i199912-200007
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71430-05411-G0i199912-200007
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05420-B0i199710-199912
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71430-05420-G0i199710-199912
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05421-B0i199912-200007
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71430-05421-G0i199912-200007
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05430-B0i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71430-05430-G0i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05431-B0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71430-05431-G0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05440-B0i199710-199912
W(*80,SIDE) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71430-05441-B0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71430-05441-B1i200010-200203
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71430-05442-B2i200203-200301
SEAT = TYPE D-*104,DK.GRAY,TRIM1#
main71430-05450-B0i199710-199912
W(*80,SIDE) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71430-05451-B0i199912-200007
W(*80,SIDE) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71430-05451-B1i200007-200203
W(*80,SIDE) & SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71430-05452-B2i200203-200301
SEAT = TYPE D-*104,DK.GRAY,TRIM1#
main71430-05460-B0i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71430-05461-B0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71430-05461-B1i200007-200203
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71430-05462-B2i200203-200301
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE D-*104,DK.GRAY,TRIM1#
main71430-05500-B0i199901-199912
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05501-B0i199912-200007
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05510-B0i199901-199912
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05511-B0i199912-200007
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05520-B0i199901-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05521-B0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71430-05550-B1i200007-200107
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71430-05560-B0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),DARK GRAY,TRIM1#
main71430-05560-G0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),SLATE GREEN,TRIM6#
main71430-05562-B2i200203-200301
SEAT = TYPE B-*104 & W/O(AIR BAG),DK.GRAY,TRIM1#
main71430-05562-G1i200203-200301
SEAT = TYPE B-*104 & W/O(AIR BAG),SLATE GREEN,TRIM6#
main71430-05570-B0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),DARK GRAY,TRIM1#
main71430-05570-G0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),SLATE GREEN,TRIM6#
main71430-05572-B2i200203-200301
SEAT = TYPE B-*104 & W/O(AIR BAG),DK.GRAY,TRIM1#
main71430-05572-G1i200203-200301
SEAT = TYPE B-*104 & W/O(AIR BAG),SLATE GREEN,TRIM6#
main71430-05580-B0i200007-200203
SEAT = TYPE B-*104 & W(SEAT HEATER) & W/O(AIR BAG),DARK GRAY,TRIM1#
main71430-05580-G0i200007-200203
SEAT = TYPE B-*104 & W(SEAT HEATER) & W/O(AIR BAG),SLATE GREEN,TRIM6#
main71430-05582-B2i200203-200301
SEAT = TYPE B-*104 & W(SEAT HEATER) & W/O(AIR BAG),DK.GRAY,TRIM1#
main71430-05582-G1i200203-200301
SEAT = TYPE B-*104 & W(SEAT HEATER) & W/O(AIR BAG),SLATE GREEN,TRIM6#
main71430-05590-B0i200007-200203
SEAT = TYPE B-*104,DARK GRAY,TRIM1#
main71430-05590-G0i200007-200203
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71430-05592-B2i200203-200301
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71430-05592-G1i200203-200301
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71430-05600-B0i200007-200203
SEAT = TYPE B-*104,DARK GRAY,TRIM1#
main71430-05600-G0i200007-200203
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71430-05602-B2i200203-200301
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71430-05602-G1i200203-200301
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71430-05610-B0i200007-200203
W(SEAT HEATER) & SEAT = TYPE B-*104,DARK GRAY,TRIM1#
main71430-05610-G0i200007-200203
W(SEAT HEATER) & SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71430-05612-B2i200203-200301
W(SEAT HEATER) & SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71430-05612-G1i200203-200301
W(SEAT HEATER) & SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71430-05620-B0i200007-200203
SEAT = TYPE A-*104,DARK GRAY,TRIM1#
main71430-05620-G0i200007-200203
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05622-B1i200203-200301
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71430-05622-G1i200203-200301
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05630-B0i200007-200203
W(*80,SIDE) & SEAT = TYPE A-*104,DARK GRAY,TRIM1#
main71430-05630-G0i200007-200203
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05632-B1i200203-200301
W(*80,SIDE) & SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71430-05632-G1i200203-200301
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05640-B0i200007-200203
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,DARK GRAY,TRIM1#
main71430-05640-G0i200007-200203
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05642-B1i200203-200301
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71430-05642-G1i200203-200301
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71430-05650-B1i200007-200107
W(SIDE AIR BAG) & SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71430-05700-B0i200107-200203
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05701-B0i200203-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05710-B0i200107-200203
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05711-B0i200203-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05720-B0i200107-200203
W(SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05721-B0i200203-200301
W(SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05730-B0i200107-200203
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05731-B0i200203-200301
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05740-B0i200107-200203
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05741-B0i200203-200301
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05750-B0i200107-200203
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71430-05751-B0i200203-200301
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-05160-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71440-05160-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71440-05161-B2i199810-199912
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05161-G1i199810-199912
SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71440-05162-B2i199912-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05162-G1i199912-200007
SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71440-05170-B0i199710-199810
SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71440-05170-G0i199710-199810
SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71440-05171-B2i199810-199904
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05171-G1i199904-199912
SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71440-05172-B2i199912-200007
SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05172-G1i199912-200007
SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71440-05180-B0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71440-05180-G0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71440-05181-B2i199810-199912
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05181-G1i199810-199912
W(*80,SIDE) & SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71440-05182-B2i199912-200007
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05182-G1i199912-200007
W(*80,SIDE) & SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71440-05210-B0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71440-05210-G0i199710-199810
W(*80,SIDE) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71440-05211-B2i199810-199908
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05211-G1i199810-199908
W(*80,SIDE) & SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71440-05212-B2i199912-200007
W(*80,SIDE) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05212-G1i199912-200007
W(*80,SIDE) & SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71440-05260-B0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71440-05260-G0i199710-199810
W(SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71440-05261-B2i199904-199912
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05261-G1i199904-199912
W(SEAT HEATER) & SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71440-05262-B2i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05262-G1i199912-200007
W(SEAT HEATER) & SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71440-05270-B0i199710-199810
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,MEDIUM GRAY,TRIM1#
main71440-05270-G0i199710-199810
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,SLATE GREEN,TRIM6#
main71440-05271-B2i199810-199908
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05271-G1i199908-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,LT.GREEN,TRIM6#
main71440-05272-B2i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,MEDIUM GRAY,TRIM1#
main71440-05272-G1i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE C-*104,SLATE GREEN,TRIM6#
main71440-05280-B0i199901-199912
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05281-B0i199912-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05290-B0i199901-199912
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05291-B0i199912-200007
SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05300-B0i199710-199912
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71440-05300-G0i199710-199912
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05301-B0i199912-200007
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71440-05301-G0i199912-200007
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05310-B0i199710-199912
W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71440-05310-G0i199710-199912
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05311-B0i199912-200007
SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71440-05311-G0i199912-200007
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05320-B0i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71440-05320-G0i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05321-B0i199912-200007
W(SEAT HEATER) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1#
main71440-05321-G0i199912-200007
W(SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05330-B0i199710-199912
W(*80,SIDE) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71440-05331-B0i199912-200007
W(*80,SIDE) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71440-05331-B1i200007-200203
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71440-05332-B2i200203-200301
SEAT = TYPE D-*104,DK.GRAY,TRIM1#
main71440-05340-B0i199710-199912
W(*80,SIDE) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71440-05341-B0i199912-200007
W(*80,SIDE) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71440-05341-B1i200007-200203
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71440-05342-B2i200203-200301
W(*80,SIDE) & SEAT = TYPE D-*104,DK.GRAY,TRIM1#
main71440-05350-B0i199710-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1#
main71440-05351-B0i199912-200007
SEAT = TYPE B-*104,MEDIUM GGRAY,TRIM1#
main71440-05351-B1i200007-200203
W(SEAT HEATER) & SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71440-05352-B2i200203-200301
W(SEAT HEATER) & SEAT = TYPE D-*104,DK.GRAY,TRIM1#
main71440-05380-B0i199901-199912
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05381-B0i199912-200007
W(SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05390-B0i199901-199912
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05391-B0i199912-200007
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05400-B0i199901-199912
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05401-B0i199912-200007
W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05410-B0i199901-199912
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05411-B0i199912-200007
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1#
main71440-05420-B0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),DARK GRAY,TRIM1#
main71440-05420-G0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),SLATE GREEN,TRIM6#
main71440-05422-B2i200203-200301
SEAT = TYPE B-*104 & W/O(AIR BAG),DK.GRAY,TRIM1#
main71440-05422-G1i200203-200301
SEAT = TYPE B-*104 & W/O(AIR BAG),SLATE GREEN,TRIM6#
main71440-05430-B0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),DARK GRAY,TRIM1#
main71440-05430-G0i200007-200203
SEAT = TYPE B-*104 & W/O(AIR BAG),SLATE GREEN,TRIM6#
main71440-05432-B2i200203-200301
SEAT = TYPE B-*104 & W/O(AIR BAG),DK.GRAY,TRIM1#
main71440-05432-G1i200203-200301
SEAT = TYPE B-*104 & W/O(AIR BAG),SLATE GREEN,TRIM6#
main71440-05440-B0i200007-200203
W(SEAT HEATER) & SEAT = TYPE B-*104,DARK GRAY,TRIM1#
main71440-05440-G0i200007-200203
W(SEAT HEATER) & SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71440-05442-B2i200203-200301
W(SEAT HEATER) & SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71440-05442-G1i200203-200301
W(SEAT HEATER) & SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71440-05450-B0i200007-200203
SEAT = TYPE B-*104,DARK GRAY,TRIM1#
main71440-05450-G0i200007-200203
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71440-05452-B2i200203-200301
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71440-05452-G1i200203-200301
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71440-05460-B0i200007-200203
SEAT = TYPE B-*104,DARK GRAY,TRIM1#
main71440-05460-G0i200007-200203
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71440-05462-B2i200203-200301
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71440-05462-G1i200203-200301
SEAT = TYPE B-*104,SLATE GREEN,TRIM6#
main71440-05470-B0i200007-200203
W(SEAT HEATER) & SEAT = TYPE B-*104;W(SIDE AIR BAG),DARK GRAY,TRIM1#
main71440-05470-G0i200007-200203
W(SIDE AIR BAG);SEAT = TYPE B-*104 & W(SEAT HEATER),SLATE GREEN,TRIM6#
main71440-05472-B2i200203-200301
W(SIDE AIR BAG);SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71440-05472-G1i200203-200301
W(SIDE AIR BAG);SEAT = TYPE B-*104 & W(SEAT HEATER),SLATE GREEN,TRIM6#
main71440-05480-B0i200007-200203
SEAT = TYPE A-*104,DARK GRAY,TRIM1#
main71440-05480-G0i200007-200203
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05482-B1i200203-200301
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71440-05482-G1i200203-200301
SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05490-B0i200007-200203
SEAT = TYPE A-*104,DARK GRAY,TRIM1#
main71440-05490-G0i200007-200203
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05492-B1i200203-200301
W(*80,SIDE) & SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71440-05492-G1i200203-200301
W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05500-B0i200007-200203
W(SEAT HEATER) & SEAT = TYPE A-*104,DARK GRAY,TRIM1#
main71440-05500-G0i200007-200203
W(SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05502-B1i200203-200301
W(SEAT HEATER) & SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71440-05502-G1i200203-200301
W(SEAT HEATER) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6#
main71440-05530-B1i200007-200107
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71440-05540-B1i200007-200107
W(SIDE AIR BAG) & SEAT = TYPE C-*104,DARK GRAY,TRIM1#
main71440-05590-B0i200107-200203
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05591-B0i200203-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05600-B0i200107-200203
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05601-B0i200203-200301
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05610-B0i200107-200203
W(SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05611-B0i200203-200301
W(SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05620-B0i200107-200203
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05621-B0i200203-200301
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05630-B0i200107-200203
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05631-B0i200203-200301
W(*80,SIDE) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05640-B0i200107-200203
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
main71440-05641-B0i200203-200301
W(*80,SIDE & SEAT HEATER) & SEAT = TYPE E-*104,DK.GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-05040i199710
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-05040i199710
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-05010i199901
main71551-05050i199904-200007
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-05050i199710-199901
main71552-05030i199710-199904
main71552-05040i199901
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-05030i199710-199906
main71630-05031i199906-200203
main71630-05032i200203
main71630-05040i199710-199912
main71630-05041i199912-200203
main71630-05042i200203
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-05020i199710-199912
main71640-05021i199912-200203
main71640-05022i200203
main71640-05030i199710-199912
main71640-05031i199912-200203
main71640-05032i200203
71750ATRAY ASSY, FRONT SEAT UNDER
main71750-20030i199710
71910AHEADREST ASSY, FRONT SEAT
main71910-05090-B1×2i199901-200007
LINEA LUNA,MEDIUM GRAY,TRIM1#
main71910-05100-B0×2i199904-200007
W(*80,DRIVER SIDE & PASSENGER SIDE),MEDIUM GRAY,TRIM1#
main71910-05100-G0×2i199710-200007
SLATE GREEN,TRIM6#
main71910-05110-B1×2i199710-200007
MEDIUM GRAY,TRIM1#
main71910-05110-G1×2i199710-200007
SLATE GREEN,TRIM6#
main71910-05120-B0×2i199710-199901
W(LEATHER SEAT),ME. GRAY,TRIM1#
main71910-05120-B1×2i199901-200007
W(LEATHER SEAT),ME. GRAY,TRIM1#
main71910-05120-B2×2i200007
SEAT = TYPE D-*104,DARK GRAY,TRIM1#
main71910-05140-B0×2i200007
SEAT = TYPE B OR TYPE C-*104,GRAY,TRIM1#
main71910-05140-G0×2i200007
SEAT = TYPE B OR TYPE C-*104,GREEN,TRIM6#
main71910-05150-B0×2i200007-200203
SEAT = TYPE A-*104,GRAY,TRIM1#
main71910-05150-G0×2i200007-200203
SEAT = TYPE A-*104,GREEN,TRIM6#
main71910-05151-B0×2i200203
SEAT = TYPE A-*104,GRAY,TRIM1#
main71910-05151-G0×2i200203
SEAT = TYPE A-*104,GREEN,TRIM6#
main71910-05160-B0×2i200107
SEAT = TYPE E-*104,DK.GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-05010-B1×2i199710-200007
W(LOCK),MD.GRAY,TRIM1#
main71930-05010-B3×2i200007
W(LOCK),DK.GRAY,TRIM1#
main71930-05010-G0×2i199710
W(LOCK),SLATE GREEN,TRIM6#
main71931-05010-B1×2i199710-200007
W/O(LOCK),MD.GRAY,TRIM1#
main71931-05010-B3×2i200007
W/O(LOCK),DK.GRAY,TRIM1#
main71931-05010-G0×2i199710
W/O(LOCK),SLATE GREEN,TRIM6#
72791BKNOB, LUMBAR SUPPORT, LH
main72791-05020-B0i199710-200007
MD.GRAY,TRIM1#
main72791-05020-B1i200007
DK.GRAY,TRIM1#
main72791-05020-G0i200007-200203
SLATE GREEN,TRIM6#
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-05070i199909-200301
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-05070i199909-200301
87510MHEATER ASSY, FRONT SEATBACK, RH
main87510-05080i199909-200301
87510NHEATER ASSY, FRONT SEATBACK, LH
main87510-05080i199909-200301
8271105070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-05070
9008014041
main90080-14041
9008046007
main90080-46007
9008046262
main90080-46262
9008052058
main90080-52058
9046707138
main90467-07138
9046707166
main90467-07166
9052001006
main90520-01006
9418560600
main94185-60600

33 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
