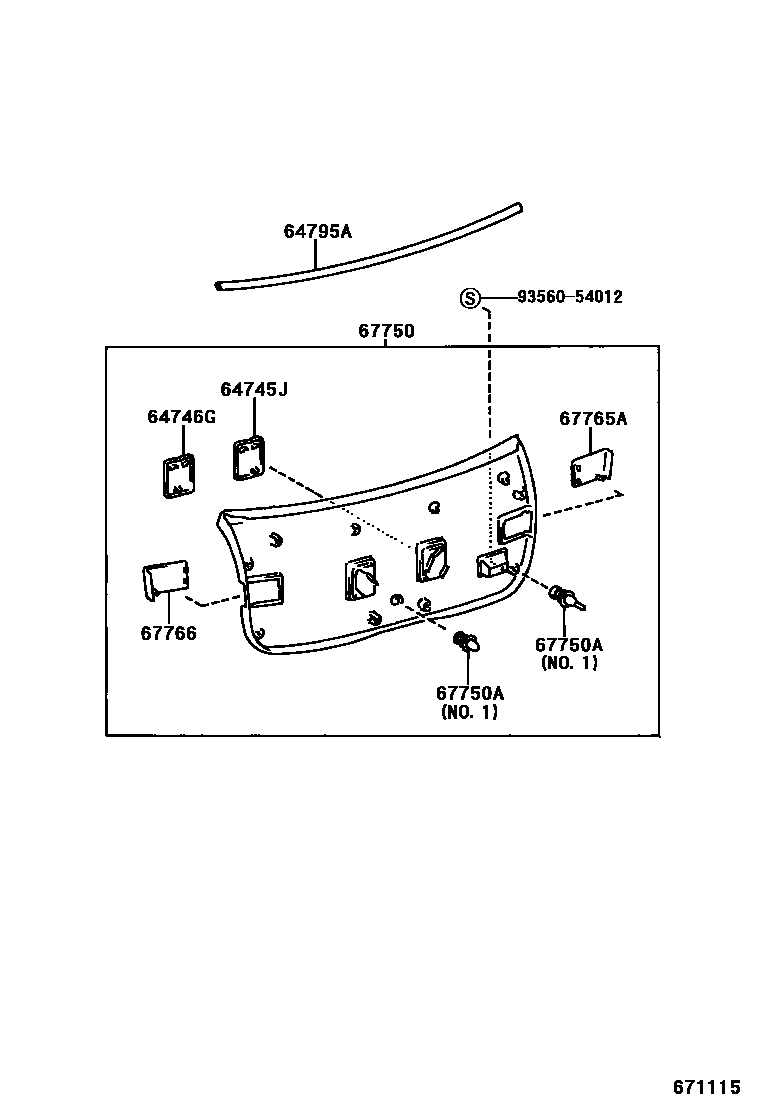

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

64745JCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-05021-B1iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#

main64745-05021-B2iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#

main64745-05021-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

64746GCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-05021-B1iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#

main64746-05021-B2iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#

main64746-05021-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

64795ATRIM, BACK WINDOW OPENING

main64795-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

main64795-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

67750BOARD ASSY, BACK DOOR TRIM

main67750-05040-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MD.GRAY,TRIM1#

main67750-05040-B1iAZT220,CDT220,ST220,ZZT22#..LB200007

DK.GRAY,TRIM1#

main67750-05040-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

main67750-05050-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#

main67750-05050-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#

main67750-05050-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

67750ACLIP(FOR BACK DOOR TRIM)

main90467-10151iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG199710

NO.1

main90467-10161iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

NO.2

main90467-10167iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

NO.2

main90468-04098iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

NO.3

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-05010-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#

main67765-05010-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#

main67765-05010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-05010-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#

main67766-05010-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#

main67766-05010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

9356054012

main93560-54012

8 parts on this diagram · 4 diagrams in section
