REAR DOOR LOCK & HANDLE

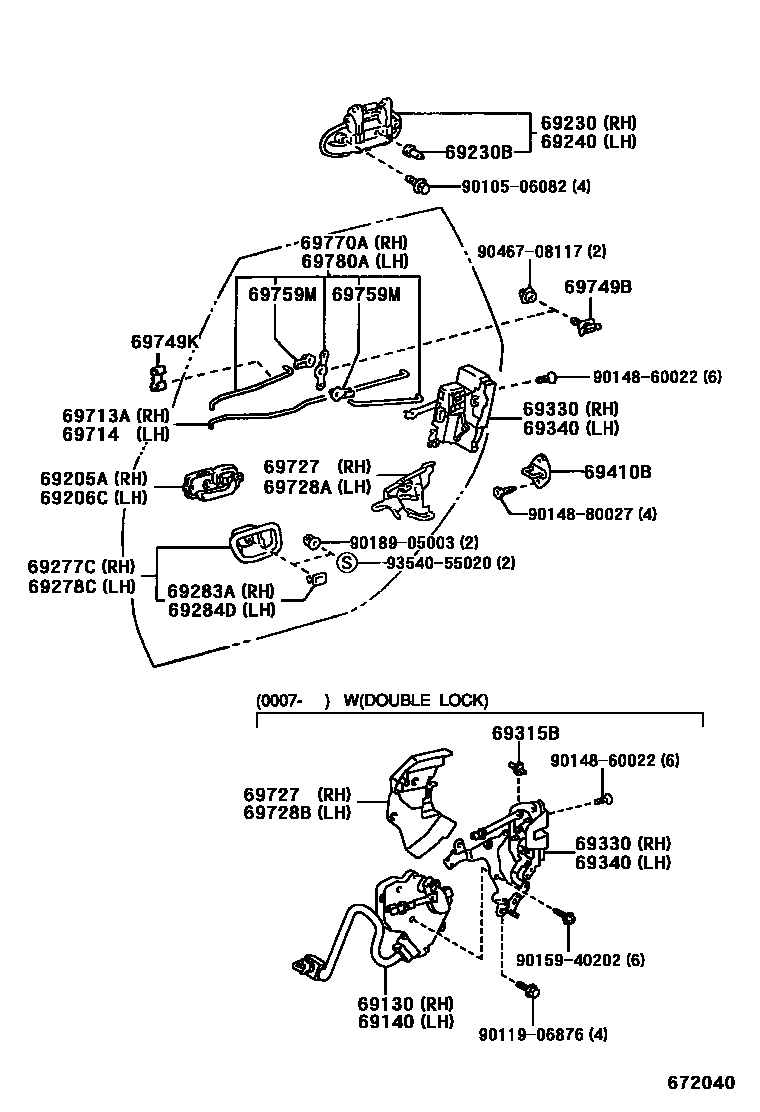

Parts diagram
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
main69130-20150i200007
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
main69140-20150i200007
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-05020-B0i199710-200007
MD.GRAY,TRIM1#
main69205-05020-G0i199710-200007
SLATE GREEN,TRIM6#
main69205-05030-B0i200007
DK.GRAY,TRIM1#
main69205-05030-G0i200007
SLATE GREEN,TRIM6#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-05020-B0i199710-200007
MD.GRAY,TRIM1#
main69206-05020-G0i199710-200007
SLATE GREEN,TRIM6#
main69206-05030-B0i200007
DK.GRAY,TRIM1#
main69206-05030-G0i200007
SLATE GREEN,TRIM6#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-05040i199710-199903
sub69230-05041
main69230-05041i199903-200007
main69230-05050-A0i199710-199903
SUPER WHITE 2,040
sub69230-05051
main69230-05050-B0i199710-199903
SILVER ME,199
sub69230-05051
main69230-05050-C0i199710-199903
BLACK ME,205
sub69230-05051
main69230-05050-D0i199710-199903
SU.RED 3,3J6
sub69230-05051
main69230-05050-D1i199710-199903
RED M.M.,3M3
sub69230-05051
main69230-05050-G0i199710-199903
DK.GREEN M.M.,6P3
sub69230-05051
main69230-05050-G1i199710-199903
LT.GREEN ME.,6Q2
sub69230-05051
main69230-05050-H0i199710-199901
DP.TURQUOISE MC.,758
sub69230-05051
main69230-05050-J0i199710-199901
STRONG BLUE M,8B6
sub69230-05051
main69230-05050-J1i199710-199903
DK.BLUE,8M4
sub69230-05051
main69230-05050-J2i199901-199903
DK.BLUE ME.,8N3
sub69230-05051
main69230-05050-K0i199901-199903
DK.PURPLE M.M.,945
sub69230-05051
main69230-05051-A0i199903-200007
SUPER WHITE 2,040
main69230-05051-B0i199903-200007
SILVER ME,199
main69230-05051-B1i200107
GRAY M.M.,1E5
main69230-05051-C0i199903-200107
BLACK ME,205
main69230-05051-C1i200107
BLACK MC.,209
main69230-05051-D0i199903-200007
SU.RED 3,3J6
main69230-05051-D1i199903-200007
RED M.M.,3M3
main69230-05051-D2i200007
RED M.M.,3N8
main69230-05051-F0i200007
CHAMPAGNE ME.,583
main69230-05051-G0i199903-200007
DK.GREEN M.M.,6P3
main69230-05051-G1i199903-200007
LT.GREEN ME.,6Q2
main69230-05051-G2i200007
DK.GREEN M.M.,6S3
main69230-05051-G3i200007
GREEN M.M.,6S4
main69230-05051-J0i199908-200007
STRONG BLUE M.,8B6
main69230-05051-J1i199903-200107
DK.BLUE,8M4
main69230-05051-J2i199903-200007
DK.BLUE ME.,8N3
main69230-05051-J3i200001-200107
DK.BLUE M.M.,8L3
main69230-05051-J4i200107
DK.BLUE M.M.,8P4
main69230-05051-J5i200107
DK.BLUE,8Q4
main69230-05051-K0i199903-200007
DK.PURPLE M.M.,945
main69230-05060i200007
main69230-05070-A0i200007
SUPER WHITE 2,040
main69230-05070-B0i200007
SILVER ME.,199
main69230-05070-B1i200107
GRAY M.M.,1E5
main69230-05070-C0i200007-200107
BLACK ME,205
main69230-05070-C1i200107
BLACK MC.,209
main69230-05070-D0i200007
SU.RED 3,3J6
main69230-05070-D1i200007
RED M.M.,3N8
main69230-05070-F0i200007
CHAMPAGNE ME.,583
main69230-05070-G0i200007
DK.GREEN M.M.,6S3
main69230-05070-G1i200007
GREEN M.M.,6S4
main69230-05070-J0i200007-200107
DK.BLUE,8M4
main69230-05070-J1i200007-200107
DK.BLUE M.M.,8L3
main69230-05070-J2i200107
DK.BLUE M.M.,8P4
main69230-05070-J3i200107
DK.BLUE,8Q4
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
main90080-54017i199710
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-05040i199710-199903
sub69240-05041
main69240-05041i199903-200007
main69240-05050-A0i199710-199903
SUPER WHITE 2,040
sub69240-05051
main69240-05050-B0i199710-199903
SILVER ME,199
sub69240-05051
main69240-05050-C0i199710-199903
BLACK ME,205
sub69240-05051
main69240-05050-D0i199710-199903
SU.RED 3,3J6
sub69240-05051
main69240-05050-D1i199710-199903
RED M.M.,3M3
sub69240-05051
main69240-05050-G0i199710-199903
DK.GREEN M.M.,6P3
sub69240-05051
main69240-05050-G1i199710-199903
LT.GREEN ME.,6Q2
sub69240-05051
main69240-05050-H0i199710-199901
DP.TURQUOISE MC.,758
sub69240-05051
main69240-05050-J0i199710-199901
STRONG BLUE M,8B6
sub69240-05051
main69240-05050-J1i199710-199903
DK.BLUE,8M4
sub69240-05051
main69240-05050-J2i199901-199903
DK.BLUE ME.,8N3
sub69240-05051
main69240-05050-K0i199901-199903
DK.PURPLE M.M.,945
sub69240-05051
main69240-05051-A0i199903-200007
SUPER WHITE 2,040
main69240-05051-B0i199903-200007
SILVER ME,199
main69240-05051-B1i200107
GRAY M.M.,1E5
main69240-05051-C0i199903-200107
BLACK ME,205
main69240-05051-C1i200107
BLACK MC.,209
main69240-05051-D0i199903-200007
SU.RED 3,3J6
main69240-05051-D1i199903-200007
RED M.M.,3M3
main69240-05051-D2i200007
RED M.M.,3N8
main69240-05051-F0i200007
CHAMPAGNE ME.,583
main69240-05051-G0i199903-200007
DK.GREEN M.M.,6P3
main69240-05051-G1i199903-200007
LT.GREEN ME.,6Q2
main69240-05051-G2i200007
DK.GREEN M.M.,6S3
main69240-05051-G3i200007
GREEN M.M.,6S4
main69240-05051-J0i199908-200007
STRONG BLUE M.,8B6
main69240-05051-J1i199903-200107
DK.BLUE,8M4
main69240-05051-J2i199903-200007
DK.BLUE ME,8N3
main69240-05051-J3i200001-200107
DK.BLUE M.M.,8L3
main69240-05051-J4i200107
DK.BLUE M.M.,8P4
main69240-05051-J5i200107
DK.BLUE,8Q4
main69240-05051-K0i199903-200007
DK.PURPLE M.M.,945
main69240-05060i200007
main69240-05070-A0i200007
SUPER WHITE 2,040
main69240-05070-B0i200007
SILVER ME.,199
main69240-05070-B1i200107
GRAY M.M.,1E5
main69240-05070-C0i200007-200107
BLACK ME,205
main69240-05070-C1i200107
BLACK MC.,209
main69240-05070-D0i200007
SU.RED 3,3J6
main69240-05070-D1i200007
RED M.M.,3N8
main69240-05070-F0i200007
CHAMPAGNE ME.,583
main69240-05070-G0i200007
DK.GREEN M.M.,6S3
main69240-05070-G1i200007
GREEN M.M.,6S4
main69240-05070-J0i200007-200107
DK.BLUE,8M4
main69240-05070-J1i200007-200107
DK.BLUE M.M.,8L3
main69240-05070-J2i200107
DK.BLUE M.M.,8P4
main69240-05070-J3i200107
DK.BLUE,8Q4
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
main69277-05010-B0i199710-200001
MD.GRAY,TRIM1#
sub69277-05011
main69277-05010-G0i199710-200001
SLATE GREEN,TRIM6#
sub69277-05011
main69277-05011-B0i200001-200007
MD.GRAY,TRIM1#
main69277-05011-B1i200007
DK.GRAY,TRIM1#
main69277-05011-G0i200001
SLATE GREEN,TRIM6#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
main69278-05010-B0i199710-200001
MD.GRAY,TRIM1#
sub69278-05011
main69278-05010-G0i199710-200001
SLATE GREEN,TRIM6#
sub69278-05011
main69278-05011-B0i200001-200007
MD.GRAY,TRIM1#
main69278-05011-B1i200007
DK.GRAY,TRIM1#
main69278-05011-G0i200001
SLATE GREEN,TRIM6#
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
main69283-05010-B0i199710-200007
MD.GRAY,TRIM1#
main69283-05010-B1i200007-200301
DK.GRAY,TRIM1#
main69283-05010-G0i199710-200301
SLATE GREEN,TRIM6#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
main69284-05010-B0i199710-200007
MD.GRAY,TRIM1#
main69284-05010-B1i200007
DK.GRAY,TRIM1#
main69284-05010-G0i199710
SLATE GREEN,TRIM6#
69315BRETAINER, REAR DOOR LOCK SOLENOID
main69315-33030i200007
69330LOCK ASSY, REAR DOOR, RH
main69050-05020i199710-199804
sub69050-05021
main69050-05021i199804-200007
main69330-20470i200007
69340LOCK ASSY, REAR DOOR, LH
main69060-05020i199710-199804
sub69060-05021
main69060-05021i199804-200007
main69340-20470i200007
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-20110i199710
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
main69713-05010i199710-200007
main69713-20200i200007
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
main69714-05010i199710-200007
main69714-20200i200007
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
main69727-20060i199710-200007
main69727-20070i200007
69728APROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
main69728-20060i199710-200007
69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH
main69728-20070i200007
69749BCLAMP, REAR DOOR LOCK LINK
main69749-32030i199710
69749KCLAMP, REAR DOOR LOCK
main69749-12030i199710
69759MSNAP, DOOR LOCK CONTROL LINK
main69759-20380i199710-200007
main69759-24040i200007
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-05010i199710-200007
main69770-20100i200007
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
main69780-05010i199710-200007
main69780-20100i200007
9010506082
main90105-06082
9011906876
main90119-06876
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9018905003
main90189-05003
9046708117
main90467-08117
9354055020
main93540-55020

33 parts on this diagram · 1 diagram in section
