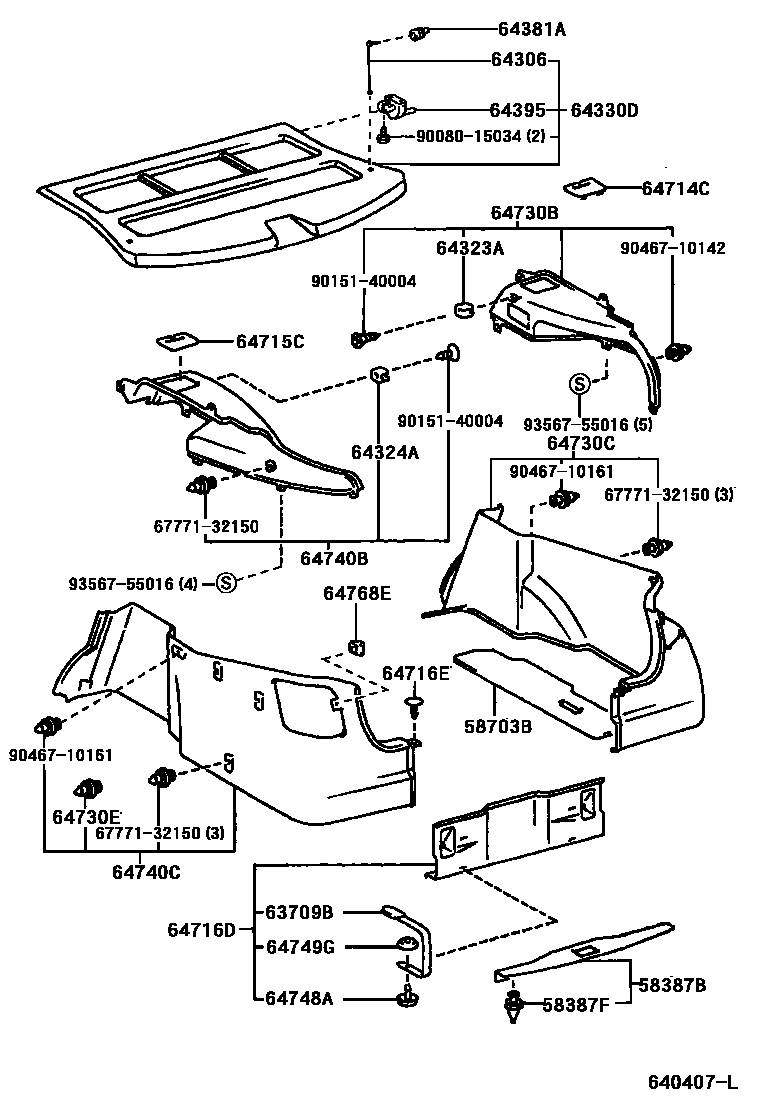

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-05050-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MD.GRAY,TRIM1#

main58387-05050-B1iAZT220,CDT220,ST220,ZZT22#..LB200007

DK.GRAY,TRIM1#

main58387-05050-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

main58387-05060-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#

main58387-05060-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#

main58387-05060-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

58387FCLIP, REAR FLOOR FINISH PLATE

main67771-12040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

NO.3

main90467-07090-B2iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#,NO.1

sub90467-07090

sub90467-07207

main90467-07090-B3iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#,NO.1

sub90467-07090

sub90467-07207

main90467-07090-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#,NO.1

sub90467-07090

sub90467-07207

main90467-07178-B1iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#,NO.2

sub90467-07178

main90467-07178-B2iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#,NO.2

sub90467-07178

main90467-07178-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#,NO.2

sub90467-07178

58703BCOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58773-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

main58773-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

63709BBAND SUB-ASSY, ROOM RACK

main63709-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64324-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-05090-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MEDIUM GRAY,TRIM1#

main64330-05090-B2iAZT220,CDT220,ST220,ZZT22#..LB200007

DARK GRAY,TRIM1#

main64330-05090-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

64381AHANGER, PACKAGE TRAY TRIM

main64381-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

64395PIN, PACKAGE TRAY TRIM HINGE

main64395-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

64714CCOVER, DECK SIDE TRIM, RH

main64714-05020-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MD.GRAY,TRIM1#

main64714-05020-B1iAZT220,CDT220,ST220,ZZT22#..LB200007

DK.GRAY,TRIM1#

main64714-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

main64714-05030-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#

main64714-05030-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#

main64714-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

64715CCOVER, DECK SIDE TRIM, LH

main64715-05020-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MD.GRAY,TRIM1#

main64715-05020-B1iAZT220,CDT220,ST220,ZZT22#..LB200007

DK.GRAY,TRIM1#

main64715-05020-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

main64715-05030-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#

main64715-05030-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#

main64715-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

64716DCOVER, DECK TRIM, REAR

main64716-05050-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MEDIUM GRAY,TRIM1#

main64716-05050-B2iAZT220,CDT220,ST220,ZZT22#..LB200007

DARK GRAY,TRIM1#

main64716-05050-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-08188iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-05030-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MD.GRAY,TRIM1#

main64730-05030-B1iAZT220,CDT220,ST220,ZZT22#..LB200007

DK.GRAY,TRIM1#

main64730-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

main64730-05040-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MD.GRAY,TRIM1#

main64730-05040-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DK.GRAY,TRIM1#

main64730-05040-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

64730CBOARD, DECK TRIM SIDE, RH

main64731-05050-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MEDIUM GRAY,TRIM1#

main64731-05050-B2iAZT220,CDT220,ST220,ZZT22#..LB200007

DARK GRAY,TRIM1#

main64731-05050-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

main64731-05060-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MEDIUM GRAY,TRIM1#

main64731-05060-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DARK GRAY,TRIM1#

main64731-05060-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-10148iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

main90467-10161iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

64740BBOARD, DECK TRIM SIDE, LH

main64732-05060-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MEDIUM GRAY,TRIM1#

main64732-05060-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DARK GRAY,TRIM1#

main64732-05060-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

main64740-05030-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MD.GRAY,TRIM1#

main64740-05030-B1iAZT220,CDT220,ST220,ZZT22#..LB200007

DK.GRAY,TRIM1#

main64740-05030-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64732-05050-B0iAT22#,CDT220,CT220,ST220..LB199710-200007

MEDIUM GRAY,TRIM1#

main64732-05050-B2iAZT220,CDT220,ST220,ZZT22#..LB200007

DARK GRAY,TRIM1#

main64732-05050-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

SLATE GREEN,TRIM6#

main64740-05040-B0iAT22#,CDT220,CT220,ST220..WG199710-200007

MEDIUM GRAY,TRIM1#

main64740-05040-B1iAZT220,CDT220,ST220,ZZT22#..WG200007

DARK GRAY,TRIM1#

main64740-05040-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

SLATE GREEN,TRIM6#

64748AHOOK, SIDE TRIM TOOL COVER, NO.1

main64748-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

64749GHOOK, SIDE TRIM TOOL COVER, NO.2

main64749-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

64768ESTOPPER, QUARTER TRIM LID

main64768-05010-B0iAT22#,CDT220,CT220,ST220..LB,WG199710-200007

MD.GRAY,TRIM1#

main64768-05010-B1iAZT220,CDT220,ST220,ZZT22#..LB,WG200007

DK.GRAY,TRIM1#

main64768-05010-G0iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG199710

SLATE GREEN,TRIM6#

6777132150WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32150

9008015034

main90080-15034

9015140004

main90151-40004

9046710142

main90467-10142

9046710161

main90467-10161

9356755016

main93567-55016

28 parts on this diagram · 2 diagrams in section
