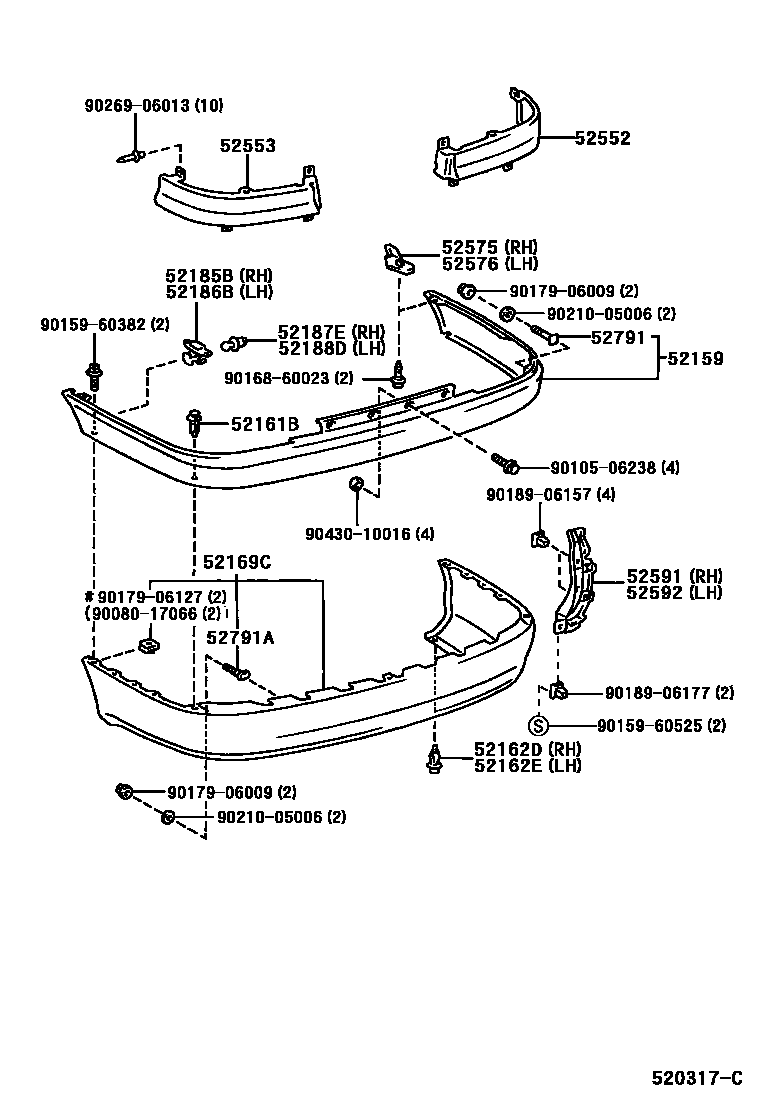

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52159COVER, REAR BUMPER

main52159-05070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED199710

52161BPIECE, REAR BUMPER

main52161-20010×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED; AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

52162DPIECE, REAR BUMPER

main52161-16010×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52162EPIECE, REAR BUMPER

main52161-16010×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52169CCOVER, REAR BUMPER, LOWER

main52169-05900iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED199710

main52169-05902iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52187EGUIDE, REAR BUMPER LOCATION, RH

main52187-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52188DGUIDE, REAR BUMPER LOCATION, LH

main52187-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52552FILLER, REAR BUMPER, RH

main52506-20140iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

main52552-20060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

main52552-20070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

52553FILLER, REAR BUMPER, LH

main52507-20010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG199710

main52553-20060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED199710

main52553-20070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB199710

52575RETAINER, REAR BUMPER SIDE, RH

main52575-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52576RETAINER, REAR BUMPER SIDE, LH

main52576-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52591SEAL, REAR BUMPER SIDE, RH

main52591-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52592SEAL, REAR BUMPER SIDE, LH

main52592-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12010×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200106

main90109-06354×2iAZT220,CDT220,ST220,ZZT22#200106

52791ABOLT, BUMPER MOULDING SET, NO.2

main52791-12010×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED199710-200106

main90109-06354×2iAZT220,CDT220,ST220,ZZT22#..LB,SED200106

9008017066

main90080-17066

9010506238

main90105-06238

9015960382

main90159-60382

9015960525

main90159-60525

9016860023

main90168-60023

9017906009

main90179-06009

9017906127

main90179-06127

9018906157

main90189-06157

9018906177

main90189-06177

9021005006

main90210-05006

9026906013

main90269-06013

9043010016

main90430-10016

29 parts on this diagram · 3 diagrams in section
