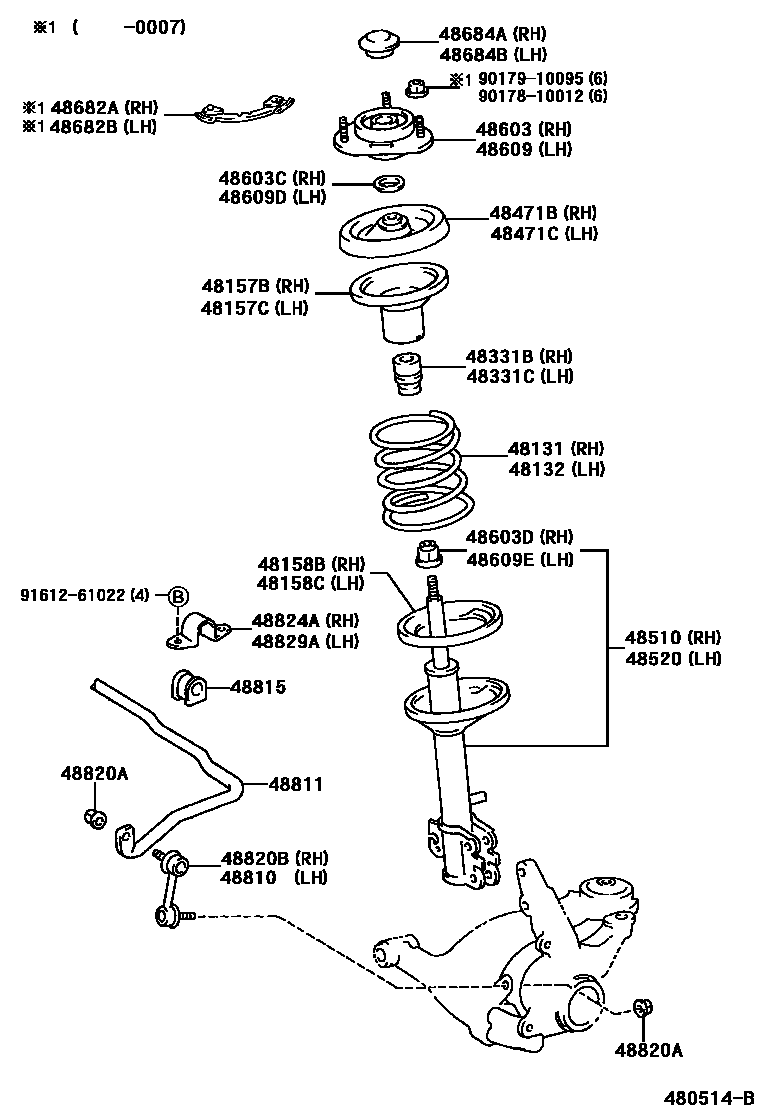

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-05030iAT22#..WG..MTM199710-200007

main48131-05240iAT221..WG..ATM;ST220..WG..MTM199710-200007

L=370.5,ROUGH ROAD PACKAGE

main48131-05430iAT22#..(LB,SED)..MTM199710-200007

main48131-05440iAT220..LHD..SED;AT221..(LB,SED)..ATM;ST220..(LB,SED)..MTM199710-200007

ROUGH ROAD PACKAGE

main48131-05470iST220..(LB,SED)..ATM;CT220..(LB,SED)..TDEFI;ST220..LHD..(LB,SED)..MTM199710-200007

main48131-05480iCT220..SED;CT220..RHD..LB;ST220..(LB,SED)..ATM199710-200007

ROUGH ROAD PACKAGE

main48131-05490iCDT220..LB,SED199908-200007

main48131-05500iCDT220..LHD..SED..TERRA199908-200007

L=410.0,ROUGH ROAD PACKAGE

main48131-05510iCDT220..WG199908-200007

main48131-05530iZZT22#..LHD..MTM200007-200012

L=392.0,ROUGH ROAD PACKAGE

main48131-05570iCT220,ST220..WG199710-200007

L=375.5

main48131-05580iST220..LHD..WG..ATM199710-200007

L=385.5,ROUGH ROAD PACKAGE

main48131-05610iST220..MTM;ZZT221..ATM200007

L=385.0

main48131-05620iST220..MTM200007-200012

L=394.0,ROUGH ROAD PACKAGE

main48131-05620iST220..ATM;AZT220..MTM200007

L=394.0

main48131-05630iST220..ATM200007-200012

L=404.0,ROUGH ROAD PACKAGE

main48131-05630iAZT220..ATM200010

L=404.0

main48131-05650iAZT220..LHD..ATM200012

L=420.0,ROUGH ROAD PACKAGE

main48131-05650iCDT220200007

L=420.0

main48131-05660iCDT220..LHD200007

L=430.0,ROUGH ROAD PACKAGE

main48131-05670iZZT22#..MTM200007

48132SPRING, FRONT COIL, LH

main48131-05030iAT22#..WG..MTM199710-200007

main48131-05240iAT22#..RHD..WG;AT221..WG..ATM;ST220..WG..MTM199710-200007

L=370.5,ROUGH ROAD PACKAGE

main48131-05430iAT22#..(LB,SED)..MTM199710-200007

main48131-05440iAT220..LHD..SED;AT221..(LB,SED)..ATM;ST220..(LB,SED)..MTM199710-200007

ROUGH ROAD PACKAGE

main48131-05470iAT221..RHD..ATM;ST220..LHD..SED;ST220..LHD..LB..ATM;ST220..RHD..(LB,SED);CT220..(LB,SED)..TDEFI199710-200007

main48131-05480iCT220..SED;CT220..RHD..LB;ST220..(LB,SED)..ATM199710-200007

ROUGH ROAD PACKAGE

main48131-05490iCDT220..LB,SED199908-200007

main48131-05500iCDT220..LHD..SED..TERRA199908-200007

L=410.0,ROUGH ROAD PACKAGE

main48131-05510iCDT220..WG199908-200007

main48131-05530iZZT22#..LHD..MTM200007-200012

L=392.0,ROUGH ROAD PACKAGE

main48131-05570iCT220..WG;ST220..RHD..WG;ST220..LHD..WG..ATM199710-200007

L=375.5

main48131-05580iCT220..RHD..WG;ST220..RHD..WG..ATM199710-200007

L=385.5,ROUGH ROAD PACKAGE

main48131-05610iST220..MTM;ZZT221..ATM200007

L=385.0

main48131-05620iST220..MTM;ZZT221..LHD..ATM200007-200012

L=394.0,ROUGH ROAD PACKAGE

main48131-05620iST220..ATM;AZT220..MTM200007

L=394.0

main48131-05630iST220..ATM;AZT220..LHD..MTM200007-200012

L=404.0,ROUGH ROAD PACKAGE

main48131-05630iAZT220..ATM200010

L=404.0

main48131-05650iAZT220..LHD..ATM200012

L=420.0,ROUGH ROAD PACKAGE

main48131-05650iCDT220200007

L=420.0

main48131-05660iCDT220..LHD200007

L=430.0,ROUGH ROAD PACKAGE

main48131-05670iZZT22#..MTM200007

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48331BBUMPER, FRONT SPRING, RH

main48331-05020iAZT220,CDT220,ST220,ZZT22#200007

main48331-05030iAT22#,CDT220,CT220,ST220199710-200007

48331CBUMPER, FRONT SPRING, LH

main48331-05020iAZT220,CDT220,ST220,ZZT22#200007

main48331-05030iAT22#,CDT220,CT220,ST220199710-200007

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09210iAT22#..LB,SED199710-200007

sub48510-09420

main48510-09220iCT220,ST220199710-200007

sub48510-09420

main48510-09240iCT220,ST220..WG199801-199907

sub48510-09420

main48510-09240iAT22#..RHD;CT220,ST220..RHD..(LB,SED)199906-199907

IRELAND SPEC

sub48510-09420

main48510-09241iCT220,ST220..RHD..(LB,SED);AT22#,AZT220,CDT220,ZZT22#..RHD199907

MARK 48510-05081,IRELAND SPEC

sub48510-09420

main48510-09241iCT220,ST220..WG199907-200007

MARK 48510-05081

sub48510-09420

main48510-09250iAT22#..WG199710-200007

sub48510-09420

main48510-09330iCDT220..LB,SED199908-200007

sub48510-09420

main48510-09340iCDT220..WG199908-200007

sub48510-09420

main48510-09420iZZT22#200007

MARK 48510-05131

main48510-09450iST220;AZT220..MTM200007-200012

MARK 48510-05161

sub48510-09420

main48510-09460iCDT220;AZT220..ATM200007-200011

MARK 48510-05171

sub48510-09420

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09200iAT22#..LB,SED199710-200007

sub48520-09360

main48520-09210iCT220,ST220..LB,SED199710-200007

sub48520-09360

main48520-09230iAT22#..RHD;CT220,ST220..RHD..(LB,SED)199906-199907

IRELAND SPEC

sub48520-09360

main48520-09230iCT220,ST220..WG199801-199907

sub48520-09360

main48520-09231iCT220,ST220..RHD..(LB,SED);AT22#,AZT220,CDT220,ZZT22#..RHD199907

MARK 48520-05081,IRELAND SPEC

sub48520-09360

main48520-09231iCT220,ST220..WG199907-200007

MARK 48520-05081

sub48520-09360

main48520-09240iAT22#..WG199710-200007

sub48520-09360

main48520-09280iCDT220..LB,SED199908-200007

sub48520-09360

main48520-09290iCDT220..WG199908-200007

sub48520-09360

main48520-09360iZZT22#200007

MARK 48520-05131

main48520-09370iAZT220,ST220200007-200012

MARK 48520-05161

sub48520-09360

main48520-09400iCDT220;AZT220..ATM200007-200011

MARK 48520-05171

sub48520-09360

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-20020iAT22#,CDT220,CT220,ST220199710-200007

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-20020iAT22#,CDT220,CT220,ST220199710-200007

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48810LINK ASSY, FRONT STABILIZER, LH

main48810-05012iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48811BAR, STABILIZER, FRONT

main48811-05040iAT22#,CDT220,CT220,ST220199710-200003

sub48811-05041

main48811-05041iAT22#,CDT220,CT220,ST220200003-200007

main48811-05072iAZT220,CDT220,ST220,ZZT22#200007

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-05050iAT22#,CDT220,CT220,ST220199710-200007

main48815-05070iAZT220,CDT220,ST220,ZZT22#200007

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-05012iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-20100iAT22#,CDT220,CT220,ST220199710-200007

main48824-20110iAZT220,CDT220,ST220,ZZT22#200007

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-20100iAT22#,CDT220,CT220,ST220199710-200007

main48824-20110iAZT220,CDT220,ST220,ZZT22#200007

9017810012

main90178-10012

9017910095

main90179-10095

9161261022

main91612-61022

32 parts on this diagram · 1 diagram in section
