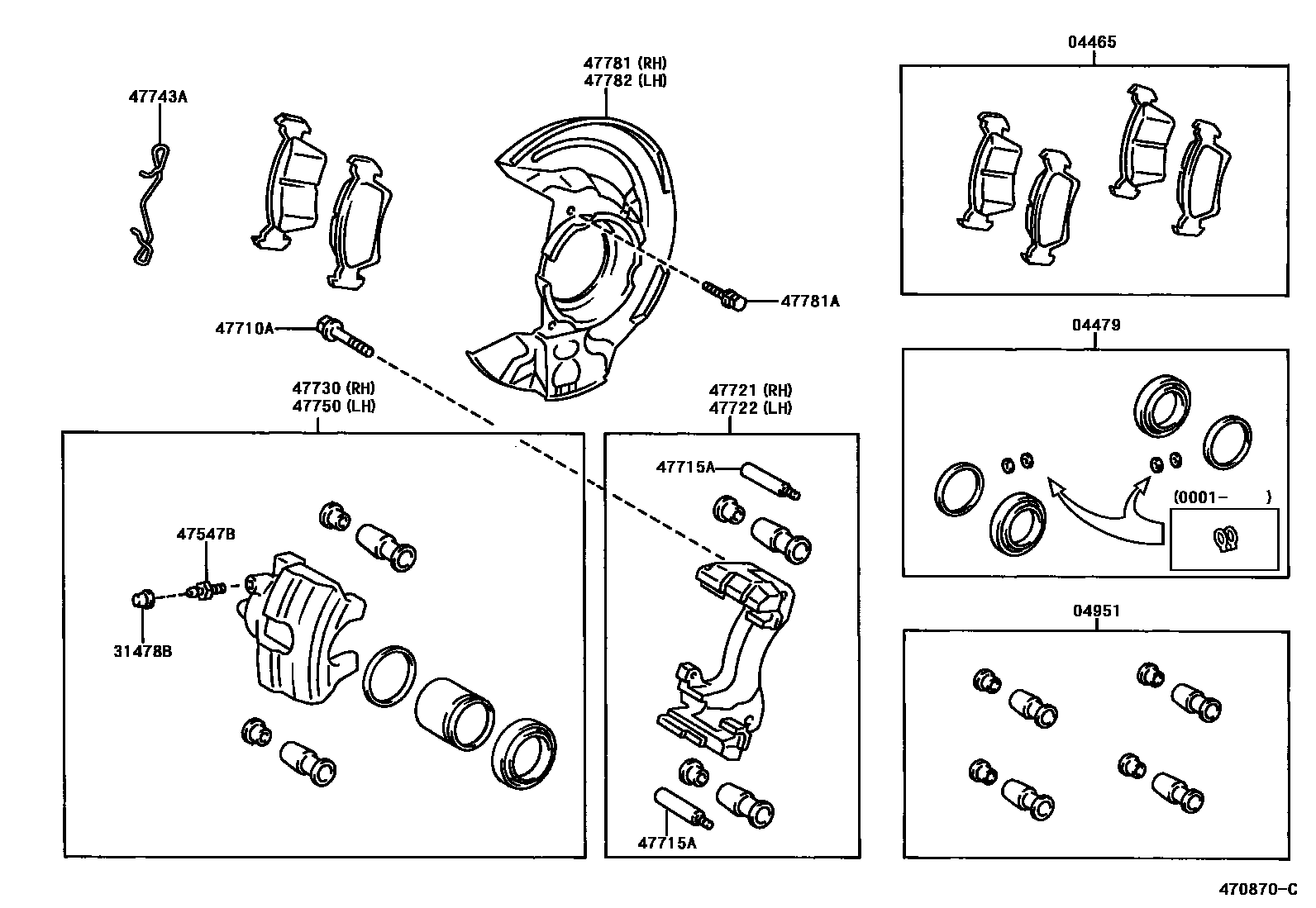

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1W(REAR DISC BRAKE)

04465PAD KIT, DISC BRAKE, FRONT

main04465-05020iAT22#,CT220,ST220199710-199811

sub04465-05040

main04465-05030iAT220..LHD..TERRA;AT221,CT220,ST220..LHD..(EFI,TDEFI)199710-200007

GERMANY SPEC

sub04465-05110

main04465-05040iAT22#,CT220,ST220199811-199904

sub04465-05042

main04465-05042iAT22#,CDT220,CT220,ST220199904-200007

MARK NBK PN540H

sub04465-05060

main04465-05050iAZT220,CDT220,ST220,ZZT22#200107-200111

MARK NBK PN540H,W(REAR DISC BRAKE)

sub04465-05080

main04465-05060iAZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM200007-200301

MARK AISIN PC553H

sub04465-05110

main04465-05080iAZT220,CDT220,ST220,ZZT22#200111-200301

MARK AISIN PC553H,W(REAR DISC BRAKE)

sub04465-05090

main04465-05090iAZT220,CDT220,ZZT22#..LHD200107-200111

MARK NBK PN532H,GERMANY SPEC & W(REAR DISC BRAKE)

main04465-20510iAZT220,CDT220,ZZT22#..LHD200001-200107

GERMANY SPEC & W(REAR DISC BRAKE)

main04465-2B020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

MARK NBK PN540H,W(REAR DISC BRAKE)

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-05020iAT22#,CDT220,CT220,ST220199710-200001

sub04479-05021

main04479-05021iAT22#,CDT220,CT220,ST220200001-200103

main04479-05030iAZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM200103

main04479-05040iAZT220,CDT220,ST220,ZZT22#200107-200301

W(REAR DISC BRAKE)

main04479-20281iAZT220,CDT220,ST220,ZZT22#200007-200107

W(REAR DISC BRAKE)

main04479-20310iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI200001-200007

W(REAR DISC BRAKE)

sub04479-20281

04951BUSH KIT, DISC BRAKE, FRONT

main04951-05010iAZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM199710-200007

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

W(REAR DISC BRAKE)

main90080-93014iAT22#,CDT220,CT220,ST220199710-200201

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#200001

*12-1.25PX25.5-23

main90119-12040iAT22#,CDT220,CT220,ST220199710-200001

*12-1.25PX25.8-19.5

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-05010iAZT220,CDT220,ST220,ZZT22#199710-200107

main47715-22070iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI200001-200107

W(ABS),SUB PIN SIDE

main47715-22080iAZT220,CDT220,ST220,ZZT22#200001-200107

W(ABS),MAIN PIN SIDE

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09010iAT22#,CDT220,CT220,ST220199710-200007

main47721-09110iAZT220,CDT220,ST220,ZZT22#200107

W(REAR DISC BRAKE)

main47721-21010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

W(REAR DISC BRAKE)

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-09010iAT22#,CDT220,CT220,ST220199710-200007

main47721-09110iAZT220,CDT220,ST220,ZZT22#200107

W(REAR DISC BRAKE)

main47722-21010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

W(REAR DISC BRAKE)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-09010iAZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM199710-200103

sub47730-09011

main47730-09011iAZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM200103

main47730-09030iAZT220,CDT220,ST220,ZZT22#200107

W(REAR DISC BRAKE)

main47730-21010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

W(REAR DISC BRAKE)

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47748-05010iAT22#,CDT220,CT220,ST220199710-200007

main47748-05020iAZT220,CDT220,ST220,ZZT22#200107

W(REAR DISC BRAKE)

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-09010iAT22#,CDT220,CT220,ST220199710-200103

sub47750-09011

main47750-09011iAZT220..TERRA;CDT220,ZZT22#;ST220..SED..MTM200103

main47750-09030iAZT220,CDT220,ST220,ZZT22#200107

W(REAR DISC BRAKE)

main47750-21010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

W(REAR DISC BRAKE)

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-05020iAT22#,CDT220,CT220,ST220199710-200007

main47781-05040iAZT220,CDT220,ST220,ZZT22#200107

W(REAR DISC BRAKE)

main47781-21010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

W(REAR DISC BRAKE)

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-05020iAT22#,CDT220,CT220,ST220199710-200007

main47782-05040iAZT220,CDT220,ST220,ZZT22#200107

W(REAR DISC BRAKE)

main47782-21010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

W(REAR DISC BRAKE)

15 parts on this diagram · 2 diagrams in section
