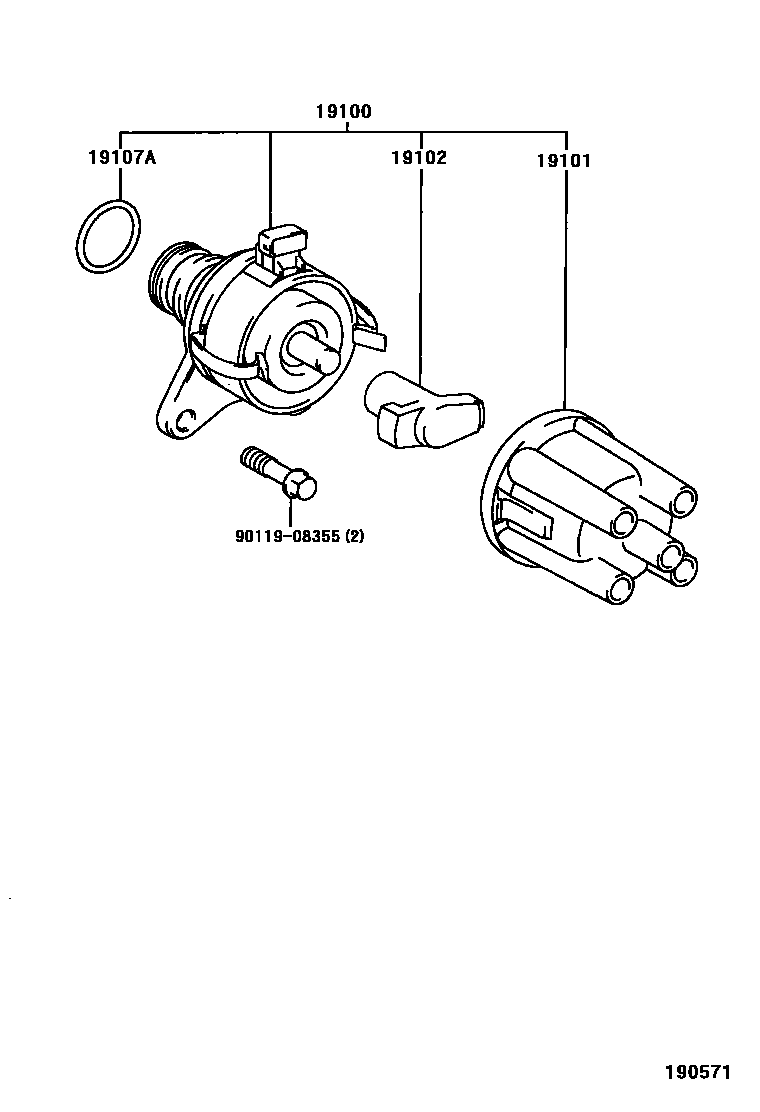

DISTRIBUTOR

0001 1 0002 1W/O(OIL COOLER)

19100DISTRIBUTOR ASSY

main19020-16260i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(OIL COOLER)

main19100-02020i4AFE..AT220..LHD199710-200007

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-02020i4AFE..AT220..LHD199710-200007

main19101-11060i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(OIL COOLER)

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-02020i4AFE..AT220..LHD199710-200007

main19102-11370i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(OIL COOLER)

19107ARING, O, DISTRIBUTOR HOUSING

main90069-08014i4AFE..AT220..LHD199710-200007

main90099-14127i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(OIL COOLER)

9011908355

main90119-08355

5 parts on this diagram · 2 diagrams in section
