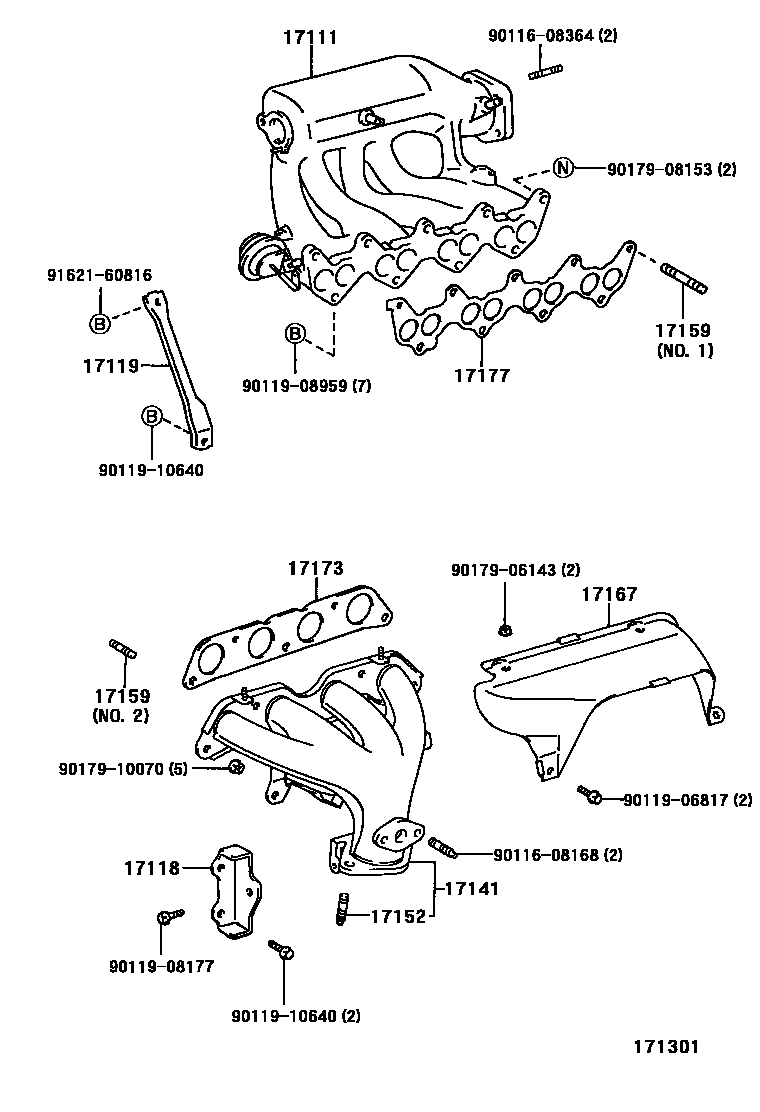

MANIFOLD
17111MANIFOLD, INTAKE
LEAN BURN,(J)
(J)
(J)
sub17101-28041
sub17101-74311
sub17111-27011
(L)
(J)
17118STAY, MANIFOLD
W/O(OIL COOLER)
LEAN BURN
(L)
(J)
17119STAY, MANIFOLD, NO.2
NO.1
LEAN BURN
NO.2
17141MANIFOLD, EXHAUST
(L)
(J)
*115=TOYOTA/00-03/Y
*115=TOYOTA/00-03/Y
W/O(OIL COOLER)
LEAN BURN
W/O(OIL COOLER)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
LEAN BURN
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.1
NO.2
NO.2
NO.1
NO.2
NO.1
NO.2
NO.2
NO.2
NO.1
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
W/O(OIL COOLER)
LEAN BURN
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
LEAN BURN
9011608168
main90116-08168
9011608364
main90116-08364
9011906817
main90119-06817
9011908177
main90119-08177
9011908959
main90119-08959
9011910640
main90119-10640
9017906143
main90179-06143
9017908153
main90179-08153
9017910070
main90179-10070
9162160816
main91621-60816
19 parts on this diagram · 13 diagrams in section
