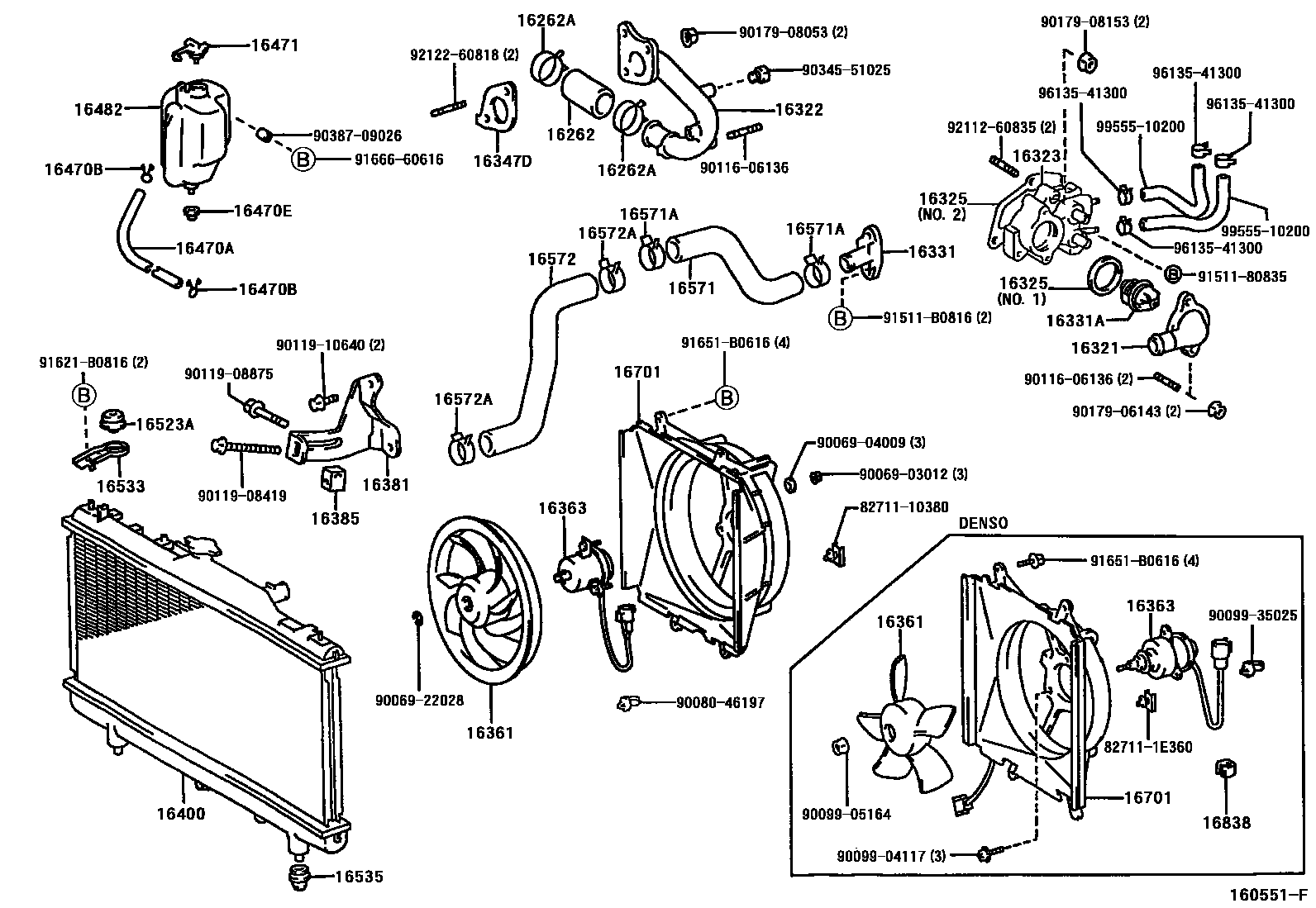

RADIATOR & WATER OUTLET
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
sub90467-37005
16325GASKET, WATER INLET HOUSING, NO.1
(L)
NO.2
(J)
NO.1
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
*WAX 82-95
*WAX 82-95
*WAX 88-100
16347DGASKET, WATER BY-PASS
16361FAN
BOSCH
DENSO
16363MOTOR, COOLING FAN
BOSCH
DENSO
DENSO
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
MARK 0227
MARK 0231
TURKEY SPEC
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470EGROMMET, RADIATOR RESERVE TANK HOSE
16471CAP SUB-ASSY, RESERVE TANK
16482TANK SUB-ASSY, RADIATOR RESERVE
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
W(AIR CONDITIONER)
16572HOSE, RADIATOR, OUTLET
16701SHROUD SUB-ASSY, FAN
BOSCH
DENSO
DENSO
16838CLAMP, FAN SHROUD
DENSO
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9006903012
main90069-03012
9006904009
main90069-04009
9006922028
main90069-22028
9008046197
main90080-46197
9009904117
main90099-04117
9009905164
main90099-05164
9009935025
main90099-35025
9011606136
main90116-06136
9011908419
main90119-08419
9011908875
main90119-08875
9011910640
main90119-10640
9017906143
main90179-06143
9017908053
main90179-08053
9017908153
main90179-08153
9034551025
main90345-51025
9038709026
main90387-09026
9151180835
main91511-80835
91511B0816
main91511-B0816
91621B0816
main91621-B0816
91651B0616
main91651-B0616
9166660616
main91666-60616
9211260835
main92112-60835
9212260818
main92122-60818
9613541300
main96135-41300
9955510200
main99555-10200
56 parts on this diagram · 11 diagrams in section
