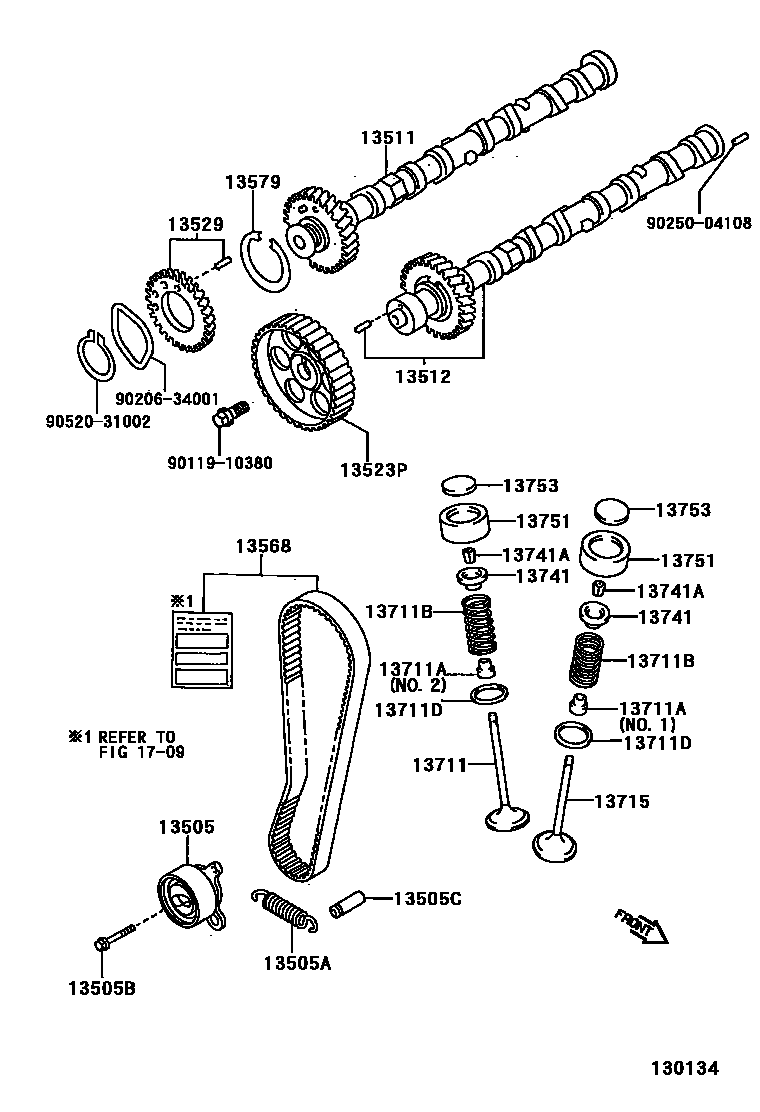

CAMSHAFT & VALVE
13505ASPRING, TENSION(FOR IDLER)
13505BBOLT, FLANGE (FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13511CAMSHAFT
(L)
(L)
LEAN BURN
(J)
(J)
13512CAMSHAFT, NO.2
(L)
(L)
LEAN BURN
(J)
(J)
(J)
13523PPULLEY, CAMSHAFT TIMING
(L)
(J)
13529GEAR, CAMSHAFT SUB
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
W/O(OIL COOLER)
(J)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.2,(L)
NO.1,(L)
NO.1
NO.2
NO.1
NO.1
NO.2
NO.1
NO.2,(J)
NO.2
NO.2
NO.1,(J)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
(J)
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
13753SHIM, VALVE ADJUSTING
T=2.500
T=2.550
T=2.600
T=2.650
T=2.700
T=2.750
T=2.800
T=2.850
T=2.900
T=2.950
T=3.000
T=3.050
T=3.100
T=3.150
T=3.200
T=3.250
T=3.300
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
T=3.35
T=3.40
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
1709
9011910380
main90119-10380
9020634001
main90206-34001
9025004108
main90250-04108
9052031002
main90520-31002
25 parts on this diagram · 6 diagrams in section
