MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-02040i4AFE,7AFE..AT22#199710-200007

main12311-03040i3SFE..ST220199710

main12311-0B010i2CT#..CT220199710-200007

main12311-0B020i1CDFTV..CDT220199908

main12311-0D030i1ZZFE,3ZZFE..ZZT22#200007

main12311-0H010i1AZFSE..AZT220200007

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-02040i4AFE,7AFE..AT22#199710-200007

main12315-0D030i1ZZFE,3ZZFE..ZZT22#200007

(L)

main12315-22020i1ZZFE,3ZZFE..ZZT22#200007

(J)

main12315-27010i1CDFTV..CDT220199908

main12315-64110i2CT#..CT220199710-199803

main12315-64150i2CT#..CT220199803-200007

main12315-74140i3SFE..ST220199710

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-02020i4AFE,7AFE..AT22#..MTM199710-200007

main12321-03030i3SFE..ST220..MTM199710

main12321-0B020i2CT#..CT220199710-200007

main12321-0D050i1ZZFE,3ZZFE..ZZT22#..MTM200007

main12321-0G010i1CDFTV..CDT220199908

main12321-0H010i1AZFSE..AZT220..MTM200007

main12321-16270i7AFE..AT221..ATM199710-200007

main12321-22070i1ZZFE..ZZT221..ATM200007

main12321-28010i1AZFSE..AZT220..ATM200010

main12321-74270i3SFE..ST220..ATM199710

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-16200i4AFE..AT220199710-200007

main12325-16210i7AFE..AT221..ATM199710-200007

main12325-16260i7AFE..AT221..MTM199710-200007

main12325-22050i1ZZFE,3ZZFE..ZZT22#..MTM200007

main12325-22060i1ZZFE..ZZT221..ATM200007

main12325-28010i1AZFSE..AZT220..MTM200007

main12325-28020i1AZFSE..AZT220..ATM200010

main12325-64170i2CT#..CT220199710-200007

main12325-64180i1CDFTV..CDT220199908

main12325-74310i3SFE..ST220..ATM199710

main12325-74420i3SFE..ST220..MTM199710

12351DAMPER, ENGINE MOUNTING

main12351-02020i1AZFSE,4AFE,7AFE..AT22#,AZT220199710

NO.1

main12351-02020i2CT#..CT220199710-200007

PNC 12311A

main12351-02030i1AZFSE,4AFE,7AFE..AT22#,AZT220..MTM199710

NO.2

main12351-02030i2CT#..CT220199710-200007

PNC 12321A

main12351-74010i1ZZFE,3ZZFE..ZZT22#..MTM200007

NO.2

main12351-74100i7AFE..AT221..MTM199710-200007

NO.3

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-16050i7AFE..AT221199710-200007

NO.1

main12351-16080i7AFE..AT221199710-200007

NO.2

main12351-22050i1ZZFE,3ZZFE..ZZT22#200007

NO.1

main12351-27010i1CDFTV..CDT220199908

main12351-74100i2CT#..CT220199710-200007

main12351-74100i1ZZFE,3ZZFE..ZZT22#..MTM200007

NO.2

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-02090i4AFE,7AFE..AT22#..MTM199710-200007

main12361-02100i1ZZFE..ZZT221..ATM199710

main12361-0B011i3SFE..ST220..MTM199710-200007

main12361-64380i1CDFTV..CDT220199908

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12305-16160i4AFE,7AFE..AT22#199710-200007

main12305-22080i1ZZFE,3ZZFE..ZZT22#200007

main12305-28050i1AZFSE..AZT220200007

main12305-64141i2CT#..CT220199710-199712

sub12305-64142

main12305-64142i2CT#..CT220199712-200007

main12305-64190i1CDFTV..CDT220199908

main12305-74191i3SFE..ST220199710

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-02080i4AFE,7AFE..AT22#..MTM199710-200007

sub12371-0D030

main12371-03060i3SFE..ST220..MTM199710

main12371-0D030i1ZZFE,3ZZFE..ZZT22#..MTM200007

main12371-0H010i1AZFSE..AZT220..MTM200007

main12371-16340i7AFE..AT221..ATM199710-200007

sub12371-22090

main12371-22090i1ZZFE..ZZT221..ATM200007

main12371-28040i3SFE..ST220..ATM200007

main12371-64270i2CT#..CT220199710-200007

main12371-64340i1CDFTV..CDT220199908

main12371-74500i3SFE..ST220..ATM199710-200007

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-02140i3SFE..ST220199710

main12372-0D040i1ZZFE,3ZZFE..ZZT22#200007

main12372-0H010i1AZFSE..AZT220..ATM200010

main12372-64260i2CT#..CT220199710-200007

main12372-64320i1CDFTV..CDT220199908

12511BRACKET, ALTERNATOR, NO.1

main12511-02030i4AFE..AT220199710-199803

sub12511-15050

main12511-02040i7AFE..AT221199710-199803

sub12511-16100

main12511-15050i4AFE..AT220199803-200007

main12511-16100i7AFE..AT221199803-200007

main12511-64060i1CDFTV,2CT#..CDT220,CT220199710

main12511-74051i3SFE..ST220199710

1903

9010508275

main90105-08275

9010510051

main90105-10051

9010510301

main90105-10301

9010510328

main90105-10328

9010510348

main90105-10348

9010510355

main90105-10355

9010510409

main90105-10409

9010510431

main90105-10431

9010512155

main90105-12155

9011906723

main90119-06723

9011910519

main90119-10519

9011910728

main90119-10728

9011910818

main90119-10818

9017906007

main90179-06007

9017910098

main90179-10098

9017910108

main90179-10108

9017910154

main90179-10154

9017910169

main90179-10169

9151180850

main91511-80850

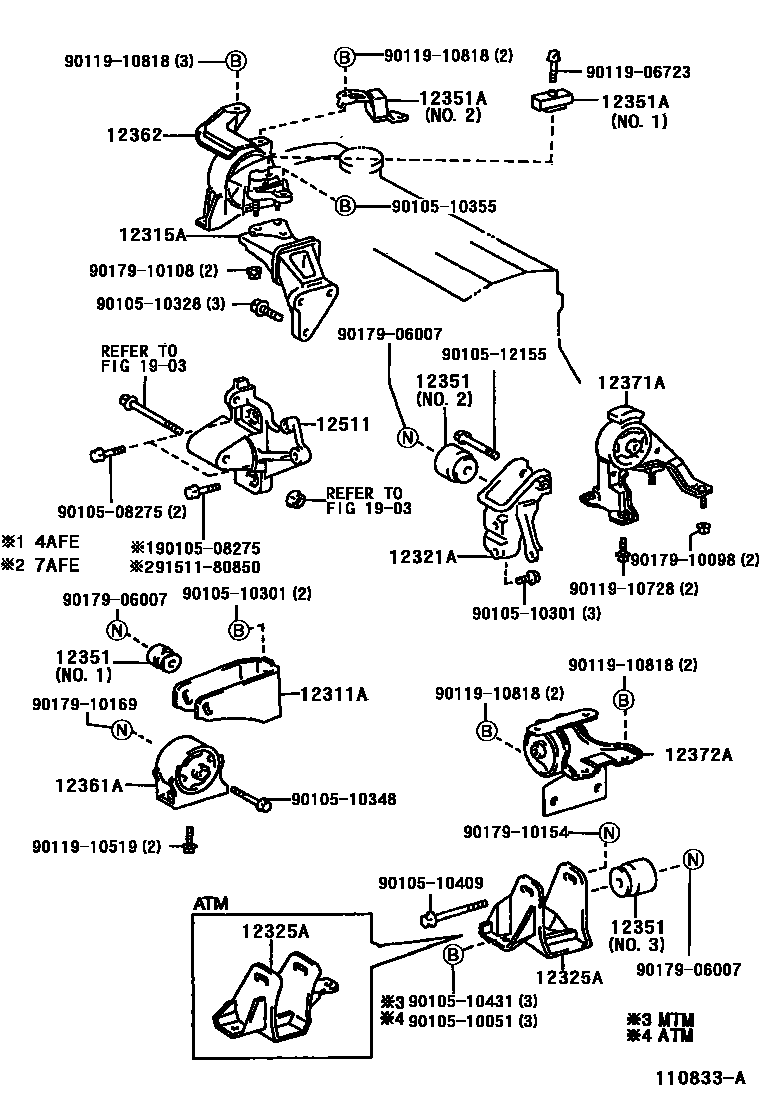

31 parts on this diagram · 7 diagrams in section
