ENGINE OVERHAUL GASKET KIT

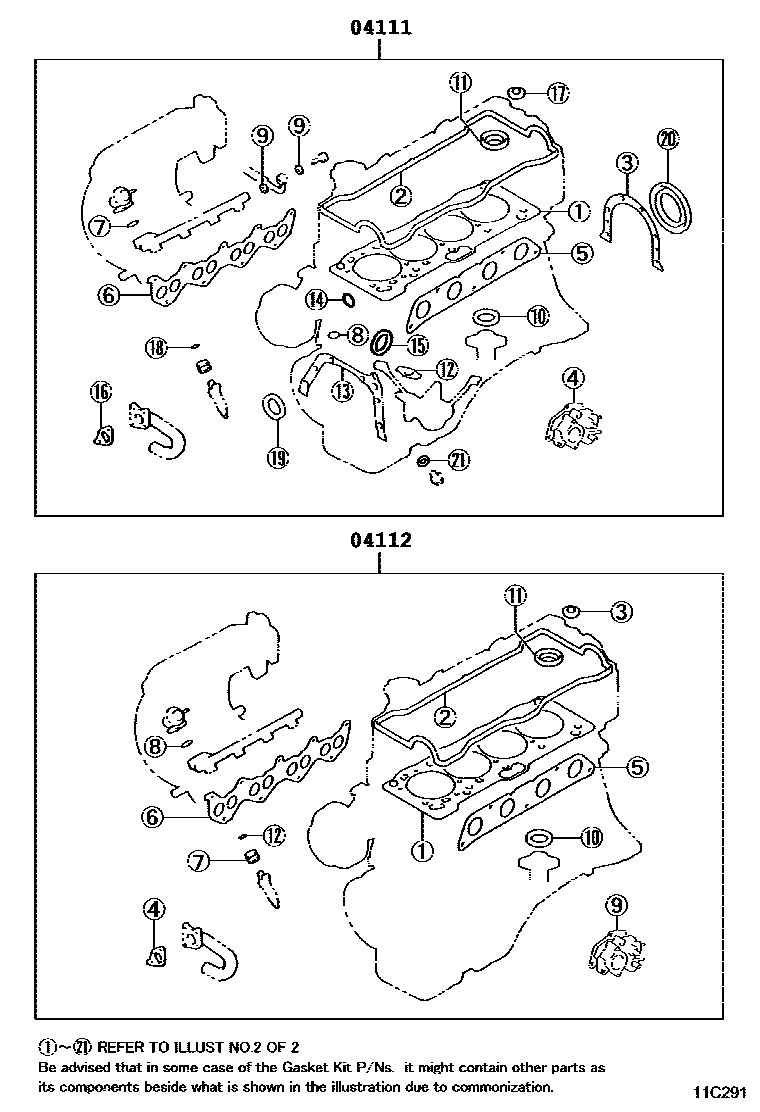

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-02022i199710-200007
sub04111-02023
main04111-02050i199710-200007
LEAN BURN
main04111-02060i199710-200007
main04111-0B010i199908
main04111-0D040i200007-200206
sub04111-0D041
main04111-0D041i200206
sub04111-0D042
main04111-0D050i200007-200111
sub04111-0D051
main04111-0D130i200111-200206
sub04111-0D131
main04111-0D131i200206
sub04111-0D132
main04111-0H010i200007-200104
sub04111-0H011
main04111-0H011i200104-200211
sub04111-0H012
main04111-0H012i200211-200301
sub04111-0H013
main04111-64311i199710-199805
sub04111-64312
main04111-64312i199805-199811
sub04111-64313
main04111-64313i199811-199906
sub04111-64314
main04111-64314i199906-200007
main04111-64361i199710-199805
sub04111-64362
main04111-64362i199805-199811
sub04111-64363
main04111-64363i199811-199906
sub04111-64364
main04111-64364i199906-200007
main04111-74592i199710-200007
main04111-74810i200007
04112GASKET KIT, ENGINE VALVE GRIND
main04112-02022i199710-200007
main04112-02050i199710-200007
LEAN BURN
main04112-02060i199710-200007
main04112-0B010i199908
main04112-0D040i200007-200206
sub04112-0D041
main04112-0D041i200206
sub04112-0D042
main04112-0D050i200007-200111
sub04112-0D051
main04112-0D130i200111-200206
sub04112-0D131
main04112-0D131i200206
sub04112-0D132
main04112-0H010i200007-200104
sub04112-0H011
main04112-0H011i200104-200211
sub04112-0H012
main04112-0H012i200211-200301
sub04112-0H013
main04112-64241i199710-199906
sub04112-64242
main04112-64242i199906-200007
main04112-64271i199710-199906
sub04112-64272
main04112-64272i199906-200007
main04112-74562i199710-200007
main04112-74820i200007

2 parts on this diagram · 24 diagrams in section
