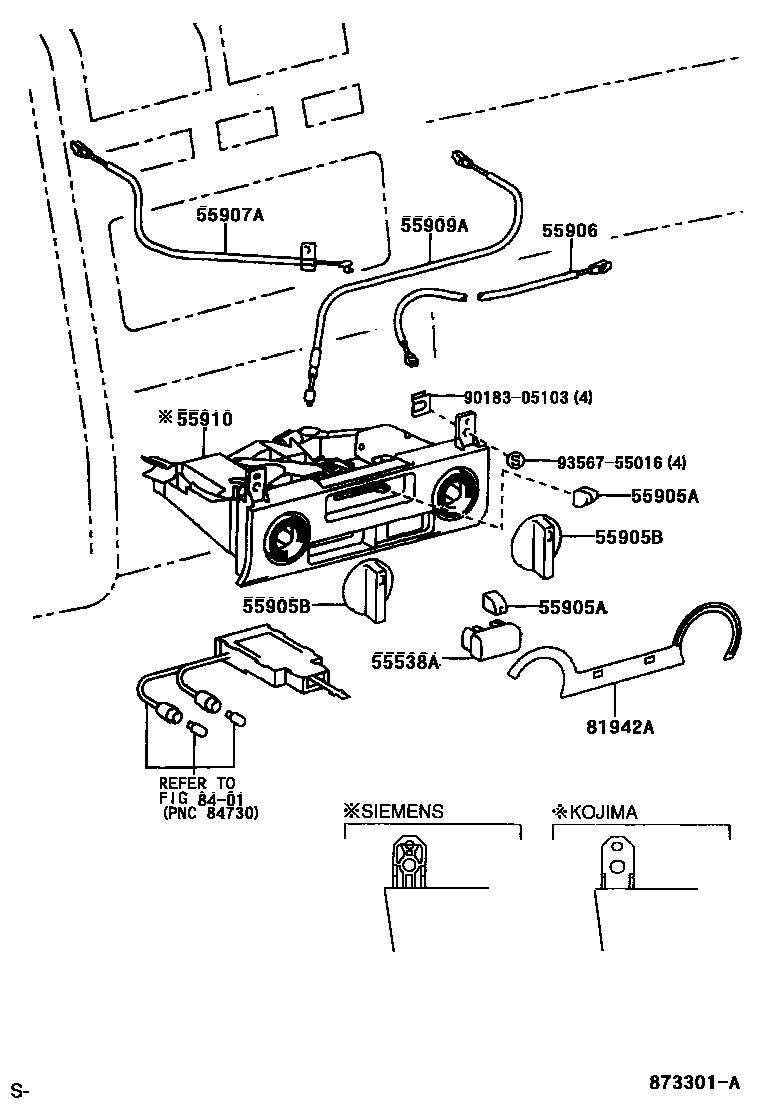

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER CONTROL TYPE 0002 1AIR DUCT

55538ACOVER, COOLER SWITCH HOLE

main55538-05010iAT19#,CT190,ST191..UKP199212-199710

main55538-20070iAT190,ST191..UKP199212-199405

55905AKNOB, HEATER CONTROL

main55905-05010×2iAT19#,CT190,ST191..UKP199405-199710

main55905-2B040×2iAT190,ST191..UKP199308-199405

KOJIMA

55905BKNOB, HEATER CONTROL, NO.2

main55905-05020×2iAT19#,CT190,ST191..UKP199405-199710

main55905-2B070×2iAT190,ST191..UKP199308-199405

KOJIMA

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-20300iAT19#,CT190,ST191..UKP199212-199710

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-05010iAT19#,CT190,ST191..UKP..LHD199405-199601

main55907-20290iAT190,ST191..UKP..LHD199212-199308

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-05010iAT19#,CT190,ST191..UKP..RHD199405-199506

main55909-05011iAT19#,CT190,ST191..UKP..RHD199506-199710

main55909-05020iAT190,ST191..UKP..LHD199308-199405

SIEMENS

main55909-05021iAT19#,CT190,ST191..UKP..LHD199506-199710

main55909-20210iAT190,ST191..UKP..RHD199308-199405

KOJIMA

main55909-20220iAT190,ST191..UKP..LHD199212-199308

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-05010iAT190,ST191..UKP..RHD199308-199405

SIEMENS

main55910-05011iAT19#,CT190,ST191..UKP..RHD199506-199710

main55910-05020iAT190,ST191..UKP..LHD199308-199405

SIEMENS

main55910-05021iAT19#,CT190,ST191..UKP..LHD199506-199710

main55910-20601iAT190,ST191..UKP..RHD199308-199405

KOJIMA

main55910-20631iAT190,ST191..UKP..LHD199308-199405

KOJIMA

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-05010iAT190,ST191..UKP..RHD199308-199405

SIEMEMS

main81942-05020iAT190,ST191..UKP..LHD199308-199405

SIEMENS

main81942-20390iAT190,ST191..UKP..RHD199212-199308

main81942-20410iAT190,ST191..UKP..LHD199308-199405

KOJIMA

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9018305103

main90183-05103

9356755016

main93567-55016

11 parts on this diagram · 2 diagrams in section
