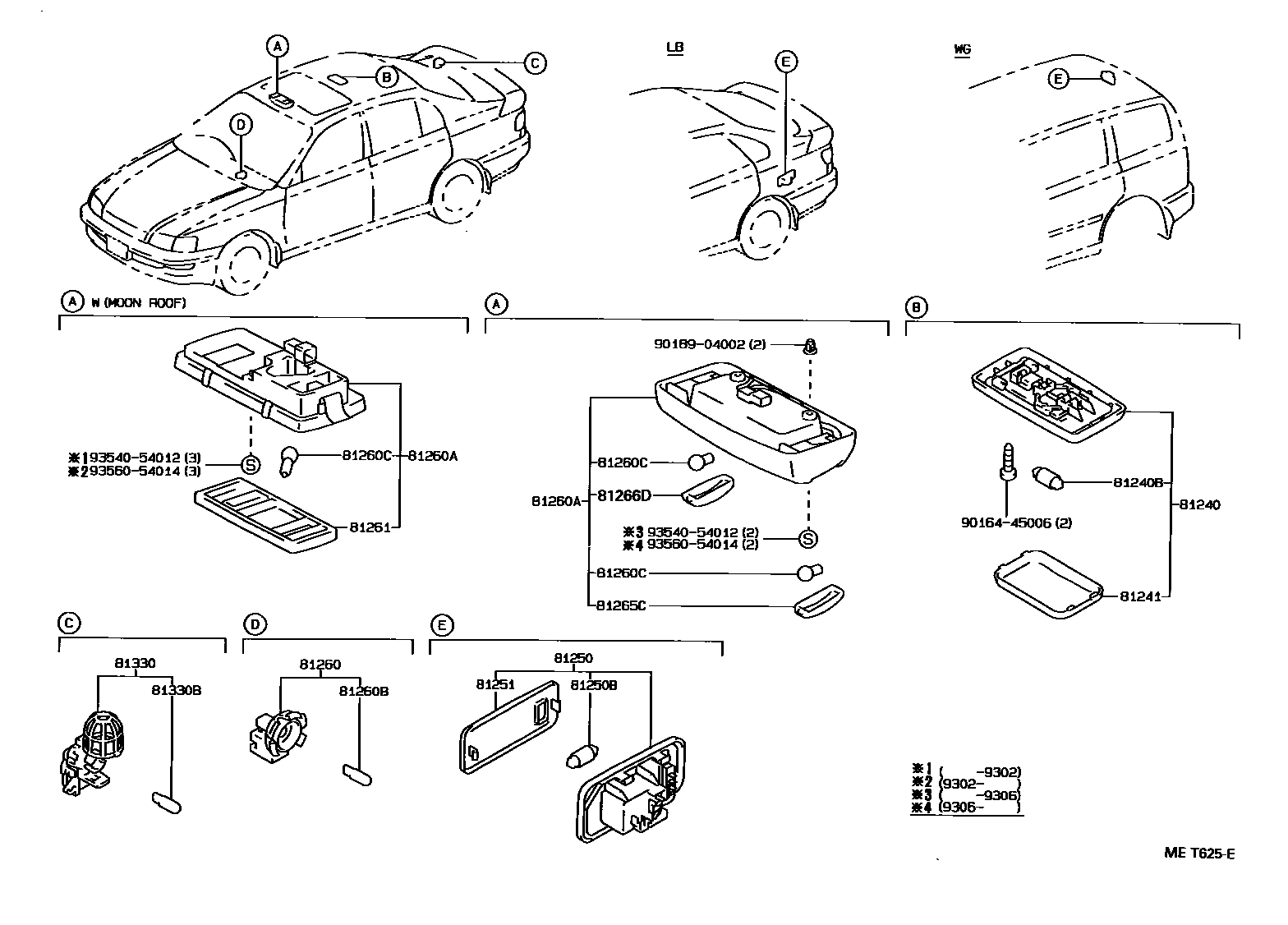

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-05010-B0iAT190,ST191..UKP199308-199405

GRAY,TRIM2#,8#

sub81240-05030

main81240-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

sub81240-05030

main81240-20090-B0iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub81240-20090

main81240-32031-B0iAT19#,CT190,ST191..UKP199405-199710

W(MOON ROOF),GRAY,TRIM1#,8#

sub81240-32031

sub81240-35010

main81240-32031-B0iAT190,ST191..UKP199212-199405

W(MOON ROOF),GRAY,TRIM2#,8#

sub81240-32031

sub81240-35010

81240BBULB, ROOM LAMP, NO.1

main90080-81047iAT19#,CT190,ST191..UKP199505-199710

12V 10W

main90981-14004iAT19#,CT190,ST191..UKP199212-199710

12V 8W,W(MOON ROOF)

main99132-12100iAT19#,CT190,ST191..UKP199212-199505

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20090iAT19#,CT190,ST191..UKP199212-199601

main81241-32031iAT19#,CT190,ST191..UKP199601-199710

main81241-32031iAT19#,CT190,ST191..UKP199212-199601

W(MOON ROOF)

81250LAMP ASSY, ROOM, NO.2

main81250-05010-B0iAT19#,CT190,ST191..UKP..LB199601-199710

SHADOW GRAY,TRIM1#

main81250-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199601

SHADOW GRAY,TRIM1#,SIDLER

main81250-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#,SIDLER

main81250-05010-J0iAT19#,CT190,ST191..UKP..LB199312-199601

DK.BLUE,TRIM8#,SIDLER

main81250-05010-J0iAT19#,CT190,ST191..UKP..LB199601-199710

DK.BLUE,TRIM8#

main81250-12030-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#,ICHIKOH

sub81250-12030

sub81250-95J05

main81250-12030-P0iAT19#,CT190,ST191..UKP..LB199405-199601

SHADOW GRAY,TRIM1#,ICHIKOH

sub81250-12030

sub81250-95J05

main81250-12030-W3iAT19#,CT190,ST191..UKP..LB199312-199601

DK.BLUE,TRIM8#,ICHIKOH

sub81250-12030

sub81250-95J05

main81250-13020-B0iAT19#,CT190,ST191..UKP..WG199505-199710

GRAY,TRIM1#,8#

sub81250-13020

main81250-13020-B1iAT19#,CT190,ST191..UKP..WG199505-199601

LT.GRAY,TRIM1#,8#

sub81250-13020

81250BBULB, ROOM LAMP, NO.2

main90080-81049iAT19#,CT190,ST191..UKP..LB199505-199710

12V 5W

main90981-11021iAT19#,CT190,ST191..UKP..WG199505-199710

12V 5W

main99132-13050iAT19#,CT190,ST191..UKP..LB199312-199505

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iAT19#,CT190,ST191..UKP..(LB,WG)199312-199710

81260LAMP ASSY, GLOVE BOX

main81260-05010iAT19#,CT190,ST191..UKP199412-199710

main81260-05010iAT190,CT190,ST191..UKP199308-199412

SIDLER

main81260-33010iAT190,CT190,ST191..UKP199308-199412

KOITO

main81260-33010iAT190,ST191..UKP199212-199308

81260ALAMP ASSY, MAP

main81260-20170-B0iAT190,ST191..UKP..GL199212-199302

GRAY,TRIM2#,8#

sub81260-20171

main81260-20171-B0iAT190,CT190..UKP..(LB,SED)..XL199501-199710

W(FRONT SPOT LAMP),GRAY,TRIM1#,8#

sub81260-20171

main81260-20171-B0iAT19#,CT190,ST191..UKP..GL199405-199710

GRAY,TRIM1#,8#

sub81260-20171

main81260-20171-B0iAT190,ST191..UKP..GL199302-199405

GRAY,TRIM2#,8#

sub81260-20171

main81260-20180-B0iAT19#,ST191..UKP..GL;AT190,CT190..UKP..(LB,SED)..XL199405-199601

GRAY,TRIM1#,8#

sub81260-20180

main81260-20180-B0iAT190..UKP..XL199212-199405

GRAY,TRIM2#,8#

sub81260-20180

main81260-20180-B0iAT190..UKP..XL199212-199405

W(MOON ROOF),GRAY,TRIM2#,8#

sub81260-20180

main81260-20180-B0iAT190,CT190..UKP..XL199405-199710

W(MOON ROOF),GRAY,TRIM1#,8#

sub81260-20180

81260BBULB(FOR GLOVE BOX)

main84999-05010iAT19#,CT190,ST191..UKP199412-199710

12V 1.02W

main90981-11018iAT190,CT190,ST191..UKP199212-199412

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12005iAT190,CT190..UKP..(LB,SED)..XL199501-199710

12V 8W,W(FRONT SPOT LAMP)

main90981-12005iAT19#,CT190,ST191..UKP..GL199212-199710

12V 8W

main90981-12014iAT190,CT190..UKP..XL199212-199601

12V 10W

main90981-12014iAT190,CT190..UKP..XL199212-199710

12V 10W,W(MOON ROOF)

81261LENS AND COVER, MAP LAMP

main81261-20180-B0iAT190,ST191..UKP199212-199405

GRAY,TRIM8#

sub81261-20180

main81261-20180-B0iAT190,ST191..UKP..GL199401-199405

GRAY,TRIM2#,8#

sub81261-20180

main81261-20180-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

sub81261-20180

81265CLENS, MAP LAMP, NO.1

main81265-20171iAT19#,ST191..UKP..GL199212-199710

81266DLENS, MAP LAMP, NO.2

main81266-20171iAT19#,ST191..UKP..GL;AT190,CT190..UKP..(LB,SED)..XL199212-199710

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-05010iAT19#,CT190,ST191..UKP..SED199308-199710

main81330-30090iAT190,ST191..UKP199212-199308

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90080-81048iAT19#,CT190,ST191..UKP..SED199505-199710

12V 5.0W

main90981-11020iAT19#,CT190,ST191..UKP..SED199212-199505

12V 3.8W

9016445006

main90164-45006

9018904002

main90189-04002

9354054012

main93540-54012

9356054014

main93560-54014

19 parts on this diagram · 1 diagram in section
