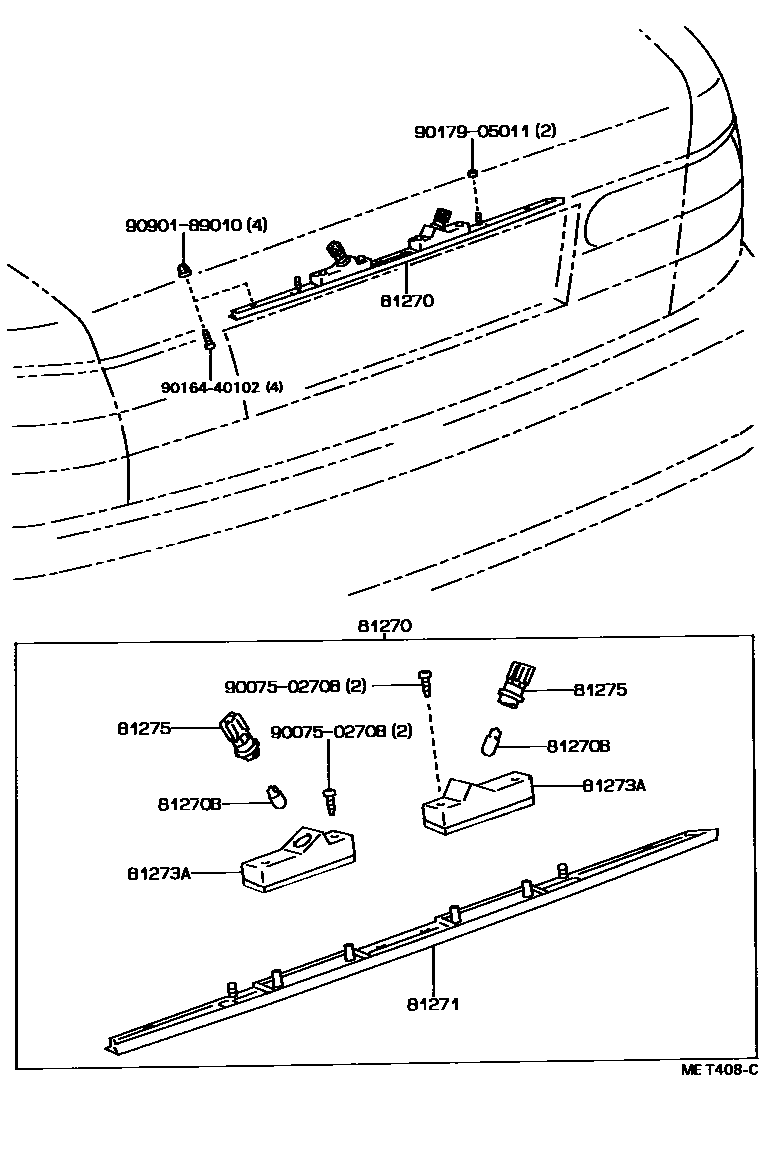

REAR LICENSE PLATE LAMP

0001 1KOITO 0002 1HONG KONG SPEC 0003 1

81270LAMP ASSY, LICENSE PLATE

main81270-05010iAT19#,CT190,ST191..UKP..(LB,SED)199312-199710

main81270-20510iAT190,ST191..UKP199308-199312

KOITO

main81270-21111-A0iAT19#,CT190,ST191..UKP..WG199505-199710

SUPER WHITE 2,040

main81270-21111-B0iAT19#,CT190,ST191..UKP..WG199505-199710

DK.BL.GRAY ME,183

main81270-21111-B1iAT19#,CT190,ST191..UKP..WG199505-199601

LT.GRAIGE ME.,1A2

main81270-21111-B2iAT19#,CT190,ST191..UKP..WG199601-199710

SILVER ME,199

main81270-21111-C0iAT19#,CT190,ST191..UKP..WG199603-199710

BLACK ME,205

main81270-21111-D0iAT19#,CT190,ST191..UKP..WG199505-199710

SU.RED 3,3J6

main81270-21111-D2iAT19#,CT190,ST191..UKP..WG199505-199710

MAGENTA MC.,3L3

main81270-21111-G0iAT19#,CT190,ST191..UKP..WG199505-199506

DK.GRAYISH OLIVE ME,6M7

main81270-21111-G1iAT19#,CT190,ST191..UKP..WG199611-199710

DK.GREEN M.M.,6P2

main81270-21111-H0iAT19#,CT190,ST191..UKP..WG199505-199710

DK.TURQUOISE.MC,742

main81270-21111-H1iAT19#,CT190,ST191..UKP..WG199601-199710

TURQUOISE M.M,746

main81270-21111-J0iAT19#,CT190,ST191..UKP..WG199505-199601

LT.BLUE MM,8G2

main81270-21111-J1iAT19#,CT190,ST191..UKP..WG199505-199710

BLUE,8H6

main81270-21111-J3iAT19#,CT190,ST191..UKP..WG199601-199705

PURPLISH BLUE M.M,8K9

main81270-21111-J4iAT19#,CT190,ST191..UKP..WG199705-199710

STRONG BLUE M,8B6

81270BBULB (FOR LICENSE PLATE LAMP)

main90080-81030×2iAT19#,CT190,ST191..UKP..(LB,SED)199601-199710

12V 5W

main99132-12050×2iAT19#,CT190,ST191..UKP..(LB,SED)199308-199601

12V 5W,KOITO

81271LENS, LICENSE PLATE LAMP

main81271-05010iAT19#,CT190,ST191..UKP..(LB,SED)199601-199710

main81271-20510iAT19#,CT190,ST191..UKP..(LB,SED)199308-199601

KOITO

main81271-21110×2iAT19#,CT190,ST191..UKP..WG199505-199710

81273ABODY, LICENSE PLATE LAMP

main81273-20510iAT19#,CT190,ST191..UKP..(LB,SED)199212-199601

KOITO

main81277-20510iAT19#,CT190,ST191..UKP..(LB,SED)199212-199601

KOITO

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main90075-99011×2iAT19#,CT190,ST191..UKP..(LB,SED)199212-199710

9007502708

main90075-02708

9016440102

main90164-40102

9017905011

main90179-05011

9090189010

main90901-89010

9 parts on this diagram · 3 diagrams in section
