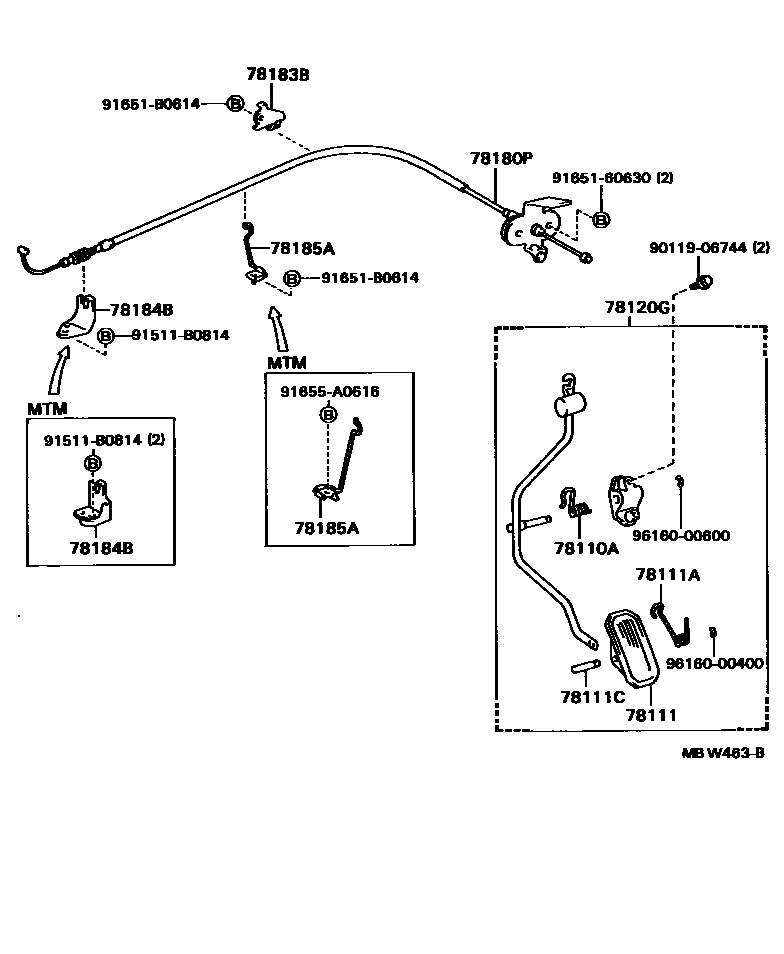

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90080-50107iCT190,ST191..UKP..LHD..MTM..(DSL,EFI)199308-199710

sub90508-26062

main90080-50108iST191..UKP..LHD..ATM;AT19#,CT190..UKP..LHD..(EFI,TD)199308-199710

sub90508-18072

main90508-18048iST191..UKP..RHD..ATM;AT19#,CT190..UKP..RHD..(EFI,TD)199212-199710

main90508-18072iAT19#..UKP..LHD;ST191..UKP..LHD..ATM199212-199601

main90508-26054iCT190,ST191..UKP..RHD..MTM..(DSL,EFI)199212-199710

main90508-26062iCT190,ST191..UKP..LHD..MTM199212-199601

main90959-03009iAT190..UKP..RHD..ATM199212-199601

78111PEDAL, ACCELERATOR

main78111-05010iAT19#,CT190,ST191..UKP..LHD199308-199710

main78111-20050iCT190..UKP..RHD199410-199710

main78111-32010iCT190..UKP..LHD;AT19#,ST191..UKP199212-199710

78111ASPRING (FOR ACCELERATOR PEDAL)

main90080-50106iAT19#,ST191..UKP..LHD..ATM199308-199710

sub90508-18050

main90080-50110iST191..UKP..LHD..(LB,SED)..ATM199308-199710

sub90508-18081

main90508-18050iAT190,ST191..UKP..LHD..ATM;AT19#,CT190,ST191..UKP..RHD199212-199710

main90508-18081iAT19#,CT190,ST191..UKP..LHD..MTM199212-199601

78111CPIN (FOR ACCELERATOR PEDAL)

main90080-24044iAT19#,CT190,ST191..UKP..LHD199308-199710

sub90249-05001

main90249-05001iAT19#,CT190,ST191..UKP199212-199710

78120GROD ASSY, ACCELERATOR PEDAL

main78120-05030iCT190,ST191..UKP..LHD..MTM..(DSL,EFI)199308-199710

main78120-05040iAT19#,ST191..UKP..LHD..ATM199308-199710

main78120-05080iCT190..UKP..LHD..TD199308-199710

main78120-05081iST191..UKP..LHD..(LB,SED)..ATM199411-199710

main78120-20500iST191..UKP..LHD..MTM199212-199312

main78120-20510iAT190..UKP..LHD..MTM199212-199312

main78120-20520iAT190,ST191..UKP..LHD..ATM199212-199312

main78120-20540iST191..UKP..RHD..ATM199212-199710

main78120-20550iST191..UKP..RHD..MTM199212-199710

main78120-20560iAT19#..UKP..RHD199212-199710

main78120-20570iAT190..UKP..RHD..ATM199212-199601

main78120-20580iCT190..UKP..RHD199410-199601

main78120-20581iCT190..UKP..RHD199601-199710

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-05010iST191..UKP..RHD..ATM199308-199710

main78180-05020iAT190..UKP..RHD..ATM199308-199601

main78180-05031iST191..UKP..LHD..ATM199308-199710

main78180-05040iAT190..UKP..LHD..(LB,SED)..MTM199312-199601

LEAN BURN ENGINE OR BOSCH EFI SYSTEM

main78180-05040iAT191..UKP..LHD;AT190..UKP..LHD..WG;AT190..UKP..LHD..ATM199308-199710

main78180-05040iAT190..UKP..LHD..MTM199308-199312

LEAN BURN ENGINE

main78180-05050iST191..UKP..RHD..MTM199308-199710

main78180-05061iST191..UKP..LHD..MTM199308-199710

main78180-05070iAT190..UKP..LHD..(LB,SED)..MTM199308-199601

sub78180-05040

main78180-05080iAT191..UKP..RHD;AT190..UKP..RHD..MTM199308-199710

main78180-05100iCT190..UKP..LHD199601-199710

main78180-05110iCT190..UKP..RHD199410-199601

main78180-05120iCT190..UKP..LHD199410-199601

main78180-05150iCT190..UKP..RHD199601-199710

main78180-2B760iAT190..UKP..LHD..ATM199212-199312

LEAN BURN ENGINE

main78180-2B790iST191..UKP..LHD..ATM199212-199307

sub78180-2B791

main78180-2B791iST191..UKP..LHD..ATM199307-199312

main78180-2B850iAT190..UKP..RHD..ATM199212-199312

main78180-2B880iST191..UKP..RHD..ATM199212-199307

sub78180-2B881

main78180-2B881iST191..UKP..RHD..ATM199307-199312

main78180-2D050iST191..UKP..RHD..MTM199212-199307

sub78180-2D051

main78180-2D051iST191..UKP..RHD..MTM199307-199312

main78180-2D070iST191..UKP..LHD..MTM199212-199307

sub78180-2D071

main78180-2D071iST191..UKP..LHD..MTM199307-199312

main78180-2D080iAT190..UKP..LHD..MTM199212-199312

main78180-2D100iAT190..UKP..RHD..MTM199212-199312

sub78180-2D101

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20170iAT19#,CT190,ST191..UKP..RHD199212-199710

main78183-20180iCT190..UKP..LHD199601-199710

TYPE A

main78183-20190iCT190..UKP..LHD199410-199601

TYPE A

main78183-20210iCT190..UKP..LHD199410-199601

TYPE B

main78183-20270iAT19#,ST191..UKP..LHD199212-199710

main78183-20300iCT190..UKP..LHD199601-199710

TYPE B

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-05010iAT19#..UKP..LHD199402-199710

main78184-05010iAT190..UKP..LHD..MTM199308-199402

LEAN BURN ENGINE

main78184-05020iAT191..UKP..RHD;AT190..UKP..RHD..MTM199308-199710

main78184-05030iAT190..UKP..LHD..MTM199308-199402

main78184-12280iAT190..UKP..RHD..ATM199212-199601

main78184-20240iAT190..UKP..RHD..MTM199212-199308

main78184-20250iAT190..UKP..LHD..MTM199212-199308

LEAN BURN ENGINE

main78184-20270iAT190..UKP..LHD..(LB,SED)..MTM199212-199601

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-20200iAT190..UKP..RHD..ATM199212-199601

main78183-20290iAT191..UKP..RHD;AT190..UKP..RHD..MTM199212-199710

9011906744

main90119-06744

91511B0814

main91511-B0814

9165160630

main91651-60630

91651B0614

main91651-B0614

91655A0616

main91655-A0616

9616000400

main96160-00400

9616000600

main96160-00600

16 parts on this diagram · 6 diagrams in section
