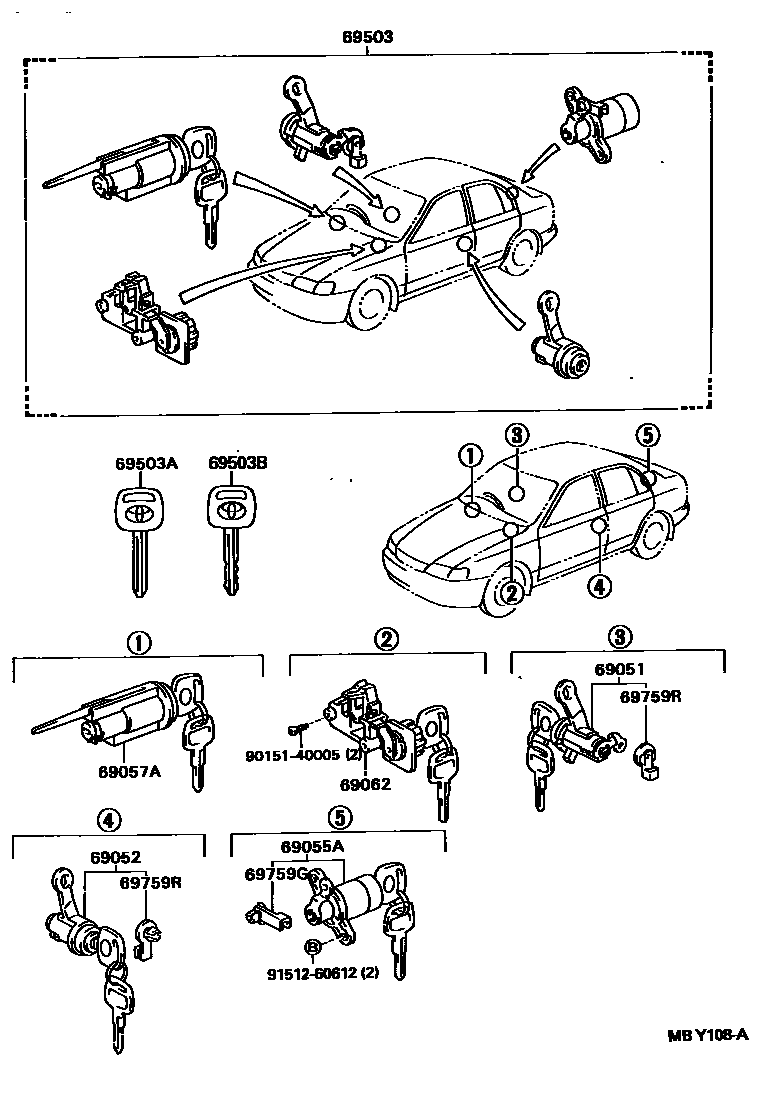

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1W(IMMOBI)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-05010iAT19#,CT190,ST191..UKP199312-199710

main69051-20330iAT190,ST191..UKP199212-199312

TOKAIRIKA

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-05010iAT190,ST191..UKP199308-199312

VALEO

main69052-20330iAT190,ST191..UKP199212-199312

TOKAIRIKA

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-05010iAT190,ST191..UKP199308-199312

VALEO

main69055-20540iAT190,ST191..UKP199212-199312

TOKAIRIKA

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-05010iAT19#..UKP..LHD;ST191..UKP..LHD..SED199601-199710

main69057-20320iAT190,ST191..UKP199212-199312

TOKAIRIKA

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-05010iAT190,ST191..UKP199308-199312

VALEO

main69056-20260iAT190,ST191..UKP199212-199312

TOKAIRIKA

69503CYLINDER SET, LOCK

main69005-05010iAT19#,ST191..UKP..LHD..SED; CT190..UKP..LHD..SED..XL199601-199710

main69005-05020iAT19#,CT190,ST191..UKP..LB199312-199601

main69005-05030iAT19#,CT190,ST191..UKP..WG199505-199601

main69005-05040iAT19#..UKP..LHD..LB199601-199710

main69005-2B210iAT190,ST191..UKP199212-199308

69503AKEY, BLANK

main90080-69007×2iAT19#..UKP..LHD;ST191..UKP..LHD..SED; CT190..UKP..LHD..SED..XL199601-199710

MASTER KEY,W/O(ANTI-THEFT DEVICE)

main90080-69008iAT19#..UKP..LHD;ST191..UKP..LHD..SED; CT190..UKP..LHD..SED..XL199601-199710

SUB KEY,W/O(ANTI-THEFT DEVICE)

main90999-00199×2iAT190,ST191..UKP199212-199308

MASTER KEY,W(*68)

main90999-00200iAT190,ST191..UKP199212-199308

SUB KEY,W(*68)

69503BKEY, CUT

main69515-05010×2iAT19#..UKP..LHD;ST191..UKP..LHD..SED; CT190..UKP..LHD..SED..XL199601-199710

MASTER KEY(VALEO)

main69516-05010iAT19#..UKP..LHD;ST191..UKP..LHD..SED; CT190..UKP..LHD..SED..XL199601-199710

SUB KEY(VALEO)

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20080iAT19#,CT190,ST191..UKP..SED199212-199710

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iAT19#,CT190,ST191..UKP199601-199710

RH

main69759-12090iAT190,ST191..UKP199308-199312

9015140005

main90151-40005

9151260612

main91512-60612

12 parts on this diagram · 4 diagrams in section
