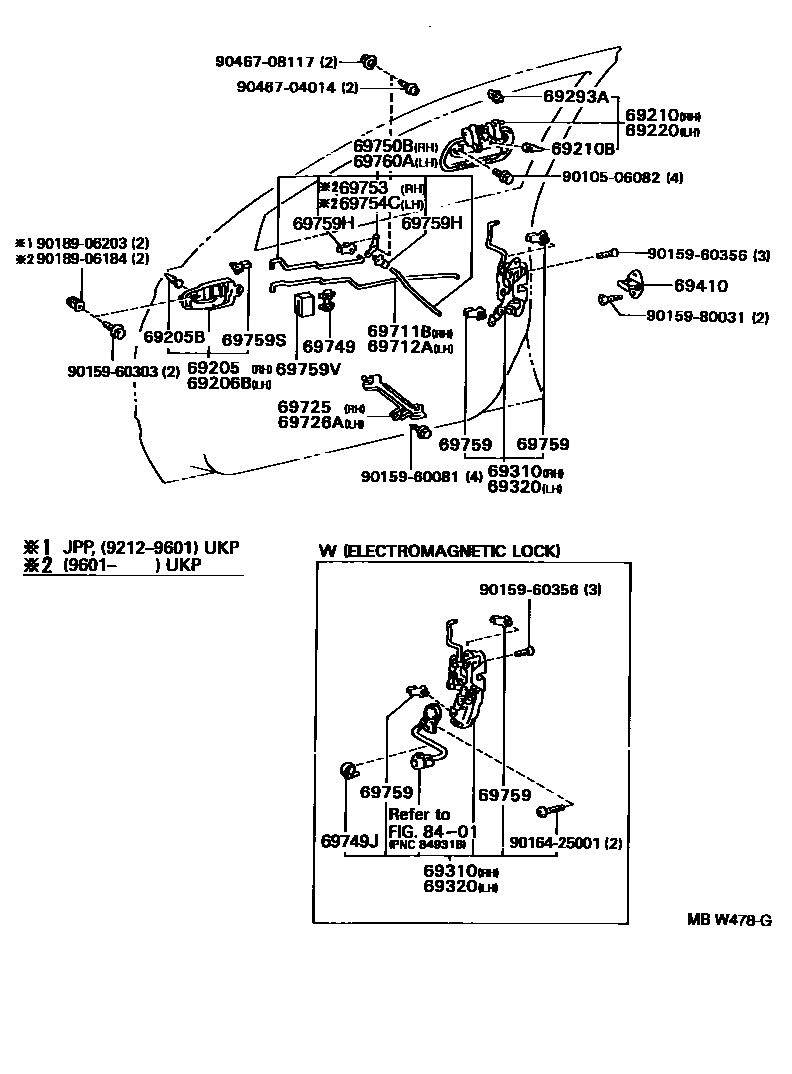

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-05010-B0iAT19#,CT190,ST191..UKP199405-199710

SHADOW GRAY,TRIM1#,(L)

main69205-05010-C0iAT190..UKP..SED..XL199312-199405

BLACK,TRIM2#

main69205-05010-C0iAT190,ST191..UKP199308-199312

BLACK,TRIM2#,(L)

main69205-05010-J0iAT190..UKP..LB..XL;AT190,ST191..UKP..GL199312-199710

DARK BLUE,TRIM8#

main69205-05010-J0iAT190,ST191..UKP199308-199312

DARK BLUE,TRIM8#,(L)

main69205-20110-B0iAT190,ST191..UKP..(LB,SED)199405-199601

SHADOW GRAY,TRIM1#,(J)

sub69205-20110

main69205-20110-C0iAT190,ST191..UKP199308-199312

BLACK,TRIM2#,(J)

sub69205-20110

main69205-20110-J0iAT190,ST191..UKP199308-199312

DARK BLUE,TRIM8#,(J)

sub69205-20110

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54017iAT19#,CT190,ST191..UKP199308-199710

(L)

main90541-04014iAT190,ST191..UKP199212-199312

(J)

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-05010-B0iAT19#,CT190,ST191..UKP199405-199710

SHADOW GRAY,TRIM1#,(L)

main69206-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#,(L)

main69206-05010-J0iAT19#,CT190,ST191..UKP199308-199710

DARK BLUE,TRIM8#,(L)

main69206-20110-B0iAT190,ST191..UKP..(LB,SED)199405-199601

SHADOW GRAY,TRIM1#,(J)

sub69206-20110

main69206-20110-C0iAT190,ST191..UKP199212-199312

BLACK,TRIM2#,(J)

sub69206-20110

main69206-20110-J0iAT190,ST191..UKP199212-199312

DARK BLUE,TRIM8#,(J)

sub69206-20110

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-05010iAT19#,CT190,ST191..UKP199308-199710

main69210-05030-B0iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199705-199710

SILVER ME,199

main69210-05030-D0iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199611-199710

MAGENTA MC.,3L3

main69210-05030-G0iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199611-199710

DK.GREEN M.M.,6P2

main69210-05030-H0iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199611-199710

TURQUOISE M.M,746

main69210-05030-J0iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199705-199710

STRONG BLUE M,8B6

main69210-20270iAT190,ST191..UKP199212-199312

NO PAINT REQ.

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90080-54017iAT19#,CT190,ST191..UKP199308-199710

main90541-04018iAT190,ST191..UKP199212-199308

main90541-04018iAT190,ST191..UKP199308-199312

TYPE A

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-05010iAT19#,CT190,ST191..UKP199308-199710

main69220-05030-B0iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199705-199710

SILVER ME,199

main69220-05030-D0iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199611-199710

MAGENTA MC.,3L3

main69220-05030-G0iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199611-199710

DK.GREEN M.M.,6P2

main69220-05030-H0iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199611-199710

TURQUOISE M.M,746

main69220-05030-J0iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199705-199710

STRONG BLUE M,8B6

main69220-20270iAT190,ST191..UKP199212-199312

BLACK

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAT19#,CT190,ST191..UKP199601-199710

RH,NATURAL

main69293-12030iAT19#,CT190,ST191..UKP199212-199710

RH

main69293-12040iAT19#,CT190,ST191..UKP199601-199710

LH,YELLOW

main69293-12040iCT190..UKP;AT190..UKP..RHD..GL;AT191..UKP..RHD..WG199212-199710

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-05010iAT190..UKP..LHD..GL199308-199405

(L)

main69030-05010iST191..UKP..LHD;AT190..UKP..LHD..XL199308-199312

W(ELECTROMAGNETIC LOCK),(L)

main69030-05010iST191..UKP..LHD;AT190..UKP..LHD..XL199312-199405

W(POWER WINDOW) OR W(ELECTROMAGNETIC LOCK),(L)

main69030-05020iAT19#,CT190..UKP..RHD..XL199601-199710

W(POWER WINDOW)

main69030-05020iAT190,ST191..UKP..RHD199308-199601

W(POWER WINDOW),(L)

main69030-05031iAT190..UKP..RHD..XL199308-199312

W(ELECTROMAGNETIC LOCK),(L)

main69030-05031iAT190,ST191..UKP..RHD..GL199308-199312

(L)

main69030-05031iAT19#,CT190,ST191..UKP..RHD199312-199710

main69030-05040iAT191..UKP..WG;AT190,CT190,ST191..UKP..LHD199405-199710

W(POWER WINDOW)

main69030-05050iAT19#,CT190..UKP..LHD..XL199505-199710

main69030-05050iCT190..UKP..LHD;AT190..UKP..LHD..WG..XL;AT190..UKP..LHD..(LB,SED)199405-199601

W(ELECTROMAGNETIC LOCK)

main69030-20450iST191..UKP..LHD;AT190..UKP..LHD..XL199212-199312

W(ELECTROMAGNETIC LOCK),(J)

main69030-20450iST191..UKP..LHD;AT190..UKP..LHD..XL199312-199405

W(POWER WINDOW) OR W(ELECTROMAGNETIC LOCK),(J)

main69030-20450iAT190..UKP..LHD..GL199212-199405

(J)

main69030-20460iST191..UKP..RHD199212-199405

W(POWER WINDOW),(J)

main69030-20471iAT190..UKP..RHD..XL199212-199405

(J)

main69030-20471iAT190,ST191..UKP..RHD..GL199212-199312

W(ELECTROMAGNETIC LOCK),(J)

main69310-20650iAT190..UKP..LHD..XL;CT190,ST191..UKP..LHD199212-199601

main69310-20650iAT190..UKP..RHD..XL199306-199601

IRELAND SPEC

69320LOCK ASSY, FRONT DOOR, LH

main69040-05010iAT190,ST191..UKP..LHD199308-199405

W(POWER WINDOW),(L)

main69040-05010iAT19#,CT190..UKP..LHD..XL199405-199710

W(POWER WINDOW)

main69040-05020iAT190..UKP..RHD..XL199308-199405

(L)

main69040-05020iAT190..UKP..RHD..XL199308-199312

W(ELECTROMAGNETIC LOCK),(L)

main69040-05030iST191..UKP..LHD;AT190..UKP..LHD..XL199308-199405

(L)

main69040-05030iST191..UKP..LHD;AT190..UKP..LHD..XL199308-199405

W(ELECTROMAGNETIC LOCK),(L)

main69040-05040iAT19#,CT190..UKP..RHD..XL199405-199710

W(POWER WINDOW)

main69040-05050iAT190..UKP..LHD..XL199405-199601

W(ELECTROMAGNETIC LOCK)

main69040-05050iAT19#,CT190..UKP..LHD..XL199505-199710

main69040-05060iAT19#,CT190..UKP..RHD..XL199405-199710

main69040-20480iAT190,ST191..UKP..LHD199212-199405

W(POWER WINDOW),(J)

main69040-20490iAT190..UKP..RHD..XL199212-199312

W(ELECTROMAGNETIC LOCK),(J)

main69040-20490iAT190..UKP..RHD..XL199212-199405

(J)

main69040-20500iAT190..UKP..LHD..GL199212-199405

W(ELECTROMAGNETIC LOCK),(J)

main69040-20500iST191..UKP..LHD;AT190..UKP..LHD..XL199212-199405

(J)

main69320-20640iAT190..UKP..RHD..(LB,SED)..XL199306-199601

IRELAND SPEC

main69320-20640iAT190..UKP..LHD..XL;CT190,ST191..UKP..LHD199212-199601

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAT19#,CT190,ST191..UKP199212-199710

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-20180iAT19#,CT190,ST191..UKP199212-199710

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-20180iAT19#,CT190,ST191..UKP199212-199710

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-20010iAT19#,CT190,ST191..UKP199212-199710

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-20010iAT19#,CT190,ST191..UKP199212-199710

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20040iAT19#,CT190,ST191..UKP199212-199710

69749JCLAMP, FRONT DOOR LOCK

main69749-32020iAT19#,CT190,ST191..UKP199212-199710

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-20050iAT19#,CT190,ST191..UKP199212-199710

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-20070iAT19#,CT190,ST191..UKP199601-199710

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69753-20070iAT19#,CT190,ST191..UKP199601-199710

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24010iAT190,ST191..UKP199212-199710

LH,NATURAL

main69759-24020iCT190..UKP..RHD199212-199710

RH,BLUE

main69759-24050iAT19#,CT190,ST191..UKP199212-199710

LH,GREEN

main69759-24060iAT19#,CT190,ST191..UKP199212-199710

RH,GRAY

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20380iAT19#,CT190,ST191..UKP199212-199710

BLACK

main69759-24030iAT19#,CT190,ST191..UKP199212-199710

RED

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-05010iAT19#,CT190,ST191..UKP199601-199710

RH,PINK

main69759-05010iAT19#,CT190,ST191..UKP199410-199601

RH

main69759-05020iAT19#,CT190,ST191..UKP199601-199710

LH,YELLOW

main69759-05020iAT19#,CT190,ST191..UKP199410-199601

LH

main69759-14050iAT190,ST191..UKP199212-199410

RH

main69759-24070iAT190,ST191..UKP199212-199410

LH

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30021iAT19#,CT190,ST191..UKP199212-199710

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-20050iAT19#,CT190,ST191..UKP199212-199710

8401

9010506082

main90105-06082

9015960081

main90159-60081

9015960303

main90159-60303

9015960356

main90159-60356

9015980031

main90159-80031

9016425001

main90164-25001

9018906184

main90189-06184

9018906203

main90189-06203

9046704014

main90467-04014

9046708117

main90467-08117

35 parts on this diagram · 1 diagram in section
