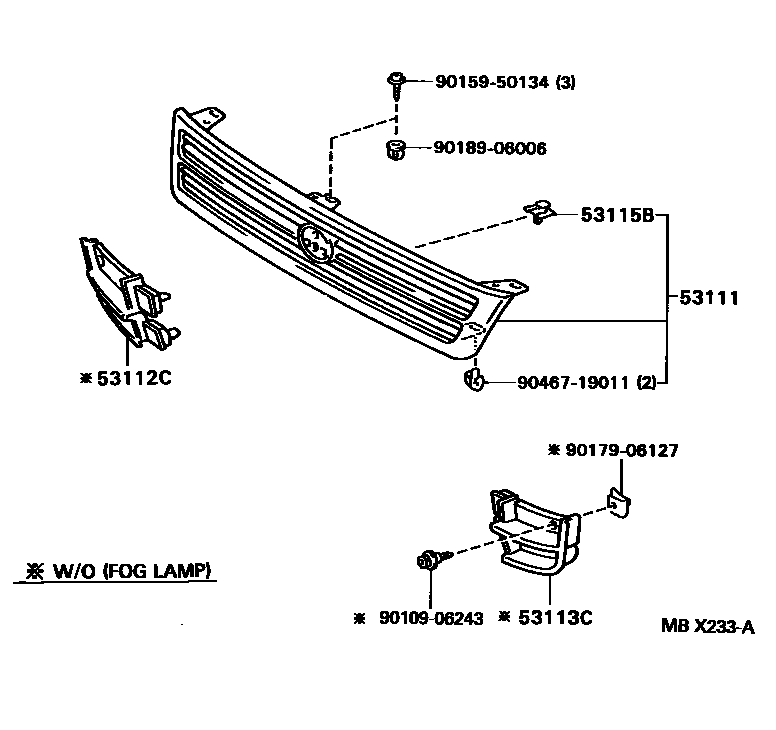

RADIATOR GRILLE
53111GRILLE, RADIATOR
SUPER WHITE 2,040
DARK BLUEISH GRAY ME,183
LI.GRAIGE ME.,1A2
BLUISH SILVER ME,1A0
BLACK ME,205
SUPER RED 3,3J6
DARK MAOVE MICA M,3K1
MAGENTA MC.,3L3
LIGHT BEIGE ME,4M3
DK.GRAYISH OLIVE ME,6M7
DARK TURQUOIZE MICA,742
LIGHT BLUE MICA ME,8G2
BLUE,8H6
DARK TAUPE MCOP,927
SUPER WHITE 2,040
DK.BL.GRAY ME,183
SILVER ME,199
BLACK ME,205
SU.RED 3,3J6
MAGENTA MC.,3L3
DK.GREEN M.M.,6P2
DK.TURQUOISE.MC,742
TURQUOISE M.M,746
BLUE,8H6
PURPLISH BLUE M.M.,8K9
STRONG BLUE M,8B6
SUPER WHITE 2,040
DARK BLUEISH GRAY ME,183
LI.GRAIGE ME.,1A2
BLACK ME,205
SUPER RED 3,3J6
DARK WINE MICA M,3K1
MAGENTA MC.,3L3
LIGHT BEIGE ME,4M3
DK.GRAYISH OLIVE ME,6M7
DARK TURQUOISE MICA,742
LIGHT BLUE MICA ME,8G2
BLUE,8H6
53112CGRILLE, RADIATOR, LOWER RH
53113CGRILLE, RADIATOR, LOWER LH
53115BBRACKET, RADIATOR GRILLE
9010906243
main90109-06243
9015950134
main90159-50134
9017906127
main90179-06127
9018906006
main90189-06006
9046719011
main90467-19011
9 parts on this diagram · 1 diagram in section
