STEERING WHEEL

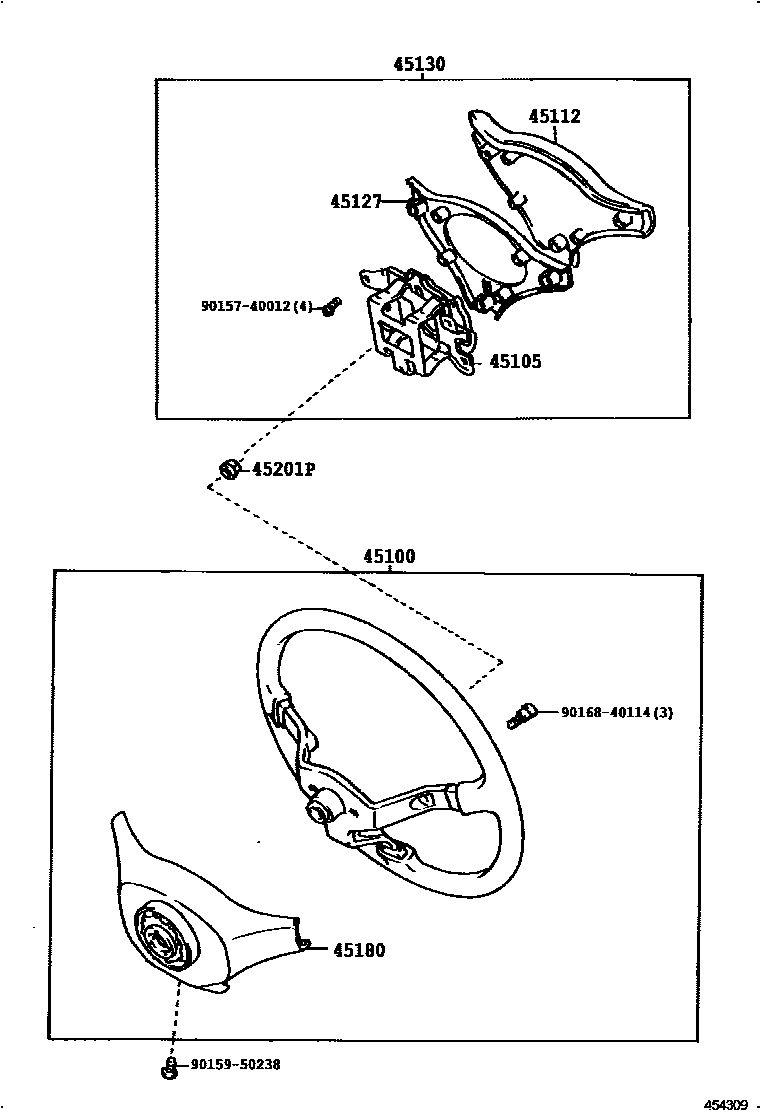

Parts diagram
45100WHEEL ASSY, STEERING
main45100-05010-C0i199308-199405
3-SPOKE,URETHANE,BLACK,TRIM2#,8#
main45100-05010-C0i199405-199601
3-SPOKE,URETHANE,BLACK,TRIM1#,8#
main45100-05020-C0i199405-199601
4-SPOKE,URETHANE,BLACK,TRIM1#,8#
main45100-05020-C0i199410-199710
4-SPOKE,URETHANE,4-SPOKE,URETHANE,BLACK,TRIM1#,8#
main45100-05020-C0i199308-199405
4-SPOKE,URETHANE,BLACK,TRIM2#,8#
main45100-05030-C0i199405-199601
4-SPOKE,URETHANE,4-SPOKE,LEATHER,BLACK,TRIM1#,8#
sub45100-05031
main45100-05030-C0i199308-199405
4-SPOKE,URETHANE,4-SPOKE,LEATHER,BLACK,TRIM8#
sub45100-05031
main45100-05031i199408-199505
4-SPOKE,LEATHER,4-SPOKE,LEATHER
main45100-05031-C0i199601-199710
4-SPOKE,LEATHER,4-SPOKE,LEATHER,BLACK,TRIM1#,8#
main45100-05040-C0i199601-199710
4-SPOKE,URETHANE,4-SPOKE,URETHANE,W(*80 ELECTRICAL TYPE),BLACK,BLACK,TRIM1#,8#
main45100-05050-C0i199601-199710
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80 ELECTRICAL TYPE),BLACK,BLACK,TRIM1#,8#
main45100-2B180-C0i199212-199308
3-SPOKE,URETHANE,BLACK,TRIM2#,8#
sub45100-2B180
main45100-2B190-C0i199212-199308
4-SPOKE,URETHANE,4-SPOKE, URETHANE,BLACK,TRIM2#,8#
sub45100-2B190
main45100-2B200-C0i199212-199308
4-SPOKE,LEATHER,4-SPOKE,LEATHER,BLACK,BLACK,TRIM2#,8#
sub45100-2B200
main45100-2B210-C0i199212-199309
4-SPOKE,W(*80),BLACK,TRIM2#,8#
sub45100-2B211
main45100-2B211-C0i199309-199312
4-SPOKE,LEATHER,W(*80),BLACK,TRIM8#
sub45100-2B212
main45100-2B212-C0i199405-199407
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#,8#
sub45100-2B212
main45100-2B212-C0i199312-199405
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM8#
sub45100-2B212
main45100-2B212-C0i199401-199405
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8#
sub45100-2B212
main45100-2B230-C0i199306-199309
4-SPOKE,URETHANE,4-SPOKE,URETHANE,BLACK,BLACK,TRIM2#,8#
sub45100-2B231
main45100-2B231-C0i199405-199407
4-SPOKE,URETHANE,W(*80),BLACK,TRIM1#,8#
sub45100-2B231
main45100-2B231-C0i199309-199405
4-SPOKE,URETHANE,W(*80),BLACK,TRIM2#,8#
sub45100-2B231
main45100-2B420-C0i199408-199412
4-SPOKE,URETHANE,4-SPOKE,URETHANE,W(*80),BLACK,BLACK,TRIM1#,8#
sub45100-2B420
main45100-2B440-C0i199601-199607
4-SPOKE,4-SPOKE,URETHANE,W(*80 MECHANICAL TYPE),BLACK,BLACK,TRIM1#,8#
sub45100-2B440
main45100-2B440-C0i199412-199601
4-SPOKE,4-SPOKE,URETHANE,W(*80),BLACK,BLACK,TRIM1#,8#
sub45100-2B440
main45100-2B450-C0i199412-199608
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#,8#
sub45100-2B450
sub45100-2B440
main45100-2B450-C0i199607-199608
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#
sub45100-2B450
sub45100-2B440
main45100-2B450-C0i199411-199412
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK;SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8#
sub45100-2B450
sub45100-2B440
main45100-2B450-C0i199601-199607
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80 MECHANICAL TYPE),BLACK,BLACK,TRIM1#,8#
sub45100-2B450
sub45100-2B440
main45100-2B620-C0i199607-199710
4-SPOKE,4-SPOKE,URETHANE,W(*80),BLACK,BLACK,TRIM1#,8#
main45100-2B630-C0i199608-199710
4-SPOLE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#,8#
sub45100-2B630
main45100-32300-B0i199601
4-SPOKE,LEATHER,SHADOW GRAY
sub45100-32300
main45100-32300-B0i199408-199601
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),SHADOW GRAY,SHADOW GRAY
sub45100-32300
main45100-32300-C0i199407-199408
4-SPOKE,LEATHER,BLACK,TRIM1#,8#
sub45100-32300
main45100-32300-C0i199407-199412
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#,8#
sub45100-32300
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-20410i199212-199308
main45105-20420i199212-199308
45112PAD, STEERING WHEEL
main45112-20600-C0i199212-199308
BLACK,TRIM2#,8#
main45112-20610-C0i199212-199308
BLACK,TRIM2#,8#
45127INSERT, HORN BUTTON, UPPER NO.1
main45127-20010i199212-199308
main45127-20020i199212-199308
45130BUTTON ASSY, HORN
main45130-05010-C0i199308-199402
BLACK,TRIM2#,8#
main45130-05011-C0i199402-199405
BLACK,TRIM2#,8#
main45130-05011-C0i199405-199601
BLACK,TRIM1#,8#
main45130-05020-C0i199308-199402
BLACK,TRIM2#,8#
main45130-05021-C0i199405-199601
W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8#
sub45130-05040
main45130-05021-C0i199410-199601
4-SPOKE,BLACK,BLACK,TRIM1#,8#
sub45130-05040
main45130-05021-C0i199501-199601
4-SPOKE,BLACK,TRIM1#,8#
sub45130-05040
main45130-05021-C0i199402-199405
BLACK,TRIM8#
sub45130-05040
main45130-05030-C0i199601-199710
W(ELECTRICAL TYPE *80),BLACK,TRIM1#,8#
main45130-05040-C0i199601-199710
4-SPOKE,URETHANE;4-SPOKE,BLACK,BLACK,TRIM1#,8#
main45130-05040-C0i199601-199710
4-SPOKE,BLACK,BLACK,TRIM1#,8#
main45130-2B150-C0i199212-199308
BLACK,TRIM2#,8#
main45130-2B160-C0i199212-199308
BLACK,TRIM2#,8#
main45130-2B170-C0i199212-199309
4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8#
sub45130-2B171
sub45130-2B320
main45130-2B321-C0i199309-199405
SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM2#,8#
sub45130-2B321
main45130-2B321-C0i199405-199407
SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8#
sub45130-2B321
main45130-2B340-C0i199407-199412
4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8#
sub45130-2B340
main45130-2B350-C0i199412-199510
4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8#
sub45130-2B351
main45130-2B350-C0i199411-199412
SRS AIR BAG SYSTEM(DEALER OPTION);4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8#
sub45130-2B351
main45130-2B351-C0i199510-199607
W(MECHANICAL TYPE *80),BLACK,TRIM1#,8#
sub45130-32370
main45130-2B390-C0i199607-199608
W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8#
sub45130-2B391
main45130-2B390-C0i199608-199710
W(MECHANICAL TYPE *80),BLACK,TRIM1#,8#
sub45130-2B391
45180COVER SUB-ASSY, STEERING WHEEL
main45180-20200-C0i199212-199308
BLACK,TRIM2#,8#
sub45180-20200
main45180-20210-C0i199212-199308
BLACK,TRIM2#,8#
sub45180-20210
45201PNUT, STEERING WHEEL SET
main90179-12071i199307-199710
main90179-12086i199212-199307
9015740012
main90157-40012
9015950238
main90159-50238
9016840114
main90168-40114

10 parts on this diagram · 7 diagrams in section
