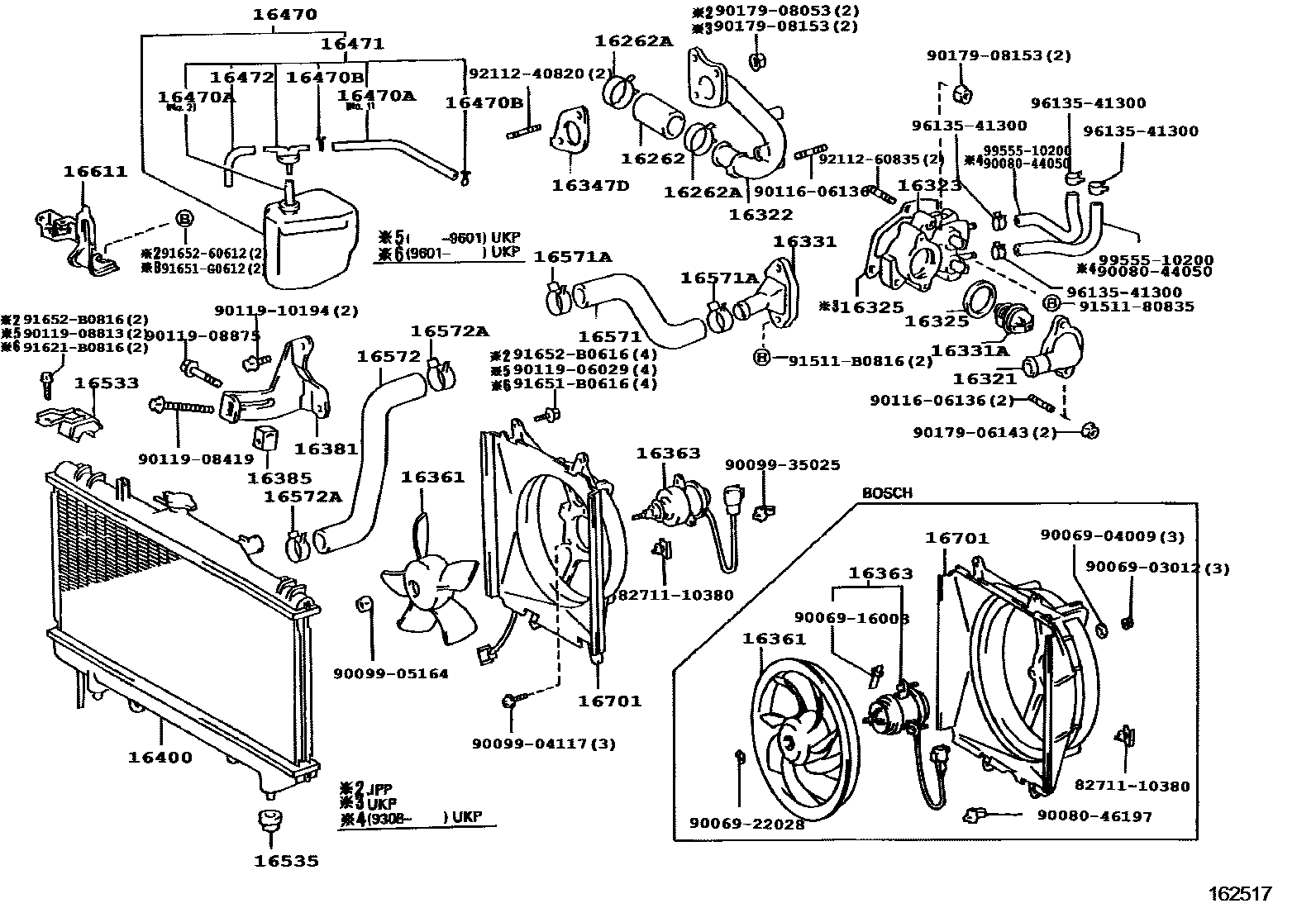

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

16262HOSE, WATER INLET

main16262-02030i4AFE,7AFE..AT19#..UKP199212-199710

16262ACLIP(FOR WATER INLET HOSE)

main90467-37002i4AFE,7AFE..AT19#..UKP199212-199710

sub90467-37005

16321INLET, WATER

main16321-02030i4AFE,7AFE..AT19#..UKP199301-199710

main16321-15040i4AFE..AT190..UKP199212-199301

main16321-64020i2C#..CT190..UKP199410-199710

main16321-74030i3SFE..ST191..UKP199212-199601

sub16321-74050

main16321-74050i3SFE..ST191..UKP199601-199710

16322PIPE, WATER INLET

main16322-02020i4AFE..AT190..UKP199308-199710

sub16322-02021

main16322-02030i7AFE..AT191..UKP199412-199710

main16322-15050i4AFE..AT190..UKP199212-199308

16323HOUSING, WATER INLET

main16323-02030i4AFE,7AFE..AT19#..UKP199308-199710

(L)

sub16323-16410

main16323-02050i4AFE..AT190..UKP..LHD..SED..XL199601-199710

*EX-USSR

main16323-16420i4AFE..AT190..UKP..(LB,SED)199212-199601

(J)

sub16323-16410

16325GASKET, WATER INLET HOUSING, NO.1

main16325-15020i4AFE,7AFE..AT19#..UKP199308-199710

CYLINDER HEAD SIDE

main16325-63010i4AFE..AT190..UKP199212-199308

sub16325-63011

main16325-63011i3SFE..ST191..UKP199301-199710

main16325-63011i4AFE,7AFE..AT19#..UKP199308-199710

THERMOSTAT SIDE

16331OUTLET, WATER

main16331-02030i4AFE,7AFE..AT19#..UKP199212-199710

main16331-64030i2C..CT190..UKP199410-199601

main16331-74200i3SFE..ST191..UKP199212-199601

main16331-74210i3SFE..ST191..UKP199601-199707

sub16331-74260

main16331-74260i3SFE..ST191..UKP199707-199710

16331ATHERMOSTAT

main90080-23003i4AFE,7AFE..AT19#..UKP199308-199710

*WAX 82-95

main90916-03046i2C#..CT190..UKP199212-199710

*WAX 82-95

main90916-03090i3SFE..ST191..UKP199603-199710

*WAX 82-95

16347DGASKET, WATER BY-PASS

main16347-02010i4AFE,7AFE..AT19#..UKP199308-199710

main16347-15010i4AFE..AT190..UKP199212-199308

16361FAN

main16361-02060i3SFE..ST191..UKP199312-199601

sub16360-02080

main16361-02060i4AFE..AT190..UKP199308-199312

BOSCH

sub16360-02080

main16361-02080i3SFE..ST191..UKP199601-199710

main16361-0B010i2CT..CT190..UKP199601-199710

main16361-11010i4AFE..AT190..UKP199212-199601

main16361-11010i3SFE..ST191..UKP199308-199312

NIPPONDENSO

main16361-11020i3SFE..ST191..UKP..LHD..SED..MTM199601-199612

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY SPEC

main16361-11020i3SFE..ST191..UKP..LHD..SED..MTM199612-199710

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY OR ISRAEL SPEC

main16361-11020i4AFE..AT190..UKP..LHD..SED..XL199601-199710

*EX-USSR

main16361-11020i3SFE..ST191..UKP..LHD..LB..MTM199612-199710

ISRAEL & TURKEY OR ISRAEL SPEC

main16361-74070i3SFE..ST191..UKP..LHD..SED..ATM199612-199710

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY OR ISRAEL SPEC

main16361-74070i3SFE..ST191..UKP..LHD..SED..ATM199601-199612

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY SPEC

main16361-74070i3SFE..ST191..UKP..LHD..LB..ATM199612-199710

ISRAEL & TURKEY OR ISRAEL SPEC

16363MOTOR, COOLING FAN

main16363-02050i3SFE..ST191..UKP199312-199601

sub16360-02080

main16363-02050i4AFE..AT190..UKP199306-199312

BOSCH

sub16360-02080

main16363-02050i4AFE..AT190..UKP199306-199312

(L)

sub16360-02080

main16363-02070i3SFE..ST191..UKP199601-199710

main16363-0B010i2CT..CT190..UKP199601-199710

main16363-11010i4AFE..AT190..UKP199212-199308

(J)

main16363-11010i3SFE..ST191..UKP199212-199312

NIPPONDENSO

main16363-11020i3SFE..ST191..UKP..LHD..SED..MTM199612-199710

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY OR ISRAEL SPEC

main16363-11020i3SFE..ST191..UKP..LHD..SED..MTM199601-199612

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY SPEC

main16363-11020i3SFE..ST191..UKP..LHD..SED..MTM199612-199710

ISRAEL & TURKEY OR ISRAEL SPEC

main16363-11020i4AFE..AT190..UKP..LHD..SED..XL199601-199710

*EX-USSR

main16363-11030i3SFE..ST191..UKP..LHD..LB..ATM199612-199710

ISRAEL & TURKEY OR ISRAEL SPEC

main16363-11030i3SFE..ST191..UKP..LHD..SED..ATM199601-199612

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY SPEC

main16363-11030i3SFE..ST191..UKP..LHD..LB..ATM199612-199710

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY OR ISRAEL SPEC

main16363-15120i2C..CT190..UKP199410-199601

16381BAR, FAN BELT ADJUSTING

main16381-02030i4AFE,7AFE..AT19#..UKP199308-199710

main16381-15080i4AFE..AT190..UKP199212-199308

main16381-64080i2C#..CT190..UKP199410-199608

main16381-64080i2CT..CT190..UKP..LHD..SED..XL199608-199710

*EX-USSR

main16381-64151i2CT..CT190..UKP199609-199710

16385SLIDER, FAN BELT ADJUSTING

main16385-15020i4AFE,7AFE..AT19#..UKP199212-199710

sub16385-15030

main16385-64011i2C#..CT190..UKP199410-199710

main16385-64011i2CT..CT190..UKP..LHD..SED..XL199608-199609

*EX-USSR

16400RADIATOR ASSY

main16400-02160i4AFE,7AFE..AT19#..UKP..MTM199212-199710

main16400-02170i4AFE..AT190..UKP..ATM199212-199405

sub16400-02171

main16400-02171i4AFE,7AFE..AT19#..UKP..ATM199405-199710

main16400-02200i2C..CT190..UKP199410-199601

main16400-03090i3SFE..ST191..UKP..MTM199308-199710

main16400-03100i3SFE..ST191..UKP..ATM199308-199710

(L)

main16400-03130i3SFE..ST191..UKP..LHD..SED..ATM199612-199710

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY OR ISRAEL SPEC

main16400-03130i3SFE..ST191..UKP..LHD..SED..ATM199601-199612

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY SPEC

main16400-03130i3SFE..ST191..UKP..LHD..LB..ATM199612-199710

ISRAEL & TURKEY OR ISRAEL SPEC

main16400-0B010i2CT..CT190..UKP199601-199710

main16400-74790i3SFE..ST191..UKP..ATM199212-199312

(J)

main16400-74840i3SFE..ST191..UKP..MTM199212-199308

sub16400-74790

16470TANK ASSY, RADIATOR RESERVE

main16470-02040i4AFE,7AFE..AT19#..UKP199212-199710

(L)

main16470-0B010i2CT..CT190..UKP199601-199710

main16470-74200i3SFE..ST191..UKP199212-199308

(J)

sub16470-74230

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16471-74200i3SFE..ST191..UKP199212-199308

*H,L=435,NO.1,NIPPONDENSO

main90069-16001i3SFE..ST191..UKP199212-199710

*H,L=435,NO.1

main90069-16001i2C..CT190..UKP199212-199601

*H,L=435,NO.1,STMP

main90069-16002i4AFE,7AFE..AT19#..UKP199212-199710

*H,L=110,NO.2

main90069-16002i2C..CT190..UKP199212-199601

*H,L=110,NO.2,STMP

main90069-16004i2CT..CT190..UKP199601-199710

main90445-12078i3SFE..ST191..UKP199212-199308

L=600,NO.2,NIPPONDENSO

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4AFE,7AFE..AT19#..UKP199212-199710

16471CAP SUB-ASSY, RESERVE TANK

main16405-02040i4AFE..AT190..UKP199212-199308

STMP

main16405-02040i2C..CT190..UKP199308-199710

main16405-0B010i2CT..CT190..UKP199601-199710

main16405-74190i3SFE..ST191..UKP199212-199308

NIPPONDENSO

16472HOSE, BREATHER

main16472-02040i4AFE..AT190..UKP199212-199308

STMP

main16472-02040i2C..CT190..UKP199308-199710

main85338-72010i3SFE..ST191..UKP199212-199308

NIPPONDENSO

16533SUPPORT, RADIATOR, UPPER

main16533-02030i4AFE,7AFE..AT19#..UKP199308-199710

(L)

main16533-64130i2C#..CT190..UKP199410-199710

main16533-74201i4AFE..AT190..UKP199212-199308

main16533-74201i3SFE..ST191..UKP199308-199312

(J)

main16533-74211i3SFE..ST191..UKP..LHD..SED..ATM199601-199612

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY SPEC

main16533-74211i3SFE..ST191..UKP..LHD..LB..ATM199612-199710

ISRAEL & TURKEY OR ISRAEL SPEC

main16533-74211i3SFE..ST191..UKP..LHD..LB..ATM199612-199710

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY OR ISRAEL SPEC

16535SUPPORT, RADIATOR, LOWER

main16535-02030i4AFE,7AFE..AT19#..UKP199308-199710

(L)

main16535-64050i2C..CT190..UKP199410-199601

main16535-64090i2CT..CT190..UKP199601-199710

main16535-64100i2CT..CT190..UKP199601-199710

W(AIR CONDITIONER)

main16535-74020i4AFE..AT190..UKP199212-199308

main16535-74020i3SFE..ST191..UKP199308-199312

(J)

main16535-74130i3SFE..ST191..UKP..LHD..LB..ATM199612-199710

ISRAEL & TURKEY OR ISRAEL SPEC

main16535-74130i3SFE..ST191..UKP..LHD..SED..ATM199601-199612

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY SPEC

main16535-74130i3SFE..ST191..UKP..LHD..LB..ATM199612-199710

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY OR ISRAEL SPEC

16571HOSE, RADIATOR, INLET

main16571-02070i4AFE,7AFE..AT19#..UKP199212-199710

main16571-02080i2C..CT190..UKP199410-199601

main16571-03050i3SFE..ST191..UKP199308-199601

(L)

sub16571-03051

main16571-03051i3SFE..ST191..UKP199601-199710

main16571-0B010i2CT..CT190..UKP199601-199710

main16571-74260i3SFE..ST191..UKP199308-199312

(J)

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i3SFE..ST191..UKP199212-199312

sub90467-34003

main90467-34003i3SFE..ST191..UKP199212-199710

sub90467-34004

main90467-37002i2CT..CT190..UKP199601-199710

ENGINE SIDE

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-02060i4AFE..AT190..UKP199212-199405

sub16572-02061

main16572-02061i4AFE,7AFE..AT19#..UKP199405-199710

main16572-02070i2C..CT190..UKP199410-199601

main16572-03050i3SFE..ST191..UKP199308-199710

(L)

main16572-0B010i2CT..CT190..UKP199601-199710

main16572-74190i3SFE..ST191..UKP199212-199312

(J)

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i3SFE..ST191..UKP199212-199312

sub90467-34003

main90467-34003i2CT..CT190..UKP199410-199710

RADIATOR SIDE

sub90467-34004

main90467-34003i4AFE,7AFE..AT19#..UKP199212-199710

sub90467-34004

main90467-37002i2CT..CT190..UKP199601-199710

INLET SIDE

sub90467-37005

16611BRACKET, RADIATOR RESERVE TANK

main16611-02010i3SFE..ST191..UKP199308-199710

(L)

main16611-74110i4AFE..AT190..UKP199212-199308

main16611-74110i3SFE..ST191..UKP199308-199312

(J)

16701SHROUD SUB-ASSY, FAN

main16711-02060i4AFE..AT190..UKP199308-199312

BOSCH

main16711-02060i4AFE,7AFE..AT19#..UKP199312-199710

main16711-0B010i2CT..CT190..UKP199601-199710

main16711-64371i2C..CT190..UKP199410-199601

main16711-74080i3SFE..ST191..UKP..LHD..LB..ATM199612-199710

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY OR ISRAEL SPEC

main16711-74080i3SFE..ST191..UKP..LHD..SED..ATM199601-199612

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY SPEC

main16711-74080i3SFE..ST191..UKP..LHD..LB..ATM199612-199710

ISRAEL & TURKEY OR ISRAEL SPEC

main16711-74430i3SFE..ST191..UKP199212-199308

main16711-74430i3SFE..ST191..UKP199308-199312

NIPPONDENSO

main16711-74440i3SFE..ST191..UKP..LHD..SED..MTM199612-199710

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY OR ISRAEL SPEC

main16711-74440i3SFE..ST191..UKP..LHD..SED..MTM199601-199612

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY SPEC

main16711-74440i4AFE..AT190..UKP..LHD..SED..XL199601-199710

*EX-USSR

main16711-74440i3SFE..ST191..UKP..LHD..SED..MTM199612-199710

ISRAEL & TURKEY OR ISRAEL SPEC

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9006903012

main90069-03012

9006904009

main90069-04009

9006916003

main90069-16003

9006922028

main90069-22028

9008044050

main90080-44050

9008046197

main90080-46197

9009904117

main90099-04117

9009905164

main90099-05164

9009935025

main90099-35025

9011606136

main90116-06136

9011906029

main90119-06029

9011908419

main90119-08419

9011908813

main90119-08813

9011908875

main90119-08875

9011910194

main90119-10194

9017906143

main90179-06143

9017908053

main90179-08053

9017908153

main90179-08153

9151180835

main91511-80835

91511B0816

main91511-B0816

91621B0816

main91621-B0816

91651B0616

main91651-B0616

91651G0612

main91651-G0612

9165260612

main91652-60612

91652B0616

main91652-B0616

91652B0816

main91652-B0816

9211240820

main92112-40820

9211260835

main92112-60835

9613541300

main96135-41300

9955510200

main99555-10200

58 parts on this diagram · 7 diagrams in section
