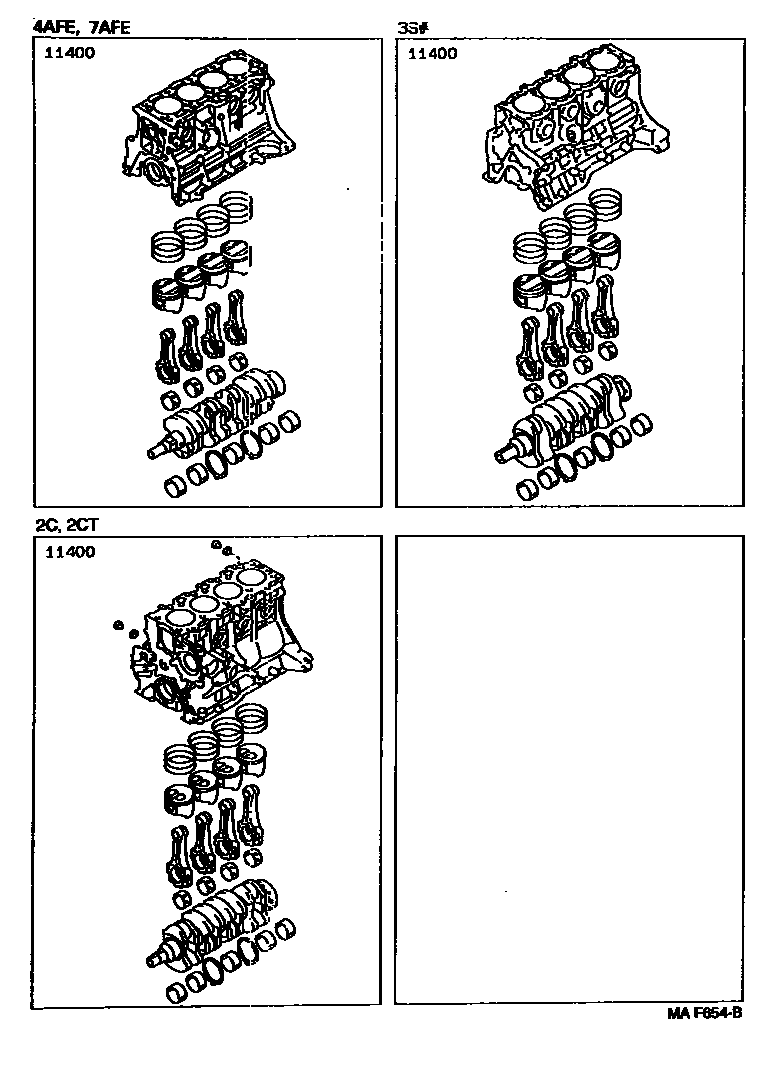

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-02030i4AFE..AT190..UKP199212-199402

main11400-02040i4AFE..AT190..UKP..LHD..(LB,SED); 4AFE..AT190..UKP..RHD;4AFE..AT190..UKP..LHD..WG199601-199710

LEAN BURN

main11400-02050i4AFE..AT190..UKP..LHD..(LB,SED)..MTM199402-199601

BOSCH EFI SYSTEM

main11400-02060i7AFE..AT191..UKP199412-199710

main11400-02070i4AFE..AT190..UKP..LHD..SED..XL199601-199710

CIS

main11400-64370i2C..CT190..UKP199410-199504

main11400-64470i2CT..CT190..UKP199601-199710

main11400-64480i2C..CT190..UKP199504-199601

main11400-74220i3SFE..ST191..UKP199212-199508

main11400-74221i3SFE..ST191..UKP199508-199601

main11400-74331i3SFE..ST191..UKP199601-199710

1 parts on this diagram · 1 diagram in section
