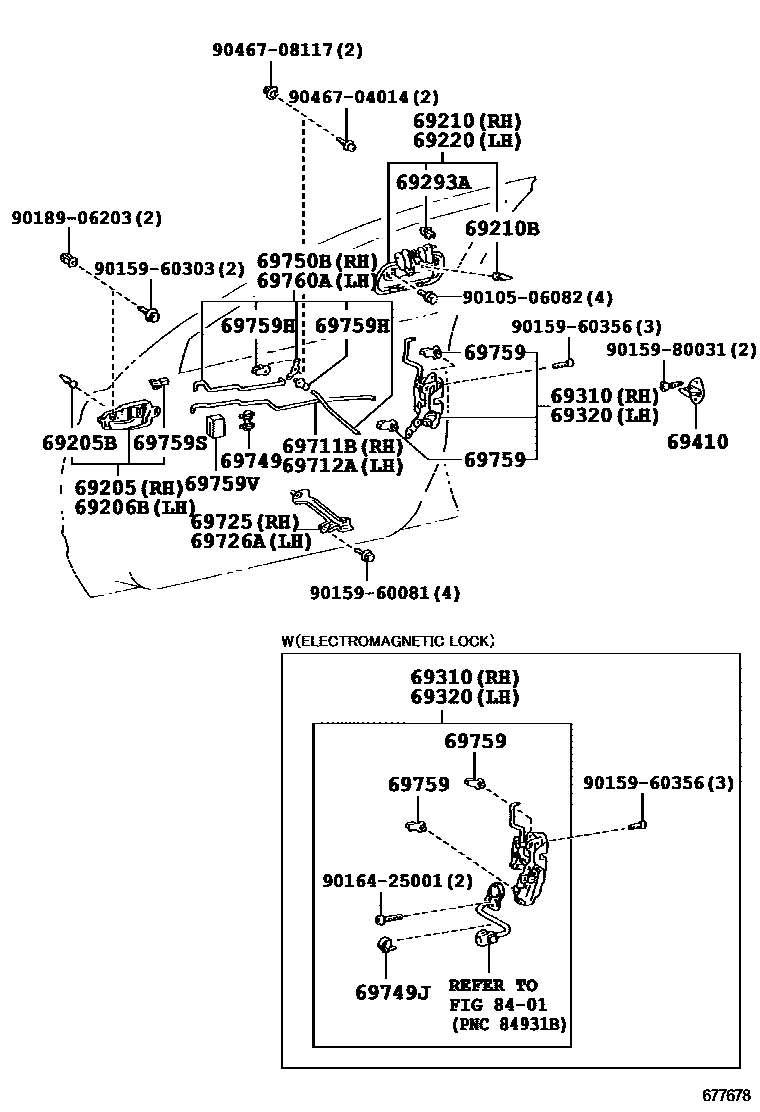

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20110-B0iAT190,CT190,ST191..JPP199402-199601

SHADOW GRAY,TRIM1#

sub69205-20110

main69205-20110-C0iAT190,CT190,ST191..JPP199202-199402

BLACK,TRIM2#

sub69205-20110

main69205-20110-J0iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

DARK BLUE,TRIM8#

sub69205-20110

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iAT190,CT190,ST191..JPP199202-199601

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20110-B0iAT190,CT190,ST191..JPP199402-199601

SHADOW GRAY,TRIM1#

sub69206-20110

main69206-20110-C0iAT190,CT190,ST191..JPP199202-199402

BLACK,TRIM2#

sub69206-20110

main69206-20110-J0iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

DARK BLUE,TRIM8#

sub69206-20110

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20270iST191..JPP..GT199202-199601

NO PAINT REQ.

main69210-20280-A0iST191..JPP..RHD..GL199202-199601

SUPER WHITE 2,040

main69210-20280-B0iST191..JPP..GT199202-199601

DARK BLUEISH GRAY ME,183

main69210-20280-B1iST191..JPP..GT199402-199601

LT.GRAIGE ME,1A2

main69210-20280-C0iST191..JPP..RHD..GL199202-199601

BLACK ME,205

main69210-20280-D0iST191..JPP..GT199202-199601

SUPER RED 3,3J6

main69210-20280-D1iST191..JPP..RHD..GL199202-199402

DARK WINE MICA M,3K1

main69210-20280-D5iST191..JPP..GT199402-199601

MAGENTA MC,3L3

main69210-20280-E0iST191..JPP..RHD..SED..GL199202-199212

DK.GRAYISH BROWN ME,4H7

main69210-20280-E1iST191..JPP..RHD..GL199202-199402

LIGHT BEIGE ME,4M3

main69210-20280-G0iST191..JPP..RHD..GL199202-199601

DK.GRAYISH OLIVE ME,6M7

main69210-20280-H0iST191..JPP..GT199202-199601

DARK TORQUOISE MICA,742

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iAT190,CT190,ST191..JPP199202-199601

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20270iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

BLACK

main69220-20280-A0iST191..JPP..GT199202-199601

SUPER WHITE 2,040

main69220-20280-B0iST191..JPP..GT199202-199601

DARK BLUEISH GRAY ME,183

main69220-20280-B1iST191..JPP..GT199402-199601

LT.GRAIGE ME,1A2

main69220-20280-C0iST191..JPP..GT199202-199601

BLACK ME,205

main69220-20280-D0iST191..JPP..RHD..GL199202-199601

SUPER RED 3,3J6

main69220-20280-D1iST191..JPP..GT199202-199402

DARK WINE MICA M,3K1

main69220-20280-D5iST191..JPP..GT199402-199601

MAGENTA MC,3L3

main69220-20280-E0iST191..JPP..RHD..SED..GL199202-199212

DK.GRAYISH BROWN ME,4H7

main69220-20280-E1iST191..JPP..RHD..GL199202-199402

LIGHT BEIGE ME,4M3

main69220-20280-G0iST191..JPP..RHD..GL199202-199601

DK.GRAYISH OLIVE ME,6M7

main69220-20280-H0iST191..JPP..RHD..GL199202-199601

DARK TORQUOISE MICA,742

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAT190,CT190,ST191..JPP199202-199601

RH,NATURAL

main69293-12040iAT190,CT190,ST191..JPP199202-199601

LH,YELLOW

69310LOCK ASSY, FRONT DOOR, RH

main69030-20450iAT190..JPP..LHD..GL;ST191..JPP..LHD..GT199202-199402

W(ELECTROMAGNETIC LOCK) OR W(POWER WINDOW)

main69030-20460iST191..JPP..RHD..GT199202-199601

main69030-20460iST191..JPP..RHD..GL199202-199601

W(POWER WINDOW)

main69030-20470iAT190,CT190..JPP..RHD..XL199202-199208

W(ELECTROMAGNETIC LOCK)

main69030-20471iAT190,CT190,ST191..JPP..RHD..(GL,XL)199208-199601

main69030-20600iAT190,CT190..JPP..LHD..XL199402-199601

W(ELECTROMAGNETIC LOCK)

main69030-20610iST191..JPP..LHD..GL;AT190,CT190..JPP..LHD..XL199402-199601

W(POWER WINDOW)

main69310-20650iAT190,CT190..JPP..RHD..XL199208-199601

W(MANUAL LOCK)

main69310-20650iST191..JPP..LHD..GL;AT190,CT190..JPP..XL199202-199601

69320LOCK ASSY, FRONT DOOR, LH

main69040-20480iAT190..JPP..LHD..GL;ST191..JPP..LHD..GT199202-199601

W(POWER WINDOW)

main69040-20490iAT190,CT190..JPP..RHD..XL199208-199402

W(POWER WINDOW)

main69040-20490iAT190,CT190..JPP..RHD..XL199202-199208

W(ELECTROMAGNETIC LOCK) OR W(POWER WINDOW)

main69040-20490iAT190,CT190,ST191..JPP..RHD199208-199402

main69040-20500iAT190..JPP..LHD..GL199202-199402

W(ELECTROMAGNETIC LOCK)

main69040-20660iAT190,CT190,ST191..JPP..RHD..(GL,XL)199402-199601

main69040-20670iAT190,CT190..JPP..LHD..XL199402-199601

W(ELECTROMAGNETIC LOCK)

main69040-20680iAT190,CT190..JPP..RHD199402-199601

W(POWER WINDOW)

main69320-20640iAT190,CT190..JPP..RHD..XL199208-199601

W(MANUAL LOCK)

main69320-20640iST191..JPP..LHD..GL;AT190,CT190..JPP..XL199202-199601

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070iAT190,CT190,ST191..JPP199202-199209

main69410-87001iAT190,CT190,ST191..JPP199209-199601

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-20180iAT190,CT190,ST191..JPP199202-199601

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-20180iAT190,CT190,ST191..JPP199202-199601

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-20010iAT190,CT190,ST191..JPP199202-199601

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-20010iAT190,CT190,ST191..JPP199202-199601

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20040iAT190,CT190,ST191..JPP199202-199601

69749JCLAMP, FRONT DOOR LOCK

main69749-32020iAT190,CT190,ST191..JPP199402-199601

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-20050iAT190,CT190,ST191..JPP199202-199601

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24010iAT190,CT190,ST191..JPP199202-199601

LH,NATURAL

main69759-24020iAT190,CT190,ST191..JPP199202-199601

RH,BLUE

main69759-24050iAT190,CT190,ST191..JPP199202-199601

LH,GREEN

main69759-24060iAT190,CT190,ST191..JPP199202-199601

RH,GRAY

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20380iAT190,CT190,ST191..JPP199202-199601

BLACK

main69759-24030iAT190,CT190,ST191..JPP199202-199601

RED

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iAT190,CT190,ST191..JPP199202-199601

RH,PINK

main69759-24070iAT190,CT190,ST191..JPP199202-199601

LH,YELLOW

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30021iAT190,CT190,ST191..JPP199202-199601

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-20050iAT190,CT190,ST191..JPP199202-199601

8401

9010506082

main90105-06082

9015960081

main90159-60081

9015960303

main90159-60303

9015960356

main90159-60356

9015980031

main90159-80031

9016425001

main90164-25001

9018906203

main90189-06203

9046704014

main90467-04014

9046708117

main90467-08117

32 parts on this diagram · 1 diagram in section
