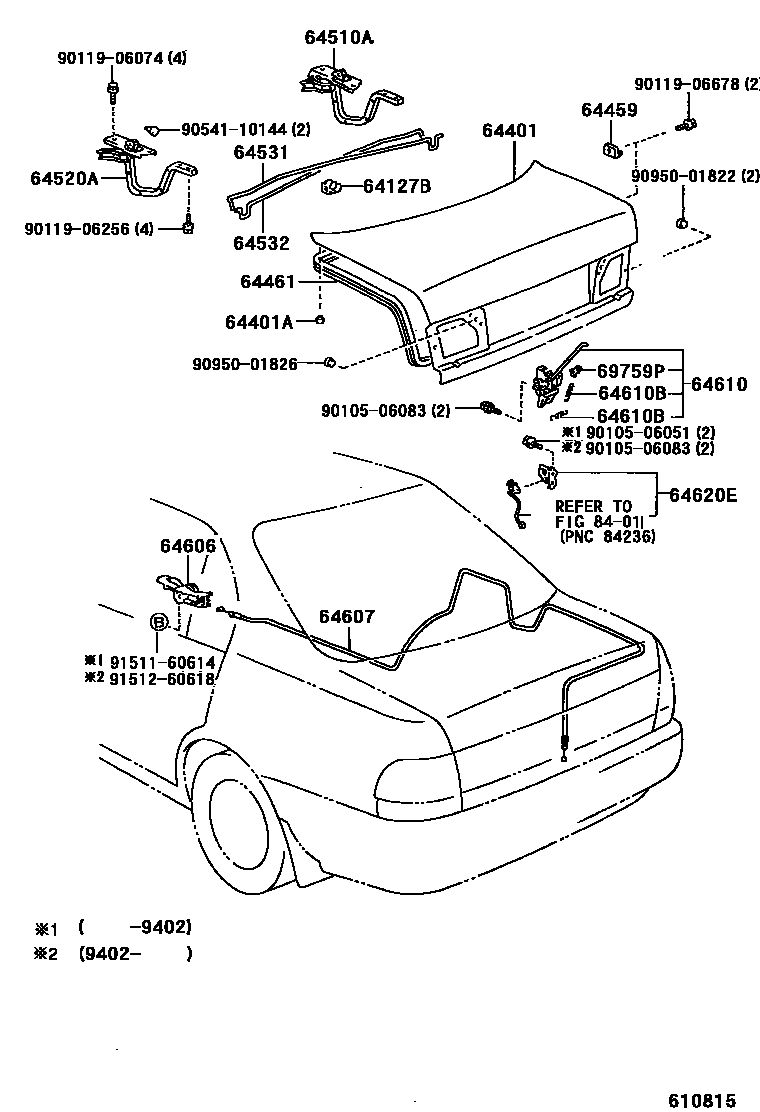

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
HONG KONG SPEC & W(REAR SPOILER)
W(LICENSE PLATE SPACE(390 X 170))
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
HONG KONG SPEC
COLD SPEC & HONG KONG SPEC; W(REAR SPOILER)
main64531-20440iST191..JPP..LHD..SED..GT; ST191..JPP..RHD..SED..GL; ST191..JPP..RHD..SED..GT199202-199209
COLD SPEC; COLD SPEC OR HONG KONG SPEC & W(REAR SPOILER); COLD SPEC OR SWEDEN SPEC OR FINLAND SPEC
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
HONG KONG SPEC
COLD SPEC & HONG KONG SPEC; W(REAR SPOILER)
main64532-20440iST191..JPP..LHD..SED..GT; ST191..JPP..RHD..SED..GL; ST191..JPP..RHD..SED..GT199202-199209
COLD SPEC; COLD SPEC OR HONG KONG SPEC & W(REAR SPOILER); COLD SPEC OR SWEDEN SPEC OR FINLAND SPEC
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610BSPRING, TENSION(FOR LOCK)
WD=0.55,CW=17.25,WD=0.55,CW=17.25
WD=0.55,CW=15.5
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
69759PSNAP, DOOR LOCK CONTROL LINK
8401SWITCH & RELAY & COMPUTER
9010506051
main90105-06051
9010506083
main90105-06083
9011906074
main90119-06074
9011906256
main90119-06256
9011906678
main90119-06678
9054110144
main90541-10144
9095001822
main90950-01822
9095001826
main90950-01826
9151160614
main91511-60614
9151260618
main91512-60618
26 parts on this diagram · 1 diagram in section
