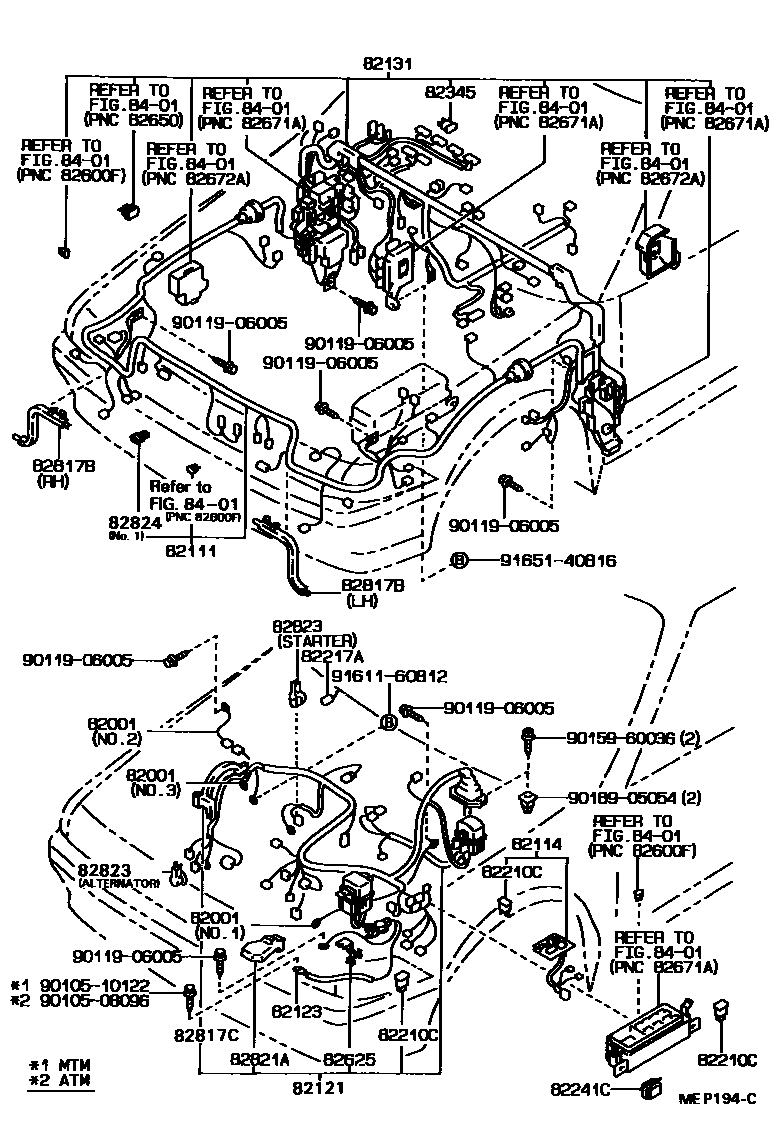

Toyota CARINA 2 — WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
82121WIRE, ENGINE
82131WIRE, COWL
82210CFUSIBLE LINK
82217AWIRE, FRONT WINDOW DEFOGGER
82241CWIRE, RELAY
82625TERMINAL, FUSIBLE LINK
82817PROTECTOR, WIRING HARNESS, NO.1
82817BPROTECTOR, WIRING HARNESS, NO.3
82817CPROTECTOR, WIRING HARNESS, NO.4
82821ACOVER, CONNECTOR
82824CONNECTOR, WIRING HARNESS
8401SWITCH & RELAY & COMPUTER
9010508096
9010510122
9011906005
9015960036
9018905054
9161160812
9165140816
25 parts on this diagram · 15 diagrams in section
WIRING & CLAMP for Toyota CARINA 2
This section contains 220 genuine Toyota parts for the WIRING & CLAMP system of the Toyota CARINA 2. Key components include: CABLE, BOND, NO.1, WIRING ASSY, BRAKE WARNING SYSTEM, WIRE SUB-ASSY, BODY GROUND, NO.1, WIRE, ENGINE ROOM MAIN, WIRE, ENGINE ROOM, NO.4.
