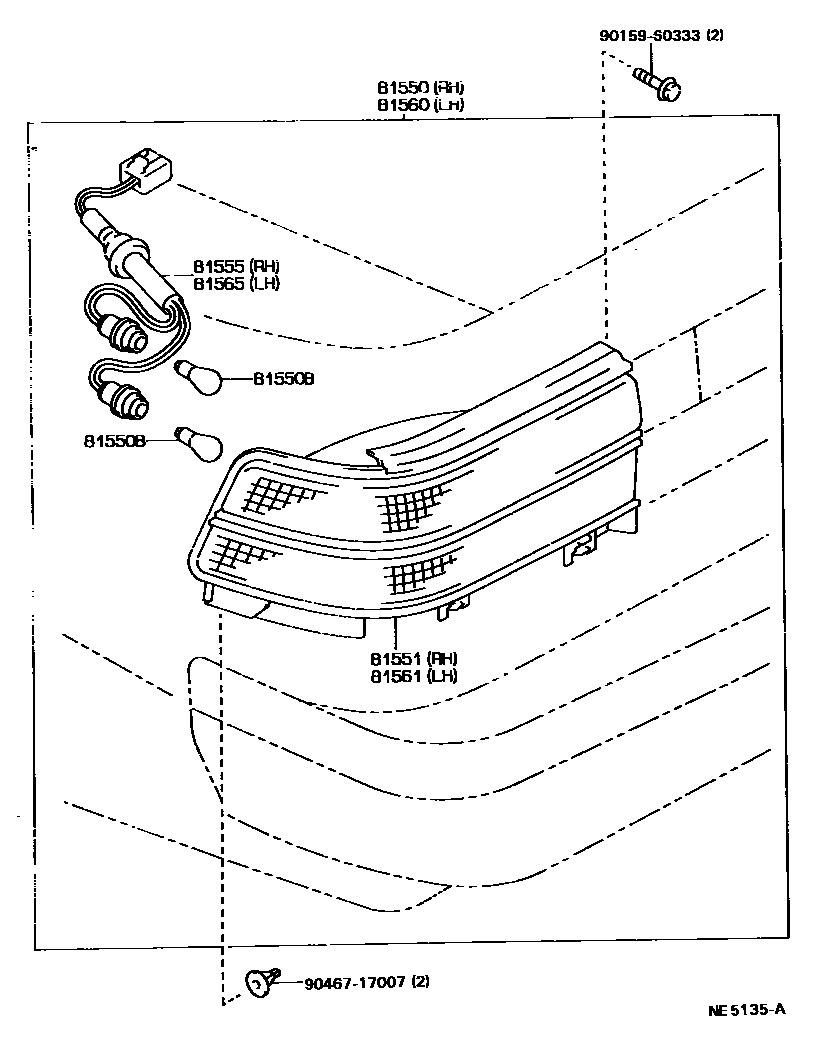

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20860iAT171,CT170,ST171..SED198712-199203

main81550-20870iAT171,CT170,ST171..LB198712-199203

main81550-95504iAT171,CT170..RHD..WG198712-199211

main81550-95505iAT171,CT170,ST171..LHD..WG198712-199211

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iAT171,CT170,ST171..SED198911-199203

12V 21W

main99132-21210×2iAT171,CT170,ST171198712-199211

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-20860iAT171,CT170,ST171..SED198712-199203

main81551-20870iAT171,CT170,ST171..LB198712-199203

main81551-95504iAT171,CT170..RHD..WG198712-199211

main81551-95505iAT171,CT170,ST171..LHD..WG198712-199211

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20840iAT171,CT170,ST171..SED198712-199203

main81555-20870iAT171,CT170,ST171..LB198712-199203

main81555-95504iAT171,CT170..RHD..WG198712-199211

main81555-95505iAT171,CT170,ST171..LHD..WG198712-199211

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20790iAT171,CT170,ST171..SED198712-199203

main81560-20800iAT171,CT170,ST171..LB198712-199203

main81560-95503iAT171,CT170,ST171..LHD..WG198712-199211

main81560-95504iST171..XL;AT171..WG..G..CBR198712-198911

SWITZERLAND SPEC

81561LENS, REAR COMBINATION LAMP, LH

main81561-20790iAT171,CT170,ST171..SED198712-199203

main81561-20800iAT171,CT170,ST171..LB198712-199203

main81561-95503iAT171,CT170,ST171..LHD..WG198712-199211

main81561-95504iST171..XL;AT171..WG..G..CBR198712-198911

SWITZERLAND SPEC

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-20840iAT171,CT170,ST171..SED198712-199203

main81555-20870iAT171,CT170,ST171..LB198712-199203

main81555-95504iAT171,CT170,ST171..LHD..WG198712-199211

main81555-95505iST171..XL;AT171..WG..G..CBR198712-198911

SWITZERLAND SPEC

9015960333

main90159-60333

9046717007

main90467-17007

9 parts on this diagram · 4 diagrams in section
