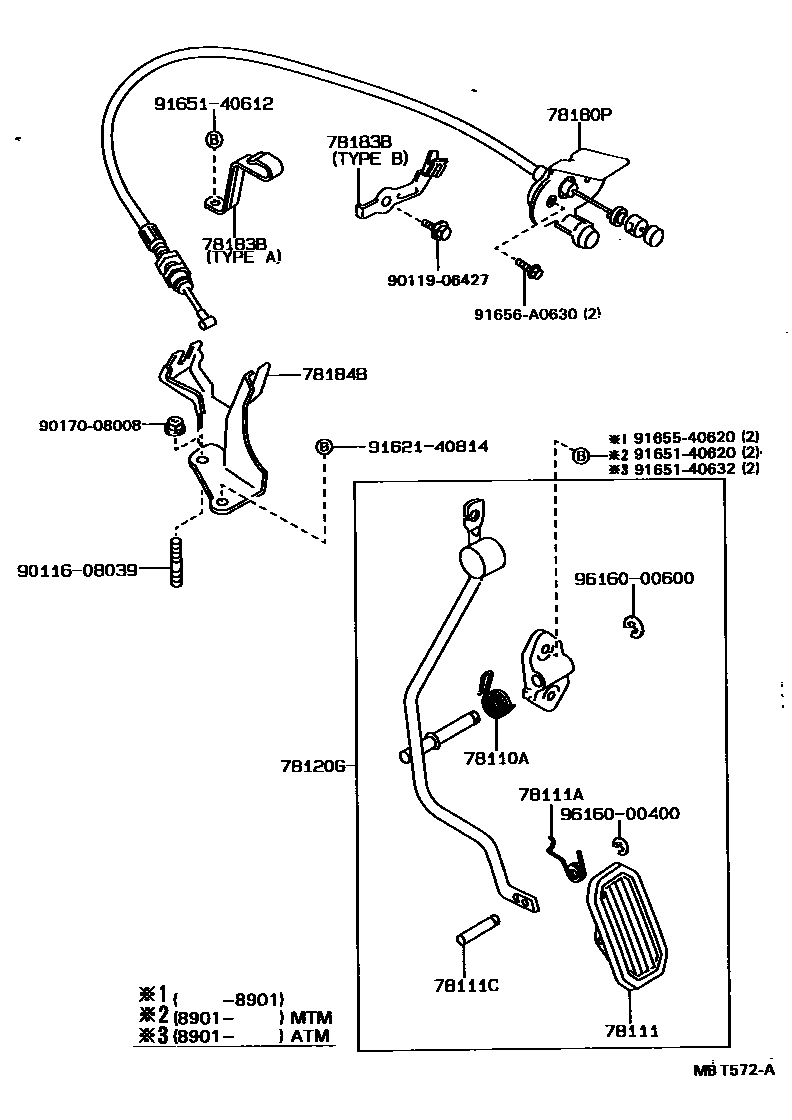

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iAT171..RHD..4FC198712-199203

main90508-18072iAT171,ST171..LHD..4FC198712-199203

WD=1.8,CW=5.81

main90508-26054iAT171..RHD..5F;CT170,ST171..RHD198712-199211

main90508-26062iAT171,CT170,ST171..LHD..5F198911-199211

W(LEAN BURN(ANNEX 23) ENGINE),WD=2.6,CW=3.88

main90508-26062iAT171..EFI198712-198911

WD=2.6,CW=3.88

main90508-29021iAT171,ST171..LHD..4FC198911-199203

WD=2.9, CW=9.81

main90508-29021iAT171..EFI;AT171,ST171..LHD..4FC198712-198911

WD=2.9,CW=9.81

main90508-29021iAT171..5F..EFI198911-199211

W(LEAN BURN(ANNEX 23) ENGINE),WD=2.9,CW=9.81

78111PEDAL, ACCELERATOR

main78111-32010iAT171,CT170,ST171198712-199211

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAT171,CT170,ST171..RHD198712-199211

main90508-18074iAT171,ST171..LHD..4FC198712-199203

main90508-18074iAT171..5F..EFI198911-199211

W(LEAN BURN(ANNEX 23) ENGINE)

main90508-18081iST171..LHD..5F;AT171,CT170..LHD..5F..(CBR,DSL)198812-199211

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT171,CT170,ST171198712-199211

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20180iAT171..RHD..5F;CT170,ST171..RHD198712-199211

main78120-20190iCT170..RHD..(LB,SED)..XL198712-199203

main78120-20340iST171..LHD..5F;AT171,CT170..LHD..5F..(CBR,DSL)198712-199211

main78120-20360iAT171,ST171..LHD..4FC198712-199203

main78120-20390iAT171..5F..EFI198911-199211

W(LEAN BURN(ANNEX 23) ENGINE)

main78120-20390iAT171..EFI198712-198911

main78120-20400iAT171..RHD..4FC198811-199203

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-20671iST171..RHD198712-198808

main78180-2B030iST171..RHD198808-199203

main78180-2B140iAT171..LHD..CBR198712-199211

main78180-2B150iAT171..5F..EFI198911-199211

W(LEAN BURN(ANNEX 23) ENGINE)

main78180-2B150iAT171..EFI198712-198911

main78180-2B230iCT170..GL;CT170..RHD..WG198712-199211

main78180-2B240iCT170..LHD198712-199211

main78180-2B270iAT171..RHD198712-199211

main78180-2B300iST171..G198712-199203

main78180-2B320iST171..LHD..W198712-199203

main78180-2B380iAT171..EFI198911-199211

main78180-2B620iCT170..RHD..(LB,SED)..XL199008-199203

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12140iAT171..RHD198712-199211

TYPE A

main78183-20090iST171..G198712-199203

main78183-20100iAT171..RHD198712-198809

TYPE B

sub78183-20101

main78183-20100iCT170..RHD198712-198809

sub78183-20101

main78183-20120iAT171..RHD198809-199211

TYPE B

main78183-20120iST171..RHD198807-198809

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12230iAT171..CBR198712-199211

main78184-12250iAT171..EFI198712-199211

9011608039

main90116-08039

9011906427

main90119-06427

9017008008

main90170-08008

9162140814

main91621-40814

9165140612

main91651-40612

9165140620

main91651-40620

9165140632

main91651-40632

9165540620

main91655-40620

91656A0630

main91656-A0630

9616000400

main96160-00400

9616000600

main96160-00600

19 parts on this diagram · 6 diagrams in section
