FRONT SEAT & SEAT TRACK

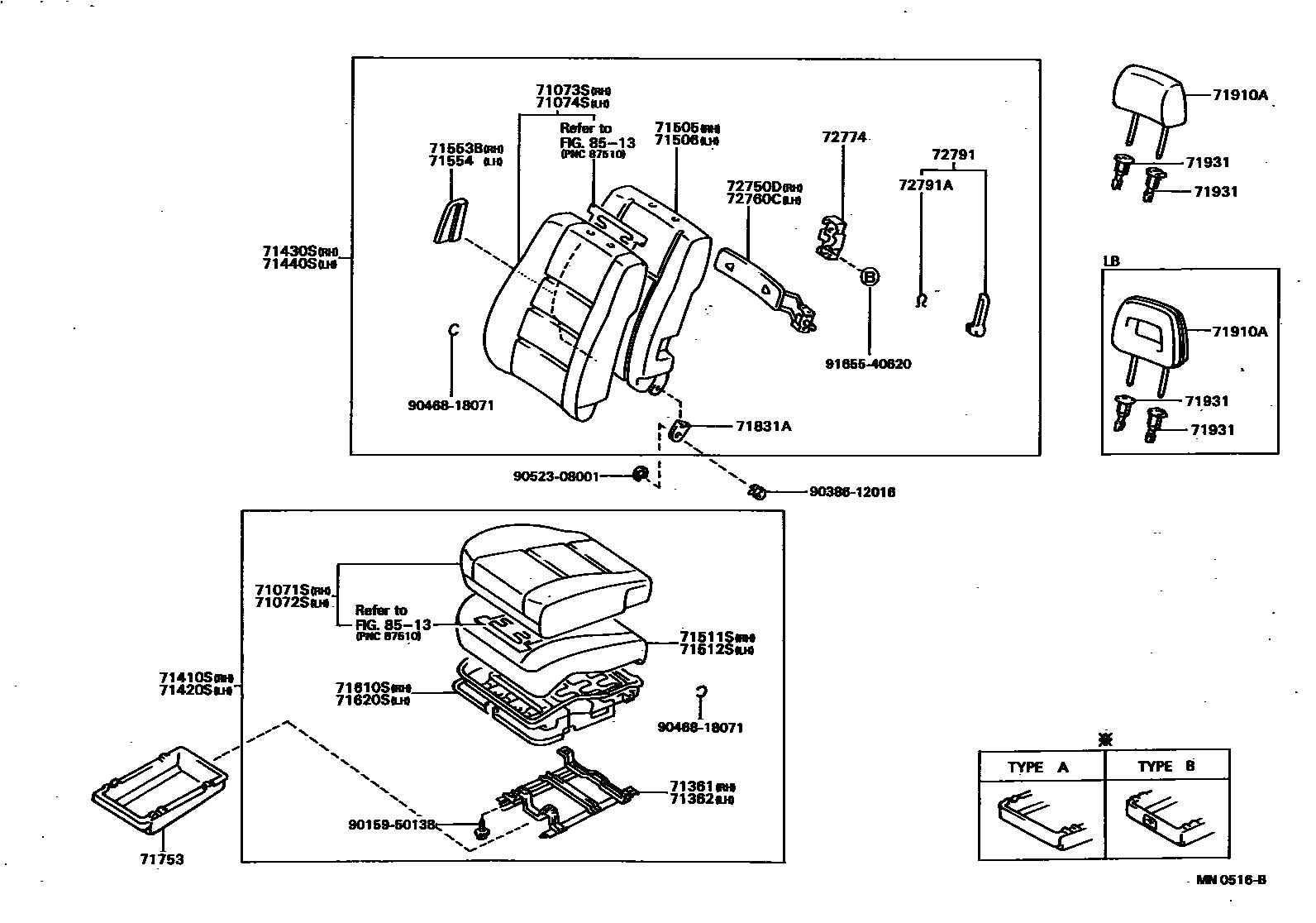

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-21020-03i199011-199211
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-21020-04i199011-199211
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71071-2D110-03i198712-198911
GRAY,TRIM1#
main71071-2D110-04i198712-198911
BLUE,TRIM8#
main71071-2D110-06i198712-198911
SABLE,TRIM4#
main71071-2D111-03i198911-199011
GARY,TRIM1#
main71071-2D111-04i198911-199011
DARK BLUE,TRIM8#
main71071-2D111-06i198911-199011
SABLE,TRIM4#
main71071-2D112-03i199011-199203
GRAY,TRIM1#
main71071-2D112-04i199011-199203
DARK BLUE,TRIM8#
main71071-2D112-06i199011-199203
SABLE,TRIM4#
main71071-2D130-03i198806-198808
COLD SPEC & W(SEAT HEATER),GRAY,TRIM1#
main71071-2D130-04i198712-198806
COLD SPEC & W(SEAT HEATER),BLUE,TRIM8#
main71071-2D130-06i198712-198911
W(SEAT HEATER),SABLE,TRIM4#
main71071-2D131-03i198911-199011
W(SEAT HEATER),GARY,TRIM1#; W(VERTICAL ADJUSTER) & W(SEAT HEATER),GARY,TRIM1#
main71071-2D131-04i198911-199011
W(SEAT HEATER),DARK BLUE,TRIM8#; W(VERTICAL ADJUSTER) & W(SEAT HEATER),DARK BLUE,TRIM8#
main71071-2D131-06i198911-199011
W(VERTICAL ADJUSTER) & W(SEAT HEATER),SABLE,TRIM4#
main71071-2D132-03i199011-199203
W(VERTICAL ADJUSTER & SEAT HEATER),GRAY,TRIM1#
main71071-2D132-04i199011-199203
W(VERTICAL ADJUSTER & SEAT HEATER),DARK BLUE,TRIM8#
main71071-2D132-06i199011-199203
W(VERTICAL ADJUSTER & SEAT HEATER),SABLE,TRIM4#
main71071-2D140-03i198712-198911
W(SPORT SEAT),GRAY,TRIM1#
main71071-2D141-03i198911-199203
W(SPORTS SEAT),GARY,TRIM1#
main71071-2D150-03i198712-198911
W(SEAT HEATER),GRAY,TRIM1#
main71071-2D150-04i198712-198911
W(SEAT HEATER),BLUE,TRIM8#
main71071-2D150-06i198712-198911
W(SEAT HEATER),SABLE,TRIM4#
main71071-2D151-03i198911-199203
W(SEAT HEATER),GRAY,TRIM1#
main71071-2D151-04i198911-199203
W(SEAT HEATER),DARK BLUE,TRIM8#
main71071-2D151-06i198911-199203
W(SEAT HEATER),SABLE,TRIM4#
main71071-2D210-03i198712-198911
W(SPORT SEAT),GRAY,TRIM1#
main71071-2D230-03i198712-198911
GRAY,TRIM1#
main71071-2D230-04i198712-198911
BLUE,TRIM8#
main71071-2D230-06i198712-198911
SABLE,TRIM4#
main71071-2D231-03i198911-199203
GRAY,TRIM1#
main71071-2D231-04i198911-199203
DARK BLUE,TRIM8#
main71071-2D231-06i198911-199203
SABLE,TRIM4#
main71071-2D240-03i198712-198911
GRAY,TRIM1#
main71071-2D240-04i198712-198911
BLUE,TRIM8#
main71071-2D240-06i198712-198911
SABLE,TRIM4#
main71071-2D241-03i198911-199203
GRAY,TRIM1#
main71071-2D241-04i198911-199203
DARK BLUE,TRIM8#
main71071-2D241-06i198911-199203
SABLE,TRIM4#
main71071-2D250-03i198712-198911
W(SPORT SEAT & SEAT HEATER),GRAY,TRIM1#
main71071-2D251-03i198911-199203
W(SPORT SEAT) & (SEAT HEATER),GARY,TRIM1#
main71071-2D650-03i198911-199011
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D650-04i198911-199011
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71071-2D650-06i198911-199011
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71071-2D651-03i199011-199203
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-2D651-04i199011-199203
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71071-2D651-06i199011-199203
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71071-2D880-03i198911-199203
W(SPORT SEAT),GRAY,TRIM1#
main71071-95502-03i198712-198911
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71071-95502-04i198712-198911
W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71071-95505-03i198911-199011
W(VERTICAL ADJUSTER),GARY,TRIM1#
main71071-95505-04i198911-199011
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-21010-03i198911-199011
W(SEAT HEATER),GRAY,TRIM1#
main71072-21010-04i198911-199011
W(SEAT HEATER),DARK BLUE,TRIM8#
main71072-21011-03i199011-199211
W(SEAT HEATER),GRAY,TRIM1#
main71072-21011-04i199011-199211
W(SEAT HEATER),DARK BLUE,TRIM8#
main71072-2B410-03i198712-198911
GRAY,TRIM1#
main71072-2B410-04i198712-198911
BLUE,TRIM8#
main71072-2B410-06i198712-198911
SABLE,TRIM4#
main71072-2B411-03i198911-199011
GARY,TRIM1#
main71072-2B411-04i198911-199011
DARK BLUE,TRIM8#
main71072-2B411-06i198911-199011
SABLE,TRIM4#
main71072-2B412-03i199011-199203
GRAY,TRIM1#
main71072-2B412-04i199011-199203
DARK BLUE,TRIM8#
main71072-2B412-06i199011-199203
SABLE,TRIM4#
main71072-2B420-03i198712-198911
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-2B420-04i198712-198911
W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71072-2B420-06i198712-198911
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71072-2B421-03i198911-199011
W(VERTICAL ADJUSTER),GARY,TRIM1#
main71072-2B421-04i198911-199011
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71072-2B421-06i198911-199011
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71072-2B422-03i199011-199203
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71072-2B422-04i199011-199203
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71072-2B422-06i199011-199203
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71072-2B430-03i198712-198806
COLD SPEC & W(SEAT HEATER),GRAY,TRIM1#
main71072-2B430-04i198806-198911
COLD SPEC & W(SEAT HEATER),BLUE,TRIM8#
main71072-2B430-06i198712-198911
W(SEAT HEATER),SABLE,TRIM4#
main71072-2B440-03i198712-198911
W(SPORT SEAT),GRAY,TRIM1#
main71072-2B441-03i198911-199203
W(SPORT SEAT),GARY,TRIM1#
main71072-2B450-03i198712-198911
W(SEAT HEATER),GRAY,TRIM1#
main71072-2B450-04i198712-198911
W(SEAT HEATER),BLUE,TRIM8#
main71072-2B450-06i198712-198911
W(SEAT HEATER),SABLE,TRIM4#
main71072-2B451-03i198911-199203
W(SEAT HEATER),GRAY,TRIM1#
main71072-2B451-04i198911-199203
W(SEAT HEATER),DARK BLUE,TRIM8#
main71072-2B451-06i198911-199203
W(SEAT HEATER),SABLE,TRIM4#
main71072-2B510-03i198712-198911
W(SPORT SEAT),GRAY,TRIM1#
main71072-2B511-03i198911-199203
W(SPORT SEAT),GARY,TRIM1#
main71072-2B530-03i198712-198911
GRAY,TRIM1#
main71072-2B530-04i198712-198911
BLUE,TRIM8#
main71072-2B530-06i198712-198911
SABLE,TRIM4#
main71072-2B531-03i198911-199203
GRAY,TRIM1#
main71072-2B531-04i198911-199203
DARK BLUE,TRIM8#
main71072-2B531-06i198911-199203
SABLE,TRIM4#
main71072-2B540-03i198712-198911
W(SPORT SEAT & SEAT HEATER),GRAY,TRIM1#
main71072-2B541-03i198911-199203
W(SPORT SEAT) & W(SEAT HEATER),GARY,TRIM1#
main71072-2B770-03i198808-198911
COLD SPEC & W(VERTICAL ADJUSTER & SEAT HEATER),GRAY,TRIM1#; COLD SPEC & W(VERTICAL ADJUSTER) & W(SEAT HEATER),GRAY,TRIM1#
main71072-2B770-04i198808-198911
COLD SPEC & W(VERTICAL ADJUSTER & SEAT HEATER),BLUE,TRIM8#; COLD SPEC & W(VERTICAL ADJUSTER) & W(SEAT HEATER),BLUE,TRIM8#
main71072-2B770-06i198712-198911
W(VERTICAL ADJUSTER & SEAT HEATER),SABLE,TRIM4#
main71072-2B771-03i198911-199011
W(VERTICAL ADJUSTER & SEAT HEATER),GARY,TRIM1#; W(VERTICAL ADJUSTER) & W(SEAT HEATER),GARY,TRIM1#; W(VERTICAL ADJUSTER) & W(SEAT HEATERA),GARY,TRIM1#
main71072-2B771-04i198911-199011
W(VERTICAL ADJUSTER & SEAT HEATER),DARK BLUE,TRIM8#; W(VERTICAL ADJUSTER) & W(SEAT HEATER),DARK BLUE,TRIM8#; W(VERTICAL ADJUSTER) & W(SEAT HEATERA),DARK BLUE,TRIM8#
main71072-2B771-06i198911-199011
W(VERTICAL ADJUSTER) & W(SEAT HEATER),SABLE,TRIM4#; W(VERTICAL ADJUSTER) & W(SEAT HEATERA),SABLE,TRIM4#
main71072-2B772-03i199011-199211
W(VEATICAL ADJUSTER & SEAT HEATER),GRAY,TRIM1#; W(VERTICAL ADJUSTER & SEAT HEATER),GRAY,TRIM1#
main71072-2B772-04i199011-199211
W(VEATICAL ADJUSTER & SEAT HEATER),DARK BLUE,TRIM8#; W(VERTICAL ADJUSTER & SEAT HEATER),DARK BLUE,TRIM8#
main71072-2B772-06i199011-199203
W(VEATICAL ADJUSTER & SEAT HEATER),SABLE,TRIM4#; W(VERTICAL ADJUSTER & SEAT HEATER),SABLE,TRIM4#
main71072-2B780-03i198712-198911
GRAY,TRIM1#
main71072-2B780-04i198712-198911
BLUE,TRIM8#
main71072-2B780-06i198712-198911
SABLE,TRIM4#
main71072-2B781-03i198911-199211
GRAY,TRIM1#
main71072-2B781-04i198911-199211
DARK BLUE,TRIM8#
main71072-2B781-06i198911-199203
SABLE,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-2D050-03i198712-198911
W(SEAT HEATER),GRAY,TRIM1#
main71073-2D050-04i198712-198806
COLD SPEC & W(SEAT HEATER),BLUE,TRIM8#
main71073-2D050-06i198712-198911
W(SEAT HEATER),SABLE,TRIM4#
main71073-2D051-03i198911-199011
W(SEAT HEATER),GARY,TRIM1#
main71073-2D051-04i198911-199011
W(SEAT HEATER),DARK BLUE,TRIM8#
main71073-2D051-06i198911-199011
W(SEAT HEATER),SABLE,TRIM4#
main71073-2D052-03i199011-199203
W(SEAT HEATER),GRAY,TRIM1#
main71073-2D052-04i199011-199203
W(SEAT HEATER),DARK BLUE,TRIM8#
main71073-2D052-06i199011-199203
W(SEAT HEATER),SABLE,TRIM4#
main71073-2D060-03i198712-198911
W(SEAT HEATER),GRAY,TRIM1#
main71073-2D060-04i198712-198911
W(SEAT HEATER),BLUE,TRIM8#
main71073-2D060-06i198712-198911
W(SEAT HEATER),SABLE,TRIM4#
main71073-2D061-03i198911-199203
W(SEAT HEATER),GRAY,TRIM1#
main71073-2D061-04i198911-199203
W(SEAT HEATER),DARK BLUE,TRIM8#
main71073-2D061-06i198911-199203
W(SEAT HEATER),SABLE,TRIM4#
main71073-2D150-03i198712-198911
W(SPORT SEAT & SEAT HEATER),GRAY,TRIM1#
main71073-2D151-03i198911-199203
W(SPORT SEAT) & W(SEAT HEATER),GARY,TRIM1#
main71074-2B600-03i198712-198911
GRAY,TRIM1#
main71074-2B600-04i198712-198911
BLUE,TRIM8#
main71074-2B600-06i198712-198911
SABLE,TRIM4#
main71074-2B601-03i198911-199011
GARY,TRIM1#
main71074-2B601-04i198911-199011
DARK BLUE,TRIM8#
main71074-2B601-06i198911-199011
SABLE,TRIM4#
main71074-2B602-03i199011-199203
GRAY,TRIM1#
main71074-2B602-04i199011-199203
DARK BLUE,TRIM8#
main71074-2B602-06i199011-199203
SABLE,TRIM4#
main71074-2B690-03i198712-198911
W(SPORT SEAT),GRAY,TRIM1#
main71074-2B691-03i198911-199203
W(SPORT SEAT),GARY,TRIM1#
main71074-2B780-03i198712-198911
GRAY,TRIM1#
main71074-2B780-04i198712-198911
BLUE,TRIM8#
main71074-2B780-06i198712-198911
SABLE,TRIM4#
main71074-2B781-03i198911-199211
GRAY,TRIM1#
main71074-2B781-04i198911-199211
DARK BLUE,TRIM8#
main71074-2B781-06i198911-199203
SABLE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-2D030-03i198712-198911
GRAY,TRIM1#
main71073-2D030-04i198712-198911
BLUE,TRIM8#
main71073-2D030-06i198712-198911
SABLE,TRIM4#
main71073-2D031-03i198911-199011
GARY,TRIM1#
main71073-2D031-04i198911-199011
DARK BLUE,TRIM8#
main71073-2D031-06i198911-199011
SABLE,TRIM4#
main71073-2D032-03i199011-199203
GRAY,TRIM1#
main71073-2D032-04i199011-199203
DARK BLUE,TRIM8#
main71073-2D032-06i199011-199203
SABLE,TRIM4#
main71073-2D120-03i198712-198911
W(SPORT SEAT),GRAY,TRIM1#
main71073-2D121-03i198911-199203
W(SPORT SEAT),GRAY,TRIM1#
main71073-2D210-03i198712-198911
GRAY,TRIM1#
main71073-2D210-04i198712-198911
BLUE,TRIM8#
main71073-2D210-06i198712-198911
SABLE,TRIM4#
main71073-2D211-03i198911-199203
GRAY,TRIM1#
main71073-2D211-04i198911-199203
DARK BLUE,TRIM8#
main71073-2D211-06i198911-199203
SABLE,TRIM4#
main71074-2B620-03i198712-198911
W(SEAT HEATER),GRAY,TRIM1#
main71074-2B620-04i198712-198911
W(SEAT HEATER),BLUE,TRIM8#
main71074-2B620-06i198712-198911
W(SEAT HEATER),SABLE,TRIM4#
main71074-2B621-03i198911-199011
W(SEAT HEATER),GRAY,TRIM1#
main71074-2B621-04i198911-199011
W(SEAT HEATER),DARK BLUE,TRIM8#
main71074-2B621-06i198911-199011
W(SEAT HEATER),SABLE,TRIM4#
main71074-2B622-03i199011-199203
W(SEAT HEATER),GRAY,TRIM1#
main71074-2B622-04i199011-199203
W(SEAT HEATER),DARK BLUE,TRIM8#
main71074-2B622-06i199011-199203
W(SEAT HEATER),SABLE,TRIM4#
main71074-2B630-03i198712-198911
W(SEAT HEATER),GRAY,TRIM1#
main71074-2B630-04i198712-198911
W(SEAT HEATER),BLUE,TRIM8#
main71074-2B630-06i198712-198911
W(SEAT HEATER),SABLE,TRIM4#
main71074-2B631-03i198911-199203
W(SEAT HEATER),GRAY,TRIM1#
main71074-2B631-04i198911-199203
W(SEAT HEATER),DARK BLUE,TRIM8#
main71074-2B631-06i198911-199203
W(SEAT HEATER),SABLE,TRIM4#
main71074-2B720-03i198712-198911
W(SPORT SEAT & SEAT HEATER),GRAY,TRIM1#
main71074-2B721-03i198911-199203
W(SPORT SEAT) & (SEAT HEATER),GARY,TRIM1#
71361BRACKET, FRONT SEAT SET, NO.1
main71361-20080i198712-199203
main71362-20080i198911-199211
71362BRACKET, FRONT SEAT SET, NO.2
main71361-20080i198911-199203
main71362-20080i198712-199211
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-21020-03i199011-199211
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-21020-04i199011-199211
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71410-2D200-03i198712-198911
***,W(HEATER REAR DUCT),GRAY,TRIM1#
main71410-2D200-04i198712-198911
***,W(HEATER REAR DUCT),BLUE,TRIM8#
main71410-2D200-06i198712-198911
***,W(HEATER REAR DUCT),SABLE,TRIM4#
main71410-2D201-03i198911-199211
***,W(HEATER REAR DUCT),GRAY,TRIM1#
main71410-2D201-04i198911-199211
***,W(HEATER REAR DUCT),DARK BLUE,TRIM8#
main71410-2D201-06i198911-199203
***,W(HEATER REAR DUCT),SABLE,TRIM4#
main71410-2D210-03i198712-198911
***,W(HEATER REAR DUCT),GRAY,TRIM1#
main71410-2D210-04i198712-198911
***,W(HEATER REAR DUCT),BLUE,TRIM8#
main71410-2D210-06i198712-198911
***,W(HEATER REAR DUCT),SABLE,TRIM4#
main71410-2D211-03i198911-199203
***,W(HEATER REAR DUCT),GRAY,TRIM1#
main71410-2D211-04i198911-199203
***,W(HEATER REAR DUCT),DARK BLUE,TRIM8#
main71410-2D211-06i198911-199203
***,W(HEATER REAR DUCT),SABLE,TRIM4#
main71410-2D220-03i198712-198911
***,GRAY,TRIM1#
main71410-2D220-04i198712-198911
***,BLUE,TRIM8#
main71410-2D220-06i198712-198911
***,SABLE,TRIM4#
main71410-2D221-03i198911-199011
***,GARY,TRIM1#
main71410-2D221-04i198911-199011
***,DARK BLUE,TRIM8#
main71410-2D221-06i198911-199011
***,SABLE,TRIM4#
main71410-2D222-03i199011-199211
***,GRAY,TRIM1#
main71410-2D222-04i199011-199211
***,DARK BLUE,TRIM8#
main71410-2D222-06i199011-199203
***,SABLE,TRIM4#
main71410-2D260-03i198712-198911
***,W(SEAT HEATER),GRAY,TRIM1#
main71410-2D260-04i198808-198911
***,COLD SPEC & W(SEAT HEATER),BLUE,TRIM8#
main71410-2D260-06i198712-198911
***,W(SEAT HEATER),SABLE,TRIM4#
main71410-2D261-03i198911-199011
***,W(SEAT HEATER),GARY,TRIM1#; ***,W(VERTICAL ADJUSTER) & W(SEAT HEATER),GARY,TRIM1#
main71410-2D261-04i198911-199011
***,W(SEAT HEATER),DARK BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER) & W(SEAT HEATER),DARK BLUE,TRIM8#
main71410-2D261-06i198911-199011
***,W(VERTICAL ADJUSTER) & W(SEAT HEATER),SABLE,TRIM4#
main71410-2D262-03i199011-199203
***,W(VEATICAL ADJUSTER & SEAT HEATER),GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER & SEAT HEATER),GRAY,TRIM1#
main71410-2D262-04i199011-199203
***,W(VEATICAL ADJUSTER & SEAT HEATER),DARK BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER & SEAT HEATER),DARK BLUE,TRIM8#
main71410-2D262-06i199011-199203
***,W(VEATICAL ADJUSTER & SEAT HEATER),SABLE,TRIM4#; ***,W(VERTICAL ADJUSTER & SEAT HEATER),SABLE,TRIM4#
main71410-2D270-03i198712-198911
***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1#
main71410-2D271-03i198911-199203
***,W(SPORT SEAT) & W(HEATER REAR DUCT),GARY,TRIM1#
main71410-2D280-03i198712-198809
***,W(HEATER REAR DUCT & SEAT HEATR),GRAY,TRIM1#; ***,W(HEATER REAR DUCT) & W(SEAT HEATER),GRAY,TRIM1#
main71410-2D280-04i198712-198809
***,W(HEATER REAR DUCT & SEAT HEATR),BLUE,TRIM8#; ***,W(HEATER REAR DUCT) & W(SEAT HEATER),BLUE,TRIM8#
main71410-2D280-06i198712-198809
***,W(HEATER REAR DUCT & SEAT HEATR),SABLE,TRIM4#; ***,W(HEATER REAR DUCT) & W(SEAT HEATER),SABLE,TRIM4#
main71410-2D281-03i198911-199203
***,W(HEATER REAR DUCT) & W(SEAT HEATER),GRAY,TRIM1#
main71410-2D281-04i198911-199203
***,W(HEATER REAR DUCT) & W(SEAT HEATER),DARK BLUE,TRIM8#
main71410-2D281-06i198911-199203
***,W(HEATER REAR DUCT) & W(SEAT HEATER),SABLE,TRIM4#
main71410-2D340-03i198712-198911
***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1#
main71410-2D400-03i198712-198911
***,W(SPORT SEAT & HEATER REAR DUCT & SEAT HEATER),GRAY,TRIM1#
main71410-2D401-03i198911-199203
***,W(SPORT SEAT) & W(HEATER REAR DUCT) & W(SEAT HEATER),GARY,TRIM1#
main71410-2D530-03i198712-198911
***,GRAY,TRIM1#
main71410-2D530-04i198712-198911
***,BLUE,TRIM8#
main71410-2D530-06i198712-198911
***,SABLE,TRIM4#
main71410-2D531-03i198911-199211
***,GRAY,TRIM1#
main71410-2D531-04i198911-199211
***,DARK BLUE,TRIM8#
main71410-2D531-06i198911-199203
***,SABLE,TRIM4#
main71410-2D540-03i198712-198911
***,W(SPORT SEAT),GRAY,TRIM1#
main71410-2D550-03i198712-198911
***,GRAY,TRIM1#
main71410-2D550-04i198712-198911
***,BLUE,TRIM8#
main71410-2D550-06i198712-198911
***,SABLE,TRIM4#
main71410-2D551-03i198911-199203
***,GRAY,TRIM1#
main71410-2D551-04i198911-199203
***,DARK BLUE,TRIM8#
main71410-2D551-06i198911-199203
***,SABLE,TRIM4#
main71410-2D560-03i198712-198911
***,W(SEAT HEATER),GRAY,TRIM1#
main71410-2D560-04i198712-198911
***,W(SEAT HEATER),BLUE,TRIM8#
main71410-2D560-06i198712-198911
***,W(SEAT HEATER),SABLE,TRIM4#
main71410-2D561-03i198911-199203
***,W(SEAT HEATER),GRAY,TRIM1#
main71410-2D561-04i198911-199203
***,W(SEAT HEATER),DARK BLUE,TRIM8#
main71410-2D561-06i198911-199203
***,W(SEAT HEATER),SABLE,TRIM4#
main71410-2D570-03i198712-198911
***,W(SPORT SEAT),GRAY,TRIM1#
main71410-2D571-03i198911-199203
***,W(SPORT SEAT),GARY,TRIM1#
main71410-2D580-03i198712-198911
***,W(SPORT SEAT & SEAT HEATER),GRAY,TRIM1#
main71410-2D581-03i198911-199203
***,W(SPORT SEAT) & (SEAT HEATER),GARY,TRIM1#
main71410-2D700-03i198911-199011
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-2D700-04i198911-199011
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71410-2D700-06i198911-199011
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71410-2D701-03i199011-199203
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-2D701-04i199011-199203
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71410-2D701-06i199011-199203
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71410-2D730-03i198911-199203
***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1#
main71410-2D800-03i198911-199203
***,W(SPORT SEAT),GRAY,TRIM1#
main71410-95505-03i198712-198911
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71410-95505-04i198712-198911
***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71410-95508-03i198911-199011
***,W(VERTICAL ADJUSTER),GARY,TRIM1#
main71410-95508-04i198911-199011
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-21020-03i198911-199011
***,W(SEAT HEATER),GRAY,TRIM1#
main71420-21020-04i198911-199011
***,W(SEAT HEATER),DARK BLUE,TRIM8#
main71420-21021-03i199011-199211
***,W(SEAT HEATER),GRAY,TRIM1#
main71420-21021-04i199011-199211
***,W(SEAT HEATER),DARK BLUE,TRIM8#
main71420-2B530-03i198712-198911
***,W(HEATER REAR DUCT),GRAY,TRIM1#
main71420-2B530-04i198712-198911
***,W(HEATER REAR DUCT),BLUE,TRIM8#
main71420-2B530-06i198712-198911
***,W(HEATER REAR DUCT),SABLE,TRIM4#
main71420-2B531-03i198911-199203
***,W(HEATER REAR DUCT),GRAY,TRIM1#
main71420-2B531-04i198911-199203
***,W(HEATER REAR DUCT),DARK BLUE,TRIM8#
main71420-2B531-06i198911-199203
***,W(HEATER REAR DUCT),SABLE,TRIM4#
main71420-2B540-03i198712-198911
***,GRAY,TRIM1#
main71420-2B540-04i198712-198911
***,BLUE,TRIM8#
main71420-2B540-06i198712-198911
***,SABLE,TRIM4#
main71420-2B541-03i198911-199011
***,GARY,TRIM1#
main71420-2B541-04i198911-199011
***,DARK BLUE,TRIM8#
main71420-2B541-06i198911-199011
***,SABLE,TRIM4#
main71420-2B542-03i199011-199211
***,GRAY,TRIM1#
main71420-2B542-04i199011-199211
***,DARK BLUE,TRIM8#
main71420-2B542-06i199011-199203
***,SABLE,TRIM4#
main71420-2B570-03i198712-198911
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2B570-04i198712-198911
***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71420-2B570-06i198712-198911
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71420-2B571-03i198911-199011
***,W(VERTICAL ADJUSTER),GARY,TRIM1#
main71420-2B571-04i198911-199011
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71420-2B571-06i198911-199011
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71420-2B572-03i199011-199211
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71420-2B572-04i199011-199203
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM4#
main71420-2B572-06i199011-199203
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71420-2B580-03i198712-198911
***,W(SEAT HEATER),GRAY,TRIM1#
main71420-2B580-04i198712-198808
***,COLD SPEC & W(SEAT HEATER),BLUE,TRIM8#
main71420-2B580-06i198712-198911
***,W(SEAT HEATER),SABLE,TRIM4#
main71420-2B590-03i198712-198911
***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1#
main71420-2B591-03i198911-199203
***,W(SPORT SEAT) & W(HEATER REAR DUCT),GARY,TRIM1#
main71420-2B600-03i198712-198809
***,W(HEATER REAR DUCT & SEAT HEATER),GRAY,TRIM1#; ***,W(HEATER REAR DUCT) & W(SEAT HEATER),GRAY,TRIM1#
main71420-2B600-04i198809-198911
***,W(HEATER REAR DUCT & SEAT HEATER),BLUE,TRIM8#
main71420-2B600-06i198712-198809
***,W(HEATER REAR DUCT & SEAT HEATER),SABLE,TRIM4#; ***,W(HEATER REAR DUCT) & W(SEAT HEATER),SABLE,TRIM4#
main71420-2B601-03i198911-199203
***,W(HEATER REAR DUCT) & W(SEAT HEATER),GRAY,TRIM1#
main71420-2B601-04i198911-199203
***,W(HEATER REAR DUCT) & W(SEAT HEATER),DARK BLUE,TRIM8#
main71420-2B601-06i198911-199203
***,W(HEATER REAR DUCT) & W(SEAT HEATER),SABLE,TRIM4#
main71420-2B660-03i198712-198911
***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1#
main71420-2B661-03i198911-199203
***,W(SPORT SEAT & HEATER REAR DUCT),GARY,TRIM1#
main71420-2B680-03i198712-198808
***,COLD SPEC & W(VERTICAL ADJUSTER & SEAT HEATER),GRAY,TRIM1#
main71420-2B680-04i198808-198911
***,COLD SPEC & W(VERTICAL ADJUSTER & SEAT HEATER),BLUE,TRIM8#; ***,COLD SPEC & W(VERTICAL ADJUSTER) & W(SEAT HEATER),BLUE,TRIM8#
main71420-2B680-06i198809-198911
***,W(VERTICAL ADJUSTER & SEAT HEATER),SABLE,TRIM4#
main71420-2B681-03i198911-199011
***,W(VERTICAL ADJUSTER) & W(SEAT HEATER),GARY,TRIM1#
main71420-2B681-04i198911-199011
***,W(VERTICAL ADJUSTER) & W(SEAT HEATER),DARK BLUE,TRIM8#
main71420-2B681-06i198911-199011
***,W(VERTICAL ADJUSTER) & W(SEAT HEATER),SABLE,TRIM4#
main71420-2B682-03i199011-199211
***,W(VERTICAL ADJUSTER & SEAT HEATER),GRAY,TRIM1#
main71420-2B682-04i199011-199211
***,W(VERTICAL ADJUSTER & SEAT HEATER),DARK BLUE,TRIM8#
main71420-2B682-06i199011-199203
***,W(VERTICAL ADJUSTER & SEAT HEATER),SABLE,TRIM4#
main71420-2B720-03i198712-198911
***,W(SPORT SEAT & HEATER REAR DUCT & SEAT HEATER),GRAY,TRIM1#
main71420-2B721-03i198911-199203
***,W(SPORT SEAT) & W(HEATER REAR DUCT) & W(SEAT HEATER),GARY,TRIM1#
main71420-2B730-03i198712-198911
***,W(HEATER REAR DUCT),GRAY,TRIM1#
main71420-2B730-04i198712-198911
***,W(HEATER REAR DUCT),BLUE,TRIM8#
main71420-2B730-06i198712-198911
***,W(HEATER REAR DUCT),SABLE,TRIM4#
main71420-2B731-03i198911-199211
***,W(HEATER REAR DUCT),GRAY,TRIM1#
main71420-2B731-04i198911-199211
***,W(HEATER REAR DUCT),DARK BLUE,TRIM8#
main71420-2B731-06i198911-199203
***,W(HEATER REAR DUCT),SABLE,TRIM4#
main71420-2D040-03i198712-198911
***,W(SPORT SEAT),GRAY,TRIM1#
main71420-2D041-03i198911-199203
***,W(SPORT SEAT),GARY,TRIM1#
main71420-2D050-03i198712-198911
***,GRAY,TRIM1#
main71420-2D050-04i198712-198911
***,BLUE,TRIM8#
main71420-2D050-06i198712-198911
***,SABLE,TRIM4#
main71420-2D051-03i198911-199211
***,GRAY,TRIM1#
main71420-2D051-04i198911-199211
***,DARK BLUE,TRIM8#
main71420-2D051-06i198911-199203
***,SABLE,TRIM4#
main71420-2D070-03i198712-198911
***,GRAY,TRIM1#
main71420-2D070-04i198712-198911
***,BLUE,TRIM8#
main71420-2D070-06i198712-198911
***,SABLE,TRIM4#
main71420-2D071-03i198911-199203
***,GRAY,TRIM1#
main71420-2D071-04i198911-199203
***,DARK BLUE,TRIM8#
main71420-2D071-06i198911-199203
***,SABLE,TRIM4#
main71420-2D080-03i198712-198911
***,W(SEAT HEATER),GRAY,TRIM1#
main71420-2D080-04i198712-198911
***,W(SEAT HEATER),BLUE,TRIM8#
main71420-2D080-06i198712-198911
***,W(SEAT HEATER),SABLE,TRIM4#
main71420-2D081-03i198911-199203
***,W(SEAT HEATER),GRAY,TRIM1#
main71420-2D081-04i198911-199203
***,W(SEAT HEATER),DARK BLUE,TRIM8#
main71420-2D081-06i198911-199203
***,W(SEAT HEATER),SABLE,TRIM4#
main71420-2D090-03i198712-198911
***,W(SPORT SEAT),GRAY,TRIM1#
main71420-2D091-03i198911-199203
***,W(SPORT SEAT),GARY,TRIM1#
main71420-2D100-03i198712-198911
***,W(SPORT SEAT & SEAT HEATER),GRAY,TRIM1#
main71420-2D101-03i198911-199203
***,W(SPORT SEAT) & (SEAT HEATER),GARY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-2D170-03i198712-198911
***,GRAY,TRIM1#
main71430-2D170-04i198712-198911
***,BLUE,TRIM8#
main71430-2D220-03i198808-198911
***,COLD SPEC & W(FABRIC SEAT & SEAT HEATER),GRAY,TRIM1#
main71430-2D220-04i198808-198911
***,COLD SPEC & W(FABRIC SEAT & SEAT HEATER),BLUE,TRIM8#
main71430-2D320-03i198808-198911
***,W(FABRIC SEAT),GRAY,TRIM1#
main71430-2D320-04i198808-198911
***,W(FABRIC SEAT),BLUE,TRIM8#
main71430-2D350-03i198808-198911
***,COLD SPEC & W(FABRIC SEAT & SEAT HEATER & VERTICAL ADJUSTER),GRAY,GRAY,TRIM1#
main71430-2D350-04i198808-198911
***,COLD SPEC & W(FABRIC SEAT & SEAT HEATER & VERTICAL ADJUSTER),BLUE,BLUE,TRIM8#
main71440-21020-03i199011-199211
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-21020-04i199011-199211
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71440-2B790-03i198712-198911
***,GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-2B790-04i198712-198911
***,BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71440-2B790-06i198712-198911
***,SABLE,TRIM4#
main71440-2B791-03i198911-199011
***,GARY,TRIM1#
main71440-2B791-04i198911-199011
***,DARK BLUE,TRIM8#
main71440-2B791-06i198911-199011
***,SABLE,TRIM4#
main71440-2B792-03i199011-199211
***,GRAY,TRIM1#
main71440-2B792-04i199011-199211
***,DARK BLUE,TRIM8#
main71440-2B792-06i199011-199203
***,SABLE,TRIM4#
main71440-2B820-03i198712-198911
***,GRAY,TRIM1#
main71440-2B820-04i198712-198911
***,BLUE,TRIM8#
main71440-2B820-06i198712-198911
***,SABLE,TRIM4#
main71440-2B821-03i198911-199211
***,GRAY,TRIM1#
main71440-2B821-04i198911-199211
***,DARK BLUE,TRIM8#
main71440-2B821-06i198911-199203
***,SABLE,TRIM4#
main71440-2B860-03i198712-198911
***,COLD SPEC & W(SEAT HEATER),GRAY,TRIM1#; ***,W(SEAT HEATER),GRAY,TRIM1#
main71440-2B860-04i198712-198911
***,COLD SPEC & W(SEAT HEATER),BLUE,TRIM8#; ***,W(SEAT HEATER),BLUE,TRIM8#
main71440-2B860-06i198712-198911
***,W(SEAT HEATER),SABLE,TRIM4#
main71440-2B861-03i198911-199011
***,W(SEAT HEATER),GARY,TRIM1#
main71440-2B861-04i198911-199011
***,W(SEAT HEATER),DARK BLUE,TRIM8#
main71440-2B861-06i198911-199011
***,W(SEAT HEATER),SABLE,TRIM4#
main71440-2B862-03i199011-199203
***,W(SEAT HEATER),GRAY,TRIM1#
main71440-2B862-04i199011-199203
***,W(SEAT HEATER),DARK BLUE,TRIM8#
main71440-2B862-06i199011-199203
***,W(SEAT HEATER),SABLE,TRIM4#
main71440-2B880-03i198712-198911
***,W(SEAT HEATER),GRAY,TRIM1#
main71440-2B880-04i198712-198911
***,W(SEAT HEATER),BLUE,TRIM8#
main71440-2B880-06i198712-198911
***,W(SEAT HEATER),SABLE,TRIM4#
main71440-2B881-03i198911-199203
***,W(SEAT HEATER),GRAY,TRIM1#
main71440-2B881-04i198911-199203
***,W(SEAT HEATER),DARK BLUE,TRIM8#
main71440-2B881-06i198911-199203
***,W(SEAT HEATER),SABLE,TRIM4#
main71440-2D030-03i198712-198911
***,GRAY,TRIM1#
main71440-2D030-04i198712-198911
***,BLUE,TRIM8#
main71440-2D030-06i198712-198911
***,SABLE,TRIM4#
main71440-2D031-03i198911-199203
***,GRAY,TRIM1#
main71440-2D031-04i198911-199203
***,DARK BLUE,TRIM8#
main71440-2D031-06i198911-199203
***,SABLE,TRIM4#
main71440-2D050-03i198712-198911
***,W(SPORT SEAT),GRAY,TRIM1#
main71440-2D051-03i198911-199203
***,W(SPORT SEAT),GARY,TRIM1#
main71440-2D140-03i198712-198911
***,W(SPORT SEAT & SEAT HEATER),GRAY,TRIM1#
main71440-2D141-03i198911-199203
***,W(SPORT SEAT) & (SEAT HEATER),GARY,TRIM1#
main71440-2D280-03i198712-198911
***,W(SPORT SEAT),GRAY,TRIM1#
main71440-2D281-03i198911-199203
***,W(SPORT SEAT),GARY,TRIM1#
main71440-2D370-03i198911-199011
W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-2D370-04i198911-199011
W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71440-2D370-06i198911-199011
W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71440-2D371-03i199011-199203
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-2D371-04i199011-199203
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71440-2D371-06i199011-199203
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71440-95508-03i198712-198911
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71440-95508-04i198712-198911
***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71440-95509-03i198911-199011
***,W(VERTICAL ADJUSTER),GARY,TRIM1#
main71440-95509-04i198911-199011
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-21010-03i198911-199011
***,W(SEAT HEATER),GRAY,TRIM1#
main71430-21010-04i198911-199011
***,W(SEAT HEATER),DARK BLUE,TRIM8#
main71430-21011-03i199011-199211
***,W(SEAT HEATER),GRAY,TRIM1#
main71430-21011-04i199011-199211
***,W(SEAT HEATER),DARK BLUE,TRIM8#
main71430-2D170-03i198712-198911
***,GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71430-2D170-04i198712-198911
***,BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER),BLUE,TRIM8#
main71430-2D170-06i198712-198911
***,SABLE,TRIM4#
main71430-2D171-03i198911-199011
***,GARY,TRIM1#
main71430-2D171-04i198911-199011
***,DARK BLUE,TRIM8#
main71430-2D171-06i198911-199011
***,SABLE,TRIM4#
main71430-2D172-03i199011-199211
***,GRAY,TRIM1#
main71430-2D172-04i199011-199211
***,DARK BLUE,TRIM8#
main71430-2D172-06i199011-199203
***,SABLE,TRIM4#
main71430-2D190-03i198712-198911
***,GRAY,TRIM1#
main71430-2D190-04i198712-198911
***,BLUE,TRIM8#
main71430-2D190-06i198712-198911
***,SABLE,TRIM4#
main71430-2D191-03i198911-199203
***,GRAY,TRIM1#
main71430-2D191-04i198911-199203
***,DARK BLUE,TRIM8#
main71430-2D191-06i198911-199203
***,SABLE,TRIM4#
main71430-2D210-03i198712-198911
***,W(SPORT SEAT),GRAY,TRIM1#
main71430-2D211-03i198911-199203
***,W(SPORT SEAT),GARY,TRIM1#
main71430-2D220-03i198712-198911
***,COLD SPEC & W(SEAT HEATER),GRAY,TRIM1#; ***,W(SEAT HEATER),GRAY,TRIM1#
main71430-2D220-04i198712-198911
***,COLD SPEC & W(SEAT HEATER),BLUE,TRIM8#; ***,W(SEAT HEATER),BLUE,TRIM8#
main71430-2D220-06i198712-198911
***,W(SEAT HEATER),SABLE,TRIM4#
main71430-2D230-03i198712-198911
***,W(SEAT HEATER),GRAY,TRIM1#
main71430-2D230-04i198712-198911
***,W(SEAT HEATER),BLUE,TRIM8#
main71430-2D230-06i198712-198911
***,W(SEAT HEATER),SABLE,TRIM4#
main71430-2D231-03i198911-199203
***,W(SEAT HEATER),GRAY,TRIM1#
main71430-2D231-04i198911-199203
***,W(SEAT HEATER),DARK BLUE,TRIM8#
main71430-2D231-06i198911-199203
***,W(SEAT HEATER),SABLE,TRIM4#
main71430-2D270-03i198712-198911
***,GRAY,TRIM1#
main71430-2D270-04i198712-198911
***,BLUE,TRIM8#
main71430-2D270-06i198712-198911
***,SABLE,TRIM4#
main71430-2D271-03i198911-199211
***,GRAY,TRIM1#
main71430-2D271-04i198911-199211
***,DARK BLUE,TRIM8#
main71430-2D271-06i198911-199203
***,SABLE,TRIM4#
main71430-2D320-03i198712-198911
***,GRAY,TRIM1#
main71430-2D320-04i198712-198911
***,BLUE,TRIM8#
main71430-2D320-06i198712-198911
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71430-2D321-03i198911-199011
***,GARY,TRIM1#
main71430-2D321-04i198911-199011
***,DARK BLUE,TRIM8#
main71430-2D321-06i198911-199011
***,W(VERTICAL ADJUSTER),SABLE,TRIM4#
main71430-2D322-03i199011-199211
***,W(VERTICAL ADJUSTER),GRAY,TRIM1#
main71430-2D322-04i199011-199211
***,W(VERTICAL ADJUSTER),DARK BLUE,TRIM8#
main71430-2D322-06i199011-199203
***,SABLE,TRIM4#
main71430-2D350-03i198712-198911
***,COLD SPEC & W(SEAT HEATER & VERTICAL ADJUSTER),GRAY,GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER & SEAT HEATER),GRAY,TRIM1#
main71430-2D350-04i198712-198911
***,COLD SPEC & W(SEAT HEATER & VERTICAL ADJUSTER),BLUE,BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER & SEAT HEATER),BLUE,TRIM8#
main71430-2D350-06i198712-198809
***,W(VERTICAL ADJUSTER & SEAT HEATER),SABLE,TRIM4#
main71430-2D351-03i198911-199011
***,W(VERTICAL ADJUSTER & SEAT HEATER),GARY,TRIM1#; ***,W(VERTICAL ADJUSTER) & W(SEAT HEATER),GARY,TRIM1#
main71430-2D351-04i198911-199011
***,W(VERTICAL ADJUSTER & SEAT HEATER),DARK BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER) & W(SEAT HEATER),DARK BLUE,TRIM8#
main71430-2D351-06i198911-199011
***,W(SEAT HEATER),SABLE,TRIM4#; ***,W(VERTICAL ADJUSTER) & W(SEAT HEATER),SABLE,TRIM4#
main71430-2D352-03i199011-199211
***,W(SEAT HEATER & VERTICAL ADJUSTER),GRAY,GRAY,TRIM1#; ***,W(VERTICAL ADJUSTER & SEAT HEATER),GRAY,TRIM1#
main71430-2D352-04i199011-199211
***,W(SEAT HEATER & VERTICAL ADJUSTER),DARK BLUE,DARK BLUE,TRIM8#; ***,W(VERTICAL ADJUSTER & SEAT HEATER),DARK BLUE,TRIM8#
main71430-2D352-06i199011-199203
***,W(SEAT HEATER),SABLE,TRIM4#
main71430-2D380-03i198712-198911
***,W(SPORT SEAT & SEAT HEATER),GRAY,TRIM1#
main71430-2D381-03i198911-199203
***,W(SPORT SEAT) & (SEAT HEATER),GARY,TRIM1#
main71430-2D550-03i198712-198911
***,W(SPORT SEAT),GRAY,TRIM1#
main71430-2D551-03i198911-199203
***,W(SPORT SEAT),GARY,TRIM1#
main71440-2B790-03i198808-198911
***,W(FABRIC SEAT),GRAY,TRIM1#
main71440-2B790-04i198712-198911
***,BLUE,TRIM8#
main71440-2B860-03i198808-198911
***,COLD SPEC & W(FABRIC SEAT & SEAT HEATER),GRAY,TRIM1#
main71440-2B860-04i198808-198911
***,COLD SPEC & W(FABRIC SEAT & SEAT HEATER),BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71506-20040i198911-199203
W(SEAT HEATER & VERTICAL ADJUSTER)
main71506-20100i198712-199211
W(VERTICAL ADJUSTER)
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-20060i198806-198911
main71505-20110i198712-199211
W(VERTICAL ADJUSTER)
main71506-20100i198712-198911
W(VERTICAL ADJUSTER)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-20510i198712-198911
main71511-20511i198911-199211
main71511-20520i198712-199203
W(SPORT SEAT)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-20510i198712-198911
main71511-20511i198911-199211
main71511-20520i198712-199203
W(SPORT SEAT)
71553BPAD, FRONT SEATBACK, B
main71553-20150i198712-199211
W(SPORTS SEAT)
main71553-20160i198712-199211
W(VERTICAL ADJUSTER)
main71554-20130i198911-199203
main71554-20140i198712-198911
71554PAD, FRONT SEATBACK, C
main71553-20150i198806-198911
COLD AREA SPEC
main71553-20160i198712-198911
W(VERTICAL ADJUSTER)
main71554-20140i198712-199211
W(VERTICAL ADJUSTER)
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-20420i198911-199211
main71610-20430i198712-198911
W(HEATER REAR DUCT)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-20230i198911-199211
main71620-20260i198712-199203
71753TRAY, FRONT SEAT UNDER
main71753-20050i198712-199211
TYPE A
main71753-20070i198712-199211
TYPE B
71831ACOVER, FRONT SEAT HINGE
main71831-10010×2i198712-198802
main71831-12010×2i199008-199211
71910AHEADREST ASSY, FRONT SEAT
main71910-2B050-03×2i198712-198911
W(SPORT SEAT),GRAY,TRIM1#
main71910-2B051-03×2i198911-199203
W(SPORT SEAT),GARY,TRIM1#
main71910-2B060-03×2i198712-198911
GRAY,TRIM1#
main71910-2B060-04×2i198712-198911
BLUE,TRIM8#
main71910-2B060-06×2i198712-198911
SABLE,TRIM4#
main71910-2B061-03×2i198911-199211
GRAY,TRIM1#
main71910-2B061-04×2i198911-199211
DARK BLUE,TRIM8#
main71910-2B061-06×2i198911-199203
SABLE,TRIM4#
main71910-2B080-03i198712-198911
GRAY,TRIM1#
main71910-2B080-04i198712-198911
BLUE,TRIM8#
main71910-2B080-06×2i198712-198911
SABLE,TRIM4#
main71910-2B081-03×2i198911-199011
GRAY,TRIM1#
main71910-2B081-04×2i198911-199011
DARK BLUE,TRIM8#
main71910-2B081-06×2i198911-199011
SABLE,TRIM4#
main71910-2B082-03×2i199011-199202
GRAY,TRIM1#
main71910-2B082-04×2i199011-199203
DARK BLUE,TRIM8#
main71910-2B082-06×2i199011-199203
SABLE,TRIM4#
main71910-2B090-03×2i198712-198911
GRAY,TRIM1#
main71910-2B090-04×2i198712-198911
BLUE,TRIM8#
main71910-2B090-06×2i198712-198911
SABLE,TRIM4#
main71910-2B091-03×2i198911-199011
GRAY,TRIM1#
main71910-2B091-04×2i198911-199011
DARK BLUE,TRIM8#
main71910-2B091-06×2i198911-199011
SABLE,TRIM4#
main71910-2B092-03×2i199011-199203
GRAY,TRIM1#
main71910-2B092-04×2i199011-199203
DARK BLUE,TRIM8#
main71910-2B092-06×2i199011-199203
SABLE,TRIM4#
main71910-2B100-03×2i198712-198911
GRAY,TRIM1#
main71910-2B100-04×2i198712-198911
BLUE,TRIM8#
main71910-2B100-06×2i198712-198911
SABLE,TRIM4#
main71910-2B101-03×2i198911-199202
GRAY,TRIM1#
main71910-2B101-04×2i198911-199202
DARK BLUE,TRIM8#
main71910-2B101-06×2i198911-199202
SABLE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-03i198712-198806
W(LOCK),SHADOW GRAY,TRIM1#; W(LOCK),W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71930-12050-04i198806-198911
W(LOCK),DARK BLUE,TRIM8#; W(LOCK),W/O(REAR SEAT),DARK BLUE,TRIM8#
main71930-12050-06×2i198712-199203
W(LOCK),SABLE,TRIM4#
main71930-12050-14×2i198911-199211
W(LOCK),DARK BLUE,TRIM8#
main71931-12010-03×2i198712-198911
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-12010-04×2i198712-198911
W/O(LOCK),DARK BLUE,TRIM8#
main71931-12010-06×2i198712-199203
W/O(LOCK),SABLE,TRIM4#
main71931-12010-14×2i198911-199211
W/O(LOCK),DARK BLUE,TRIM8#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-20030i198712-199211
72760CADJUSTER ASSY, NO.3 SEAT RECLINING, LH
main72760-20050i198712-198911
W(VERTICAL ADJUSTER)
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72774-20030i198712-198911
W(VERTICAL ADJUSTER)
72791LEVER, LUMBAR SUPPORT
main72791-20030-03i198806-198911
SHADOW GRAY,TRIM1#; W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main72791-20030-14i198712-198806
DARK BLUE,TRIM8#
main72791-20030-16i198712-198806
SABLE,TRIM4#
main72791-20030-24i198911-199203
DARK BLUE,TRIM8#
main72791-20030-W3i199202-199211
DK.BLUE,TRIM8#
72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
main90520-01274i198806-198911
W(VERTICAL ADJUSTER)
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
9015950138
main90159-50138
9038612016
main90386-12016
9046818071
main90468-18071
9052308001
main90523-08001
9165540620
main91655-40620

33 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
