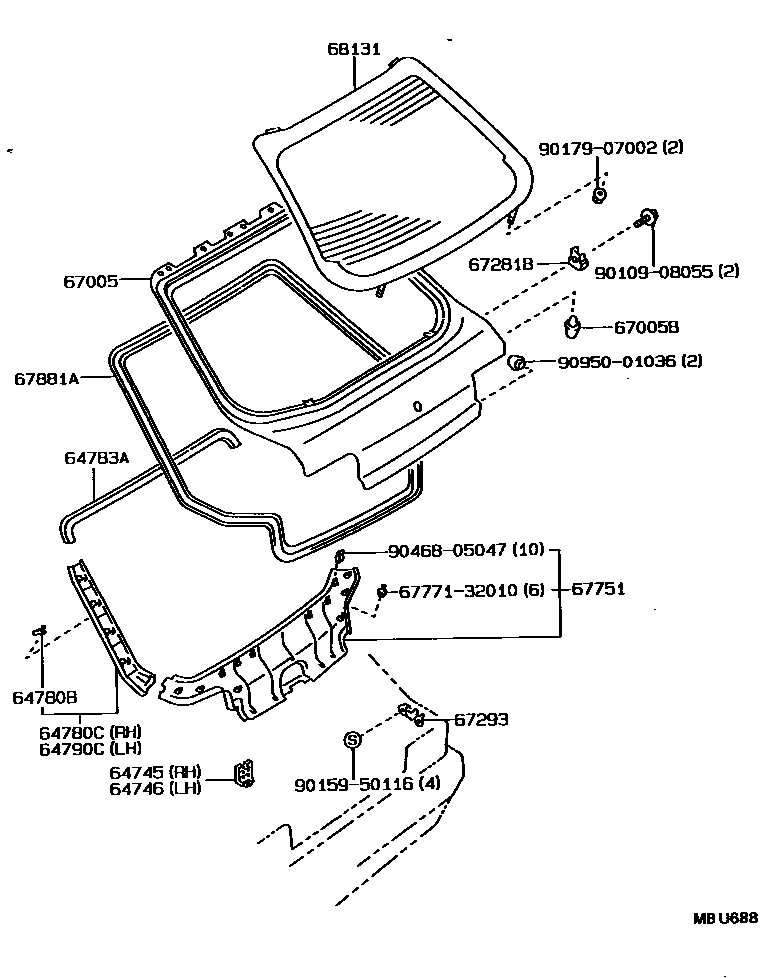

BACK DOOR PANEL & GLASS

0001 1 0002 1

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-20040-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

sub64745-20040

main64745-20040-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

sub64745-20040

main64745-20040-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub64745-20040

main64745-20040-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

sub64745-20040

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-20040-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

sub64746-20040

main64746-20040-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

sub64746-20040

main64746-20040-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub64746-20040

main64746-20040-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

sub64746-20040

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-10084iAT171,CT170,ST171..LB198712-199203

64780CPANEL ASSY, BACK DOOR TRIM, RH

main64780-20010-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

sub64780-20010

main64780-20010-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

sub64780-20010

main64780-20010-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub64780-20010

main64780-20010-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

sub64780-20010

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-20030-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

main64783-20030-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

main64783-20030-06iAT171,CT170,ST171..LB198712-199203

BROWN,TRIM4#

main64783-20030-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

64790CPANEL ASSY, BACK DOOR TRIM, LH

main64790-20010-03iAT171,CT170,ST171..LB..GL198712-199203

GRAY,TRIM1#

sub64790-20010

main64790-20010-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

sub64790-20010

main64790-20010-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

sub64790-20010

main64790-20010-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

sub64790-20010

67005PANEL SUB-ASSY, BACK DOOR

main67005-21400iAT171,CT170..WG..XL199106-199211

main67005-21420iAT171,CT170..WG..XL199106-199211

W(REAR WINDOW WIPER)

main67005-21430iAT171..WG..GL199106-199211

main67005-2B060iAT171,ST171..LB..GL..G198712-199203

SWITZERLAND SPEC & W(REAR SPOILER)

main67005-2B080iST171..LB..G;AT171..LB..G..CBR198712-199203

SWITZERLAND SPEC

main67005-2B090iAT171,CT170,ST171..LB..GL198712-199203

W(REAR SPOILER)

main67005-2B100iAT171,CT170,ST171..LB198712-199203

main67005-95500iAT171,CT170,ST171..WG..XL198712-199106

W(REAR WINDOW WIPER)

sub67005-21420

main67005-95500iAT171..WG..GL198712-198911

sub67005-21420

main67005-95502iAT171,CT170,ST171..WG..XL198712-199106

sub67005-21400

main67005-95508iAT171..WG..GL198911-199106

sub67005-21430

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-17003iAT171,CT170,ST171..LB198712-199203

67281BSTOPPER, BACK DOOR, LOWER

main67281-20020iAT171,CT170,ST171..LB198712-199203

main67281-95500iAT171,CT170,ST171..WG198712-199211

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-20020iAT171,CT170,ST171..LB198712-199203

67751BOARD, BACK DOOR TRIM

main64780-91C01-03iAT171,CT170,ST171..WG198712-199211

GRAY,TRIM1#

sub64781-91C01

main64780-91C01-04iAT171,CT170,ST171..WG198712-198911

BLUE,TRIM8#

sub64781-91C01

main64780-91C01-14iAT171,CT170..WG198911-199211

DARK BLUE,TRIM8#

sub64781-91C01

main64781-20060-03iAT171,CT170,ST171..LB198712-199203

GRAY,TRIM1#

main64781-20060-04iAT171,CT170,ST171..LB198712-198911

BLUE,TRIM8#

main64781-20060-06iAT171,CT170,ST171..LB198712-199203

SABLE,TRIM4#

main64781-20060-14iAT171,CT170,ST171..LB198911-199203

DARK BLUE,TRIM8#

67881AWEATHERSTRIP, BACK DOOR

main67881-20080iAT171,CT170,ST171..LB198712-199203

main67881-95500iAT171,CT170,ST171..WG198712-199211

68131GLASS, BACK DOOR

main68105-91C02iAT171,CT170,ST171..WG198712-199211

*EHTT,T=3.5

main68105-95500iAT171..LHD..WG..CBR;CT170,ST171..LHD..WG198712-199211

*EHTT,T=3.5,COLD SPEC

main68131-20290iAT171,CT170..LHD..LB..(CBR,DSL)198712-198911

*EHTT,T=4.0,COLD SPEC

main68131-20290iAT171,CT170,ST171..LB198712-199203

*EHTT,T=4.0

main68131-20320iST171..LHD..LB;AT171,CT170..LHD..LB..(CBR,DSL)198712-198911

*EHTT,T=4.0,COLD SPEC(NORTHERN EUROPE)

main68131-20320iAT171,CT170,ST171..LHD..LB198911-199203

*EHTT,T=4.0,COLD SPEC

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

9010908055

main90109-08055

9015950116

main90159-50116

9017907002

main90179-07002

9046805047

main90468-05047

9095001036

main90950-01036

19 parts on this diagram · 2 diagrams in section
