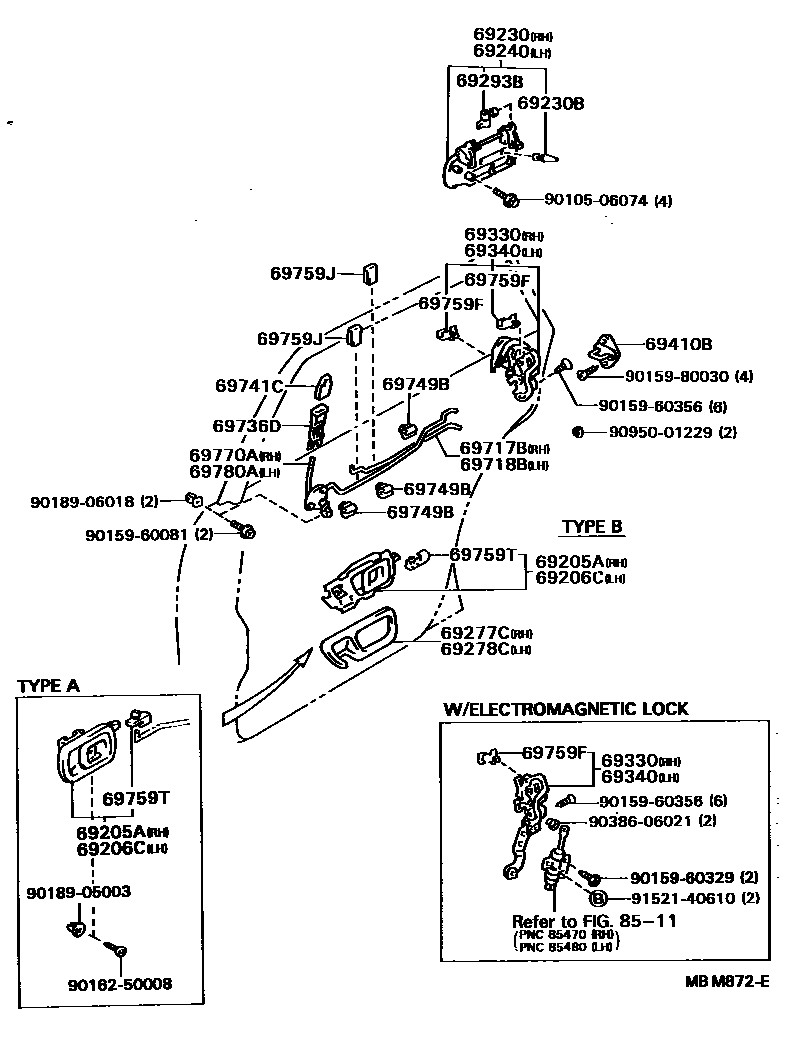

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-20040-03iST171;CT170..RHD;AT171..LB,WG;AT171..SED..GL;CT170..LHD..(LB,WG)198712-199203

GRAY,TRIM1#,TYPE A

sub69205-20040

main69205-20040-03iAT171,CT170..SED..XL198712-199211

W(POWER WINDOW),GRAY,TRIM1#,TYPE A

sub69205-20040

main69205-20040-04iAT171,CT170..SED..XL198712-198911

W(POWER WINDOW),BLUE,TRIM8#,TYPE A

sub69205-20040

main69205-20040-04iST171;CT170..RHD;AT171..LB,WG;AT171..SED..GL;CT170..LHD..(LB,WG)198712-199005

BLUE,TRIM8#,TYPE A

sub69205-20040

main69205-20040-06iAT171,CT170..SED..XL198712-199203

SABLE,TRIM4#,TYPE A

sub69205-20040

main69205-20040-06iAT171,CT170..SED..XL198712-199203

W(POWER WINDOW),SABLE,TRIM4#,TYPE A

sub69205-20040

main69205-20040-14iST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL199008-199211

W(POWER WINDOW),DARK BLUE,TRIM8#,TYPE A

sub69205-20040

main69205-20040-14iAT171,CT170..SED..XL199008-199203

DARK BLUE,TRIM8#,TYPE A

sub69205-20040

main69205-20050-03iAT171,CT170..SED..XL199011-199211

GRAY,TRIM1#

sub69205-20050

main69205-20050-03iST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL198712-199211

GRAY,TRIM1#,TYPE B

sub69205-20050

main69205-20050-03iST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL199011-199211

W(POWER WINDOW),GRAY,TRIM1#,TYPE B

sub69205-20050

main69205-20050-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#,TYPE B

sub69205-20050

main69205-20050-06iAT171,CT170..SED..XL199011-199203

SABLE,TRIM4#

sub69205-20050

main69205-20050-06iAT171,CT170,ST171..LB,SED198712-199203

SABLE,TRIM4#,TYPE B

sub69205-20050

main69205-20050-06iAT171,CT170..SED..XL199011-199203

W(POWER WINDOW),SABLE,TRIM4#,TYPE B

sub69205-20050

main69205-20050-14iAT171,CT170..SED..XL199011-199211

DARK BLUE,TRIM8#

sub69205-20050

main69205-20050-14iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#,TYPE B

sub69205-20050

main69205-20050-14iAT171,CT170..SED..XL199011-199211

W(POWER WINDOW),DARK BLUE,TRIM8#,TYPE B

sub69205-20050

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-20040-03iAT171,CT170..SED..XL198712-198911

GRAY,TRIM1#,TYPE A

sub69206-20040

main69206-20040-03iAT171,CT170..SED..XL198712-198911

W(POWER WINDOW),GRAY,TRIM1#,TYPE A

sub69206-20040

main69206-20040-04iAT171,CT170..SED..XL198712-199005

BLUE,TRIM8#,TYPE A

sub69206-20040

main69206-20040-04iAT171,CT170..SED..XL198712-198911

W(POWER WINDOW),BLUE,TRIM8#,TYPE A

sub69206-20040

main69206-20040-06iAT171,CT170..SED..XL198712-198911

SABLE,TRIM4#,TYPE A

sub69206-20040

main69206-20040-06iAT171,CT170..SED..XL198712-198911

W(POWER WINDOW),SABLE,TRIM4#,TYPE A

sub69206-20040

main69206-20050-03iST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL199011-199211

GRAY,TRIM1#

sub69206-20050

main69206-20050-03iST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL199011-199211

W(POWER WINDOW),GRAY,TRIM1#,TYPE B

sub69206-20050

main69206-20050-03iAT171,CT170,ST171198712-199211

GRAY,TRIM1#,TYPE B

sub69206-20050

main69206-20050-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#,TYPE B

sub69206-20050

main69206-20050-06iCT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL199011-199203

SABLE,TRIM4#

sub69206-20050

main69206-20050-06iCT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL199011-199203

W(POWER WINDOW),SABLE,TRIM4#,TYPE B

sub69206-20050

main69206-20050-06iAT171,CT170..SED..XL198712-199203

SABLE,TRIM4#,TYPE B

sub69206-20050

main69206-20050-14iAT171,CT170..SED..XL198911-199211

DARK BLUE,TRIM8#,TYPE B

sub69206-20050

main69206-20050-14iAT171,CT170..SED..XL199011-199211

DARK BLUE,TRIM8#

sub69206-20050

main69206-20050-14iAT171,CT170..SED..XL199011-199211

W(POWER WINDOW),DARK BLUE,TRIM8#,TYPE B

sub69206-20050

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20140iAT171,CT170,ST171198712-199211

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iAT171,CT170,ST171198712-199211

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20140iAT171,CT170,ST171198712-199211

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-20070-03iAT171,CT170,ST171198712-199211

GRAY,TRIM1#

sub69277-20070

main69277-20070-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

sub69277-20070

main69277-20070-06iAT171,CT170,ST171..LB,SED198712-199203

SABLE,TRIM4#

sub69277-20070

main69277-20070-14iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#

sub69277-20070

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-20080-03iAT171,CT170,ST171198712-199211

GRAY,TRIM1#

sub69278-20080

main69278-20080-04iAT171,CT170,ST171198712-198911

BLUE,TRIM8#

sub69278-20080

main69278-20080-06iAT171,CT170,ST171..LB,SED198712-199203

SABLE,TRIM4#

sub69278-20080

main69278-20080-14iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#

sub69278-20080

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iAT171,CT170,ST171198712-199211

RH

main69293-12040iAT171,CT170,ST171198712-199211

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-20240iAT171,CT170,ST171198712-199211

main69330-20270iAT171,CT170,ST171198712-198911

W(ELECTROMAGNETIC LOCK)

main69330-20370iAT171,CT170,ST171198911-199211

W(ELECTROMAGNETIC LOCK)

69340LOCK ASSY, REAR DOOR, LH

main69340-20240iAT171,CT170,ST171198712-199211

main69340-20270iAT171,CT170,ST171198712-198911

W(ELECTROMAGNETIC LOCK)

main69340-20370iAT171,CT170,ST171198911-199211

W(ELECTROMAGNETIC LOCK)

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iAT171,CT170,ST171198712-199211

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-20090iAT171,CT170,ST171198712-199211

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-20090iAT171,CT170,ST171198712-199211

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-20060iAT171,CT170,ST171198712-199211

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-90K00-03iAT171,CT170,ST171198712-198911

SHADOW GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-34iAT171,CT170,ST171198712-198809

BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-36iAT171,CT170,ST171..LB,SED198712-199203

SABLE,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-43iAT171,CT170,ST171198911-199211

GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-54iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J0iAT171,CT170,ST171198809-198911

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20030iAT171,CT170,ST171198712-198911

OPEN CONTROL LINK

main69749-20030iAT171,CT170,ST171198807-198911

LOCKING CONTROL LINK

main69749-20030iAT171,CT170,ST171198911-199211

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24050iAT171,CT170,ST171198712-199211

LH

main69759-24060iAT171,CT170,ST171198712-199211

RH

69759JSILENCER, DOOR LOCK LINK

main69759-12011iAT171,CT170,ST171199008-199211

main69759-12011iAT171,CT170,ST171198712-198810

OPEN CONRTROL LINK

main69759-12011iAT171,CT170,ST171198810-199008

OPEN CONTROL LINK

main69759-30021iAT171,CT170,ST171199008-199211

main69759-30021iAT171,CT170,ST171198712-199008

LOCKING CONTROL LINK

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iAT171,CT170,ST171198712-199211

LH

main69759-24070iAT171,CT170,ST171198712-199211

RH

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-20060iAT171,CT170,ST171198712-199211

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-20060iAT171,CT170,ST171198712-199211

8511

9010506074

main90105-06074

9015960081

main90159-60081

9015960329

main90159-60329

9015960356

main90159-60356

9015980030

main90159-80030

9016250008

main90162-50008

9018905003

main90189-05003

9018906018

main90189-06018

9038606021

main90386-06021

9095001229

main90950-01229

9152140610

main91521-40610
