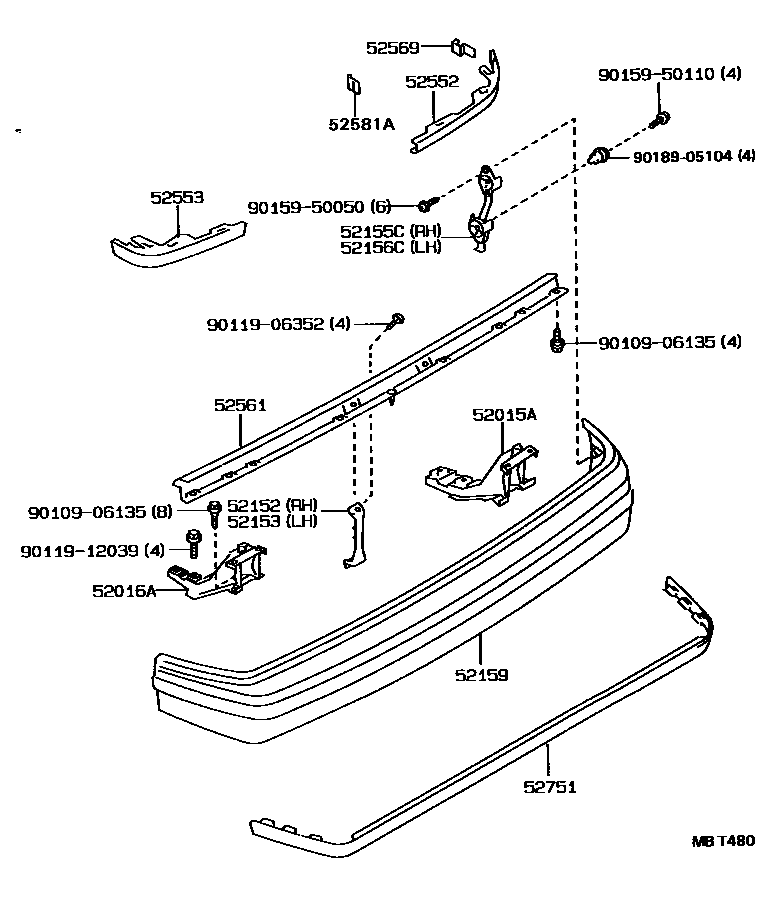

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-20190iAT171,CT170,ST171..LB,SED198712-199203

main52181-95502iAT171,CT170,ST171..WG198712-199211

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-20070iAT171,CT170,ST171..LB,SED198712-199203

main52181-95502iAT171,CT170,ST171..WG198712-199211

52152BAR, REAR BUMPER, RH

main52152-20150iAT171,CT170,ST171..LB,SED198712-199203

52153BAR, REAR BUMPER, LH

main52152-20150iAT171,CT170,ST171..LB,SED198712-199203

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-20180iAT171,CT170,ST171..LB,SED198712-198911

main52155-20260iAT171,CT170,ST171..LB,SED198911-199203

main52155-95500iAT171,CT170,ST171..WG198712-199211

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52155-20180iAT171,CT170,ST171..LB,SED198712-198911

main52155-20260iAT171,CT170,ST171..LB,SED198911-199203

main52155-95500iAT171,CT170,ST171..WG198712-199211

52159COVER, REAR BUMPER

main52159-20430iAT171,CT170,ST171..LB,SED198712-199203

main52159-95502iAT171,CT170,ST171..WG198712-199211

52552FILLER, REAR BUMPER, RH

main52552-20010iAT171,CT170,ST171..LB,SED198712-199203

52553FILLER, REAR BUMPER, LH

main52553-20010iAT171,CT170,ST171..LB,SED198712-199203

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-20100iAT171,CT170,ST171..LB,SED198712-199203

main52561-95501iAT171,CT170,ST171..WG198712-199211

52569PAD, REAR BUMPER FILLER

main52569-20010×2iAT171,CT170,ST171..LB,SED198712-199203

52581APROTECTOR, REAR BUMPER FILLER

main52581-20010×2iAT171,CT170,ST171..LB,SED198712-199203

52751MOULDING, REAR BUMPER

main52751-20190iAT171,CT170,ST171..(LB,SED)..GL; AT171,CT170..(LB,SED)..XL199011-199203

CHROME PLATING MOULDING

main52751-20200iAT171,CT170,ST171..LB,SED198712-199203

9010906135

main90109-06135

9011906352

main90119-06352

9011912039

main90119-12039

9015950050

main90159-50050

9015950110

main90159-50110

9018905104

main90189-05104

19 parts on this diagram · 2 diagrams in section
