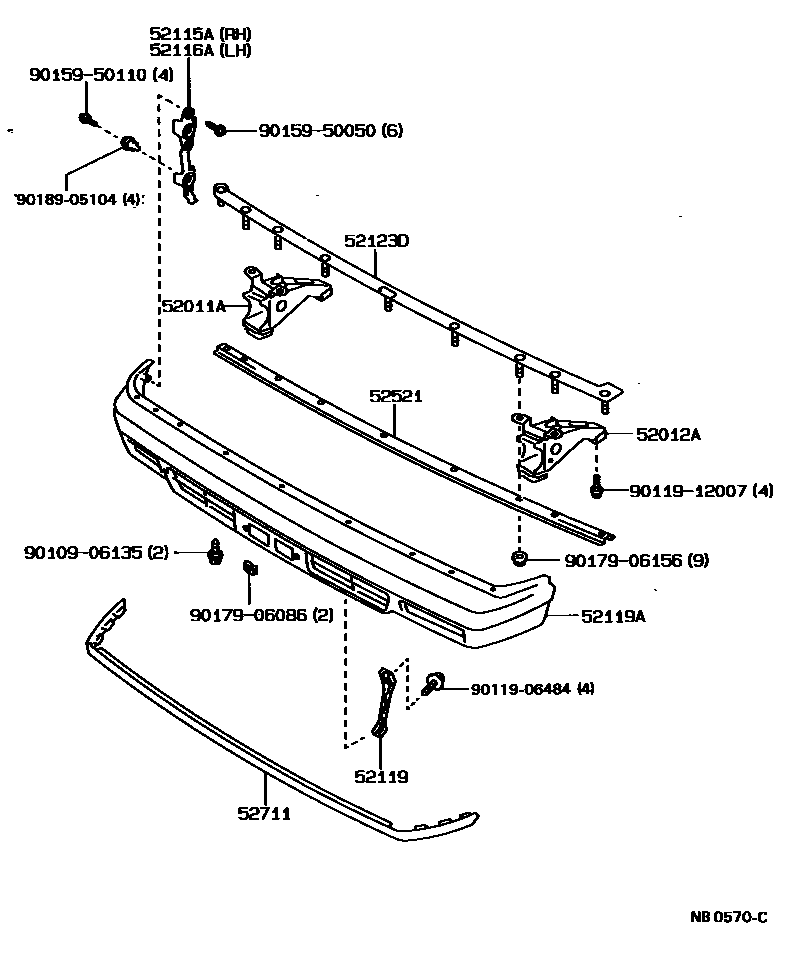

FRONT BUMPER & BUMPER STAY

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-20190iAT171,CT170,ST171198712-199211

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-20140iAT171,CT170,ST171198712-199211

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20230iAT171,CT170,ST171198712-198911

sub52115-20290

main52115-20290iAT171,CT170,ST171198911-199211

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-20230iAT171,CT170,ST171198712-198911

sub52115-20290

main52115-20290iAT171,CT170,ST171198911-199211

52119STAY, FRONT BUMPER, CENTER

main52144-20140iAT171,CT170,ST171198712-199211

52119ACOVER, FRONT BUMPER

main52119-20440iAT171,CT170..(LB,SED)..XL198712-199211

main52119-20460iAT171,CT170,ST171198712-199211

W(HEADLAMP CLEANER)

52123DPLATE, FRONT BUMPER REINFORCEMENT

main52123-20060iAT171,CT170,ST171198712-199211

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20080iAT171,CT170,ST171198712-199211

52711MOULDING, FRONT BUMPER

main52711-20160iAT171,CT170,ST171..(LB,SED)..GL199011-199211

CHROME PLATING MOULDING

main52711-20170iAT171,CT170,ST171198712-199211

9010906135

main90109-06135

9011906484

main90119-06484

9011912007

main90119-12007

9015950050

main90159-50050

9015950110

main90159-50110

9017906086

main90179-06086

9017906156

main90179-06156

9018905104

main90189-05104

17 parts on this diagram · 1 diagram in section
