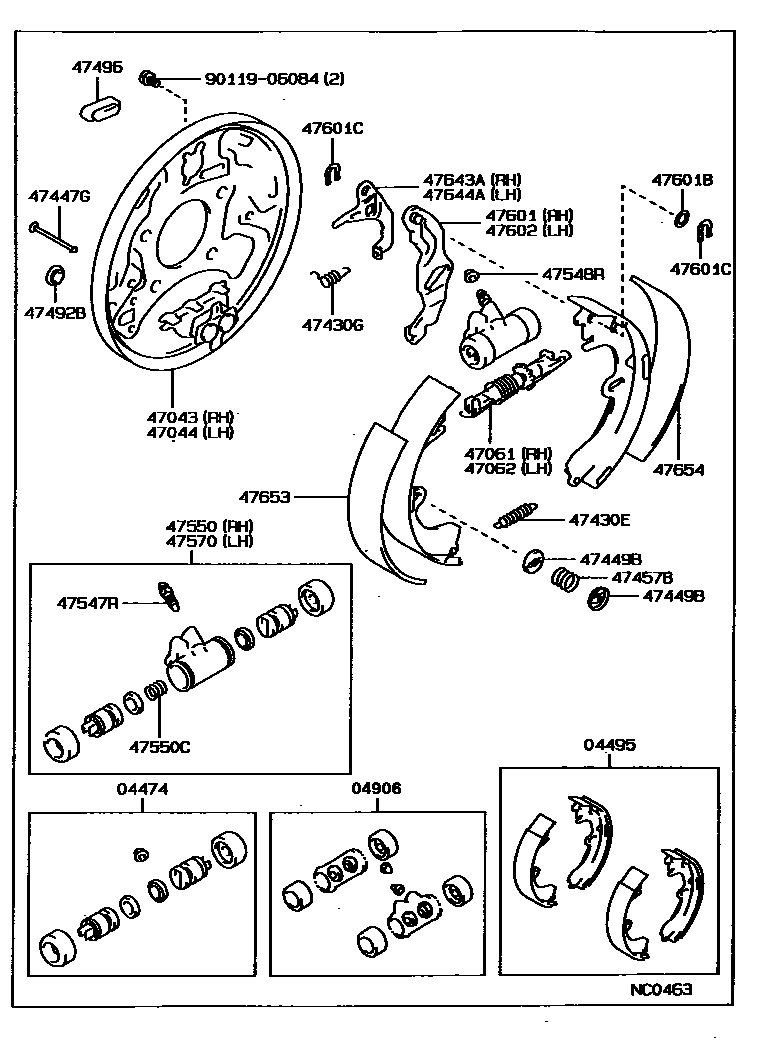

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-10032×2iAT171,CT170,ST171198712-199211

main04474-16020×2iAT171..RHD..SED198901-198911

SINGAPORE SPEC

04495SHOE KIT, REAR BRAKE

main04495-20092iAT171..RHD..SED198901-198911

SINGAPORE SPEC

main04495-32030iAT171,CT170,ST171198712-198809

main04495-32031iAT171,CT170,ST171198809-199211

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iAT171,CT170,ST171..LHD; AT171,CT170..RHD..(LB,SED)..GL; AT171,CT170..RHD..WG; ST171..RHD..LB198712-199211

main04906-16020iAT171..RHD..SED198901-198911

SINGAPORE SPEC

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-32010iAT171,CT170,ST171198712-199211

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-32010iAT171,CT170,ST171198712-199211

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-20020iAT171,CT170,ST171198911-199211

main47061-32010iAT171,CT170,ST171198712-198911

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-20020iAT171,CT170,ST171198911-199211

main47062-32010iAT171,CT170,ST171198712-198911

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034×2iAT171,CT170,ST171198712-198911

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036×2iAT171,CT170,ST171198712-198911

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010×4iAT171,CT170,ST171198712-198911

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030×8iAT171,CT170,ST171198712-199008

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017×2iAT171,CT170,ST171199008-199211

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010×2iAT171,CT170,ST171198712-199008

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iAT171,CT170,ST171198712-199008

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAT171,CT170,ST171199008-199211

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iAT171,CT170,ST171198712-199211

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-16030iAT171..RHD..SED198901-198911

SINGAPORE SPEC

main47550-20130iAT171,CT170,ST171198911-199211

main47550-32010iAT171,CT170,ST171198712-198911

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006×2iAT171,CT170,ST171198712-199008

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-16010iAT171..RHD..SED198901-198911

SINGAPORE SPEC

main47570-20040iAT171,CT170,ST171198911-199211

main47570-32010iAT171,CT170,ST171198712-198911

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iAT171,CT170,ST171198712-199211

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAT171,CT170,ST171198712-199211

T=0.3

main90564-08151iAT171,CT170,ST171198712-199211

T=0.6

main90564-08152iAT171,CT170,ST171198712-199211

T=0.9

main90564-08172iAT171,CT170,ST171198712-199211

T=0.2

main90564-08173iAT171,CT170,ST171198712-199211

T=0.4

main90564-08174iAT171,CT170,ST171198712-199211

T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iAT171,CT170,ST171198712-198911

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iAT171,CT170,ST171198712-199211

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-32010iAT171,CT170,ST171198712-199211

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-32010iAT171,CT170,ST171198712-199211

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-20130×2iAT171..RHD..SED198901-198911

SINGAPORE SPEC

main47651-32020×2iCT170..WG;AT171..LHD;ST171..LB,WG;ST171..LHD..SED;AT171..RHD..WG..XL;AT171,CT170..RHD..GL;CT170..LHD..(LB,SED)198712-199211

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-20130×2iAT171..RHD..SED198901-198911

SINGAPORE SPEC

main47651-32020×2iCT170..WG;AT171..LHD;ST171..LB,WG;ST171..LHD..SED;AT171..RHD..WG..XL;AT171,CT170..RHD..GL;CT170..LHD..(LB,SED)198712-199211

9011906084

main90119-06084

28 parts on this diagram · 1 diagram in section
