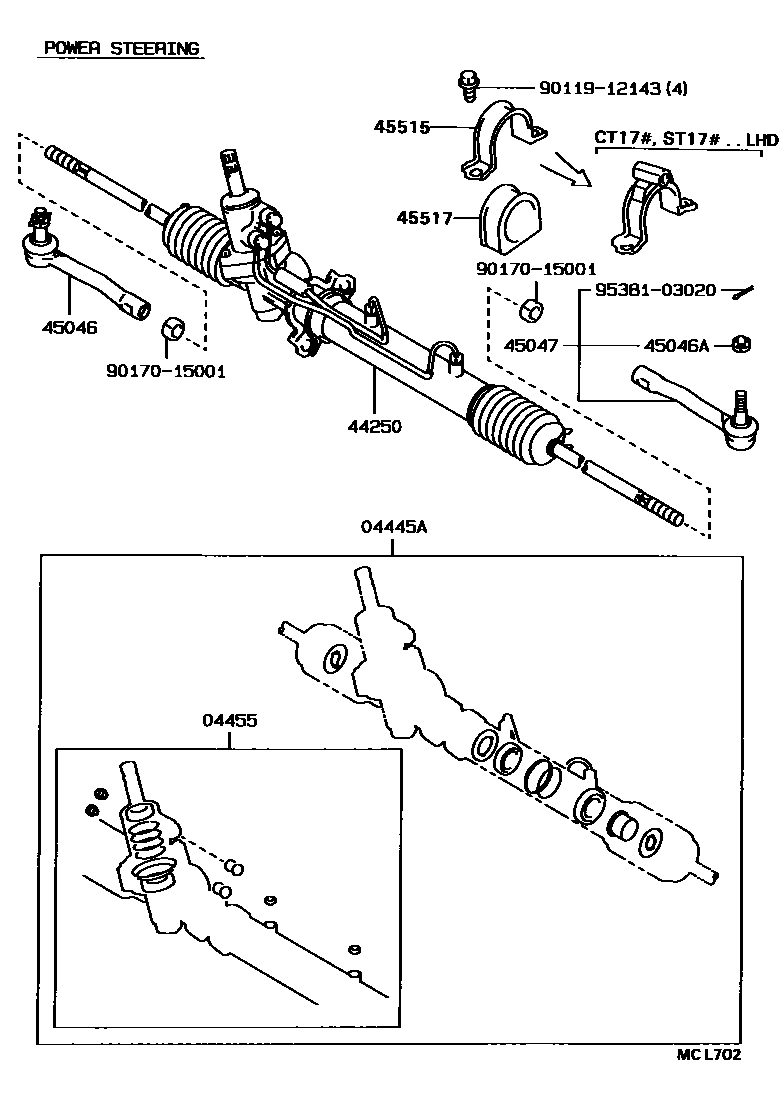

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20070iAT171..GL..EFI;AT171,CT170..CBR,DSL198712-199211

sub04445-20200

main04445-20080iST171..4FC;ST171..5F..GL198712-199203

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20060iAT171,CT170,ST171198712-199211

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20170iAT171,CT170..RHD198712-198911

main44250-20181iAT171,CT170..LHD198712-199211

main44250-20210iST171..RHD198712-198911

main44250-20221iST171..LHD198712-199203

main44250-20300iAT171,CT170..RHD198911-199211

main44250-20340iST171..RHD198911-199203

45046END SUB-ASSY, TIE ROD, RH

main45046-29165iAT171,CT170,ST171198712-199211

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAT171,CT170,ST171198712-199211

45047END SUB-ASSY, TIE ROD, LH

main45047-29045iAT171,CT170,ST171198712-199211

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20050iAT171;CT170,ST171..RHD198712-199211

main45515-20060iAT171198712-199211

W(POWER STEERING)

main45515-20070iCT170,ST171..LHD198712-199211

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20040iCT170198712-199211

W(POWER STEERING)

main45517-20050iST171198712-199203

main45517-20060iAT171198712-198911

main45517-20100iAT171198911-199211

9011912143

main90119-12143

9017015001

main90170-15001

9538103020

main95381-03020

11 parts on this diagram · 3 diagrams in section
